Hastelloy C22 Flange

Duplex Steel & Alloys is an established supplier and manufacturer of Hastelloy C22 Flanges. We are well known in the market to supply excellent quality Hastelloy C22 Flanges made from premium quality raw materials. Hastelloy C22 Flanges is made from a well-known and well-recognized nickel-chromium-molybdenum alloys called Hastelloy C-22® alloy (UNS N06022), whose main qualities include resistance to both oxidising and non-oxidizing chemicals as well as defence against pitting, crevice attack, and stress corrosion cracking.

In addition to offering superior resistance to oxidising media compared to the family standard, C-276 alloy, its high chromium concentration also confers outstanding resistance to chloride-induced pitting, a sneaky and unanticipated kind of attack to which stainless steels are susceptible. Hastelloy C22 Flanges have outstanding weldability, is exceptionally ductile, and can be formed readily into industrial components.

Alloy C22 Flange Price List, Hastelloy C22 Flanges, Alloy C22 Flange, Hastelloy® Alloy C22 Flange, Nickel Alloy C22 Flange, Hastelloy C22 Flange Suppliers in Mumbai, India.

Table of Content

Alloy C22 Flange Dimensions, Hastelloy® Alloy C22 Pipe Flange, ASTM B564 Hastelloy C22 Flanges, Hastelloy C22 Blind Flange, Alloy C22 Slip On Flange, Hastelloy C22 Flange Manufacturers in India.

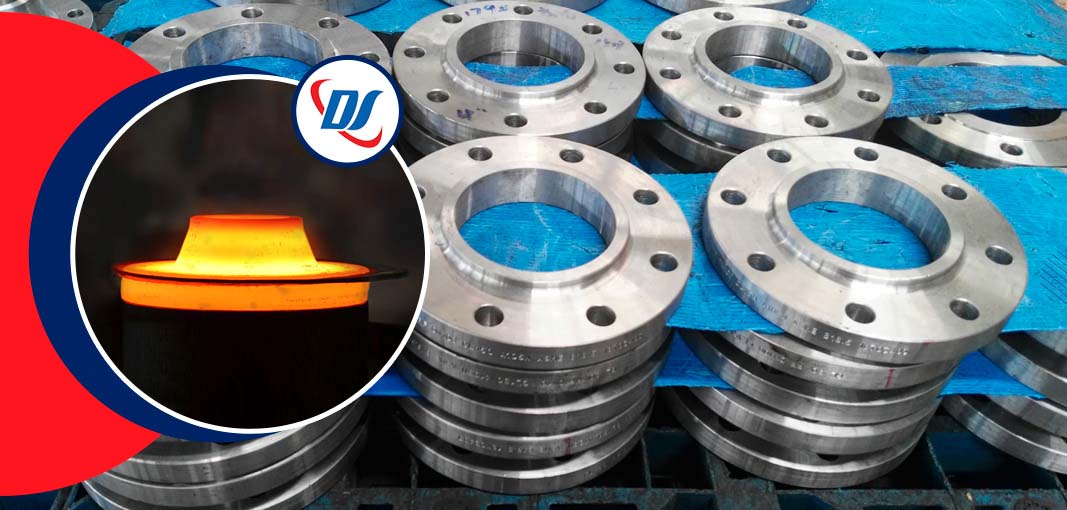

Hastelloy C22 Flanges

Additionally, Hastelloy C22 Pipe Flange provides the highest level of resistance to environments with reducing and oxidising conditions seen in process streams. This is advantageous in multipurpose plants where frequent "upset" situations exist. Hastelloy C22 Flange is suitable for the majority of chemical process applications in the as-welded condition because it resists the production of grain-boundary precipitates in the weld heat-affected zone. Due to the production of harmful phases above this temperature, Hastelloy C22 Flanges should not be utilised in service temperatures of more than 1250° F.

Hastelloy C22 Flanges are resistant to pitting, crevice corrosion and stress corrosion cracking and display outstanding resistance to both reducing and oxidizing media. Hastelloy C22 Flanges have excellent resistance to oxidizing aqueous media. Hastelloy C22 Flanges showcase resistance to a wide variety of chemical process environments including strong oxidizers such as ferric acids, acetic anhydride, and seawater and brine solutions. Hastelloy C22 Flanges resist the formation of grain-boundary precipitates in the weld heat-affected zone. Hastelloy C22 Flanges are easy to weld.


Hastelloy Alloy C22 Flanges Specifications

Standard ASTM B564 / ASME SB564
Dimensions ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Flange Size Chart 1/2" (15 NB) to 48" (1200NB), DN10~DN5000
Pressure Rating Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS 16 K, 5K, 10 K, 20 K, 30 K, 40 K, 63 K
Flange Connection / Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove, Flange Pipe.
Origin West Europe / Japan / Indian / USA / Korean
Types of Flanges Threaded / Screwed / Forged / Plate
Coating Yellow Transparent, Zinc Plated, Anti-rust Paint, Oil Black Paint, Cold and Hot Dip Galvanized
Test Of Flange Direct-reading Spectrograph, Ultrasonic flaw detector, Magnetic particle detector, X-ray detector, Hydrostatic testing machine.
Production technique Used Heat treated, Forged and Machined
Equipment Press machine, Bending machine, Pushing Machine, Sand-blasting machine, electric bevelling machine etc.
Test Certificates EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc

Types of Hastelloy C22 Flanges

SORF Flange

Hastelloy Alloy C22 Slip On Flange

Plate Flanges

Alloy C22 Plate Flanges

Weld Neck Flange

Hastelloy C22 Welding Neck Flange

Blind Flange

Alloy C22 Blind Flange

Spectacle Blind Flange

Hastelloy C22 Spectacle Blind Flange

Socket Weld Flange

Hastelloy C22 Socket Weld Flange

Threaded Flange

ASTM B564 Alloy C22 Threaded Flange

Lap Joint Flange

Hastelloy C22 Lap Joint Flange

Ring Type Joint Flange

UNS N06022 RTJ Flange

Long Weld Neck Flange

Alloy C22 Long Weld Neck Flange

Tongue and Groove Flange

Alloy C22 Tongue and Groove Flange

Orifice Flange

Hastelloy C22 Orifice Flange

Hastelloy C22 Flange Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy C22 2.4602 N06022 NW 6022 – NiCr21Mo14W –

Alloy C22 Flanges Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max

Alloy C22 Flange Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %

Hastelloy C22 Pipe Flange, Hastelloy C22 Spectacle Blind Flange, Hastelloy C22 Flange Supplier, ASME B16.5 Hastelloy C22 Flanges, Hastelloy C22 SORF Flange, Alloy C22 Flanges Suppliers in Mumbai.

If you are looking for best prices for Hastelloy C22 Flanges, Nickel Alloy C22 Plate Flange, Alloy C22 Pipe Flange email us on info@duplexsteelalloys.com or call us on +91 9664408767

Looking to Buy Hastelloy C22 Flange ?

Alloy C22 Flange Price List Hastelloy C22 Flange Price List India Hastelloy C22 Flange Weight Calculator

Alloy C22 Flange Price List

Product Price
Hastelloy C22 Flange Price List US $8.72-21.57 / Piece
Hastelloy C22 Slip on Flange Price US $13.58-30.23 / Piece
Hastelloy Alloy C22 Weld Neck Flange Price List US $8.72-13.58 / Piece
Nickel Alloy C22 Flange Price List S $13.56-28.23 / Piece
Hastelloy C22 Orifice Flange Price US $6.82-21.57 / Piece
Alloy C22 2 Inch Flange Price US $15.58-28.45 / Piece
Alloy C22 Lapped Joint Flange Price US $15.86-31.33 / Piece
Alloy C22 Threaded Flange Prices US $5.52-19.47 / Piece
Hastelloy C22 Blind Flange Price US $1.2-2.9 / Kilogram
Alloy C22 Spectacle Blind Flange Price US $2,100.00-3,500.00 / Ton

Hastelloy C22 Flanges Pressure and Temperature Ratings

Temperature °F Class 150 Class 600 Class 1500 Class 400 Class 900 Class 300 Class 2500
-20 to 100 275 1440 3600 960 2160 720 6000
300 205 1080 2700 720 1620 540 4500
200 230 1200 3000 800 1800 600 5000
400 190 995 2485 660 1490 495 4140
600 140 875 2185 580 1310 435 3640
650 125 860 2150 575 1290 430 3580
500 170 930 2330 620 1395 465 3880
700 110 850 2125 565 1275 425 3540
750 95 830 2075 555 1245 415 3460
850 65 790 1980 530 1190 395 3300
800 80 805 2015 540 1210 405 3360
900 50 780 1945 520 1165 390 3240
950 35 765 1910 510 1145 380 3180
1000 20 640 1605 430 965 320 2675
1100 20 515 1285 345 770 255 2145
1150 20 400 995 265 595 200 1655
1050 20 615 1545 410 925 310 2570
1200 20 310 770 205 465 155 1285
1250 20 225 565 150 340 115 945
1300 20 170 430 115 255 85 715
1400 20 95 240 65 145 50 400
1350 20 125 310 80 185 60 515
1450 15 70 170 45 105 35 285
1500 10 55 135 35 80 25 230

Alloy C22 Flange Weight Chart

NPS (Nominal Pipe Size) Loose (Lap Joint) NPT (Threaded) SORF (Slip On) BLRF (Blind) SWRF (Socket Weld) WRNR (Weld Neck)
½ 1 1 1 2 2 2
1 2 2 2 2 2 3
1¼ 3 3 3 3 3 3
¾ 2 2 2 2 2 2
1½ 3 3 3 4 3 4
2½ 8 8 8 7 8 10
2 5 5 5 5 5 6
3 9 9 9 9 9 11.5
4 13 13 13 17 13 16.5
3½ 11 12 11 13 11 12
5 15 15 15 20 15 21
8 30 30 30 47 30 42
6 19 19 19 27 19 26
10 43 43 43 70 43 54
24 275 220 220 430 220 268
14 105 90 90 140 90 114
12 64 64 64 123 64 88
16 140 98 106 180 98 140
20 195 165 165 285 165 197
18 160 130 130 220 130 165
22 245 185 185 355 185 225

Alloy C22 Flange Dimensions

Normal Pipe Size (NPS) Of Flanges (I.D.) Inside Diameter Thickness Of Raised Face (RF)
(T)		 Outside Daimeter (O.D.) Raised Face
(R)		 RF
(Raised Face)		 Holes Of Bolts
(B)		 H T1 Thickness Of Flat Face (FF)
(T2)		 BC (Circle Of Bolt) Bolts Holes
Numbers
1/2 0.88 0.88 3.75 1.38 .063 0.62 1.50 0.50 0.82 2.62 4
1 1.36 1.06 4.88 2.00 .063 0.75 2.12 0.63 1.00 3.50 4
3/4 1.09 1.00 4.62 1.69 .063 0.75 1.88 .056 0.94 3.25 4
1-1/4 1.70 1.06 5.25 2.50 .063 0.75 2.50 0.69 1.00 3.88 4
2 2.44 1.31 6.50 3.62 .063 0.75 3.31 0.82 1.25 5.00 8
1-1/2 1.95 1.19 6.12 2.88 .063 0.88 2.75 0.75 1.13 4.50 4
2-1/2 2.94 1.50 7.50 4.12 .063 0.88 3.94 0.94 1.44 5.88 8
3 3.57 1.69 8.25 5.00 .063 0.88 4.62 1.06 1.63 6.62 8
3-1/2 4.07 1.75 9.00 5.50 .063 0.88 5.25 1.13 1.69 7.25 8
4 4.57 1.88 10.00 6.19 .063 0.88 5.75 1.19 1.82 7.88 8
5 5.66 2.00 11.00 7.31 .063 0.88 7.00 1.32 1.94 9.25 8
18 18.18 3.50 28.00 21.00 .063 1.38 21.00 2.32 3.44 24.75 24
6 6.72 2.06 12.50 8.50 .063 0.88 8.12 1.38 2.00 10.62 12
8 8.72 2.44 15.00 10.62 .063 1.00 10.25 1.56 2.38 13.00 12
10 10.88 2.62 17.50 12.75 .063 1.12 12.62 1.82 2.56 15.25 16
12 12.88 2.88 20.50 15.00 .063 1.25 14.75 1.94 2.82 17.75 16
14 14.14 3.00 23.00 16.25 .063 1.25 16.75 2.06 2.94 20.25 20
20 20.20 3.75 30.50 23.00 .063 1.38 23.12 2.44 3.69 27.00 24
16 16.16 3.25 25.50 18.50 .063 1.38 19.00 2.19 3.19 22.50 20
22 22.22 4.00 33.00 25.25 .063 1.63 25.25 2.57 3.94 29.25 24
24 24.25 4.19 36.00 27.25 .063 1.62 27.62 2.69 4.13 32.00 24

Dimensions Tolerances Of Hastelloy C22 Plate Flange

Flange Tolerance Table
D Inside Diameter (I.D.)
  • 10" and smaller: ±1/32" (0.8 mm)
  • 12" thru 18": +1/8" (3.2 mm)
  • 20" and larger: -1/16" (1.6 mm)
K Length of hub
  • 10" and smaller: ±1/16" (1.6 mm)
  • 12" and larger: ±1/8" (3.2 mm)
B Diameter of contact face
  • 1/16" raised face: ±1/32" (0.8 mm)
  • 1/4" RF (Raised Face), T/G (Tongue & Groove), (male & female), (m/f): ±1/64" (0.4 millimeter)
A O.D. (Outside Diameter)
  • When O.D. (Outside Diameter) is 24" or less: ±1/16" (1.6 millimeter)
  • When O.D. (Outside Diameter) is over 24": ±1/8" (3.2 millimeter)
J Diameter of hub at base
  • When hub base is 24" or smaller: ±1/16" (1.6 millimeter)
  • When hub base is over 24": ±1/8" (3.2 millimeter)
P Drilling
  • Circle Bolts: ±1/16" (1.6 mm)
  • Bolts hole spacing: ±1/32" (0.8 mm)
Eccentricity of bolt circle with respect to facing
  • 2 1/2" and smaller ±1/32" (0.8 mm) maximum
  • 3" and larger ±1/16" (1.6 mm) maximum
H Diameter of hub at point of welding
  • 5" and smaller: +3/32" (2.4 mm), -1/32" (0.8 mm)
  • 6" and larger: +5/32" (4.0 mm), -1/32 (0.8 mm)
C Thickness
  • 18" and smaller: ±1/8" (3.2 mm), -0"
  • 20" and larger: ±3/16" (4.8 mm), -0"

Ask Free Sample of Alloy C22 Flange, SORF Flanges, WNRF Flange, SWRF Flange, BLRF Flange, RTJ Flange Please Call +91 9664408767

Widest Range of Hastelloy C22 Flange in Mumbai, India.

  • Alloy C22 BS 4504 Flanges
  • Alloy C22 Blind Flange
  • Price of Alloy C22 Flange
  • Hastelloy C22 Flange Manufacturers in India
  • Alloy C22 Flange Price List in India
  • Hastelloy C22 Flange Manufacturers
  • C22 Hastelloy JIS B2220 Flange
  • Alloy C22 Flange Manufacturers in Mumbai
  • UNS N06022 Flanges
  • Hastelloy C22 Flange Price in India
  • Hastelloy C22® Pipe Flange
  • Hastelloy C22 Flange Exporter
  • Alloy C22 Flange Suppliers in Mumbai
  • Hastelloy C22 Puddle Flanges
  • UNS N06022 Blind Flange Price
  • 2.4602 Puddle Flange Price
  • Hastelloy® Alloy C22 Forged Flanges
  • Hastelloy C22 Slip On Flange Price
  • Hastelloy C22 Flange Manufacturer in Mumbai
  • Alloy C22 Welding Neck Flange
  • Alloy C22 Flange Supplier in India
  • Hastelloy C22 Flange Supplier
  • Alloy C22 EN 1092-1 Flange
  • Hastelloy C22 Flange Suppliers in Mumbai
  • Hastelloy Alloy C22 Flat Face Flanges
  • Alloy C22 Blind Flange Dimensions
  • Alloy C22 Welding Neck Flange Dimensions
  • ASME SB 564 Hastelloy C22 Nipo Flange
  • 2.4602 SOFF Flange Stockists
  • Alloy C22 Flange Price Per Kg in Mumbai
  • Hastelloy C22 SWRTJ Flange Price in India
  • Hastelloy Alloy C22 LTJ Flange
  • ASTM B564 Hastelloy C22 Square Flange
  • Hastelloy C22 Flange in India
  • C22 Hastelloy PN 10 Flange Stock
  • Hastelloy C22 Flange Price Per Kg
  • 2.4602 Long Welding Neck Flange Exporter
  • Alloy C22 Raised Face Slip On Flanges
  • Alloy C22 LJFF Flange Sizes
  • Cost Of Hastelloy C22 RTJ Flange
  • Alloy C22 SWFF Flange Supplier
  • Hastelloy C22 Socket Weld Flange
  • Hastelloy C22 Male & Female Flange
  • Hastelloy C22 Screwed Flange Supplier in India
  • ASTM B564 Grade C22 Hastelloy BLRF Flange
  • Nickel Alloy C22 Expander Flange
  • Alloy C22 Flange Standard Sizes
  • Alloy C22 GOST 12820 80 Flanges
  • PN 16 Hastelloy C22 Flanges
  • ASTM B564 Hastelloy C22 Plate Flange
  • Hastelloy C22® DIN 2527 Flanges
  • Hastelloy C22 WNRF Flange

Inspection & Testing of Hastelloy C22 Pipe Flange

Before being prepared for shipment to the customer, ASTM B564 Hastelloy C22 Flanges Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Direct-reading Spectrograph

Direct-Reading Spectrograph

UI trasonic flaw detector

UI Trasonic Flaw Detector

Hydrostatic testing machine

Hydrostatic Testing Machine

X-ray detector

X-ray Detector

Magnetic particle detector

Magnetic Particle Detector

Flattening Test

Flattening Test

PMI Testing

PMI Testing

Hardness Test

Hardness Test

Pitting Resistance Test

Pitting Resistance Test

Hastelloy C22 Flange - Comparing International Standards

USA France Germany Germany Italy Japan Russia Spain Sweden UK European Union
AISI AFNOR DIN 1.4571 W.N. UNI JIS GOST UNE SIS BSI EURONORM
316Ti Z6CNDT17-12 X6CrNiMoTi17-12-2
X10CrNiMoTi18-10		 - X6CrNiMoTi1712 SUS 316Ti 10Ch17N13M2T F.3535 SS 2350 BS 320S17 -
best offer & competitive quotation
call us on +91 9664408767

Hastelloy C22 Flanges Supply in Below Countries

Products We Supplied Description Country
ASME SB564 Alloy C22 Long Weld Neck Flange Weight 2.4360 2500 LBS LWN Flange Dimensions Portugal, New Zealand, Belgium, Taiwan
Alloy GOST МНЖМц 28-2,5-1,5 Plate Flanges C22 Alloy Loose Flanges Czech Republic, Chile, Jordan, Nigeria, Ecuador
Hastelloy C22 Forged Flanges UNS N06022 Forged Flanges Bulgaria, Nepal, Bhutan, Kuwait
ASTM B564 Alloy C22 Slip On Flange Welding 400 LBS SB564 Gr C22 SORF Flanges Belarus, Azerbaijan, South Africa, Gambia, Oman
Hastelloy C22 Raised Face Weld Neck Flange 2.4602 Welding Neck Flange Yemen, Slovakia, Puerto Rico, Romania, Mongolia
Alloy C22 Socket Weld Flange ANSI B16.47 Alloy 2.4360 Socket Weld Flange Dimensions Hong Kong, Switzerland, Singapore, Australia
Hastelloy C22 End Blind Flange BS 10 Table F Alloy C22 Blind Flange Connection Estonia, Denmark, Vietnam, Hungary
Hastelloy C22 Raised Face Slip On Flange UNS N06022 Flat Face Slip On Flange Serbia, Malaysia, Germany, Venezuela

Common Application for Hastelloy Alloy C22 Flanges

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Power Generation

Power Generation

Construction

Construction

Chemical Processing

Chemical

Oil & Gas

Oil & Gas

Shipbuilding

Shipbuilding

Aerospace

Aerospace

Products
Downloads
Duplex Steel & Alloys

Contact us to get a quick quote for your requirement.

+91 9664408767
