PROVIDING DUPLEX AND SUPER DUPLEX STEEL PRODUCTS SINCE 1975

Duplex Steel & Alloys manufactures Hastelloy C276 Pipe, which is one of the most sought-after items. We specialize in high-quality products and provide exceptional customer service. This alloy is a corrosion-resistant alloy that has been dubbed "the most versatile on the market." By adding tungsten to the Ni-Mo-Cr alloy, Hastelloy C276 pipes are created. Hastelloy C-276 is a modeled version of Hastelloy C.

Alloy C276 has nickel, chromium, and molybdenum, which act as a potent triple threat against corrosion. Sulfuric, hydrochloric, and acetic acids are only a few of the reducing and oxidizing acids that this alloy can withstand. It works well in a variety of environments, including seawater, chlorides, wet chlorine gas, oxidizing salts, and hypochlorite. The molybdenum and tungsten content protects against pitting, crevice corrosion, and chloride stress corrosion cracking, among other types of localized corrosion.

Alloy C276 Pipe, Hastelloy C276 Pipe Price, Hastelloy C276 Pipe Suppliers, Hastelloy C276 Schedule 40 Pipe, Hastelloy C276 Seamless Pipe Suppliers in Mumbai, India.

Hastelloy C276 Seamless Pipe, Hastelloy C276 Welded Pipe, Hastelloy Alloy C276 Pipe Price Per Kg, Nickel Alloy C276 Pipe, Hastelloy C276 EFW Pipe, Hastelloy C276 Pipe Manufacturers in India.

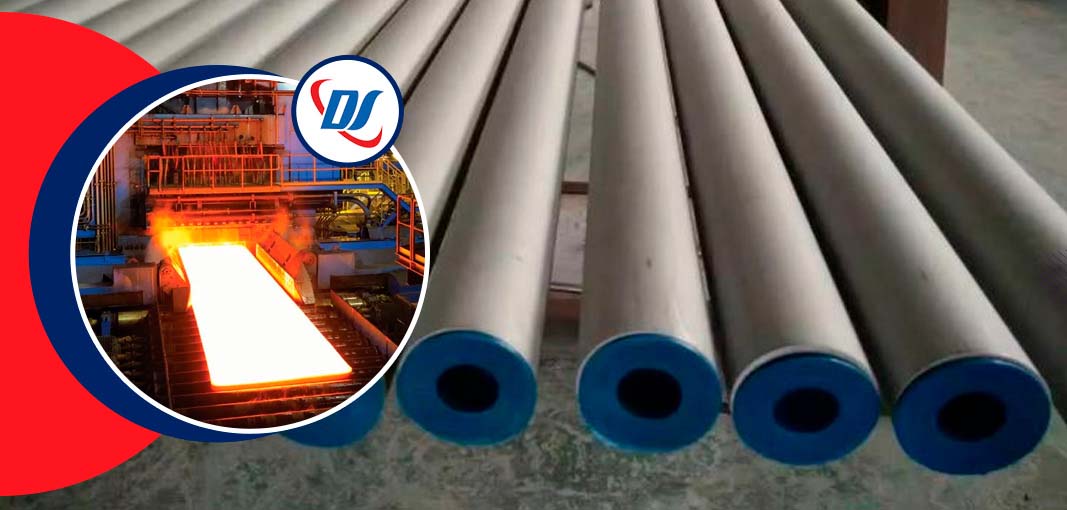

Hastelloy C276 Pipe

At extreme temperatures of up to 1900°F (1038°C), it offers outstanding oxidation resistance. Extreme oxidizing conditions, such as those created by concentrated hot nitric acid, are not a good fit for these pipes. It has yield strength of 41 ksi in the annealed state (345 MPa). The pilgering process, on the other hand, can result in greater strength. At cryogenic temperatures, these pipes retain good toughness.

Hastelloy C276 is widely utilised in the recovery and processing of sour natural gas, which contains hydrogen sulphide, carbon dioxide, and chlorides, among other things. This corrosive atmosphere is too much for carbon and alloy steels to handle. Sulfide stress cracking or stress corrosion cracking can cause them to fail.

Extensive use of Hastelloy C276 Pipes is seen in the oil and gas industry as well as the chemical processing industry. They are utilised in sour service settings with high amounts of H2S, CO2, and chlorides in upstream oil and gas. It's also employed in industries like pharmaceuticals and paper that deal with tough environments. C276 has been employed in superconductors at temperatures as low as -455 degrees Fahrenheit (-271°C) and has been used in cryogenic service.


Hastelloy C276 Pipe Specifications

Standard ASTM B622, ASTM B619 / ASME SB622, ASME SB619
Size 15" to 150" NB Inch
Dimensions ASME, ASTM and API
Seamless Size Wall Thikness: 0.5mm to 20mm
Size: 4mm to 219mm
Welded Sizes 5.0 to 1219.2 mm
EFW Sizes 5.0 to 1219.2 mm
Schedule SCH160 STD, SCH10, SCH40, SCH80, SCH5,
Available Type Welded / ERW / Seamless / LSAW/ Fabricated Pipes
Form Hydraulic, Round Form Etc
Length Double Random, Cut Length & Single Random
End Beveled End, Plain End, Theaded

Types of Hastelloy C276 Pipes

Seamless Pipe

Hastelloy C276 Seamless Pipe

Welded Pipe

Alloy C276 Welded Pipe

ERW Pipe

Hastelloy Alloy C276 ERW Pipe

ERW Pipe

Nickel Alloy C276 EFW Pipe

Round Pipe

Alloy C276 Custom Pipe

Thin Wall Pipe

ASTM B619 Alloy C276 Thin Wall Pipe

Hastelloy C276 Pipe Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy C276 2.4819 N10276 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760

Hastelloy C276 Pipe Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Hastelloy C276 0.10 max 0.50 max 0.50 max 0.015max - 5.0 max 58.0 min 20.0 - 23.0

Alloy C276 Pipe Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C276 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

ASTM B619 Hastelloy C276 Seamless Pipe, Hastelloy Alloy C276 Pipe, Alloy C276 ERW Pipe, ASTM B622 Alloy C276 Welded Pipe, Hastelloy C276 Pipe Suppliers in Mumbai.

If you are looking for best prices for Hastelloy C276 Pipes, Nickel Alloy C276 Welded Pipe, Alloy C276 EFW Pipe email us on info@duplexsteelalloys.com or call us on +91 9664408767

Hastelloy C276 Pipe Price List

Product Price
Custom Size 4 Inch Hastelloy C276 Welded Pipes Price US $ 20-70 / kg
20mm diameter Hastelloy C276 Pipes Price US $30-60 / Kilogram
ASTM B619 UNS N10276 Pipe Price US $25-100 / Kilogram
Hastelloy C276 ERW Pipe Price List US $1-30 / Kilogram
Hastelloy C276 Pipe Price List US $ 35000-60000 / Ton
Hastelloy® Alloy C276 SMLS Pipe Price List US $10-150 / Kilogram
Nickle Alloy C276 Seamless Pipe Price US $ 20-30 / Meter
Alloy C276 Pipe 4 inch Price List US $ 2500-3000 / kg
C276 Hastelloy® Alloy Welded Pipe Price US $4-15 / Kilogram

Hastelloy C276 Pipe Size Chart

Pipe OD
mm
Pipe WT
mm
in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 10S 2.73
42.16 3.56 40S 3.44
42.16 4.85 80S 4.53
42.16 6.352) 160 5.69
48.26 2.77 10S 3.16
48.26 3.68 40S 4.11
48.26 5.08 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 10S 5.35
73.03 5.16 40S 8.77
73.03 7.01 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
101.60 3.05 10S 7.53
101.60 5.74 40S 13.78
101.60 8.08 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

Hastelloy C276 Pipe Weight Chart

NPS Outside Diameter Wall Thickness Weight Weight
in mm in mm Sched kg/Mtr Lb/ft
1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
0.147 3.734 80 STD 1.621 1.088
3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
0.154 3.912 80 STD 2.195 1.474
1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
0.179 4.547 80 STD 3.325 2.172
1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
0.191 4.851 80 STD 4.464 2.997
1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
0.200 5.080 80 STD 5.409 3.361
2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
0.218 5.537 80 STD 7.480 5.022
2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
0.276 7.010 80 STD 11.411 7.661
3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
0.300 7.620 80 STD 15.272 10.253
4″ 4.500 114 0.237 6.020 16.073 10.790
0.337 8.560 22.318 14.983
6″ 6.625 168 0.188 4.775 19.252 12.924
0.203 5.516 20.739 13.923
0.219 5.563 22.318 14.983
0.250 6.350 25.354 17.021
0.280 7.112 40 STD 58.263 18.974
0.312 7.925 31.334 21.036
0.375 9.525 37.285 25.031
0.432 10.973 80 XHY 42.561 28.573
0.500 12.700 48.719 32.708
8″ 8.625 219 0.188 4.775 25.233 16.940
0.203 5.156 27.198 18.259
0.219 5.563 29.286 19.661
0.250 6.350 20 33.308 22.361
0.277 7.036 30 36.786 24.696
0.322 8.179 40 42.352 28.554
0.375 9.525 49.216 33.041
0.406 10.312 60 53.085 35.638
0.500 12.700 80 XHY 64.627 43.388
10″ 10.750 273 0.188 4.775 31.588 21.207
0.219 5.563 36.689 24.631
0.250 6.350 20 41.759 28.035
0.307 7.798 30 51.002 34.240
0.344 8.738 56.946 38.231
0.365 9.271 40 STD 63.301 40.483
0.438 11.125 71.852 48.238
0.500 12.700 60 XHY 81.530 54.735
0.594 15.088 80 95.969 64.429
12″ 12.750 324 0.188 4.775 37.570 25.222
0.219 5.563 43.657 29.309
0.250 6.350 49.713 33.375
0.281 7.137 55.739 37.420
0.312 7.925 61.735 41.445
0.375 9.525 73.824 49.562
0.406 10.312 79.727 53.525
0.500 12.700 97.438 65.415
0.562 14.275 108.966 73.154
14″ 14.000 356 0.188 4.775 41.308 27.732
0.219 5.563 48.012 32.233
0.250 6.350 20 54.685 36.713
0.281 7.137 61.327 41.172
0.312 7.925 67.939 45.611
0.375 9.525 STD 81.281 54.568
0.438 11.125 40 94.498 63.441
0.500 12.700 XHY 107.381 72.090
0.625 15.875 132.983 89.278
16” 16.000 406 0.188 4.775 47.290 21.748
0.219 5.563 54.980 36.910
0.250 6.350 10 62.639 42.053
0.281 7.137 70.268 47.174
0.312 7.925 20 77.866 52.275
0.344 8.738 85.677 57.519
0.375 9.525

30

STD

93.213 62.578
0.438 11.125 108.433 72.797
0.500 12.700

40

XHY

123.289 82.770
18″ 18.000 457 0.219 5.563 61.948 41.588
0.250 6.350 70.593 47.393
0.281 7.137 79.208 53.176
0.312 7.925 20 87.792 58.939
0.375 9.525 STD 105.144 70.588
0.438 11.125 30 122.369 82.152
0.500 12.700 XHY 139.198 93.450
0.562 14.275 40 155.904 104.666
0.625 15.875 172.754 115.978
20″ 20.000 508 0.250 6.350 78.547 52.733
0.282 7.163 88.458 59.386
0.312 7.925 97.719 65.604
0.375 9.525 20 STD 117.075 78.598
0.438 11.125 136.305 91.508
0.500 12.700 30 XHY 155.106 104.130
0.594 15.088 40 183.378 123.110
0.625 15.875 192.640 129.328
0.688 17.475 211.368 141.901
24″ 24.000 610 0.250 6.350 94.456 63.413
0.281 7.137 106.029 71.183
0.312 7.925 117.573 18.932
0.375 9.525 20 STD 140.938 64.618
0.438 11.125 164.176 110.219
0.500 12.700 XHY 186.923 125.490
0.625 15.875 232.410 156.028
0.688 17.475 40 255.148 171.293
0.750 19.050 277.401 186.233
30″ 30.000 762 0.250 6.350 118.318 79.433
0.281 7.137 132.851 89.189
0.312 7.925 10 147.353 98.925
0.375 9.525 STD 176.731 118.648
0.438 11.125 205.983 138.286
0.500 12.700 20 XHY 234.647 157.530
0.625 15.875 30 292.066 196.078
0.688 17.475 320.817 215.380
0.750 19.050 348.988 234.293
36″ 36.000 914 0.250 6.350 142.180 95.453
0.281 7.137 159.672 107.196
0.312 7.925 10 177.133 118.918
0.375 9.525 STD 215.525 142.678
0.438 11.125 247.790 166.353
0.500 12.700 20 XHY 282.372 198.570
0.625 15.875 351.723 236.128

0.688

17.475 386.487 259.467

0.750

19.050 420.576 282.353
42″ 42.000 1067 0.312 7.925 206.914 138.911
0.375 9.525 STD 248.319 166.708
0.500 12.700 XHY 33.097 221.610
0.750 19.050 492.163 330.413
48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
0.438 11.125 331.404 222.487
0.500 12.700 XHY 377.822 253.650
0.750 19.050 563.750 378.473
0.875 22.225 655.969 440.383

Ask Free Sample of Hastelloy C276 Seamless, Welded, ERW or EFW Pipe Please Call +91 9664408767

Widest Range of Hastelloy C276 Pipes in Mumbai, India.

  • Hastelloy C276 Schedule 40 Pipe
  • Hastelloy C276 Pipe Manufacturers in Mumbai
  • UNS N10276 Pipes
  • Hastelloy C276 Pipe Manufacturers in India
  • Alloy C276 Pipe Thickness
  • Hastelloy C276 Pipe Manufacturer
  • Hastelloy C276 Pipe Catalogue
  • Hastelloy C276 Pipe Pressure Rating
  • Alloy C276 Seamless Pipes
  • Alloy C276 Seamless Pipe Suppliers in Mumbai
  • 2.4819 Seamless Pipes
  • Hastelloy C276 Pipe Dimensions
  • Hastelloy C276 Pipe Supplier in India
  • Hastelloy C276 Pipe Price
  • ASME SB622 Hastelloy C276 Welded Pipes
  • Hastelloy C276 Pipe Weight Chart
  • Hastelloy C276 Pipe Supplier in Mumbai
  • Hastelloy Alloy C276 Pipe
  • Price Of Hastelloy C276 Pipe
  • Hastelloy C276 Pipe Price in India
  • Hastelloy® Alloy C276 Pipe Sizes
  • ASTM B619 Hastelloy C276 EFW Pipe
  • Hastelloy® Alloy C276 Seamless Pipes
  • Hastelloy C276 Pipe 8 Inch
  • Hastelloy C276 Pipe Price Per Kg in India
  • Hastelloy Alloy C276 Thick Wall Pipe
  • Cost Of Nickel Alloy C276 Pipe
  • 2.4819 Seamless Pipe Exporter
  • Nickel Alloy C276 Thin Wall Pipe
  • 2.4819 Welded Pipe Stockists
  • Large Diameter Hastelloy C276 Pipe
  • Hastelloy C276 Pipe Price List in India
  • Hastelloy C276 Seamless Pipes Supplier
  • Alloy C276 Pipe 4 Inch
  • Alloy C276 Custom Pipe
  • Nickel Alloy C276 Welded Pipe
  • Hastelloy C276 Pipe Weight Calculator
  • Hastelloy C276 Welded Pipe Price
  • Hastelloy C276 Welded Pipe Supplier in India
  • ASTM B622 UNS N10276 Welded Pipe
  • ASTM B622 Alloy C276 Welded Pipes
  • Nickel Alloy C276 ERW Pipes
  • Hastelloy C276 Pipe KG in India
  • JIS NW 0276 Round Pipe

Tests of ASTM B622 Hastelloy C276 Pipes

Before being prepared for shipment to the customer, ASTM B622 Alloy C276 Welded Pipes Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Outside Diameter Control

Outside Diameter Control

X-Ray Testing

X-Ray Testing

Hydrostatic Testing

Hydrostatic Testing

Hastelloy C276 Pipe - Comparing International Standards

EU
EN
USA
-
Germany
DIN,WNr
Japan
JIS
France
AFNOR
England
BS
Italy
UNI
China
GB
Sweden
SS
Poland
PN
Czechia
CSN
Finland
SFS
Austria
ONORM
Russia
GOST
NiMo16Cr15W C276 2.4819 NW 0276 - - - - - - - - - ХН65МВУ
best offer & competitive quotation
call us on +91 9664408767

Hastelloy C276 Seamless Pipes Supply in Below Countries

Products We Supplied Description Country
ASTM B622 Hastelloy C276 Round Pipe 2.4819 Custom Pipe Egypt, France, Mexico, Malaysia
Hastelloy C276 Large Diameter Pipe 20MM Diameter UNS N10276 Pipes Algeria, Bulgaria, Poland, Qatar
20mm diameter 0.1mm Nickel Alloy C276 Pipe Thin Wall ASME SB622 Alloy C276 Welded Pipe Finland, Singapore, Maldives, Uruguay, Costa Rica
Hastelloy® Alloy C276 EFW Pipes Schedule 40 ASTM B619 JIS NW 0276 Pipe Philippines, Taiwan, Kuwait, South Africa
C276 Hastelloy Alloy ERW Pipe Thickness 9.0mm Alloy C276 Pipe Netherlands, Venezuela, Belgium, UK, Jordan
Hastelloy Alloy C276 Welded Pipe UNS N10276 Welded Pipe Supply UAE, Europe, Norway, Romania
Nickel Alloy C276 Thick Wall Pipe 16 Gauge UNS N10276 Pipe Mongolia, Ukraine, Colombia, Tunisia
ASTM B622 Hastelloy Alloy C276 Pipes 10*20mm to 100*200mm NW 0276 Thin-Wall Pipe Thailand, Vietnam, Indonesia, Saudi Arabia

Common Application for Hastelloy Alloy C276 Pipe

Shipbuilding

Shipbuilding

Oil & Gas

Oil & Gas

Power Generation

Power Generation

Construction

Construction

Heavy Equipment

Heavy Equipment

Aerospace

Aerospace

Chemical Processing

Chemical

Automotive

Automotive
