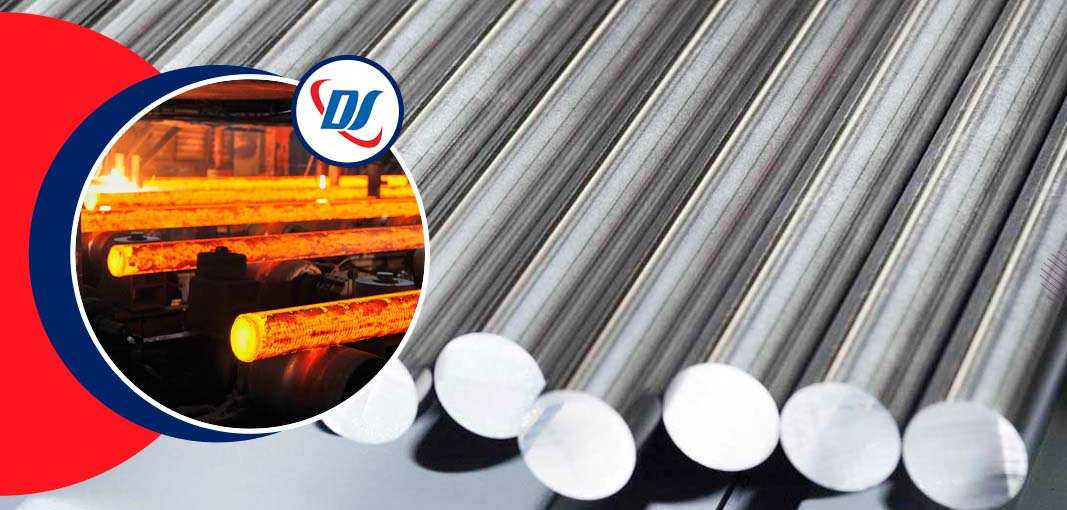

Incoloy
800 is manufactured by Duplex Steel & Alloys, which
is the industry leader. We offer a wide range of services to our customers,
including scheduled deliveries, custom packaging, and more.
Nickel-iron-chromium bar (Incoloy 800, 800H, and 800HT)
has good strength and great resistance to oxidation and carburization in
high-temperature exposure. Except for the greater carbon content in alloy
800H and the addition of up to 1.20 percent alluminium and titanium in alloy
800HT, these nickel steel bars are identical. The earliest of these alloys
was Alloy 800 Pipe, which was slightly changed to become Incoloy
800H. This change was made to optimize stress rupture
properties by controlling carbon content (0.05 percent -0.10%) and grain
size. Incoloy 800HT features additional modifications to the combined
titanium and alluminium levels to guarantee optimal high temperature
characteristics.
Nickel Alloy 800 Bar, Inconel 800H Rod, Incoloy® Alloy 800 Round Bar,
Incoloy Alloy 800 Bar, Alloy 800HT Rod, Inconel 800HT Round Bar, Incoloy
800H Bar Suppliers in Mumbai, India.
Incoloy 800H Flat Bar, JIS NCF 800HT Bar, Incoloy 800 Rod Price, Inconel 800 Hex Bar,
Incoloy 800H Square Bar, Inconel Alloy 800 Round Bar, Incoloy 800HT Bar Manufacturers in
India.
Incoloy 800 is typically
utilised in applications that require a temperature tolerance of 1100° F. When
resistance to creep and rupture is required, the alloys 800H and 800HT are commonly
utilised. The chemical balance of the nickel steel alloy ensures that it is resistant to
carburization, oxidation, and nitrating environments. The cold forming properties of
800HT bars are similar to Ni-Cr alloys, and it may be welded using typical techniques.
These bars are widely utilised in a variety of industries, including
oil and gas, petrochemical, medical, food, paper, machinery, natural gas, and so on.
Organic acids are well tolerated by Incoloy 800HT
alloy bars ; however hydrochloric acid resistance is limited.
Excellent corrosion resistance in both oxidizing and non-oxidizing salts, with the
possibility of halide spot corrosion. In addition to water, steam, and a mixture of
steam, air, and carbon dioxide, it has excellent corrosion resistance.
Incoloy 800 Round Bar Specifications
| Specifications |
ASTM B408 / ASME SB408 |
| Dimension Standard |
EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Bar Diameter |
3 ~ 800mm |
| Hex Bar size |
2-100mm A/F |
| Flat bar size |
Thickness: 2 -100mm.
Width: 10 to 500mm. |
| Square bar size |
4 to 100mm |
| Rectangular Bars |
Size: 33 x 30mm to 295 x 1066mm.
Thickness: 3.0 to 12.0mm. |
| Hollow Bars |
32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size |
1/2 to 495mm Diameter |
| Finish |
Cold (bright) drawn, centreless ground, hot rolled, smooth turned,
peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright,
Polish, Grinding, Centreless Ground & Black |
| Tolerance |
H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients
requirements |
| Bar Surface |
Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished,
Polished, Hairline |
| Rolled Bars Condition |
Hardened & tempered, annealed |
| Cold Rolled Bar Technique |
Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Form |
Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square,
Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F),
Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc.
|
Types of Incoloy 800 Bars
Incoloy 800 Hot Rolled Bar
Incoloy 800 Cold Rolled Bar
Alloy 800 Round Bar
Alloy 800 Square Bar
Incoloy 800 Flat Bar
Nickel Alloy 800 Hexagon Bar
ASTM B408 Incoloy 800 Rectangular Bar
Incoloy Alloy 800 Forged Bar
UNS N08800 Bright Bar
Incoloy 800 Threaded Rod
Incoloy 800 Black Bar
Alloy 800 Hollow Bar
Incoloy Alloy 800 Round Bar Equivalent Material
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
OR |
| Incoloy 800 |
1.4876 |
N08800 |
NCF 800 |
NA 15 |
ЭИ670 |
Z8NC32-21 |
X10NiCrAlTi32-20 |
XH32T |
| Incoloy 800H |
1.4958 / 1.4876 |
N08810 |
NCF 800H |
NA 15(H) |
ЭИ670 |
Z8NC33-21 |
X5NiCrAlTi31-20 |
XH32T |
| Incoloy 800HT |
1.4859 / 1.4876 |
N08811 |
NCF 800HT |
NA 15(HT) |
ЭИ670 |
– |
X8NiCrAlTi32-21 |
XH32T |
Incoloy 800 Round Bar Chemical Composition
| Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
Cr |
Al |
Ti |
| 800 |
0.10 max |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60 |
0.15 – 0.60 |
| 800H |
0.05 – 0.10 |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60 |
0.15 – 0.60 |
| 800HT |
0.06 – 0.10 |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60ᴬ |
0.15 – 0.60ᴬ |
Incoloy 800 Round Bar Mechanical Properties
| Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 800 / 800H / 800HT |
7.94 g/cm3 |
1385 °C (2525 °F) |
Psi – 75,000 , MPa – 520 |
Psi – 30,000 , MPa – 205 |
30 % |
ASTM B408 Inconel 800 Bar, Alloy 800HT Bar, Inconel Alloy 800HT Rod, Incoloy 800H Rod
Rate, Incoloy® Alloy 800H Bar, Incoloy 800 Rods Suppliers in Mumbai.
If you are looking for best prices for Incoloy 800 Bars, Inconel 800H Rod,
Incoloy 800HT Flat Bar email us on info@duplexsteelalloys.com
or call us on +91 9664408767
Incoloy 800 Bar Price List
| Product |
Price |
| Incoloy 800H Round Bar Price |
US $999-2500 / Ton |
| Inconel 800 Bar Price |
US $1990-3900 / Ton |
| Incoloy 800 Square Bar Price |
US $800-2100 / Ton |
| Alloy 800 Round Bar Price in India |
S $1000.0-3000.0 / Ton |
| Incoloy Alloy 800H Hex Bar Price |
US $300-2700 / Ton |
| Inconel Alloy 800 Rod Rate |
US $1000-2500 / Ton |
| Alloy 800HT Triangle Bar Price |
US $1500-2600 / Ton |
| 800H Incoloy Alloy Rectangular Bar Prices |
US $2200-4000 / Ton |
| Incoloy 800 Bright Bar Price List |
US $1.2-4.7 / Kilogram |
| Incoloy 800HT Rod Price Per KG in India |
US $1,600.00-2,200.00 / Ton |
Incoloy 800 Rod Standard Sizes
| Type |
Sizes in milimeter |
Sizes in inches |
Tolerance |
| Peeled and Polished |
40.00 - 150.00 |
1.50 - 6.00 |
h11, h11-DIN 1013 |
| Cold Drawn and Polish |
3.00 to 75.00 |
1/8 to3.00 |
h8 to h11 |
| Cold Drawn and Ground |
10.00 to 75.00 |
5/6 to 2.50 |
h8 to h11 |
| Peeled nd Ground |
20.00 - 50.00 |
3/4 - 2.00 |
h9 to h11 |
Incoloy 800 Round Bars Standard lengths of 2000 mm up to 6000 mm.
| 5.0 |
45.0 |
| 6.0 |
50.0 |
| 7.0 |
55.0 |
| 8.0 |
60.0 |
| 9.0 |
65.0 |
| 10.0 |
70.0 |
| 12.0 |
75.0 |
| 16.0 |
80.0 |
| 20.0 |
90.0 |
| 25.0 |
100.0 |
| 30.0 |
130.0 |
| 35.0 |
160.0 |
| 40.0 |
200.0 |
Incoloy 800 Round Bar Weight Chart
| Diameter |
Weight Chart |
Dia |
Weight Chart |
| (mm) |
per metre (kg) |
(in) |
per metre (kg) |
| 3mm |
0.06 |
1/8" |
0.06 |
| 4mm |
0.10 |
3/16" |
0.14 |
| 5mm |
0.16 |
1/4" |
0.25 |
| 6mm |
0.22 |
5/16" |
0.39 |
| 7mm |
0.30 |
3/8" |
0.56 |
| 8mm |
0.40 |
7/16" |
0.77 |
| 10mm |
0.62 |
1/2" |
1.00 |
| 12mm |
0.89 |
9/16" |
1.22 |
| 14mm |
1.22 |
5/8" |
1.56 |
| 15mm |
1.40 |
11/16" |
1.89 |
| 16mm |
1.59 |
3/4" |
2.25 |
| 18mm |
2.01 |
7/8" |
3.07 |
| 20mm |
2.48 |
1" |
4.03 |
| 22mm |
3.00 |
|
|
| 24mm |
3.57 |
|
|
| 25mm |
3.88 |
|
Incoloy 800 Bar Dimensions
Diameter or
Width
(mm) |
Weight per meter |
Sectional Area |
Perimeter |
Square
(kg) |
Round
(kg) |
Square
(cm²) |
Round
(cm²) |
Square
(cm) |
Round
(cm) |
| 5.0 |
0.20 |
0.15 |
0.25 |
0.20 |
2.0 |
1.57 |
| 5.5 |
0.24 |
0.19 |
0.30 |
0.24 |
2.2 |
1.78 |
| 6.0 |
0.28 |
0.22 |
0.36 |
0.28 |
2.4 |
1.88 |
| 7.0 |
0.38 |
0.30 |
0.49 |
0.38 |
2.8 |
2.20 |
| 8.0 |
0.50 |
0.39 |
0.64 |
0.50 |
3.2 |
2.51 |
| 9.0 |
0.64 |
0.50 |
0.81 |
0.64 |
3.6 |
2.83 |
| 10 |
0.73 |
0.63 |
1.00 |
0.79 |
4.0 |
3.14 |
| 11 |
0.95 |
0.75 |
1.21 |
0.95 |
4.4 |
3.46 |
| 12 |
1.13 |
0.89 |
1.44 |
1.13 |
4.8 |
3.77 |
| 14 |
1.54 |
1.21 |
1.96 |
1.54 |
5.6 |
4.40 |
| 16 |
2.01 |
1.58 |
2.56 |
2.01 |
6.4 |
5.03 |
| 18 |
2.54 |
2.00 |
3.24 |
2.54 |
7.2 |
5.65 |
| 20 |
3.14 |
2.47 |
4.00 |
3.14 |
8.0 |
6.28 |
| 22 |
3.80 |
2.98 |
4.84 |
3.80 |
8.8 |
6.91 |
| 25 |
4.91 |
3.85 |
6.25 |
4.91 |
10.0 |
7.85 |
| 28 |
6.15 |
4.83 |
7.84 |
6.16 |
11.2 |
8.80 |
| 32 |
8.04 |
6.31 |
10.24 |
8.04 |
12.8 |
10.05 |
| 36 |
10.17 |
7.99 |
12.96 |
10.18 |
14.4 |
11.31 |
| 40 |
12.56 |
9.86 |
16.00 |
12.57 |
16.0 |
12.57 |
| 45 |
15.90 |
12.49 |
20.25 |
15.90 |
18.0 |
14.14 |
| 50 |
19.62 |
15.41 |
25.00 |
19.64 |
20.0 |
15.71 |
| 56 |
24.62 |
19.34 |
31.36 |
24.63 |
22.4 |
17.59 |
| 63 |
31.16 |
24.47 |
36.69 |
31.17 |
25.2 |
19.79 |
| 71 |
39.57 |
31.08 |
50.41 |
39.59 |
28.4 |
22.31 |
| 80 |
50.24 |
39.46 |
64.00 |
50.27 |
32.0 |
25.13 |
Ask Free Sample of Incoloy 800 Bar, Rods, Round Bar Please Call +91 9664408767
Widest Range of Incoloy 800 Bar in Mumbai, India.
- 800 Incoloy Bar Price
- 800HT Incoloy Bar Manufacturers
- Inconel 800 Rods Price in India
- Incoloy Alloy 800H Round Bar Suppliers
- 800 Incoloy Round Bar Tolerances
- Price of Incoloy 800 Rod
- Inconel 800H Bar Exporter
- Inconel Alloy 800HT Rod Supplier in India
- Inconel® Alloy 800 Round Bar Weight Calculator
- Incoloy 800H Bar Manufacturers in Mumbai
- Alloy 800 Bar Suppliers in Mumbai
- 800HT Incoloy Rod Manufacturers in India
- Incoloy Alloy 800H Bar Supplier in India
- 1.4876 Round Rods
- UNS N08800 Bars
- Incoloy 800H Bar Suppliers in Mumbai
- Incoloy 800HT Rod Standard Sizes
- 800 12mm Inconel Rod
- Alloy 800H Rod Weight Chart
- Inconel Alloy 800 Bar Manufacturer in Mumbai
- 8mm Square Incoloy 800 Bar
- Nickel Alloy 800H Rod Supplier
- Alloy 800 Rod Price List in India
- 8mm Incoloy 800 Rod
- ASTM B408 Inconel 800 Round Bar
- Inconel Alloy 800HT Bar Stock
- Nickel Alloy 800 Incoloy Bar Stock
- Incoloy Alloy 800 Flat Bar
- 800H Incoloy Bar Price Per Kg
- Incoloy® Alloy 800H Hot Rolled Bars
- Incoloy 800 Bar Price in India
- Alloy 800H Round Bar Weight
- JIS NCF 800H Cold Rolled Rod
- 1.4859 HR Bar Stockists
- Alloy 800HT Round Bar Sizes
- Alloy 800 Round Bar HSN Code
- Standard Alloy 800H Round Bar Sizes in mm
- Inconel Bar 800
- Incoloy 800 Bar Price India
- Cost Of 800H Incoloy Rod
- 800 Inconel Flat Bar Stock
- Inconel 800HT Rod Price Per Kg in India
- 1.4958 HR Rod Exporter
- ASTM B408 alloy 800 Hex Bar
- Nickel Alloy 800 Flat Bar
- ASTM B408 Incoloy 800 Bar
- Incoloy 800HT Rod Price Per Kg in Mumbai
- Incoloy 800 Rod Size Chart
- ASME SB408 Incoloy 800 Rod
- Inconel 800 Rod Supplier in India
Tests of ASTM B408 Incoloy 800HT Bar
Before being prepared for shipment to the customer, ASTM B408
Incoloy 800 Bars Testing should be constructed in accordance with applicable standards
and thoroughly tested for potential flaws.
Brinell/Rockwell Hardness Test
Finishes Of Incoloy 800 Bar
| CD |
Cold drawn |
P |
Polished |
| CG |
Centreless ground |
HF |
Hot finished |
| BD |
Bright drawn |
SRE |
Slit rolled edge |
| P&T |
Peeled and turned |
RT |
Rough turned/peeled |
| CF |
Cold finished |
HRAP |
Hot rolled annealed and pickled |
| ST |
Smooth turned |
PR |
Peeled and reeled |
Incoloy 800 Bar - Comparing International Standards
EU
EN |
USA
- |
Germany
DIN,WNr |
Japan
JIS |
France
AFNOR |
England
BS |
Italy
UNI |
China
GB |
Sweden
SS |
Poland
PN |
Czechia
CSN |
Finland
SFS |
Inter
ISO |
Russia
GOST |
| EN 10095 (1.4876) |
800
800H
800HT |
1.4876
1.4958
1.4959 |
NCF 800
NCF 800H
NCF 800HT |
Z8NC32-21
Z8NC33-21 |
NA 15
NA 15(H)
NA 15(HT) |
- |
- |
- |
- |
- |
- |
X8NiCrAlTi32-21 |
ЭИ670 |
best offer & competitive quotation
Incoloy 800 Rods Supply in Below Countries
| Products We Supplied |
Description |
Country |
| 800HT Incoloy Square Bar Weight |
8mm Incoloy 800 Square Sar |
Denmark, Estonia, Vietnam, Hungary |
| ASTM B408 Nickel Alloy 800 Rods |
Incoloy 800 3mm to 50mm Rods |
South Africa, Gambia, Belarus, Oman, Azerbaijan |
| 800H Incoloy Polished Bars |
Polished UNS N08800 Bars |
Bhutan, Kuwait, Nepal, Bulgaria |
| Inconel Alloy 800HT Hex Bar Sizes in MM |
JIS NCF 800 Hexagonal Bar |
Yemen, Puerto Rico, Romania, Slovakia, Mongolia |
| ASME SB408 Incoloy 800H Bars |
1.4876 Cold Rolled Bars |
Taiwan, Belgium, Portugal, New Zealand |
Incoloy 800 Rectangular Bar |
800H Inconel Cold Drawn Rectangular Bar |
Switzerland, Singapore, Australia, Hong Kong |
| Incoloy Alloy 800 Rectangular Bars |
3.0 to 12.0mm Thickness Incoloy 800 Rectangular Bar |
Ecuador, Jordan, Chile, Czech Republic, Nigeria |
| Inconel 800HT Round Bars |
UNS N08800 Hot Rolled Rods Supply |
Venezuela, Malaysia, Serbia, Germany |
Common Application for 800 Incoloy Rods
Power Generation
Construction
Shipbuilding
Aerospace
Heavy Equipment
Automotive
Chemical
Oil & Gas
