Duplex Steel Engg & Co is known for supplying premium quality Incoloy 800 / 800H / 800HT Fasteners. At the best prices in the industry. All of our items are sturdily constructed and durable. Before shipping, each item is subjected to a rigorous quality inspection. Customers from all over the world depend on us to deliver high-quality goods.

Nickel-iron-chromium alloys Incoloy 800, 800H, and 800HT have great resistance to oxidation and carburization when exposed to high temperatures. With the exception of the greater levels of titanium in alloy 800T and carbon in alloy 800H, these nickel steel alloys are equivalent. The earliest of these alloys was Incoloy 800, which was slightly altered to become Incoloy 800H. With this change, the grain size and carbon content were managed to improve the stress rupture properties. To achieve the best high temperature qualities, Incoloy 800HT incorporates further adjustments to the combined titanium and aluminium levels. The dual-certified (800H/HT) nickel alloy combines the qualities of both versions. The Incoloy 800H/HT alloy was developed for structural uses under high temperatures.

Incoloy 800 Bolts, Incoloy® Alloy 800 Fasteners, Alloy 800H Fasteners, Incoloy 800 Nut Bolt, Incoloy 800HT Fasteners, Incoloy 800 Fastener Suppliers in Mumbai, India.

Incoloy 800H Washers, Incoloy 800 Nuts, Alloy 800 Screw, Incoloy Alloy 800 Hex Bolt, Alloy 800 Bolts, Incoloy 800HT Stud Price, Incoloy 800 Fasteners Manufacturers in India.

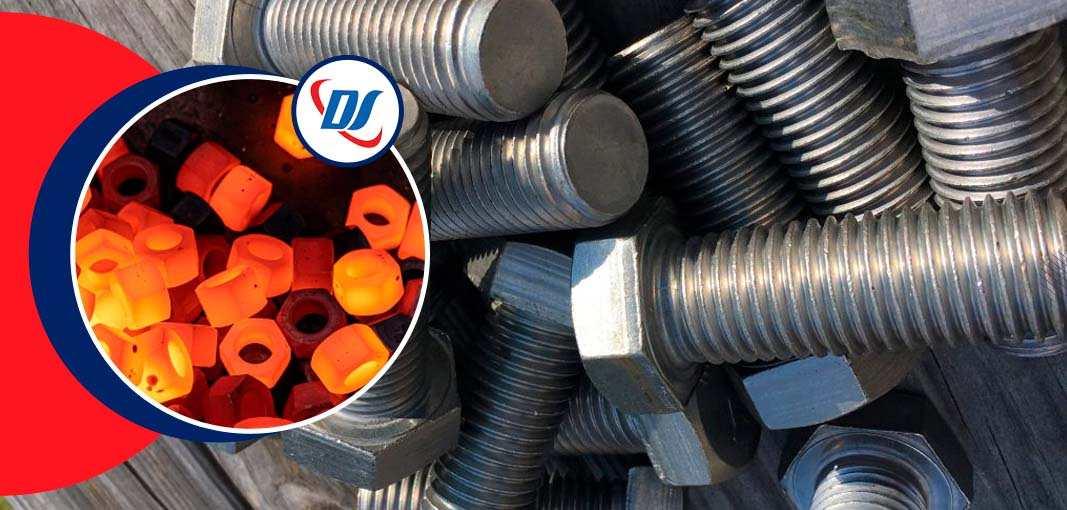

Incoloy 800 Fasteners

Nickel-iron-chromium alloys Incoloy 800, 800H, and 800HT have outstanding strength and corrosion resistance. The alloys' exceptional resistance to embrittlement caused by sigma phase precipitation and chloride stress-corrosion cracking is a result of the nickel presence. Corrosion resistance is often very good. Alloys 800H and 800HT exhibit improved creep and stress rupture characteristics when solution annealed. Today, only the dual approved 800H/HT alloy is carried by the majority of vendors, including Duplex Steel.

Incoloy 800 / 800H / 800HT Fasteners have a regulated carbon content in addition to a high-temperature annealing process that results in an average grain size of ASTM 5 or coarser. Incoloy 800 / 800H / 800HT Fasteners have higher creep and rupture strengths are the result of the annealing process and their constrained chemical makeup.


Incoloy 800 Bolts and Nuts Specification

Standard ASTM B166 / ASME SB166
Bolt / Screw Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Nuts Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Washers Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Machine Screws Size M1.6 – M12
Self Tapping Screw Size No.2 – No. 14
Length 3 mm to 200 mm
Threads UNF, BSW, BSF, METRIC, UNC, or as required
Fasteners
  • DIN : DIN 934, DIN 931, DIN 970, DIN 933
  • UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
  • ISO : JIS standards, ISO 4033, ISO 4032,
  • ANSI – American National Standards Institute
  • ASME B18.5
  • ANSI B 28.2.4 1M
  • as per defined in ASME B16.5 standard length
  • ANSI B 18.2.4 2M
  • as per defined in ASME B18.2.2
Form Hex, Threading, Square, Round as per Gauge Etc.
Raw materials Source JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Dimensions DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production Process M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC

Types Of Incoloy 800 Fasteners

Bolts

Incoloy 800 Bolts

Nuts

Alloy 800 Nuts

Screw

Incoloy 800 Screw

Washers

Nickel Alloy 800H Washer

Stud Bolt

Alloy 800 Stud Bolts

Anchor Fasteners

Incoloy 800HT Anchor Bolt

Threaded Studs

Incoloy 800 Threaded Rod

Hex Bolt

ASTM B166 Incoloy 800 Hexagonal Bolt

Hex Nut

Incoloy 800 Hex Nut

Incoloy 800 Fastener Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T
Incoloy 800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20 XH32T
Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 X8NiCrAlTi32-21 XH32T

Incoloy 800H Fastener Properties

Grade C Mn Si S Cu Fe Ni Cr Al Ti
800 0.10 max 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
800H 0.05 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
800HT 0.06 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60ᴬ 0.15 – 0.60ᴬ

Mechanical Properties of Incoloy 800 Fasteners

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
800 / 800H / 800HT 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %

ASTM B166 Incoloy 800 Fasteners, Nickel Alloy 800H Fastener, Alloy 800 Nut Bolt Manufacturer, Incoloy 800 Hex Bolt Price List, Incoloy 800HT Anchor Fasteners, Incoloy 800 Fasteners Suppliers in Mumbai.

If you are looking for best prices for Incoloy 800 Fasteners, Alloy 800 Stud Bolt, Alloy 800 Fasteners email us on info@duplexsteelalloys.com or call us on +91 9664408767

Incoloy 800 Fasteners Price List

Product Price
Incoloy 800 Nut Bolt Price Per Kg US $1.99-200 / Kg
ASTM B166 Incoloy 800 Hexagon Head Screw US $1290-4900 / Ton
Cost Per Kg of Alloy 800 Heavy Hex Nuts US $99-1100 / Kg
Incoloy 800 Washer Price S $1.00-900.0 / Kg
Incoloy 800 Self Locking Nuts Price Per Kg US $190-1990 / Ton
Alloy 800HT Heavy Hex Bolt price US $1000-4500 / Ton
Incoloy 800 Anchor Fasteners Price List US $1500-2800 / Ton
Incoloy 800H Bolt Price List US $2200-4000 / Ton
Incoloy 800 Socket Head Screw Price US $1.2-3.7 / Kilogram
Incoloy 800 Allen Cap Screw Price US $1,100.00-2,100.00 / Ton

Incoloy 800 Bolt Thread Sizes

Size Nominal (Major)
Diameter [in]
Coarse Thread (UNC) Fine Thread (UNF)
Threads
Per Inch
Tensile Stress
Area [in2]
Minor
Area [in2]
Threads
Per Inch
Tensile Stress
Area [in2]
Minor
Area [in2]
#0 0.0600 --- --- --- 80 0.00180 0.00151
#2 0.0860 56 0.00370 0.00310 64 0.00394 0.00339
#4 0.1120 40 0.00604 0.00496 48 0.00661 0.00566
#5 0.1250 40 0.00796 0.00672 44 0.00830 0.00716
#6 0.1380 32 0.00909 0.00745 40 0.01015 0.00874
#8 0.1640 32 0.0140 0.01196 36 0.01474 0.01285
#10 0.1900 24 0.0175 0.01450 32 0.0200 0.0175
1/4" 0.2500 20 0.0318 0.0269 28 0.0364 0.0326
5/16" 0.3125 18 0.0524 0.0454 24 0.0580 0.0524
3/8" 0.3750 16 0.0775 0.0678 24 0.0878 0.0809
7/16" 0.4375 14 0.1063 0.0933 20 0.1187 0.1090
1/2" 0.5000 13 0.1419 0.1257 20 0.1599 0.1486
9/16" 0.5625 12 0.182 0.162 18 0.203 0.189
5/8" 0.6250 11 0.226 0.202 18 0.256 0.240
3/4" 0.7500 10 0.334 0.302 16 0.373 0.351
7/8" 0.8750 9 0.462 0.419 14 0.509 0.480
1" 1.0000 8 0.606 0.551 12 0.663 0.625
1-1/8" 1.1250 7 0.763 0.693 12 0.856 0.812
1-1/4" 1.2500 7 0.969 0.890 12 1.073 1.024
1-3/8" 1.3750 6 1.155 1.054 12 1.315 1.260
1-1/2" 1.5000 6 1.405 1.294 12 1.581 1.521
1-3/4" 1.7500 5 1.90 1.74 --- --- ---
2" 2.0000 4.5 2.50 2.30 --- --- ---

The following table of clearance holes was adapted from ASME B18.2.8. The minimum hole diameters are given.

Bolt Size Bolt Dia. [in] Normal Fit [in] Close Fit [in] Loose Fit [in]
#0 0.0600 0.076 0.067 0.094
#2 0.0860 0.102 0.094 0.116
#4 0.1120 0.128 0.120 0.144
#5 0.1250 0.156 0.141 0.172
#6 0.1380 0.170 0.154 0.185
#8 0.1640 0.196 0.180 0.213
#10 0.1900 0.221 0.206 0.238
1/4" 0.2500 0.281 0.266 0.297
5/16" 0.3125 0.344 0.328 0.359
3/8" 0.3750 0.406 0.391 0.422
7/16" 0.4375 0.469 0.453 0.484
1/2" 0.5000 0.562 0.531 0.609
5/8" 0.6250 0.688 0.656 0.734
3/4" 0.7500 0.812 0.781 0.906
7/8" 0.8750 0.938 0.906 1.031
1" 1.0000 1.094 1.031 1.156
1-1/8" 1.1250 1.219 1.156 1.312
1-1/4" 1.2500 1.344 1.281 1.438
1-3/8" 1.3750 1.500 1.438 1.609
1-1/2" 1.5000 1.625 1.562 1.734

Incoloy 800 Hex Nut Dimensions

The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 1-1, "Dimensions of Square and Hex Machine Screw Nuts." This table is used for smaller size hardware.

Size Nominal (Major)
Diameter [in]
Width Across Flats Thickness
Nominal [in] Minimum [in] Minimum [in] Maximum [in]
#0 0.060 5/32"(0.156) 0.150 0.043 0.050
#2 0.086 3/16"(0.188) 0.180 0.057 0.066
#4 0.112 1/4"(0.250) 0.241 0.087 0.098
#6 0.138 5/16"(0.312) 0.302 0.102 0.114
#8 0.164 11/32"(0.344) 0.332 0.117 0.130
#10 0.190 3/8"(0.375) 0.362 0.117 0.130
1/4" 0.250 7/16"(0.438) 0.423 0.178 0.193
5/16" 0.312 9/16"(0.562) 0.545 0.208 0.225
3/8" 0.375 5/8"(0.625) 0.607 0.239 0.257

The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 4, "Dimensions of Hex Nuts and Hex Jam Nuts."

Size Nominal (Major)
Diameter [in]
Width Across Flats Thickness
Minimum [in] Maximum [in] Minimum [in] Maximum [in]
1/4" 0.2500 0.428 0.438 0.212 0.226
5/16" 0.3125 0.489 0.500 0.258 0.273
3/8" 0.3750 0.551 0.563 0.320 0.337
7/16" 0.4375 0.675 0.688 0.365 0.385
1/2" 0.5000 0.736 0.750 0.427 0.448
9/16" 0.5625 0.861 0.875 0.473 0.496
5/8" 0.6250 0.922 0.938 0.535 0.559
3/4" 0.7500 1.088 1.125 0.617 0.665
7/8" 0.8750 1.269 1.312 0.724 0.776
1" 1.0000 1.450 1.500 0.831 0.887
1-1/8" 1.1250 1.631 1.688 0.939 0.999
1-1/4" 1.2500 1.812 1.875 1.030 1.094
1-3/8" 1.3750 1.994 2.062 1.138 1.206
1-1/2" 1.5000 2.175 2.250 1.245 1.317
1-5/8" 1.6250 2.350 2.430 1.364 1.416
1-3/4" 1.7500 2.538 2.625 1.460 1.540
1-7/8" 1.8750 2.722 2.813 1.567 1.651
2" 2.0000 2.900 3.000 1.675 1.763

Incoloy 800 Flat Washer Dimensions

The following table of flat washer dimensions was adapted from ASME B18.21.1, Table 11 for Type A Plain Washers. Type A washers come in 2 series: Narrow and Wide.

Size Basic Dia. [in] Series Inner Dia,
Basic [in]
Outer Dia,
Basic [in]
Thickness,
Basic [in]
#0 0.0600 --- 0.078 0.188 0.020
#2 0.0860 --- 0.094 0.250 0.020
#4 0.1120 --- 0.125 0.312 0.032
#6 0.1380 --- 0.156 0.375 0.049
#8 0.1640 --- 0.188 0.438 0.049
#10 0.1900 --- 0.219 0.500 0.049
1/4" 0.2500 Narrow 0.281 0.625 0.065
1/4" 0.2500 Wide 0.312 0.734 0.065
5/16" 0.3125 Narrow 0.344 0.688 0.065
5/16" 0.3125 Wide 0.375 0.875 0.083
3/8" 0.3750 Narrow 0.406 0.812 0.065
3/8" 0.3750 Wide 0.438 1.000 0.083
7/16" 0.4375 Narrow 0.469 0.922 0.065
7/16" 0.4375 Wide 0.500 1.250 0.083
1/2" 0.5000 Narrow 0.531 1.062 0.095
1/2" 0.5000 Wide 0.562 1.375 0.109
9/16" 0.5625 Narrow 0.594 1.156 0.095
9/16" 0.5625 Wide 0.625 1.469 0.109
5/8" 0.6250 Narrow 0.656 1.312 0.095
5/8" 0.6250 Wide 0.688 1.750 0.134
3/4" 0.7500 Narrow 0.812 1.469 0.134
3/4" 0.7500 Wide 0.812 2.000 0.148
7/8" 0.8750 Narrow 0.938 1.750 0.134
7/8" 0.8750 Wide 0.938 2.250 0.165
1" 1.0000 Narrow 1.062 2.000 0.134
1" 1.0000 Wide 1.062 2.500 0.165
1-1/8" 1.1250 Narrow 1.250 2.250 0.134
1-1/8" 1.1250 Wide 1.250 2.750 0.165
1-1/4" 1.2500 Narrow 1.375 2.500 0.165
1-1/4" 1.2500 Wide 1.375 3.000 0.165
1-3/8" 1.3750 Narrow 1.500 2.750 0.165
1-3/8" 1.3750 Wide 1.500 3.250 0.180
1-1/2" 1.5000 Narrow 1.625 3.000 0.165
1-1/2" 1.5000 Wide 1.625 3.500 0.180
1-5/8" 1.6250 --- 1.750 3.750 0.180
1-3/4" 1.7500 --- 1.875 4.000 0.180
1-7/8" 1.8750 --- 2.000 4.250 0.180
2" 2.0000 --- 2.125 4.500 0.180

Ask Free Sample of Incoloy 800 Fastener, Bolts, Nuts, Washer. Please Call +91 9664408767

Widest Range of Incoloy 825 Fastener in Mumbai, India.

  • Alloy 800 Fastener Supplier in India
  • Incoloy Alloy 800 Lock Washers
  • UNS N08800 Fasteners
  • Incoloy Alloy 800 Fastener Manufacturers
  • Incoloy 800 Fasteners Manufacturer in Mumbai
  • Incoloy 800 Fasteners Weight Calculator
  • Alloy 800 Washer Manufacturers In India
  • Price of Incoloy 800 Belleville Washer
  • Nickel Alloy 800 Fastener Suppliers in Mumbai
  • Incoloy 800 Screw Suppliers
  • Incoloy® Alloy 800 12mm Anchor Fastener Price
  • Alloy 800 Fastener Supplier
  • Incoloy 800 Fastener Suppliers in Mumbai
  • Alloy 800 10mm Anchor Fastener Price
  • UNS N08810 Fasteners
  • Incoloy Alloy 800 Bolts and Nuts
  • Incoloy 800 Fastener Supplier in India
  • Incoloy 800 Anchor Bolt Weight Calculator In MM
  • Incoloy 800 Self Tapping Screws
  • Incoloy 800H Fastener Bolt
  • 1.4876 Fender Washer
  • Incoloy 800 Price in India
  • Incoloy 800 Machine Bolts
  • Incoloy 800 Flat Washers Exporter
  • Incoloy Alloy 800 Set Screw
  • Nickel Alloy 800HT Concrete Screws
  • Incoloy 800 Square Nut
  • Incoloy Alloy 800 Hex Head Bolts
  • Alloy 800 Stud Bolt Price List
  • Incoloy Alloy 800 Ogee Washers
  • Incoloy 1.4958 Fastener Exporter
  • Incoloy® Alloy 800 Bolt Specification
  • Incoloy 800 Coupling Nuts
  • Cost Of Incoloy 800 Fastener
  • Incoloy 800H Heavy Hex Bolts
  • ASTM B166 Incoloy 800 Fastener
  • Nickel Alloy 800 Stud Price
  • UNS N08811 Split Washers Sizes
  • Alloy 800 Wing Nuts Sizes
  • Incoloy 800HT Panel Nuts
  • Incoloy 800 Fastener Price in India
  • Incoloy 800HT Hex Nut Dimensions
  • ASME SB166 Incoloy 800 Fastener
  • Alloy 800 Dome Nut
  • Incoloy 800 Fastener Supplier in India
  • Incoloy® Alloy 800 Lock Nut
  • Incoloy Alloy 800 Socket Screws
  • 1.4859 Square Bolts Stockists
  • Incoloy 800 Fastener Price Per Kg in Mumbai
  • Incoloy 800H Spring Washers
  • Incoloy 800 Flange Bolts
  • Alloy 800 Socket Cap Screw Stock

Tests of ASTM B166 Incoloy 800 Fastener

Before being prepared for shipment to the customer, ASTM B166 Incoloy 800 Fasteners Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Shear Test

Shear Test

Fatigue Test

Fatigue Test

Biaxial Test

Biaxial Test

Creep Test

Creep Test

Drop Weight Test

Drop Weight Test

Flexure Test

Flexure Test

Finishes Of Incoloy 800 Fastener

Powder coating Zinc and yellow plated
Zinc and de-embrittled Stayblack finish
Sherardised Nickel
Green chromate Geomet
Galvanised Electro brass plated
Chrome Chemical black

Incoloy 800 Fasteners - Comparing International Standards

EU
EN
USA
-
Germany
DIN,WNr
Japan
JIS
France
AFNOR
England
BS
Italy
UNI
China
GB
Sweden
SS
Poland
PN
Czechia
CSN
Finland
SFS
Inter
ISO
Russia
GOST
EN 10095 (1.4876) 800
800H
800HT
1.4876
1.4958
1.4959
NCF 800
NCF 800H
NCF 800HT
Z8NC32-21
Z8NC33-21
NA 15
NA 15(H)
NA 15(HT)
- - - - - - X8NiCrAlTi32-21 ЭИ670
best offer & competitive quotation
call us on +91 9664408767

Incoloy 800 Fasteners Supply in Below Countries

Products We Supplied Description Country
Incoloy 800 Fasteners UNS N08800 U Bolts Supply Germany, Malaysia, Venezuela, Serbia
ASTM B166 Incoloy 800 Fasteners 1.4876 Nut Bolt Weight Chart In Kg Gambia, Belarus, South Africa, Azerbaijan, Oman
Incoloy 800H Bolts and Nuts Price List N08810 Alloy Eye Bolts Slovakia, Mongolia, Puerto Rico, Yemen, Romania
Incoloy Alloy 800 Fasteners Manufacturers 1.4958 Incoloy Double Ended Studs In India Australia, Hong Kong, Switzerland, Singapore
ASME SB166 Incoloy 800 Fasteners In India N08811 Acorn Nuts Manufacturers In India Taiwan, Belgium, New Zealand, Portugal
Incoloy GOST ЭИ670 Fastener Incoloy 800HT Nyloc Nuts Manufacturers In India Czech Republic, Jordan, Ecuador, Nigeria, Chile
Incoloy 800 Bolt Torque Chart UNS N08800 Carriage Bolts Near Me Bhutan, Bulgaria, Kuwait, Nepal
Incoloy® Alloy 800 Spring Washer Incoloy 800 Flat Washers Denmark, Estonia, Hungary, Vietnam

Common Application for Alloy 800HT Fasteners

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Chemical Processing

Chemical

Power Generation

Power Generation

Shipbuilding

Shipbuilding

Construction

Construction

Aerospace

Aerospace

Oil & Gas

Oil & Gas
