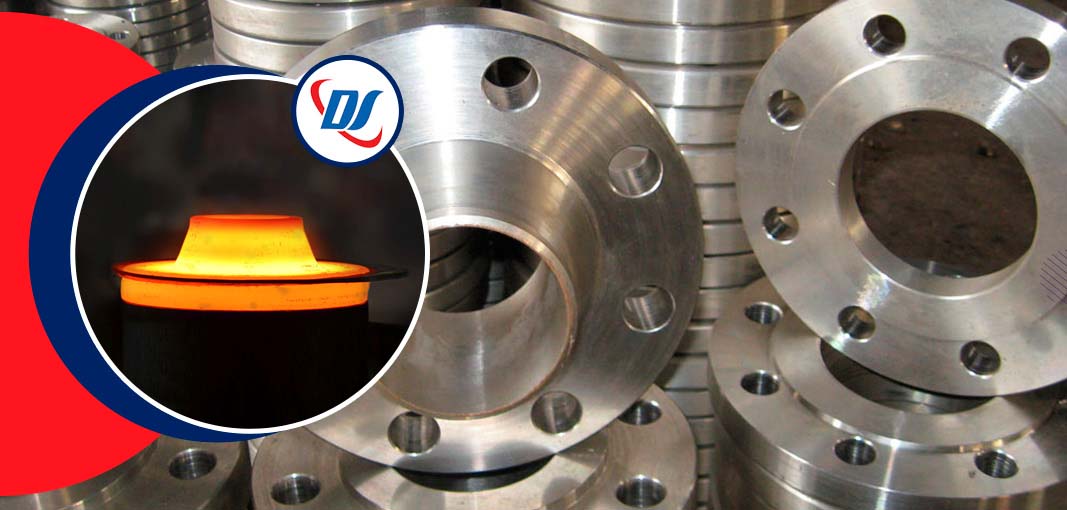

Incoloy 800, 800H, 800HT Flanges Supplier in India

Incoloy 800/800H/800HT Flanges are manufactured, supplied, and exported by Duplex Steel & Alloys We are a prestigious supplier of Incoloy Flanges; we manufacture these Flanges from high-quality raw materials that are required. We use the latest tools and technology to produce our items with extreme precision. Our team of workers verifies all the products before supplying them to our esteemed customers. We sell these Incoloy 800/800H/800HT Flanges at leading rates.

Incoloy 800 is a chromium, nickel, and iron alloy. Incoloy also contains copper, molybdenum, nitrogen, and silicon in the addition to these elements. Incoloy 800H and 800HT are members of the 800 alloy family with similar chemical compositions but varying quantities of aluminum, carbon, and titanium.

Oxidation, corrosion, carburization, and sulfidation resistance are all excellent in the Incoloy 800/800H/800HT alloy. This alloy is commonly employed in the manufacture of flanges due to its outstanding characteristics. Flanges made of Incoloy 800/800H/800HT have exceptional properties. We manufacture high-quality flanges in a variety of specifications, standards, dimensions, sizes, and types.

Nickel Alloy 800H Flange, Alloy 800 Flange Price List, Incoloy 800 Flanges, Incoloy® Alloy 800 Flange, Alloy 800HT Flange, Incoloy 800 Flange Suppliers in Mumbai, India.

Table of Content

What is Incoloy 800 Flanges
Incoloy Alloy 800 Flanges Specifications
Types of Incoloy 800 Flanges
Incoloy 800 Flange Equivalent Material
Incoloy 800H Flange Properties
Alloy 800 Flange Price List
Incoloy 800 Flanges Pressure and Temperature Ratings
Alloy 800 Flange Weight Chart
Alloy 800 Flange Dimensions
Widest Range of Incoloy 800 Flange in Mumbai, India.
Inspection & Testing of Incoloy 800 Pipe Flange
Incoloy 800HT Flanges Supply in Below Countries
Common Application for Incoloy Alloy 800 Flanges

Incoloy® Alloy 800H Pipe Flange, ASTM B564 Incoloy 800 Flanges, Alloy 800 Flange Dimensions, Incoloy 800 Blind Flange, Alloy 800 Slip On Flange, Incoloy 800HT Flange Manufacturers in India.

Weldability, workability, and formability are all good characteristics of these Incoloy Flanges. These flanges have a superior chemical composition that allows them to have a stronger tensile strength at higher temperatures and pressures. These flanges are more prone to stress rupture, and creep-rupture occurs at higher temperatures. Our flanges can be easily machinable and fabricable using normal processes.

Flanges made of Incoloy 800H Flanges have exceptional properties such as high yield strength, precise dimensions, superior anti-corrosiveness, increased durability, and high durability. These fantastic flanges are made using high-quality raw materials acquired from a dependable supplier. We provide our customers with supreme quality products.

Overall, these Incoloy 800HT Flanges have excellent corrosion and pitting resistance. It has greater tensile strength and amazing mechanical properties due to which they are popularly used in a variety of industries.

Incoloy Alloy 800 Flanges Specifications

Standard	ASTM B564 / ASME SB564
Dimensions	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Flange Size Chart	1/2" (15 NB) to 48" (1200NB), DN10~DN5000
Pressure Rating	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	16 K, 5K, 10 K, 20 K, 30 K, 40 K, 63 K
Flange Connection / Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove, Flange Pipe.
Origin	West Europe / Japan / Indian / USA / Korean
Types of Flanges	Threaded / Screwed / Forged / Plate
Coating	Yellow Transparent, Zinc Plated, Anti-rust Paint, Oil Black Paint, Cold and Hot Dip Galvanized
Test Of Flange	Direct-reading Spectrograph, Ultrasonic flaw detector, Magnetic particle detector, X-ray detector, Hydrostatic testing machine.
Production technique Used	Heat treated, Forged and Machined
Equipment	Press machine, Bending machine, Pushing Machine, Sand-blasting machine, electric bevelling machine etc.
Test Certificates	EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc

Types of Incoloy 800 Flanges

Incoloy Alloy 800 Slip On Flange

Alloy 800 Plate Flanges

Incoloy 800 Welding Neck Flange

Alloy 800 Blind Flange

Incoloy 800 Spectacle Blind Flange

Incoloy 800 Socket Weld Flange

ASTM B564 Alloy 800 Threaded Flange

Incoloy 800H Lap Joint Flange

UNS N08800 RTJ Flange

Alloy 800HT Long Weld Neck Flange

Alloy 800 Tongue and Groove Flange

Incoloy 800 Orifice Flange

Incoloy 800 Flange Equivalent Material

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

Alloy 800 Flanges Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ

Incoloy 800 Flange Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Incoloy 800 Pipe Flange, Incoloy 800 Spectacle Blind Flange, Incoloy 800 Flange Supplier, Incoloy 800 SORF Flange, ASME B16.5 Incoloy 800 Flanges, Alloy 800 Flanges Suppliers in Mumbai.

If you are looking for best prices for Incoloy 800 Flanges, Nickel Alloy 800 Plate Flange, Alloy 800 Pipe Flange email us on info@duplexsteelalloys.com or call us on +91 9664408767

Alloy 800 Flange Price List

Product	Price
Incoloy 800 Flange Price List	US $8.72-21.57 / Piece
Incoloy 800 Slip on Flange Price	US $13.58-30.23 / Piece
Incoloy Alloy 800 Weld Neck Flange Price List	US $8.72-13.58 / Piece
Nickel Alloy 800 Flange Price List	S $13.56-28.23 / Piece
Incoloy 800 Orifice Flange Price	US $6.82-21.57 / Piece
Alloy 800 2 Inch Flange Price	US $15.58-28.45 / Piece
Alloy 800 Lapped Joint Flange Price	US $15.86-31.33 / Piece
Alloy 800 Threaded Flange Prices	US $5.52-19.47 / Piece
Incoloy 800 Blind Flange Price	US $1.2-2.9 / Kilogram
Alloy 800 Spectacle Blind Flange Price	US $2,100.00-3,500.00 / Ton

Incoloy 800 Flanges Pressure and Temperature Ratings

Temperature °F	Class 150	Class 600	Class 1500	Class 400	Class 900	Class 300	Class 2500
-20 to 100	275	1440	3600	960	2160	720	6000
300	205	1080	2700	720	1620	540	4500
200	230	1200	3000	800	1800	600	5000
400	190	995	2485	660	1490	495	4140
600	140	875	2185	580	1310	435	3640
650	125	860	2150	575	1290	430	3580
500	170	930	2330	620	1395	465	3880
700	110	850	2125	565	1275	425	3540
750	95	830	2075	555	1245	415	3460
850	65	790	1980	530	1190	395	3300
800	80	805	2015	540	1210	405	3360
900	50	780	1945	520	1165	390	3240
950	35	765	1910	510	1145	380	3180
1000	20	640	1605	430	965	320	2675
1100	20	515	1285	345	770	255	2145
1150	20	400	995	265	595	200	1655
1050	20	615	1545	410	925	310	2570
1200	20	310	770	205	465	155	1285
1250	20	225	565	150	340	115	945
1300	20	170	430	115	255	85	715
1400	20	95	240	65	145	50	400
1350	20	125	310	80	185	60	515
1450	15	70	170	45	105	35	285
1500	10	55	135	35	80	25	230

Alloy 800 Flange Weight Chart

NPS (Nominal Pipe Size)	Loose (Lap Joint)	NPT (Threaded)	SORF (Slip On)	BLRF (Blind)	SWRF (Socket Weld)	WRNR (Weld Neck)
½	1	1	1	2	2	2
1	2	2	2	2	2	3
1¼	3	3	3	3	3	3
¾	2	2	2	2	2	2
1½	3	3	3	4	3	4
2½	8	8	8	7	8	10
2	5	5	5	5	5	6
3	9	9	9	9	9	11.5
4	13	13	13	17	13	16.5
3½	11	12	11	13	11	12
5	15	15	15	20	15	21
8	30	30	30	47	30	42
6	19	19	19	27	19	26
10	43	43	43	70	43	54
24	275	220	220	430	220	268
14	105	90	90	140	90	114
12	64	64	64	123	64	88
16	140	98	106	180	98	140
20	195	165	165	285	165	197
18	160	130	130	220	130	165
22	245	185	185	355	185	225

Alloy 800 Flange Dimensions

Normal Pipe Size (NPS) Of Flanges	(I.D.) Inside Diameter	Thickness Of Raised Face (RF) (T)	Outside Daimeter (O.D.)	Raised Face (R)	RF (Raised Face)	Holes Of Bolts (B)	H	T1	Thickness Of Flat Face (FF) (T2)	BC (Circle Of Bolt)	Bolts Holes Numbers
1/2	0.88	0.88	3.75	1.38	.063	0.62	1.50	0.50	0.82	2.62	4
1	1.36	1.06	4.88	2.00	.063	0.75	2.12	0.63	1.00	3.50	4
3/4	1.09	1.00	4.62	1.69	.063	0.75	1.88	.056	0.94	3.25	4
1-1/4	1.70	1.06	5.25	2.50	.063	0.75	2.50	0.69	1.00	3.88	4
2	2.44	1.31	6.50	3.62	.063	0.75	3.31	0.82	1.25	5.00	8
1-1/2	1.95	1.19	6.12	2.88	.063	0.88	2.75	0.75	1.13	4.50	4
2-1/2	2.94	1.50	7.50	4.12	.063	0.88	3.94	0.94	1.44	5.88	8
3	3.57	1.69	8.25	5.00	.063	0.88	4.62	1.06	1.63	6.62	8
3-1/2	4.07	1.75	9.00	5.50	.063	0.88	5.25	1.13	1.69	7.25	8
4	4.57	1.88	10.00	6.19	.063	0.88	5.75	1.19	1.82	7.88	8
5	5.66	2.00	11.00	7.31	.063	0.88	7.00	1.32	1.94	9.25	8
18	18.18	3.50	28.00	21.00	.063	1.38	21.00	2.32	3.44	24.75	24
6	6.72	2.06	12.50	8.50	.063	0.88	8.12	1.38	2.00	10.62	12
8	8.72	2.44	15.00	10.62	.063	1.00	10.25	1.56	2.38	13.00	12
10	10.88	2.62	17.50	12.75	.063	1.12	12.62	1.82	2.56	15.25	16
12	12.88	2.88	20.50	15.00	.063	1.25	14.75	1.94	2.82	17.75	16
14	14.14	3.00	23.00	16.25	.063	1.25	16.75	2.06	2.94	20.25	20
20	20.20	3.75	30.50	23.00	.063	1.38	23.12	2.44	3.69	27.00	24
16	16.16	3.25	25.50	18.50	.063	1.38	19.00	2.19	3.19	22.50	20
22	22.22	4.00	33.00	25.25	.063	1.63	25.25	2.57	3.94	29.25	24
24	24.25	4.19	36.00	27.25	.063	1.62	27.62	2.69	4.13	32.00	24

Dimensions Tolerances Of Incoloy 800 Plate Flange

Flange		Tolerance Table
D	Inside Diameter (I.D.)	10" and smaller: ±1/32" (0.8 mm) 12" thru 18": +1/8" (3.2 mm) 20" and larger: -1/16" (1.6 mm)
K	Length of hub	10" and smaller: ±1/16" (1.6 mm) 12" and larger: ±1/8" (3.2 mm)
B	Diameter of contact face	1/16" raised face: ±1/32" (0.8 mm) 1/4" RF (Raised Face), T/G (Tongue & Groove), (male & female), (m/f): ±1/64" (0.4 millimeter)
A	O.D. (Outside Diameter)	When O.D. (Outside Diameter) is 24" or less: ±1/16" (1.6 millimeter) When O.D. (Outside Diameter) is over 24": ±1/8" (3.2 millimeter)
J	Diameter of hub at base	When hub base is 24" or smaller: ±1/16" (1.6 millimeter) When hub base is over 24": ±1/8" (3.2 millimeter)
P	Drilling	Circle Bolts: ±1/16" (1.6 mm) Bolts hole spacing: ±1/32" (0.8 mm)
	Eccentricity of bolt circle with respect to facing	2 1/2" and smaller ±1/32" (0.8 mm) maximum 3" and larger ±1/16" (1.6 mm) maximum
H	Diameter of hub at point of welding	5" and smaller: +3/32" (2.4 mm), -1/32" (0.8 mm) 6" and larger: +5/32" (4.0 mm), -1/32 (0.8 mm)
C	Thickness	18" and smaller: ±1/8" (3.2 mm), -0" 20" and larger: ±3/16" (4.8 mm), -0"

Ask Free Sample of Alloy 800 Flange, SORF Flanges, WNRF Flange, SWRF Flange, BLRF Flange, RTJ Flange Please Call +91 9664408767

Widest Range of Incoloy 800 Flange in Mumbai, India.

UNS N08800 Blind Flange Price
Alloy 800 Flange Suppliers in Mumbai
Incoloy 800 Flange Manufacturers in India
Alloy 800 Flange Price List in India
Alloy 800 Pipe Flange
Alloy 800 EN 1092-1 Flange
Alloy 800 Blind Flange
1.4876 Puddle Flange Price
Incoloy 800 Flange Manufacturers
Alloy 800 Blind Flange Dimensions
UNS N08810 Flanges
Alloy 800 Welding Neck Flange
Incoloy 800 Flange Exporter
Alloy 800 Flange Manufacturers in Mumbai
Incoloy Alloy 800 Flat Face Flanges
Incoloy 800 Flange Supplier
Incoloy 800 Slip On Flange Price
Incoloy 800 Puddle Flanges
Incoloy® Alloy 800 Forged Flanges
800 Incoloy JIS B2220 Flange
Alloy 800H BS 4504 Flanges
Incoloy 800 Flange Suppliers in Mumbai
Incoloy 800 Flange Price in India
Price of Alloy 800 Flange
Alloy 800 Flange Supplier in India
Incoloy 800 Flange Manufacturer in Mumbai

Incoloy 800 Screwed Flange Supplier in India
Incoloy Alloy 800 LTJ Flange
PN 16 Incoloy 800 Flanges
ASTM B564 Grade 800 Incoloy BLRF Flange
Cost Of Incoloy 800 RTJ Flange
Incoloy 800H Flange Price Per Kg
Nickel Alloy 800 Expander Flange
Alloy 800HT LJFF Flange Sizes
Alloy 800 GOST ЭИ670 80 Flanges
Incoloy 800 WNRF Flange
Alloy 800 SWFF Flange Supplier
Alloy 800 Flange Standard Sizes
Alloy 800 Raised Face Slip On Flanges
Incoloy 800 Socket Weld Flange
Incoloy 800 DIN 2527 Flanges
ASTM B564 Incoloy 800 Square Flange
Incoloy 800 Male & Female Flange
ASTM B564 Incoloy 800 Plate Flange
ASME SB 564 Incoloy 800 Nipo Flange
Incoloy 800 SWRTJ Flange Price in India
1.4958 SOFF Flange Stockists
Alloy 800 Flange Price Per Kg in Mumbai
Alloy 800 Welding Neck Flange Dimensions
Incoloy 800 Flange in India
1.4859 Long Welding Neck Flange Exporter
800 Incoloy PN 10 Flange Stock

Inspection & Testing of Incoloy 800 Pipe Flange

Before being prepared for shipment to the customer, ASTM B564 Incoloy 800 Flanges Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Direct-Reading Spectrograph

UI Trasonic Flaw Detector

Hydrostatic Testing Machine

X-ray Detector

Magnetic Particle Detector

Flattening Test

PMI Testing

Hardness Test

Pitting Resistance Test

Alloy 800 Flange - Comparing International Standards

EU EN	USA -	Germany DIN,WNr	Japan JIS	France AFNOR	England BS	Italy UNI	China GB	Sweden SS	Poland PN	Czechia CSN	Finland SFS	Inter ISO	Russia GOST
EN 10095 (1.4876)	800 800H 800HT	1.4876 1.4958 1.4959	NCF 800 NCF 800H NCF 800HT	Z8NC32-21 Z8NC33-21	NA 15 NA 15(H) NA 15(HT)	-	-	-	-	-	-	X8NiCrAlTi32-21	ЭИ670

best offer & competitive quotation

call us on +91 9664408767

Incloy 800HT Flanges Supply in Below Countries

Products We Supplied	Description	Country
ASME SB564 Alloy 800 Long Weld Neck Flange Weight	1.4876 2500 LBS LWN Flange Dimensions	Belgium, Portugal, New Zealand, Taiwan
Alloy GOST ЭИ670 28-2,5-1,5 Plate Flanges	800 Alloy Loose Flanges	Chile, Jordan, Nigeria, Ecuador, Czech Republic
Incoloy 800 Forged Flanges	UNS N08811 Forged Flanges	Nepal, Bulgaria, Kuwait, Bhutan
ASTM B564 Alloy 800 Slip On Flange Welding	800 LBS SB564 Gr 800 SORF Flanges	Oman, South Africa, Belarus, Azerbaijan, Gambia
Incoloy 800 Raised Face Weld Neck Flange	1.4876 Welding Neck Flange	Romania, Yemen, Mongolia, Slovakia, Puerto Rico
Alloy 800 Socket Weld Flange	ANSI B16.47 Alloy 1.4876 Socket Weld Flange Dimensions	Switzerland, Singapore, Hong Kong, Australia
Incoloy 800 End Blind Flange	BS 10 Table F Alloy 800 Blind Flange Connection	Hungary, Estonia, Vietnam, Denmark
Incoloy 800 Raised Face Slip On Flange	UNS N08800 Flat Face Slip On Flange	Malaysia, Venezuela, Germany, Serbia

Common Application for Incoloy Alloy 800 Flanges

Heavy Equipment

Automotive

Power Generation

Construction

Chemical

Oil & Gas

Shipbuilding

Aerospace
