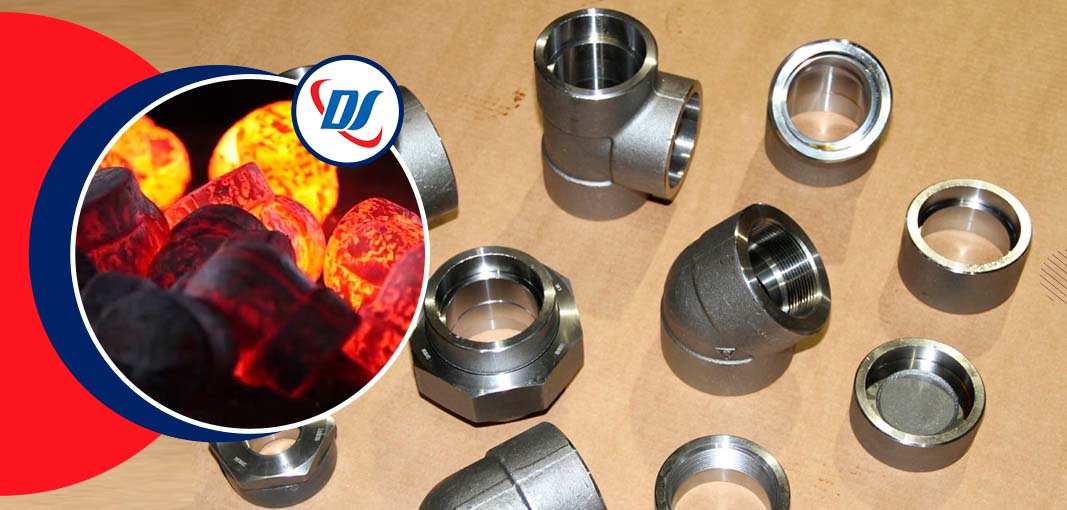

| Specifications | ASTM B564 / ASME SB564 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Types | Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Thread | NPT, BSPT, BSPP |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
If you are looking for best prices for Incoloy 825 Forged Fittings, Alloy 825 BSP Elbow, Incoloy 825 Union email us on info@duplexsteelalloys.com or call us on +91 9664408767
| Product | Price |
| Custom Size 2000 LB, 1 1/2 Inch Incoloy 825 Socket Weld Elbow Price | US $ 0.5-1.0 / Piece |
| ASME B16.11 Incoloy 825 Forged Socket weld Fittings Price | US $ 1.00-4000.0 / Piece |
| Alloy 825 Threaded Hex Nipple Price List | US $ 3.0-50.0 / Piece |
| NPS 1/2 to 2 Incoloy 825 Union Male x Female Price | US $ 2.5-60.0 / Piece |
| ANSI B16.11 Inconel 825 6 inch Forged Cap Price | US $ 1-2000 / Piece |
| 825 Inconel BSP Fittings | US $ 1.2 / Piece |
| ASTM B564 Alloy Grade 825 Forged Pipe Fittings Price | US $ 00.1-40 / Piece |
| ASME SB 564 Incoloy 825 Screwed Pipe Fittings 150lb Price List | US $ 3.0-50.0 / Piece |
| Alloy 825 End Cap Price List | US $ 3.87 / Piece |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A |
Center to End 45 Deg Elbow C |
O.D. of Band H |
Min. Wall Thick. G |
Length of Thread. Minimum (1) |
|||||||||
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| DN | NPS | End to End Couplings W |
End to End Caps P |
O.D. D | End Wall Thick. G Minimum |
Length of Thread. Minimum (1) |
||||
| Class 3000&Class 6000 | Class 3000 | Class 6000 | Class 3000 | Class 6000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 32 | 19 | … | 16 | 22 | 4.8 | … | 6.4 | 6.7 |
| 8 | 1/4 | 35 | 25 | 27 | 19 | 25 | 4.8 | 6.4 | 8.1 | 10.2 |
| 10 | 3/8 | 38 | 25 | 27 | 22 | 32 | 4.8 | 6.4 | 9.1 | 10.4 |
| 15 | 1/2 | 48 | 32 | 33 | 28 | 38 | 6.4 | 7.9 | 10.9 | 13.6 |
| 20 | 3/4 | 51 | 37 | 38 | 35 | 44 | 6.4 | 7.9 | 12.7 | 13.9 |
| 25 | 1 | 60 | 41 | 43 | 44 | 57 | 9.7 | 11.2 | 14.7 | 17.3 |
| 32 | 1-1/4 | 67 | 44 | 46 | 57 | 64 | 9.7 | 11.2 | 17.0 | 18.0 |
| 40 | 1-1/2 | 79 | 44 | 48 | 64 | 76 | 11.2 | 12.7 | 17.8 | 18.4 |
| 50 | 2 | 86 | 48 | 51 | 76 | 92 | 12.7 | 15.7 | 19.0 | 19.2 |
| 65 | 2-1/2 | 92 | 60 | 64 | 92 | 108 | 15.7 | 19.0 | 23.6 | 28.9 |
| 80 | 3 | 108 | 65 | 68 | 108 | 127 | 19.0 | 22.4 | 25.9 | 30.5 |
| 100 | 4 | 121 | 68 | 75 | 140 | 159 | 22.4 | 28.4 | 27.7 | 33.0 |
| ASME B16.11 Pressure-Temperature | |||||
| Temperature | Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
| ANSI B16.11 American Standard Dimensional Tolerances | ||
| "A" - Threaded Center To Bottom | For Size 1/8" And 1/4" |
± 0.03" |
| 3/8", 1/2" And 3/4" | ± 0.06" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.08" | |
| 2-1/2", 3", And 4" | ± 0.10" | |
| "B" - Threaded Bore Diameter | For Size 1-1/2" And Smaller |
+ 0.020" - 0.000" |
| 2", 2-1/2", 3" And 4" | + 0.025" - 0.000" |
|
| "C" - Threaded Wall Thick. | Min. = 1.09 T (But Not Less Than 5/32") T = Wall Thickness Of Nominal Pipe Sizes |
|
| "D" - Bore Diameter Of Pipe Fitting | For Size 2" And Smaller |
± 0.030" |
| 2-1/2", 3" And 4" | ± 0.060" | |
| "E" - Threadeds- Bottom To Bottom - Full Couplings | For Size 1/8" And 1/4" |
± 0.06" |
| 3/8", 1/2" And 3/4" | ± 0.12" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.16" | |
| 2-1/2", 3", And 4" | ± 0.20" | |
| "F" - Bottom Of Threaded To Opposite Face - ANSI B16.11 Half Couplings | For Size 1/8" And 1/4" |
± 0.03" |
| 3/8", 1/2" And 3/4" | ± 0.06" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.08" | |
| 2-1/2", 3", And 4" | ± 0.10" | |
| "G" - Gap Of Welding | Approx. 0.06" Before Welding Recommended Gap |
|
| "H" - Min. Flat | Min. Flat = 0.75 X Min. Threaded Wall Thick. |
|
Ask Free Sample of Incoloy 825 Forged Elbow, Tee, Coupling, Union Please Call +91 9664408767
Before being prepared for shipment to the customer, ASTM B564 Incoloy 825 Threaded Forged Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.
Hardness Test
PMI Testing
Ultrasonic Testing
| EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Italy UNI |
China GB |
Sweden SS |
Poland PN |
Czechia CSN |
Finland SFS |
Inter ISO |
Russia GOST |
| EN 10095 (2.4858) | 825 | 2.4858 | NCF 825 | Z8NC32-21 Z8NC33-21 |
NA 15 | - | - | - | - | - | - | X8NiCrAlTi32-21 | ЭИ670 |
| Products We Supplied | Description | Country |
| Incoloy 825 Forged 90° Elbow | UNS N08825 2000 LB, 1 1/2 Inch 90 Deg Elbow Supply | Romania, UAE, Europe, Norway |
| Incoloy 825 Forged Unequal Tee | 1/2 Inch, ASME B16.11 Inconel 825 Socket Weld Tee | Vietnam, Thailand, Indonesia, Saudi Arabia |
| Incoloy Alloy 825 Threaded Equal Tee | 4 Inch 2.4858 NPT Threaded Tee | Australia, Ellington -United States, Nigeria, Canada |
| Nickel Alloy 825 Forged Socket Weld Elbow | 3 Inch ASME B16.11 825 Inconel SW Elbow | Kuwait, South Africa, Philippines, Taiwan |
| ASTM B564 Incoloy 825 Socket weld Reducing Tee | 2.4858 CL3000, DN25, B16.11, Socket Reducing Tee | Mexico, Egypt, France, Malaysia |
| Incoloy Alloy 825 Forged Pipe Coupling | 3000#, 4 Inch, Threaded Incoloy 825 Pipe Coupling | Jordan, Venezuela, Netherlands, UK, Belgium |
| 825 Incoloy NPT Threaded Pipe Fittings | 8 Inch JIS NCF 825 Forged Threaded Fittings | Mongolia, Colombia, Tunisia, Ukraine |
| Inconel 825 Socket weld Half Coupling | 2-1/2 INCH 3000 LB 1/2 SW Half Coupling | Germany, Canada, Turkey, Morocco, Egypt |
| Alloy 825 Screwed Bushing | 1/2 inch ASME SB564 Incoloy 825 Threaded Bushing | Maldives, Finland, Uruguay, Costa Rica, Singapore |
