PROVIDING DUPLEX AND SUPER DUPLEX STEEL PRODUCTS SINCE 1975

Duplex Steel & Alloys is one of the top organizations for the manufacturing and supplying of Incoloy 825 Plates. We work extensively to provide our clients with the best possible services, high-quality products, and customer satisfaction. Our products are made of the highest quality raw materials. These raw materials are obtained from trusted and certified vendors. We are associated with 50 leading manufacturers in the country and ensure thorough checking before the products are sent to our clientele. Our high-tech manufacturing unit is maintained by our skilled experts who inspect the entire process very closely.

Inconel 825 Sheets, Incoloy 825 Plates, Alloy 825 Plate, Incoloy 825 Coil, Nickel Alloy 825 Sheet, ASME SB 423 UNS N08825 Strips, Inconel 825 Plate Suppliers in Mumbai, India.

Incoloy 825 Sheet Suppliers, Incoloy 825 Plate, Incoloy® Alloy 825 Plates, Alloy 825 Chequered Plate, Inconel 825 Sheet Price, Incoloy 825 Plate Manufacturers in India.

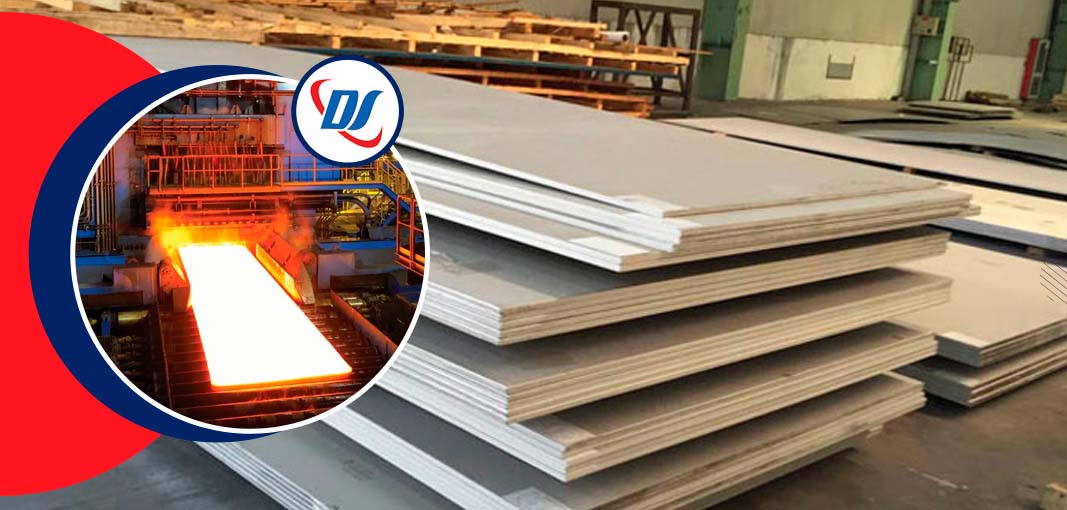

Incoloy 825 Plates

Iron, chromium, and nickel are three chemicals that make up Incoloy in high concentrations and make it stainless. Whereas the chemical makeup of Incoloy and Inconel is similar, the proportion of nickel in Incoloy is less than 50% while that of Inconel stainless steel is greater than 50%. A versatile, highly austenitic stainless steel is Incoloy. Due to its properties, which include resistance to oxidation, high heat, sulfuric acid, and other harsh acids, stress corrosion in various media, high chloride conditions, etc., it is employed in industries. Plates made of alloy 825 are hot forged in a temperature range of 1600 to 2150 degrees Fahrenheit. Plates made of Incoloy 825 are utilized in applications requiring resistance to oxidizing and reducing chemicals, stress cracking, crevice corrosion, pitting, and interangular corrosion.

A major cost-effective aspect of it is its resistance to strong acids, especially sulfuric and phosphoric acids. Pressure vessels with temperatures up to 800 degrees Fahrenheit employ Incoloy 825 Plates. Even when exposed to heat for extended periods, they retain their outstanding mechanical characteristics and creep strength. Chemical processing facilities, pollution control gear, nuclear fuel reprocessing, pickling gear, oil and gas well pipes, handling of radioactive waste materials, acid manufacturing, and oil and gas recovery all employ Incoloy 825 Plates.


Incoloy 825 Plate Specification

Specifications ASTM B423, ASTM B705 / ASME SB423, ASME SB705
Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold Rolled : 0.5-6.4 mm
Hot Rolled : 3.0–10.0 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness 0.3 mm to 120 mm
International Standard ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) EN 10258/ DIN 59381)
EN 10151
EN 10088
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Finish 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Form Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

Types of Incoloy Alloy 825 Plates

Shim

Incoloy 825 Shims

Coil

Incoloy Alloy 825 Coil

Strip

Incoloy 825 Strip

Perforated Sheet

ASTM B423 UNS N08825 Perforated Sheet

Hot Rolled Sheets

ASME SB423 Alloy 825 Hot Rolled Sheets

Cold Rolled Plate

Nickel Alloy UNS N08825 Cold Rolled Plate

Incoloy 825 Plate Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo XH38BT

UNS N08825 Sheet Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr Al Ti
Incoloy 825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20

Incoloy 825 Plates Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Incoloy 825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %

ASTM B423 Incoloy 825 Sheet Thickness Chart, Incoloy 825 Plate in India, ASME SB423 Incoloy 825 Sheet, Incoloy® Alloy 825 Coil, Incoloy 825 Flat, Incoloy 825 Sheet Suppliers in Mumbai.

If you are looking for best prices for Incoloy Alloy 825 Strip, Incoloy 825 Foil, Alloy 825 Sheet email us on info@duplexsteelalloys.com or call us on +91 9664408767

Incoloy 825 Plate Price List

Product Price
Incoloy 825 Sheet Price US $1300-1900 / Ton
Incoloy® Alloy 825 Sheet Price US $1000-3000 / Ton
825 Incoloy® Alloy Plate Price Per KG US $1000-2500 / Ton
6mm ASTM B423 UNS N08825 Sheet Price S $1000.0-1000.0 / Ton
Incoloy 825 Sheet Price Per KG US $2000-2500 / Ton
Incoloy 825 Sheet Price Per KG US $1300-3700 / Ton
Incoloy® Alloy 825 Plate Price US $1500-2500 / Ton
Polished Nickle Alloy 825 Plate Price List US $1200-5000 / Ton
Alloy 825 Shim Sheet Price List US $1.3-2.7 / Kilogram
10mm Thick Incoloy Alloy 825 Plate Price US $2,825.00/ Ton

Incoloy 825 Sheet Size Chart

Incoloy 825 Sheet Size Chart
Thickness Thickness Size Range Surface Area per Unit weight Approx Weight per Sheet
inches mm   lbs/ft² kg/m² lbs kg
0.015 0.381 36 x 96 0.630 3.07566 15.12 6.84936
0.015 0.381 36 x 120 0.630 3.07566 18.90 8.5617
0.0178 0.45212 36 x 96 0.756 3.690792 18.15 8.22195
0.0178 0.45212 36 x 120 0.756 3.690792 22.68 10.27404
0.0178 0.45212 48 x 96 0.756 3.690792 24.19 10.95807
0.0178 0.45212 48 x 120 0.756 3.690792 30.24 13.69872
0.0235 0.5969 30 x 96 1.008 4.921056 20.16 9.13248
0.0235 0.5969 30 x 120 1.008 4.921056 25.20 11.4156
0.0235 0.5969 36 x 96 1.008 4.921056 24.19 10.95807
0.0235 0.5969 36 x 120 1.008 4.921056 30.24 13.69872
0.0235 0.5969 36 x 144 1.008 4.921056 36.29 16.43937
0.0235 0.5969 48 x 96 1.008 4.921056 32.26 14.61378
0.0235 0.5969 48 x 120 1.008 4.921056 40.32 18.26496
0.0235 0.5969 48 x 144 1.008 4.921056 48.39 21.92067
0.0291 0.73914 30 x 96 1.260 6.15132 25.20 11.4156
0.0291 0.73914 30 x 120 1.260 6.15132 31.50 14.2695
0.0291 0.73914 36 x 96 1.260 6.15132 30.24 13.69872
0.0291 0.73914 36 x 120 1.260 6.15132 37.80 17.1234
0.0291 0.73914 36 x 144 1.260 6.15132 45.37 20.55261
0.0291 0.73914 48 x 96 1.260 6.15132 40.32 18.26496
0.0291 0.73914 48 x 120 1.260 6.15132 50.41 22.83573
0.0291 0.73914 48 x 144 1.260 6.15132 60.49 27.40197
0.0355 0.9017 30 x 96 1.512 7.381584 30.24 13.69872
0.0355 0.9017 30 x 120 1.512 7.381584 37.80 17.1234
0.0355 0.9017 36 x 96 1.512 7.381584 36.29 16.43937

Incoloy 825 Sheet Weight Chart

Weight per Size Size Weight per
Sheets (Kg) (mm) (mm) Sheets (Kg)
12.8 2500 x 1250 x 0.5 2000 x 1000 x 1.5 24.6
8.2 2000 x 1000 x 0.5 3000 x 1500 x 1.2 44.2
17.9 2500 x 1250 x 0.7 3000 x 1500 x 1.5 55.3
13.1 2000 x 1000 x 0.8 2000 x 1000 x 2.0 32.7
11.5 2000 x 1000 x 0.7 2500 x 1250 x 1.5 38.4
14.7 2000 x 1000 x 0.9 3000 x 1500 x 2.0 73.7
20.5 2500 x 1250 x 0.8 2500 x 1250 x 2.0 51.2
33.2 3000 x 1500 x 0.9 2500 x 1250 x 2.5 63.9
36.8 3000 x 1500 x 1.0 2500 x 1250 x 3.0 77.5
23.0 2500 x 1250 x 0.9 2000 x 1000 x 2.5 40.9
25.6 2500 x 1250 x 1.0 2000 x 1000 x 3.0 49.6
16.4 2000 x 1000 x 1.0 3000 x 1500 x 2.5 92.1
19.6 2000 x 1000 x 1.2 3000 x 1500 x 3.0 112.0
30.7 2500 x 1250 x 1.2 - - - -

Ask Free Sample of Incoloy 825 Sheet, Plate, Coil, Strip, Flat Please Call +91 9664408767

Widest Range of Incoloy 825 Plate in Mumbai, India.

  • Incoloy 825 Sheet Manufacturers in India
  • Incoloy 825 Coil
  • Incoloy 825 Sheet Price Per KG in Bangalore
  • Incoloy 825 Plate Weight Calculator
  • Alloy 825 Plate Suppliers in Mumbai
  • Incoloy 825 Sheet Supplier in India
  • Incoloy 825 Plate Price
  • ASTM B423 Incoloy 825 Sheet Price List in India
  • Incoloy 825 Plate Manufacturer in Mumbai
  • Incoloy 825 Plate Supplier in India
  • Incoloy 825 Plate Manufacturers
  • 6mm Incoloy Alloy 825 Plate
  • Incoloy 825 Sheets
  • Price of Incoloy 825 Sheet
  • Incoloy Alloy 825 Sheet
  • Incoloy 825 Sheet
  • Incoloy® Alloy 825 Price in India
  • Incoloy® Alloy 825 Sheet Thickness
  • Incoloy 825 Sheet Price
  • Incoloy 825 Strips
  • Incoloy 825 Plate Weight Chart
  • Incoloy 825 Sheet Suppliers in Mumbai
  • Incoloy Alloy 825 Plate Manufacturers in Mumbai
  • Incoloy® Alloy 825 Plates
  • 2.4858 Shim Sheets
  • 18 Gauge Alloy 825 Rolling Plate
  • Incoloy 825 Sheet Supplier in India
  • Incoloy 825 Flat Strip
  • ASTM B423 Alloy 825 2B Plate
  • Cost Of Incoloy Alloy 825 Sheet
  • 2.4858 HR Sheet Exporter
  • Incoloy 825 Perforated Sheet Price
  • 24 Gauge Incoloy Alloy 825 Sheet
  • Incoloy 825 Sheet Price Per KG in Chennai
  • Incoloy Alloy 825 Cold Rolled Sheet
  • Incoloy Alloy 825 Sheet Price
  • ASTM B423 UNS N08825 Sheet Price in India
  • 2.4858 HR Plate Stockists
  • Incoloy 825 Sheet Price Per Kg in India
  • JIS NCF 825 Plate
  • Incoloy 825 Coil Price India
  • Incoloy 825 Coil Price
  • Incoloy 825 Hot Rolled Plate
  • Incoloy 825 Sheet Price List in India
  • Incoloy 825 Sheet Price Per KG in Mumbai
  • Incoloy Alloy 825 10mm Plate
  • 2MM Incoloy Alloy 825 Sheet
  • 1 mm Perforated Incoloy Alloy 825 Sheet
  • Incoloy® Alloy 825 2B Sheet
  • Matt Finish Incoloy 825 Sheets

Tests of ASTM B423 Incoloy 825 Plate

Before being prepared for shipment to the customer, ASTM B423 Alloy 825 Plates Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

PMI Testing

PMI Testing

Hydrostatic Test

Hydrostatic Test

Radiography Test

Radiography Test

Finishes Of Incoloy 825 Plate

Surface finish Thickness (mm) Width (max mm)
2B – Cold rolled, heat treated, pickled, skin passed Sheet 0.25–8.0 2032
2D – Cold rolled, heat treated, pickled Sheet 0.4–6.35 1524
2E – Cold rolled, heat treated, mechanically descaled plate 0.4–8.0 2032
2R – Cold rolled, bright annealed plate 0.25–3.5 1524
2H – Work hardened plate 0.4–6.35 1524
Polished, brushed plate 0.5–4.0 1524
Surface finish Gauge (in) Width (max in)
2B – Cold rolled, heat treated, pickled, skin passed Plate 10–24 72*
2D – Cold rolled, heat treated, pickled plate 12–24 60
Polished Sheet (not brushed) 11–24 60

Incoloy 825 Plate - Comparing International Standards

EU
EN
USA
-
Germany
DIN,WNr
Japan
JIS
France
AFNOR
England
BS
Italy
UNI
China
GB
Sweden
SS
Poland
PN
Czechia
CSN
Finland
SFS
Inter
ISO
Russia
GOST
EN 10095 (2.4858) 825
825
825
2.4858
1.4958
1.4959
NCF 825
NCF 825
NCF 825
Z8NC32-21
Z8NC33-21
NA 15
NA 15(H)
NA 15(HT)
- - - - - - X8NiCrAlTi32-21 ЭИ670
best offer & competitive quotation
call us on +91 9664408767

Incoloy 825 Sheets Supply in Below Countries

Products We Supplied Description Country
3mm Incoloy alloy 825 Sheet UNS N08825 Hot Rolled Sheets Supply Venezuela, Malaysia, Germany, Serbia
ASTM B423 Incoloy 825 Sheets 6mm Thick Incoloy 2.4858 Sheet Oman, Gambia, Azerbaijan, South Africa, Belarus
Incoloy 825 Perforated Sheets 0.35mm Cold Rolled UNS N08825 Sheets Yemen, Slovakia, Puerto Rico, Mongolia, Romania
ASTM B423 Incoloy Alloy 825 Coils 2.4858 Cold Rolled Slitting Coils Belgium, New Zealand, Portugal, Taiwan
825 Incoloy Alloy HR Plate 10mm Thick Incoloy 825 Plate Czech Republic, Jordan, Ecuador, Chile, Nigeria
Incoloy Alloy 825 Polished Plates 16 Gauge UNS N08825 Plates Bulgaria, Nepal, Kuwait, Bhutan
Incoloy Alloy 825 3/16" Plate 8k Mirror Finish Incoloy 825 Plate Vietnam, Estonia, Hungary, Denmark

Common Application for Incoloy Alloy 825 Sheets

Oil & Gas

Oil & Gas

Chemical Processing

Chemical

Power Generation

Power Generation

Aerospace

Aerospace

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Shipbuilding

Shipbuilding

Construction

Construction
