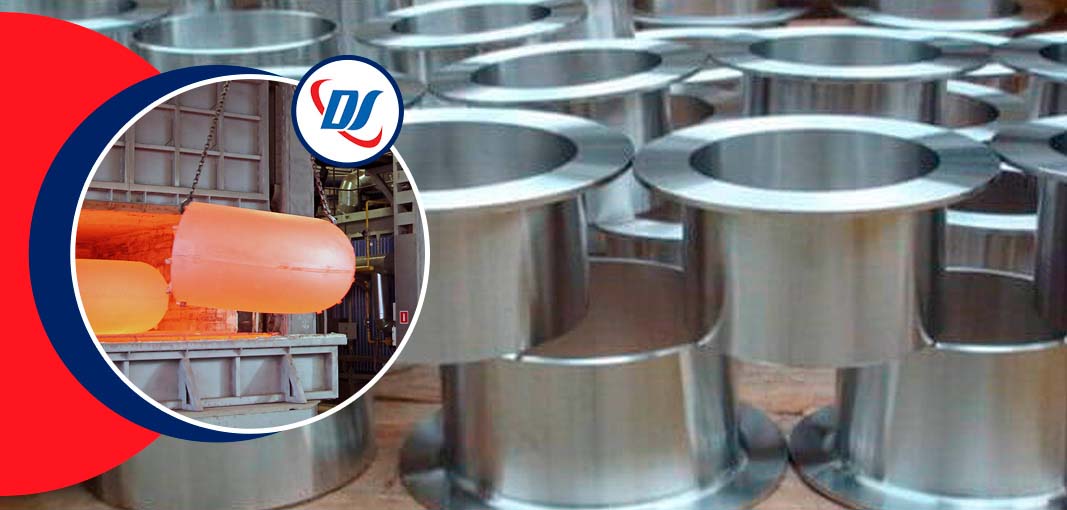

Inconel 625 Buttweld Fittings

Duplex Steel & Alloys produces Inconel 625 Buttweld Fittings from excellent raw materials and distributes them to our customers. These fittings may be created in a variety of diameters and thicknesses and are a component of an industrial pipe system. Our products are of the best quality and are provided at competitive rates, which helps to maximize the satisfaction of the customer or buyer.

Inconel 625 Buttweld Fittings are an alloy made of 58–71% nickel, 21–23% chromium, 8–10% molybdenum, and other essential components. It is very strong, heat and corrosion-resistant, and is a high-performance alloy. The alloy provides high hardness without the requirement for precipitation hardening treatment because of the presence of niobium and molybdenum.

Inconel 625 Pipe Fittings, Alloy 625 Pipe Fittings, Inconel 625 Elbow Price, Inconel 625 Elbow, Nickel Alloy 625 Buttweld Fittings, Inconel 625 Pipe Fittings Suppliers in Mumbai, India.

Table of Content

Inconel 625 Pipe Fittings, Inconel Alloy 625 Weld Fittings, Alloy 625 Elbow, Inconel® Alloy 625 Pipe Fittings, Inconel Alloy 625 Fittings, Inconel 625 Buttweld Fittings Manufacturers in India.

Inconel 625 Buttweld Fittings

The minimum yield strength of Inconel 625 Buttweld Fittings is 40 Ksi and the minimum tensile strength is 100 Ksi (min). It can tolerate a wide range of severe temperatures, including extremely high temperatures and cryogenic temperatures and has a melting point of 1300 °C. Titanium and niobium give the fittings a natural protective layer which is created when oxidizing agents are oxidized at high temperatures. This protective layer significantly increases the ability of the alloy to withstand corrosive attacks.

Due to its chemical mixup of Inconel 625 Buttweld Fittings, these have a high level of resistance to corrosive elements. Because of this, the alloy performs well in highly salinated saltwater and even better in softer settings like fresh water and typical air conditions. The alloy is naturally resistant to oxidizing chemicals when exposed to them. Molybdenum's presence makes it easier for the metal to withstand pitting corrosion. With no signs of cracking when exposed to pressure and temperature changes after welding, Inconel 625 was created to be more weldable than other alloys of similar composition. High-temperature and high-pressure applications both employ Inconel 625 Buttweld Fittings.


Inconel 625 Pipe Fittings Specifications

Specifications ASTM B366/ ASME SB366
Size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Type DN15-DN1200
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Connection Welding
Manufacturing process Forge, Cast, Push, Press, etc.
Key markets and industries
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Petrochemicals and acids.
  • Nuclear power (mostly seamless).
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Inconel 625 Pipe Fittings

Buttweld 90 Degree Elbow

Inconel 625 90 Degree Elbow

Buttweld 45 Degree Elbow

Alloy 625 45 Degree Elbow

Buttweld 180 Degree Elbow

Inconel 625 180 Deg Elbow

Concentric Reducer

Nickel Alloy 625 Concentric Reducer

Eccentric Reducer

Alloy 625 Eccentric Reducer

Long Radius Elbow

Inconel 625 Long Radius Elbow

Short Radius Elbow

Inconel 625 Short Radius Elbow

Pipe Bend

ASTM B366 Inconel 625 Pipe Bend

Piggable Bend

ANSI B16.9 Inconel 625 Piggable Bend

Pipe Nipple

ASME SB366 Alloy 625 Pipe Nipple

Equal Tee

Inconel 625 Equal Tee

Equal Cross

Inconel 625 Equal Cross

Long Stub End

Inconel 625 Long Stub End

Short Stub End

Inconel 625 Short Stub End

Pipe Cap

Inconel 625 Pipe Cap

Inconel 625 Pipe Fittings Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb

Inconel 625 Pipe Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 625 0.10 max 0.50 max 0.50 max 0.015max - 5.0 max 58.0 min 20.0 - 23.0

Inconel 625 Buttweld Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

Alloy 625 Pipe Fittings Manufacturer, Inconel 625 Pipe Elbow, ASTM B366 Inconel 625 Pipe Fittings, Nickel Alloy 625 Reducer, Alloy 625 Pipe Fittings Suppliers in Mumbai.

If you are looking for best prices for Inconel 625 Pipe Fittings, Alloy 625 Elbow, Nickel Alloy Reducer email us on info@duplexsteelalloys.com or call us on +91 9664408767

Looking to Buy Inconel 625 Pipe Fittings ?

Inconel 625 Elbow Price List Inconel 625 Pipe Fittings Price List Inconel 625 Pipe Fittings Weight Calculator

Inconel 625 Pipe Fittings Price List

Product Price
Custom Size 4 Inch Inconel 625 3D Elbow Price US $ 0.5-1.0 / Piece
Inconel 625 Two Halve Butt weld Fittings Price US $ 1.00-4000.0 / Piece
Alloy 625 Reducing Elbow Price List US $ 2.5-60.0 / Piece
Schedule 10 Inconel 625 Pipe Fittings Price US $ 00.1-40 / Piece
ANSI B16.9 Inconel 625 Welded Pipe Elbow Price US $ 1-4000 / Piece
Inconel 625 Seamless Long Radius 90 Degree Elbow US $ 400 / Ton
ASTM B366 Alloy 625 Buttweld Pipe Fittings Price US $ 0.5-1 / Piece
ASME SB366 Inconel 625 SMLS Fittings Price List US $ 3.0-50.0 / Piece
Inconel® Alloy 625 End Cap Price List US $ 00.9 / Piece

Inconel 625 Buttweld Pipe Fittings Dimensions

Normal Pipe Size For (NPS) For ANSI/ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow B16.9 Buttweld Equal Tee Buttweld 90 Deg Elbows Buttweld 45 Deg Elbows B16.9 Buttweld Equal Tee Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow ASME B16.9 Buttweld Equal Tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Normal Pipe Size For (NPS) For ANSI/ ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Inconel 625 Pipe Fitting Tolerance

Pressure Rating (psig)
Pipe Size
(inches)		 Pipe Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
40 3048 2629 2362 2171 2019 1924 1867 1824 1810
1 1/2" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
40 2257 1947 1750 1608 1496 1425 1383 1354 1340
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
40 1902 1640 1474 1355 1260 1201 1165 1141 1129
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
40 1806 1558 1400 1287 1196 1140 1106 1084 1072
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
40 1531 1321 1187 1091 1014 967 938 919 909
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
40 1342 1158 1040 956 889 847 822 805 797
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
40 1219 1052 945 869 808 770 747 732 724
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
40 1073 926 832 765 711 678 657 644 637
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868
80 1609 1388 1247 1147 1066 1016 986 966 956
40 974 840 755 694 645 615 596 584 578

Ask Free Sample of Inconel 625 Elbow, Tee, Reducer, Stub End Please Call +91 9664408767

Widest Range of Inconel 625 Butt weld Fittings in Mumbai, India.

  • Inconel 625 Schedule 40 180° LR Return Bend
  • Inconel 625 Pipe Fittings Supplier in India
  • Inconel Alloy 625 Stub End
  • Inconel 625 Schedule 10 Two Joint Pipe Fittings
  • UNS N06625 Buttweld Pipe Fittings
  • Inconel Alloy 625 Pipe Fittings Supplier in India
  • Inconel 625 Buttweld Fittings Supplier in Mumbai
  • Nickel Alloy 625 Pipe Fittings Manufacturers in India
  • Inconel 625 Buttweld Fittings Price List
  • Inconel 625 Buttweld Fittings Price in India
  • Inconel 625 Pipe Fittings Manufacturers in Mumbai
  • ASTM B366 Inconel 625 45 Degree Elbow
  • 2.4856 Seamless Fittings
  • UNS N06625 Welded Fittings
  • Inconel® Alloy 625 Elbow
  • Inconel® Alloy 625 Reducer
  • Alloy 625 Buttweld Fittings Manufacturer in Mumbai
  • Inconel® Alloy 625 Seamless Pipe Elbow
  • Inconel 625 Pipe Elbow Price
  • Price Of Alloy 625 Pipe Fittings
  • Inconel 625 Pipe Fittings Dimensions
  • Inconel 625 Buttweld Fittings Weight Chart
  • Inconel 625 Pipe Fittings Pressure Ratings
  • 625 Inconel 90° Weldable SR Elbow
  • Alloy 625 Pipe Fittings Manufacturers
  • Alloy 625 Buttweld Fittings Suppliers in Mumbai
  • Inconel 625 End Pipe Cap
  • ASME SB366 Inconel 625 Buttweld Cap
  • Inconel 625 Weldable 3D Elbow
  • Inconel 625 Seamless Pipe Bend
  • Alloy 625 Sch 10 Lateral Tee
  • Inconel 625 Reducing Tee Price
  • Inconel 625 Pipe End Cap
  • Inconel Alloy 625 SR Elbow
  • Inconel 625 U Bend
  • Cost Of Inconel 625 Pipe Elbow
  • Inconel 625 Reducing Tee
  • Inconel 625 Lap Joint Stub End
  • Inconel 625 Pipe Fitting Stockist
  • Inconel 625 Equal Tee Price List
  • 2.4856 Equal Cross Stockists
  • Inconel 625 Elbow Price in India
  • ASME B16.9 Inconel 625 1D Elbow
  • Inconel 625 Pipe Fittings Price
  • Alloy 625 Schedule 40 Pipe Reducer
  • Inconel 625 180 Degree Elbow
  • MSS-SP-75 Alloy 625 Buttweld Pipe Fittings
  • Inconel 625 Pipe Fittings Price List in India
  • ASTM B366 Alloy 625 45° Long Radius Elbow
  • 2 Inch Inconel 625 Pipe Fittings
  • 2.4856 SR Elbow Exporter
  • Inconel 625 Buttweld Fittings Supplier in India

Tests of ASTM B366 Inconel 625 Pipe Fittings

Before being prepared for shipment to the customer, ASTM B366 Inconel 625 Pipe Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Hardness Test

Hardness Test

Impact Tests

Impact Tests

Ultrasonic Testing

Ultrasonic Testing

Inconel 625 Pipe Fittings - Comparing International Standards

EU
EN 		USA
-		 Germany
DIN,WNr		 Japan
JIS 		France
AFNOR		 England
BS		 Italy
UNI		 China
GB		 Sweden
SS		 Poland
PN		 Czechia
CSN		 Finland
SFS		 Austria
ONORM		 Russia
GOST
EN 10095 (2.4856) 625 2.4856 NCF 625 NC22DNB4M NA 21 - - - - - - - ХН75МБТЮ
best offer & competitive quotation
call us on +91 9664408767

Inconel 625 Buttweld Pipe Fittings Supply in Below Countries

Products We Supplied Description Country
Inconel Alloy 625 Lap Joint Stub Ends UNS N06625 8 inch, SCH160 Concentric Reducer Supply Europ, UAE, Norway, Romania
625 Inconel Alloy 5D Buttweld Elbow SCH 100, BW, 10 Inch, Inconel 625 5D Elbow Saudi Arabia, Thailand, Indonesia, Vietnam
Inconel Alloy 625 Buttweld Concentric Reducer Schedule 40 ASTM B366 Inconel 625 Piggable Bend Nigeria, Australia, Canada, Ellington -United States
Inconel Alloy 625 Piggable Bend 4 Inch, SCH 100S UNS N06625 Lap Joint Stub End Taiwan, Philippines, Kuwait, South Africa
ASTM B366 Inconel 625 Barrel Nipple 2.4856 Barrel Nipple Mexico, Malaysia, France, Egypt
Inconel 625 Long Radius 90 Degree Elbow 6 Inch AISI Alloy 625 Pipe Bend Jordan, UK, Netherlands, Belgium, Venezuela
Inconel 625 Seamless Elbow 8 Inch UNS N06625 Seamless Pipe Elbow Turkey, Egypt, Germany, Morocco, Canada
Schedule 80 Inconel 625 Grade Long Stub End 2-1/2 INCH, SCH 40S Inconel 625 Pipe Colombia, Ukraine, Tunisia, Mongolia
Inconel GOST ХН75МБТЮ Long Radius Bend 1/2 inch ASME SB366 Inconel 625 Long Stub End Singapore, Uruguay, Finland, Costa Rica, Maldives
