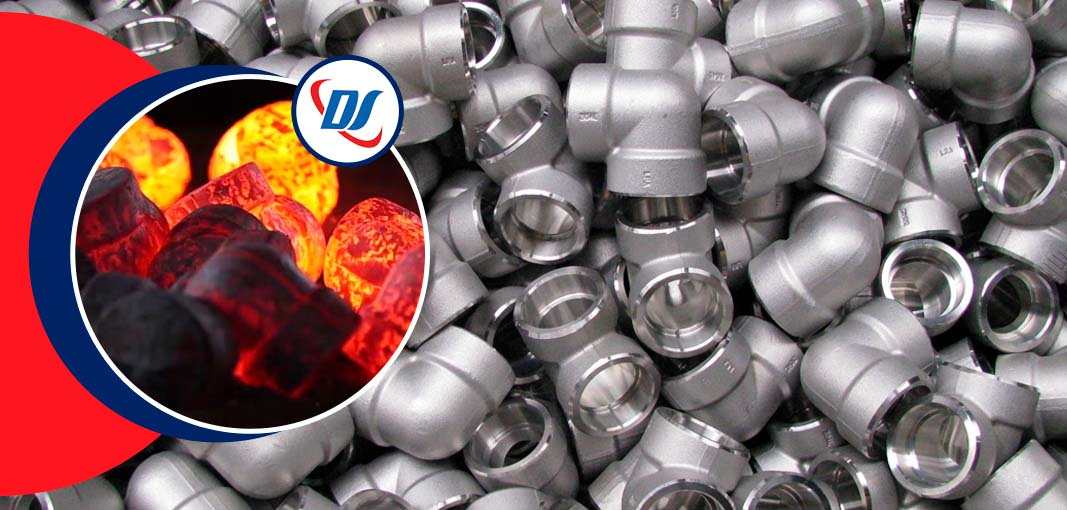

Inconel 625 Forged Fittings Supplier in Mumbai, India

Alloy 625 Forged Fittings, Inconel 625 Socket weld Fittings, Nickel Alloy 625 Forged Fittings, Inconel 625 Threaded Pipe Fitting, Inconel 625 Forged Fittings Suppliers in Mumbai, India.

Table of Content

What is Inconel 625 Forged Pipe Fittings
Inconel 625 High Pressure Fittings Specifications
Types of Inconel 625 Forged Pipe Fittings
Inconel 625 Forged Fittings Equivalent Material
Inconel 625 Forged Pipe Fittings Properties
Inconel 625 Forged Fittings Price List
Alloy 625 Forged Pipe Fittings Dimensions
Inconel 625 Forged Fitting Pressure Rating
Inconel 625 Forged Fitting Tolerance Chart
Widest Range of Inconel 625 Forged Fittings in Mumbai, India.
Tests of ASTM B564 Inconel 625 Forged Pipe Fittings
Inconel 625 Forged Pipe Fittings Supply in Below Countries
Common Application for Inconel 625 Forged Pipe Fittings

Inconel 625 NPT Threaded Elbow, Inconel 625 Threaded 90 Deg Elbow, Inconel 625 BSP Threaded Elbow, JIS NCF 625 Forged Fittings, Inconel 625 Forged Fittings Manufacturers in India.

Inconel 625 High Pressure Fittings Specifications

Specifications	ASTM B564 / ASME SB564
Size	1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Dimensions	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Types	Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating	Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs
Thread	NPT, BSPT, BSPP
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Inconel 625 Forged Pipe Fittings

Inconel 625 90 Degree Socket Weld Elbow

Inconel 625 Socket weld 45 Degree Elbow

Alloy 625 Forged NPT Threaded Tee

Alloy 625 Forged Cross

Inconel 625 Half Coupling

Nickel Alloy 625 Full Coupling

Inconel 625 Forged Cap

ASTM B564 Inconel 625 Forged Union

ANSI B16.11 Inconel 625 Forged Bushing

ASME SB564 Alloy 625 Forged Plug

Inconel Alloy 625 Forged Nipple

UNS N06625 Swage Nipple

Inconel 625 Street Elbow

Inconel 625 Socket Weld Reducer Insert

ASME B16.11 Alloy 625 Welding Boss

Inconel 625 Forged Fittings Equivalent Material

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 625	2.4856	N06625	NCF 625	NA 21	ХН75МБТЮ	NC22DNB4M	NiCr22Mo9Nb

Inconel 625 Forged Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 625	0.10 max	0.50 max	0.50 max	0.015max	-	5.0 max	58.0 min	20.0 - 23.0

Inconel 625 Forged Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 625	8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 517	42.5 %

Alloy 625 Coupling, Inconel 625 Threaded Fittings Manufacturer, Inconel® Alloy 625 Forged Fittings, Inconel® Alloy 625 Forged Elbow, ASTM B564 Inconel 625 Socket weld Fittings, Inconel 625 Screwed Fittings Suppliers in Mumbai.

If you are looking for best prices for Inconel 625 Forged Fittings, Alloy 625 BSP Elbow, Inconel 625 Union email us on info@duplexsteelalloys.com or call us on +91 9664408767

Inconel 625 Forged Fittings Price List

Product	Price
Custom Size 2000 LB, 1 1/2 Inch Inconel 625 Socket Weld Elbow Price	US $ 0.5-1.0 / Piece
ASME B16.11 Inconel 625 Forged Socket weld Fittings Price	US $ 1.00-4000.0 / Piece
Alloy 625 Threaded Hex Nipple Price List	US $ 3.0-50.0 / Piece
NPS 1/2 to 2 Inconel 625 Union Male x Female Price	US $ 2.5-60.0 / Piece
ANSI B16.11 Inconel 625 6 inch Forged Cap Price	US $ 1-2000 / Piece
625 Inconel BSP Fittings	US $ 1.2 / Piece
ASTM B564 Alloy Grade 625 Forged Pipe Fittings Price	US $ 00.1-40 / Piece
ASME SB 564 Inconel 625 Screwed Pipe Fittings 150lb Price List	US $ 3.0-50.0 / Piece
Alloy 625 End Cap Price List	US $ 3.87 / Piece

Alloy 625 Forged Pipe Fittings Dimensions

DN	NPS	Center to End NPT Elbow, NPT Tee, NPT Cross A			Center to End 45 Deg Elbow C			O.D. of Band H			Min. Wall Thick. G			Length of Thread. Minimum (1)
DN	NPS	Class 2000	Class 3000	Class 6000	Class 2000	Class 3000	Class 6000	Class 2000	Class 3000	Class 6000	Class 2000	Class 3000	Class 6000	B	L2
6	1/8	21	21	25	17	17	19	22	22	25	3.18	3.18	6.35	6.4	6.7
8	1/4	21	25	28	17	19	22	22	25	33	3.18	3.30	6.60	8.1	10.2
10	3/8	25	28	33	19	22	25	25	33	38	3.18	3.51	6.98	9.1	10.4
15	1/2	28	33	38	22	25	28	33	38	46	3.18	4.09	8.15	10.9	13.6
20	3/4	33	38	44	25	28	33	38	46	56	3.18	4.32	8.53	12.7	13.9
25	1	38	44	51	28	33	35	46	56	62	3.68	4.98	9.93	14.7	17.3
32	1-1/4	44	51	60	33	35	43	56	62	75	3.89	5.28	10.59	17.0	18.0
40	1-1/2	51	60	64	35	43	44	62	75	84	4.01	5.56	11.07	17.8	18.4
50	2	60	64	83	43	44	52	75	86	102	4.27	7.14	12.09	19.0	19.2
65	2-1/2	76	83	95	52	52	64	92	102	121	5.61	7.65	15.29	23.6	28.9
85	3	86	95	106	64	64	79	109	121	146	5.99	8.84	16.64	25.9	30.5
100	4	106	114	114	79	79	79	146	152	152	6.55	11.18	18.67	27.7	33.0

DN	NPS	End to End Couplings W	End to End Caps P		O.D. D		End Wall Thick. G Minimum		Length of Thread. Minimum (1)
DN	NPS	Class 3000&Class 6000	Class 3000	Class 6000	Class 3000	Class 6000	Class 3000	Class 6000	B	L2
6	1/8	32	19	…	16	22	4.8	…	6.4	6.7
8	1/4	35	25	27	19	25	4.8	6.4	8.1	10.2
10	3/8	38	25	27	22	32	4.8	6.4	9.1	10.4
15	1/2	48	32	33	28	38	6.4	7.9	10.9	13.6
20	3/4	51	37	38	35	44	6.4	7.9	12.7	13.9
25	1	60	41	43	44	57	9.7	11.2	14.7	17.3
32	1-1/4	67	44	46	57	64	9.7	11.2	17.0	18.0
40	1-1/2	79	44	48	64	76	11.2	12.7	17.8	18.4
50	2	86	48	51	76	92	12.7	15.7	19.0	19.2
65	2-1/2	92	60	64	92	108	15.7	19.0	23.6	28.9
80	3	108	65	68	108	127	19.0	22.4	25.9	30.5
100	4	121	68	75	140	159	22.4	28.4	27.7	33.0

Inconel 625 Forged Fitting Pressure Rating

ASME B16.11 Pressure-Temperature
Temperature		Class
		150	300
			1/4 - 1 inch.	1 1/4 - 2 inch.	2 1/2 - 3 inch.
(oF)	(oC)		1/4 - 1 inch.	1 1/4 - 2 inch.	2 1/2 - 3 inch.
-20 to 150	-29 to 66	300	2000	1500	1000
200	93	265	1785	1350	910
250	121	225	1575	1200	825
300	149	185	1360	1050	735
350	177	150	1150	900	650
400	204	-	935	750	560
450	232	-	725	600	475
500	260	-	510	450	385
550	288	-	300	300	300

Inconel 625 Forged Fitting Tolerance Chart

ANSI B16.11 American Standard Dimensional Tolerances
"A" - Threaded Center To Bottom	For Size 1/8" And 1/4"	± 0.03"
	3/8", 1/2" And 3/4"	± 0.06"
	1", 1-1/4", 1-1/2" And 2"	± 0.08"
	2-1/2", 3", And 4"	± 0.10"
"B" - Threaded Bore Diameter	For Size 1-1/2" And Smaller	+ 0.020" - 0.000"
"B" - Threaded Bore Diameter	2", 2-1/2", 3" And 4"	+ 0.025" - 0.000"
"C" - Threaded Wall Thick.	Min. = 1.09 T (But Not Less Than 5/32") T = Wall Thickness Of Nominal Pipe Sizes
"D" - Bore Diameter Of Pipe Fitting	For Size 2" And Smaller	± 0.030"
"D" - Bore Diameter Of Pipe Fitting	2-1/2", 3" And 4"	± 0.060"
"E" - Threadeds- Bottom To Bottom - Full Couplings	For Size 1/8" And 1/4"	± 0.06"
	3/8", 1/2" And 3/4"	± 0.12"
	1", 1-1/4", 1-1/2" And 2"	± 0.16"
	2-1/2", 3", And 4"	± 0.20"
"F" - Bottom Of Threaded To Opposite Face - ANSI B16.11 Half Couplings	For Size 1/8" And 1/4"	± 0.03"
	3/8", 1/2" And 3/4"	± 0.06"
	1", 1-1/4", 1-1/2" And 2"	± 0.08"
	2-1/2", 3", And 4"	± 0.10"
"G" - Gap Of Welding	Approx. 0.06" Before Welding Recommended Gap
"H" - Min. Flat	Min. Flat = 0.75 X Min. Threaded Wall Thick.

Ask Free Sample of Inconel 625 Forged Elbow, Tee, Coupling, Union Please Call +91 9664408767

Widest Range of Inconel 625 Forged Fittings in Mumbai, India.

625 Inconel 3000 LB Socket Weld Cap
Cost Of 625 Inconel Forged Hex Nipple
Alloy 625 Forged Fittings Supplier in India
Inconel® Alloy 625 90 Degree Threaded Elbow
Inconel 625 Forged Elbow Price
Alloy 625 Screwed Fittings Manufacturers
Inconel 625 Reducing Coupling
Inconel 625 Forged Fittings Weight Chart
2.4856 Threaded Fittings
Inconel 625 Forged Fittings Manufacturers in Mumbai
Price Of Inconel 625 Threaded Fittings
625 Inconel Threaded Full Coupling
Inconel Alloy 625 Forged Fittings Price List
Inconel 625 Forged Fittings Supplier in India
Inconel 625 Forged Fittings Manufacturers in India
Inconel Alloy 625 Threaded Fittings Dimensions
Alloy 625 Socket Weld Reducing Tee
UNS N06625 Socket Weld Union
Inconel 625 Threaded Half Coupling
Nickel Alloy 625 Socket weld Elbow
ASTM B564 Inconel 625 BS NA 13 Threaded Union
Inconel 625 Forged Fittings Supplier in Mumbai
Alloy 625 Forged Fittings Manufacturer in Mumbai
Inconel 625 Threaded 45 Deg Elbow
Inconel Forged Fittings 625 Price in India
Alloy 625 Forged Fittings Suppliers in Mumbai

Inconel 625 Class 6000 Forged Fittings
Inconel® Alloy 625 Socket weld Boss
2.4856 Forged Equal Cross Stockists
Alloy 625 Class 6000 Socket Weld Fittings
Inconel 625 BSPT Elbow Price
UNS N06625 Forged Pipe Fittings
Inconel 625 Threaded Square Plug
Inconel Alloy 625 Threaded Adapter
Inconel 625 Forged Fittings Price List in India
ASME SB564 Inconel 625 Forged Cap
Inconel 625 Forged Fittings Supplier in India
Alloy 625 BSP Threaded Forged Fittings
Nickel Alloy 625 Forged Fittings Price
Class 3000, SW, 2 Inch Alloy 625 Forged Steel Fittings
Inconel Alloy 625 NPT Threaded Street Elbow
Inconel 625 Industrial Forged Fittings
Alloy 625 Forged Eccentric Swage Nipple
ASME B16.11 Inconel 625 Threaded Plug
Inconel 625 Reducer Inserts
Inconel 625 45 Degree NPT Elbow
2.4856 NPT Threaded Pipe Fittings Exporter
Alloy 625 Socket weld Reducing Cross
ASTM B564 Inconel 625 High Pressure Forged Fittings
625 Inconel Coupling Price List
625 Inconel Hex Head Bushing Price in India
Inconel 625 Forged Fitting Stockist

Tests of ASTM B564 Inconel 625 Forged Pipe Fittings

Before being prepared for shipment to the customer, ASTM B564 Inconel 625 Threaded Forged Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Hardness Test

PMI Testing

Ultrasonic Testing

Inconel 625 Forged Fittings - Comparing International Standards

EU EN	USA -	Germany DIN,WNr	Japan JIS	France AFNOR	England BS	Italy UNI	China GB	Sweden SS	Poland PN	Czechia CSN	Finland SFS	Austria ONORM	Russia GOST
EN 10095 (2.4856)	625	2.4856	NCF 625	NC22DNB4M	NA 21	-	-	-	-	-	-	-	ХН75МБТЮ

best offer & competitive quotation

call us on +91 9664408767

Inconel 625 Forged Pipe Fittings Supply in Below Countries

Products We Supplied	Description	Country
Inconel 625 Forged 90° Elbow	UNS N06625 2000 LB, 1 1/2 Inch 90 Deg Elbow Supply	Norway, UAE, Europe, Romania
Inconel 625 Forged Unequal Tee	1/2 Inch, ASME B16.11 Inconel 625 Socket Weld Tee	Vietnam, Saudi Arabia, Indonesia, Thailand
Inconel Alloy 625 Threaded Equal Tee	4 Inch 2.4856 NPT Threaded Tee	Australia, Nigeria, Canada, Ellington -United States
Nickel Alloy 625 Forged Socket Weld Elbow	3 Inch ASME B16.11 625 Inconel SW Elbow	Kuwait, Philippines, South Africa, Taiwan
ASTM B564 Inconel 625 Socket weld Reducing Tee	2.4856 CL3000, DN25, B16.11, Socket Reducing Tee	France, Malaysia, Mexico, Egypt
Inconel Alloy 625 Forged Pipe Coupling	3000#, 4 Inch, Threaded Inconel 625 Pipe Coupling	Venezuela, Netherlands, Belgium, Jordan, UK
625 Inconel NPT Threaded Pipe Fittings	8 Inch JIS NCF 625 Forged Threaded Fittings	Ukraine, Mongolia, Tunisia, Colombia
Inconel 625 Socket weld Half Coupling	2-1/2 INCH 3000 LB 1/2 SW Half Coupling	Canada, Turkey, Egypt, Morocco, Germany
Alloy 625 Screwed Bushing	1/2 inch ASME SB564 Inconel 625 Threaded Bushing	Singapore, Uruguay, Costa Rica, Maldives, Finland

Common Application for Inconel 625 Forged Pipe Fittings

Oil & Gas

Chemical

Power Generation

Aerospace

Heavy Equipment

Automotive

Shipbuilding

Construction
