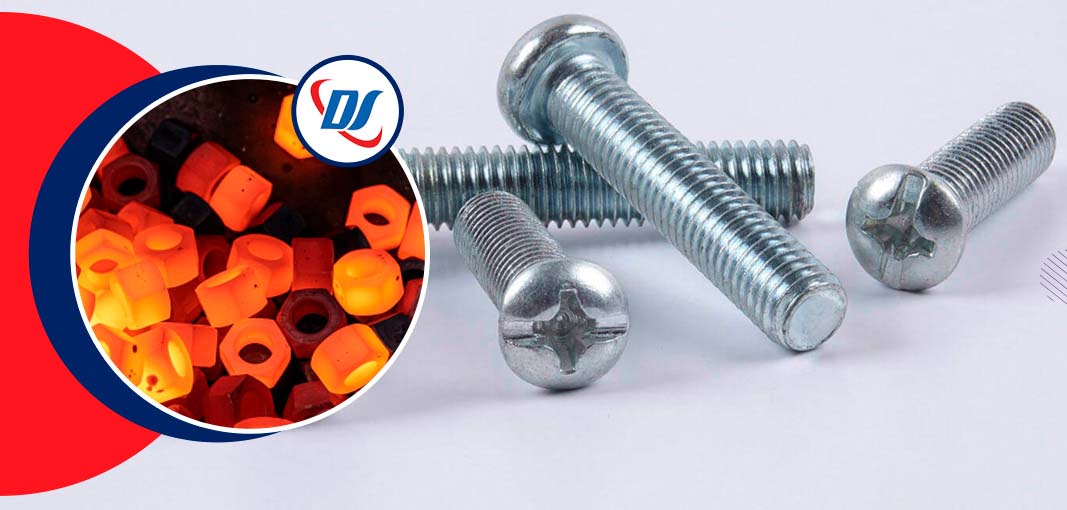

Inconel 718
Fasteners are manufactured, exported and supplied by
Duplex Steel & Alloys We use the best materials to produce these Inconel
Fasteners. We use the latest tools and technology with care, accuracy and
precision. We verify all our products before supplying them to our esteemed
customers. Being one of the most notable suppliers of Inconel 718 Fasteners,
we supply these fasteners at market-leading rates.
The most prevalent grade of hardenable Inconel nickel
alloys is Inconel 718. The alloy possesses a combination of superior
corrosion resistance and strong strength even at elevated temperatures due
to its precipitation hardening and primary nickel & chromium makeup.
Inconel 718 Bolts, Inconel 718 Nut Bolt, Inconel 718 Fasteners, Alloy 718
Fasteners, Inconel® Alloy 718 Fasteners, Inconel 718 Fastener Suppliers in
Mumbai, India.
Alloy 718 Bolts, Alloy 718 Screw, Inconel 718 Washers, Inconel 718 Nuts, Inconel Alloy
718 Hex Bolt, Inconel 718 Stud Price, Inconel 718 Fasteners Manufacturers in India.
At high temperatures, this nickel steel type exhibits
unusually strong yielding strength, tensile strength, and creep-rupture qualities. At
temperatures of up to 1300°F, Inconel 718 is known to have good creep rupture strength.
Although the Inconel 718 Stud Bolts can resist temperatures of up to 1800°F, the tensile
strength of these Inconel 718 Stud Bolts can be increased even more by cold treating
them according to the AMS 5962 standard. Cold processing Inconel 718 to the
above-mentioned criteria can result in a minimum tensile strength of 220ksi for the
alloy.
The use of niobium as an alloying element enables age hardening,
which allows for annealing and welding with no spontaneous hardening during cooling and
heating. Niobium, when combined with molybdenum, stiffens the matrix alloy and provides
high strength without the need for heat treatment. The addition of titanium and aluminum
alloying elements age-hardens another typical nickel-chromium alloy. This nickel steel
alloy can be easily manufactured and welded in the precipitation hardened and annealed
state.
We are known to supply the best Inconel 718 Fasteners that are
obtainable in the market. These Inconel 718 Fasteners are widely used in the chemical
processing industry, engineering, petrochemical industry and many more.
Inconel 718 Bolts and Nuts Specification
| Standard |
ASTM B166 / ASME SB166 |
| Bolt / Screw Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size |
M1.6 – M12 |
| Self Tapping Screw Size |
No.2 – No. 14 |
| Length |
3 mm to 200 mm |
| Threads |
UNF, BSW, BSF, METRIC, UNC, or as required |
| Fasteners |
- DIN : DIN 934, DIN 931, DIN 970, DIN 933
- UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
- ISO : JIS standards, ISO 4033, ISO 4032,
- ANSI – American National Standards Institute
- ASME B18.5
- ANSI B 28.2.4 1M
- as per defined in ASME B16.5 standard length
- ANSI B 18.2.4 2M
- as per defined in ASME B18.2.2
|
| Form |
Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source |
JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric
Coarse Threads |
| Certification |
Dual Certified As per ASTM & ASME Codes |
| Dimensions |
DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads |
Unless otherwise specified, the threads shall be rolled or cut and
tapped horizontally or vertically |
| Test Certificate |
as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications |
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production Process |
M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting
element machining and CNC |
Types Of Inconel 718 Fasteners
Inconel 718 Bolts
Alloy 718 Nuts
Inconel 718 Screw
Nickel Alloy 718 Washer
Alloy 718 Stud Bolts
Inconel 718 Anchor Bolt
Inconel 718 Threaded Rod
ASTM B166 Inconel 718 Hexagonal Bolt
Inconel 718 Hex Nut
Inconel 718 Fastener Equivalent Material
| STANDARD |
WERKSTOFF NR. |
UNS |
| Inconel 718 |
2.4668 |
N07718 |
Inconel 718 Fastener Properties
| Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
Cr |
| Inconel 718 |
0.08 max |
0.35 max |
0.35 max |
0.015 max |
0.30 max |
– |
50.00 – 55.00 |
17.00 – 21.00 |
Mechanical Properties of Inconel 718 Fasteners
| Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| Inconel 718 |
8.2 g/cm3 |
1350 °C (2460 °F) |
Psi – 1,35,000 , MPa – 930 |
Psi – 75,000 , MPa – 482 |
45 % |
Nickel Alloy 718 Fastener, Inconel 718 Hex Bolt Price List, Inconel 718 Anchor
Fasteners, ASTM B166 Inconel 718 Fasteners, Alloy 718 Nut Bolt Manufacturer, Inconel 718
Fasteners Suppliers in Mumbai.
If you are looking for best prices for Inconel 718 Fasteners, Alloy 718 Stud
Bolt, Alloy 718 Fasteners email us on info@duplexsteelalloys.com
or call us on +91 9664408767
Inconel 718 Fasteners Price List
| Product |
Price |
| Inconel 718 Nut Bolt Price Per Kg |
US $1.99-200 / Kg |
| ASTM B166 Inconel 718 Hexagon Head Screw |
US $1290-4900 / Ton |
| Cost Per Kg of Alloy 718 Heavy Hex Nuts |
US $99-1100 / Kg |
| Inconel 718 Washer Price |
S $1.00-900.0 / Kg |
| Inconel 718 Self Locking Nuts Price Per Kg |
US $190-1990 / Ton |
| Alloy 718 Heavy Hex Bolt price |
US $1000-4500 / Ton |
| Inconel 718 Anchor Fasteners Price List |
US $1500-2718 / Ton |
| Inconel 718 Bolt Price List |
US $2200-4000 / Ton |
| Inconel 718 Socket Head Screw Price |
US $1.2-3.7 / Kilogram |
| Inconel 718 Allen Cap Screw Price |
US $1,100.00-2,100.00 / Ton |
Inconel 718 Bolt Thread Sizes
| Size |
Nominal (Major)
Diameter [in] |
Coarse Thread (UNC) |
Fine Thread (UNF) |
Threads
Per Inch |
Tensile Stress
Area [in2] |
Minor
Area [in2] |
Threads
Per Inch |
Tensile Stress
Area [in2] |
Minor
Area [in2] |
| #0 |
0.0600 |
--- |
--- |
--- |
80 |
0.00180 |
0.00151 |
| #2 |
0.0860 |
56 |
0.00370 |
0.00310 |
64 |
0.00394 |
0.00339 |
| #4 |
0.1120 |
40 |
0.00604 |
0.00496 |
48 |
0.00661 |
0.00566 |
| #5 |
0.1250 |
40 |
0.00796 |
0.00672 |
44 |
0.00830 |
0.00716 |
| #6 |
0.1380 |
32 |
0.00909 |
0.00745 |
40 |
0.01015 |
0.00874 |
| #8 |
0.1640 |
32 |
0.0140 |
0.01196 |
36 |
0.01474 |
0.01285 |
| #10 |
0.1900 |
24 |
0.0175 |
0.01450 |
32 |
0.0200 |
0.0175 |
| 1/4" |
0.2500 |
20 |
0.0318 |
0.0269 |
28 |
0.0364 |
0.0326 |
| 5/16" |
0.3125 |
18 |
0.0524 |
0.0454 |
24 |
0.0580 |
0.0524 |
| 3/8" |
0.3750 |
16 |
0.0775 |
0.0678 |
24 |
0.0878 |
0.0809 |
| 7/16" |
0.4375 |
14 |
0.1063 |
0.0933 |
20 |
0.1187 |
0.1090 |
| 1/2" |
0.5000 |
13 |
0.1419 |
0.1257 |
20 |
0.1599 |
0.1486 |
| 9/16" |
0.5625 |
12 |
0.182 |
0.162 |
18 |
0.203 |
0.189 |
| 5/8" |
0.6250 |
11 |
0.226 |
0.202 |
18 |
0.256 |
0.240 |
| 3/4" |
0.7500 |
10 |
0.334 |
0.302 |
16 |
0.373 |
0.351 |
| 7/8" |
0.8750 |
9 |
0.462 |
0.419 |
14 |
0.509 |
0.480 |
| 1" |
1.0000 |
8 |
0.606 |
0.551 |
12 |
0.663 |
0.625 |
| 1-1/8" |
1.1250 |
7 |
0.763 |
0.693 |
12 |
0.856 |
0.812 |
| 1-1/4" |
1.2500 |
7 |
0.969 |
0.890 |
12 |
1.073 |
1.024 |
| 1-3/8" |
1.3750 |
6 |
1.155 |
1.054 |
12 |
1.315 |
1.260 |
| 1-1/2" |
1.5000 |
6 |
1.405 |
1.294 |
12 |
1.581 |
1.521 |
| 1-3/4" |
1.7500 |
5 |
1.90 |
1.74 |
--- |
--- |
--- |
| 2" |
2.0000 |
4.5 |
2.50 |
2.30 |
--- |
--- |
--- |
The following table of clearance holes was adapted from ASME B18.2.8. The minimum hole
diameters are given.
| Bolt Size |
Bolt Dia. [in] |
Normal Fit [in] |
Close Fit [in] |
Loose Fit [in] |
| #0 |
0.0600 |
0.076 |
0.067 |
0.094 |
| #2 |
0.0860 |
0.102 |
0.094 |
0.116 |
| #4 |
0.1120 |
0.128 |
0.120 |
0.144 |
| #5 |
0.1250 |
0.156 |
0.141 |
0.172 |
| #6 |
0.1380 |
0.170 |
0.154 |
0.185 |
| #8 |
0.1640 |
0.196 |
0.180 |
0.213 |
| #10 |
0.1900 |
0.221 |
0.206 |
0.238 |
| 1/4" |
0.2500 |
0.281 |
0.266 |
0.297 |
| 5/16" |
0.3125 |
0.344 |
0.328 |
0.359 |
| 3/8" |
0.3750 |
0.406 |
0.391 |
0.422 |
| 7/16" |
0.4375 |
0.469 |
0.453 |
0.484 |
| 1/2" |
0.5000 |
0.562 |
0.531 |
0.609 |
| 5/8" |
0.6250 |
0.688 |
0.656 |
0.734 |
| 3/4" |
0.7500 |
0.812 |
0.781 |
0.906 |
| 7/8" |
0.8750 |
0.938 |
0.906 |
1.031 |
| 1" |
1.0000 |
1.094 |
1.031 |
1.156 |
| 1-1/8" |
1.1250 |
1.219 |
1.156 |
1.312 |
| 1-1/4" |
1.2500 |
1.344 |
1.281 |
1.438 |
| 1-3/8" |
1.3750 |
1.500 |
1.438 |
1.609 |
| 1-1/2" |
1.5000 |
1.625 |
1.562 |
1.734 |
Inconel 718 Hex Nut Dimensions
The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 1-1,
"Dimensions of Square and Hex Machine Screw Nuts." This table is used for smaller size
hardware.
| Size |
Nominal (Major)
Diameter [in] |
Width Across Flats |
Thickness |
| Nominal [in] |
Minimum [in] |
Minimum [in] |
Maximum [in] |
| #0 |
0.060 |
5/32"(0.156) |
0.150 |
0.043 |
0.050 |
| #2 |
0.086 |
3/16"(0.188) |
0.180 |
0.057 |
0.066 |
| #4 |
0.112 |
1/4"(0.250) |
0.241 |
0.087 |
0.098 |
| #6 |
0.138 |
5/16"(0.312) |
0.302 |
0.102 |
0.114 |
| #8 |
0.164 |
11/32"(0.344) |
0.332 |
0.117 |
0.130 |
| #10 |
0.190 |
3/8"(0.375) |
0.362 |
0.117 |
0.130 |
| 1/4" |
0.250 |
7/16"(0.438) |
0.423 |
0.178 |
0.193 |
| 5/16" |
0.312 |
9/16"(0.562) |
0.545 |
0.208 |
0.225 |
| 3/8" |
0.375 |
5/8"(0.625) |
0.607 |
0.239 |
0.257 |
The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 4,
"Dimensions of Hex Nuts and Hex Jam Nuts."
| Size |
Nominal (Major)
Diameter [in] |
Width Across Flats |
Thickness |
| Minimum [in] |
Maximum [in] |
Minimum [in] |
Maximum [in] |
| 1/4" |
0.2500 |
0.428 |
0.438 |
0.212 |
0.226 |
| 5/16" |
0.3125 |
0.489 |
0.500 |
0.258 |
0.273 |
| 3/8" |
0.3750 |
0.551 |
0.563 |
0.320 |
0.337 |
| 7/16" |
0.4375 |
0.675 |
0.688 |
0.365 |
0.385 |
| 1/2" |
0.5000 |
0.736 |
0.750 |
0.427 |
0.448 |
| 9/16" |
0.5625 |
0.861 |
0.875 |
0.473 |
0.496 |
| 5/8" |
0.6250 |
0.922 |
0.938 |
0.535 |
0.559 |
| 3/4" |
0.7500 |
1.088 |
1.125 |
0.617 |
0.665 |
| 7/8" |
0.8750 |
1.269 |
1.312 |
0.724 |
0.776 |
| 1" |
1.0000 |
1.450 |
1.500 |
0.831 |
0.887 |
| 1-1/8" |
1.1250 |
1.631 |
1.688 |
0.939 |
0.999 |
| 1-1/4" |
1.2500 |
1.812 |
1.875 |
1.030 |
1.094 |
| 1-3/8" |
1.3750 |
1.994 |
2.062 |
1.138 |
1.206 |
| 1-1/2" |
1.5000 |
2.175 |
2.250 |
1.245 |
1.317 |
| 1-5/8" |
1.6250 |
2.350 |
2.430 |
1.364 |
1.416 |
| 1-3/4" |
1.7500 |
2.538 |
2.625 |
1.460 |
1.540 |
| 1-7/8" |
1.8750 |
2.722 |
2.813 |
1.567 |
1.651 |
| 2" |
2.0000 |
2.900 |
3.000 |
1.675 |
1.763 |
Inconel 718 Flat Washer Dimensions
The following table of flat washer dimensions was adapted from ASME B18.21.1, Table 11
for Type A Plain Washers. Type A washers come in 2 series: Narrow and Wide.
| Size |
Basic Dia. [in] |
Series |
Inner Dia,
Basic [in] |
Outer Dia,
Basic [in] |
Thickness,
Basic [in] |
| #0 |
0.0600 |
--- |
0.078 |
0.188 |
0.020 |
| #2 |
0.0860 |
--- |
0.094 |
0.250 |
0.020 |
| #4 |
0.1120 |
--- |
0.125 |
0.312 |
0.032 |
| #6 |
0.1380 |
--- |
0.156 |
0.375 |
0.049 |
| #8 |
0.1640 |
--- |
0.188 |
0.438 |
0.049 |
| #10 |
0.1900 |
--- |
0.219 |
0.500 |
0.049 |
| 1/4" |
0.2500 |
Narrow |
0.281 |
0.625 |
0.065 |
| 1/4" |
0.2500 |
Wide |
0.312 |
0.734 |
0.065 |
| 5/16" |
0.3125 |
Narrow |
0.344 |
0.688 |
0.065 |
| 5/16" |
0.3125 |
Wide |
0.375 |
0.875 |
0.083 |
| 3/8" |
0.3750 |
Narrow |
0.406 |
0.812 |
0.065 |
| 3/8" |
0.3750 |
Wide |
0.438 |
1.000 |
0.083 |
| 7/16" |
0.4375 |
Narrow |
0.469 |
0.922 |
0.065 |
| 7/16" |
0.4375 |
Wide |
0.500 |
1.250 |
0.083 |
| 1/2" |
0.5000 |
Narrow |
0.531 |
1.062 |
0.095 |
| 1/2" |
0.5000 |
Wide |
0.562 |
1.375 |
0.109 |
| 9/16" |
0.5625 |
Narrow |
0.594 |
1.156 |
0.095 |
| 9/16" |
0.5625 |
Wide |
0.625 |
1.469 |
0.109 |
| 5/8" |
0.6250 |
Narrow |
0.656 |
1.312 |
0.095 |
| 5/8" |
0.6250 |
Wide |
0.688 |
1.750 |
0.134 |
| 3/4" |
0.7500 |
Narrow |
0.812 |
1.469 |
0.134 |
| 3/4" |
0.7500 |
Wide |
0.812 |
2.000 |
0.148 |
| 7/8" |
0.8750 |
Narrow |
0.938 |
1.750 |
0.134 |
| 7/8" |
0.8750 |
Wide |
0.938 |
2.250 |
0.165 |
| 1" |
1.0000 |
Narrow |
1.062 |
2.000 |
0.134 |
| 1" |
1.0000 |
Wide |
1.062 |
2.500 |
0.165 |
| 1-1/8" |
1.1250 |
Narrow |
1.250 |
2.250 |
0.134 |
| 1-1/8" |
1.1250 |
Wide |
1.250 |
2.750 |
0.165 |
| 1-1/4" |
1.2500 |
Narrow |
1.375 |
2.500 |
0.165 |
| 1-1/4" |
1.2500 |
Wide |
1.375 |
3.000 |
0.165 |
| 1-3/8" |
1.3750 |
Narrow |
1.500 |
2.750 |
0.165 |
| 1-3/8" |
1.3750 |
Wide |
1.500 |
3.250 |
0.180 |
| 1-1/2" |
1.5000 |
Narrow |
1.625 |
3.000 |
0.165 |
| 1-1/2" |
1.5000 |
Wide |
1.625 |
3.500 |
0.180 |
| 1-5/8" |
1.6250 |
--- |
1.750 |
3.750 |
0.180 |
| 1-3/4" |
1.7500 |
--- |
1.875 |
4.000 |
0.180 |
| 1-7/8" |
1.8750 |
--- |
2.000 |
4.250 |
0.180 |
| 2" |
2.0000 |
--- |
2.125 |
4.500 |
0.180 |
Ask Free Sample of Inconel 718 Fastener, Bolts, Nuts, Washer. Please Call +91 9664408767
Widest Range of Inconel 718 Fastener in Mumbai,
India.
- Inconel 718 Screw Suppliers
- Inconel® Alloy 718 12mm Anchor Fastener Price
- Inconel Alloy 718 Lock Washers
- Inconel 718 Self Tapping Screws
- UNS N07718 Fasteners
- Alloy 718 Fastener Supplier
- Inconel 718 Fastener Supplier in India
- Inconel 718 Fastener Bolt
- Inconel Alloy 718 Set Screw
- Inconel 718 Fastener Suppliers in Mumbai
- Inconel 718 Anchor Bolt Weight Calculator In MM
- Inconel 718 Fasteners Weight Calculator
- Alloy 718 Fastener Supplier in India
- Inconel 718 Price in India
- 2.4668 Fender Washer
- Inconel 718 Machine Bolts
- UNS N07718 Fasteners
- Nickel Alloy 718 Concrete Screws
- Nickel Alloy 718 Fastener Suppliers in Mumbai
- Inconel 718 Fasteners Manufacturer in Mumbai
- Alloy 718 Washer Manufacturers In India
- Inconel Alloy 718 Bolts and Nuts
- Alloy 718 10mm Anchor Fastener Price
- Inconel Alloy 718 Fastener Manufacturers
- Inconel 718 Flat Washers Exporter
- Price of Inconel 718 Belleville Washer
- Inconel 718 Fastener Supplier in India
- Cost Of Inconel 718 Fastener
- Inconel Alloy 718 Socket Screws
- Inconel 718 Fastener Price Per Kg in Mumbai
- Alloy 718 Split Washers Sizes
- Inconel® Alloy 718 Lock Nut
- Nickel Alloy 718 Stud Price
- Alloy 718 Socket Cap Screw Stock
- Alloy 718 Dome Nut
- Inconel Alloy 718 Degree Washers
- Alloy 718 Stud Bolt Price List
- Inconel 2.4668 Fastener Exporter
- Inconel 718 Coupling Nuts
- Inconel 718 Panel Nuts
- Inconel® Alloy 718 Bolt Specification
- Inconel 718 Hex Nut Dimensions
- ASME SB166 Inconel 718 Fastener
- 2.4668 Square Bolts Stockists
- Inconel 718 Heavy Hex Bolts
- Alloy 718 Wing Nuts Sizes
- Inconel 718 Spring Washers
- Inconel 718 Flange Bolts
- ASTM B166 Inconel 718 Fastener
- Inconel Alloy 718 Hex Head Bolts
- Inconel 718 Fastener Price in India
- Inconel 718 Square Nut
Tests of ASTM B166 Inconel 718 Fastener
Before being prepared for shipment to the customer, ASTM B166
Inconel 718 Fasteners Testing should be constructed in accordance with applicable
standards and thoroughly tested for potential flaws.
Finishes Of Inconel 718 Fastener
| Powder coating |
Zinc and yellow plated |
| Zinc and de-embrittled |
Stayblack finish |
| Sherardised |
Nickel |
| Green chromate |
Geomet |
| Galvanised |
Electro brass plated |
| Chrome |
Chemical black |
Inconel 625 Fasteners - Comparing International Standards
EU
EN |
USA
- |
Germany
DIN,WNr |
Japan
JIS |
France
AFNOR |
England
BS |
Italy
UNI |
China
GB |
Sweden
SS |
Poland
PN |
Czechia
CSN |
Finland
SFS |
Austria
ONORM |
Russia
GOST |
| EN 10095 (2.4856) |
625 |
2.4856 |
NCF 625 |
NC22DNB4M |
NA 21 |
- |
- |
- |
- |
- |
- |
- |
ХН75МБТЮ |
best offer & competitive quotation
Inconel 718 Fasteners Supply in Below Countries
| Products We Supplied |
Description |
Country |
| Inconel 718 Fasteners |
UNS N07718 U Bolts Supply |
Venezuela, Malaysia, Serbia, Germany |
| ASTM B166 Inconel 718 Fasteners |
2.4668 Nut Bolt Weight Chart In Kg |
Gambia, Azerbaijan, South Africa, Belarus, Oman |
| Inconel 718 Bolts and Nuts Price List |
N07718 Alloy Eye Bolts |
Romania, Puerto Rico, Yemen, Slovakia, Mongolia |
| Inconel Alloy 718 Fasteners Manufacturers |
2.4668 Inconel Double Ended Studs In India |
Switzerland, Australia, Hong Kong, Singapore |
| ASME SB166 Inconel 718 Fasteners In India |
N07718 Acorn Nuts Manufacturers In India |
Portugal, Belgium, Taiwan, New Zealand |
| Inconel GOST ХН75МБТЮ Fastener |
Inconel 718 Nyloc Nuts Manufacturers In India |
Nigeria, Chile, Czech Republic, Jordan, Ecuador |
| Inconel 718 Bolt Torque Chart |
UNS N07718 Carriage Bolts Near Me |
Bulgaria, Bhutan, Kuwait, Nepal |
| Inconel® Alloy 718 Spring Washer |
Inconel 718 Flat Washers |
Hungary, Estonia, Denmark, Vietnam |
Common Application for Alloy 718 Fasteners
Heavy Equipment
Automotive
Chemical
Power Generation
Shipbuilding
Construction
Aerospace
Oil & Gas
