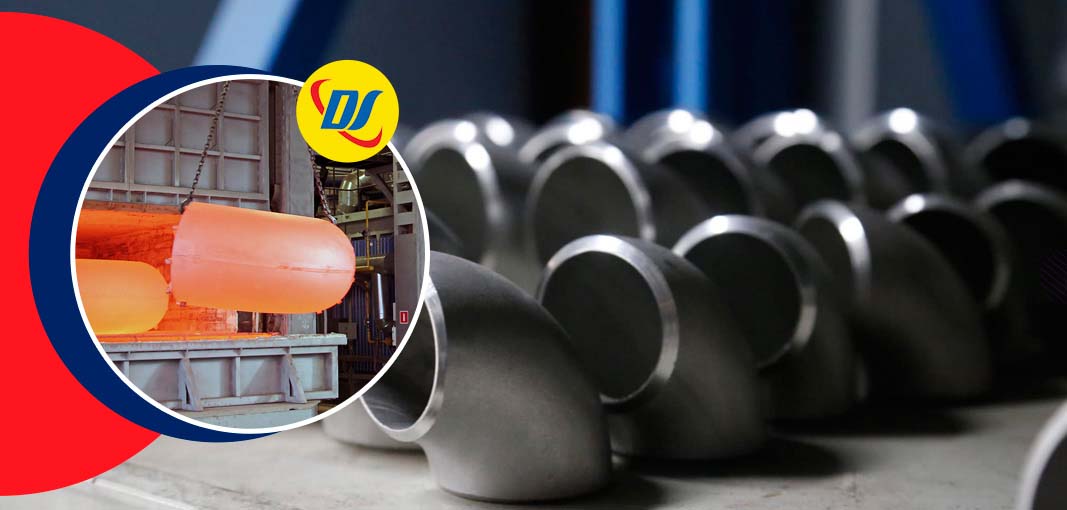

Monel 400 Buttweld Fittings

Duplex Steel & Alloys is devoted to producing the best quality Monel 400 Buttweld Fittings for both worldwide and domestic clients, as a result of which our company's products are well-known and well-liked in the global markets. This is mainly due to using the best quality raw material and latest machinery along with skilled work ensuring that these buttweld fittings are of industry set standards.

These Monel 400 Buttweld Fittings are a super-alloy of nickel and copper, which contains around 68 percent nickel and 24 percent copper as well as additional elements in trace amounts. This enables them to be extremely resistant to salt and acidic solutions as well as steam and warm seawater. By using cold working techniques, this grade of Monel may be toughened.

Alloy 400 Pipe Fittings, Monel 400 Elbow, Monel 400 Pipe Fittings, Nickel Alloy 400 Buttweld Fittings, Monel 400 Elbow Price, Monel 400 Pipe Fittings Suppliers in Mumbai, India.

Table of Content

Monel Alloy 400 Fittings, Monel 400 Pipe Fittings, Monel® Alloy 400 Pipe Fittings, Alloy 400 Elbow, Monel Alloy 400 Weld Fittings, Monel 400 Buttweld Fittings Manufacturers in India.

Monel 400 Buttweld Fittings

Monel 400 Buttweld Fittings are frequently used in the maritime industry because of their low-corrosion rate in rapidly moving saltwater, good resistance to SCC (stress-corrosion cracking) in most freshwaters, and resistance to a wide variety of corrosive environments. These alloys become resistant to HCl acid and hydrofluoric acids when they are de-aerated. Nitric acid and ammonia atmospheres degrade these despite their high resistance to many acids and alkalis. Marine engineering, freshwater and petroleum storage tanks, industrial heat exchangers, chemical production machinery, and other sectors have used Monel 400 buttweld fittings.

The melting point of Monel 400 Buttweld Fittings is between 1300 and 1350°C, and they exhibit excellent mechanical properties from temperatures as low as -150°C to as high as 549°C. Because of this, they are strong and easy to weld with common techniques. The temperature at which these fittings are used should not exceed more than 538°C, after which its usability deteriorates. When it comes to hydrochloric and sulfuric acid environments, Monel 400 is not the first choice because it can only endure their attacks at low concentrations and temperatures.


Monel 400 Pipe Fittings Specifications

Specifications ASTM B366/ ASME SB366
Size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Type DN15-DN1200
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Connection Welding
Manufacturing process Forge, Cast, Push, Press, etc.
Key markets and industries
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Petrochemicals and acids.
  • Nuclear power (mostly seamless).
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Monel 400 Pipe Fittings

Buttweld 90 Degree Elbow

Monel 400 90 Degree Elbow

Buttweld 45 Degree Elbow

Alloy 400 45 Degree Elbow

Buttweld 180 Degree Elbow

Monel 400 180 Deg Elbow

Concentric Reducer

Nickel Alloy 400 Concentric Reducer

Eccentric Reducer

Alloy 400 Eccentric Reducer

Long Radius Elbow

Monel 400 Long Radius Elbow

Short Radius Elbow

Monel 400 Short Radius Elbow

Pipe Bend

ASTM B366 Monel 400 Pipe Bend

Piggable Bend

ANSI B16.9 Monel 400 Piggable Bend

Pipe Nipple

ASME SB366 Alloy 400 Pipe Nipple

Equal Tee

Monel 400 Equal Tee

Equal Cross

Monel 400 Equal Cross

Long Stub End

Monel 400 Long Stub End

Short Stub End

Monel 400 Short Stub End

Pipe Cap

Monel 400 Pipe Cap

Monel 400 Pipe Fittings Equivalent Material

STANDARD UNS WNR. AFNOR EN JIS BS GOST
Monel 400 N04400 2.4360 NU-30M NiCu30Fe NW 4400 NA 13 МНЖМц 28-2,5-1,5

Monel 400 Pipe Fittings Chemical Composition

Grade Ni C Al Mn Si Fe Cu S
Monel 400 63.0 min 0.3 max 0.50 max 2.0 max 0.5 max 1.0 - 2.5 28.0 - 34.0 0.02 max

Monel 400 Buttweld Fittings Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.8 g/cm3 1350 °C (2460 °F) Psi – 35,000 , MPa – 240 Psi – 80,000 , MPa – 550 40 %

Monel 400 Pipe Elbow, ASTM B366 Monel 400 Pipe Fittings, Nickel Alloy 400 Reducer, Alloy 400 Pipe Fittings Manufacturer, Alloy 400 Pipe Fittings Suppliers in Mumbai.

If you are looking for best prices for Monel 400 Pipe Fittings, Alloy 400 Elbow, Nickel Alloy Reducer email us on info@duplexsteelalloys.com or call us on +91 9664408767

Looking to Buy Monel 400 Pipe Fittings ?

Monel 400 Elbow Price List Monel 400 Pipe Fittings Price List Monel 400 Pipe Fittings Weight Calculator

Monel 400 Pipe Fittings Price List

Product Price
Custom Size 4 Inch Monel 400 3D Elbow Price US $ 0.5-1.0 / Piece
Monel 400 Two Halve Butt weld Fittings Price US $ 1.00-4000.0 / Piece
Alloy 400 Reducing Elbow Price List US $ 2.5-60.0 / Piece
Schedule 10 Monel 400 Pipe Fittings Price US $ 00.1-40 / Piece
ANSI B16.9 Monel 400 Welded Pipe Elbow Price US $ 1-4000 / Piece
Monel 400 Seamless Long Radius 90 Degree Elbow US $ 400 / Ton
ASTM B366 Alloy 400 Buttweld Pipe Fittings Price US $ 0.5-1 / Piece
ASME SB366 Monel 400 SMLS Fittings Price List US $ 3.0-50.0 / Piece
Monel® Alloy 400 End Cap Price List US $ 00.9 / Piece

Monel 400 Buttweld Pipe Fittings Dimensions

Normal Pipe Size For (NPS) For ANSI/ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow B16.9 Buttweld Equal Tee Buttweld 90 Deg Elbows Buttweld 45 Deg Elbows B16.9 Buttweld Equal Tee Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow ASME B16.9 Buttweld Equal Tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Normal Pipe Size For (NPS) For ANSI/ ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Monel 400 Pipe Fitting Tolerance

Pressure Rating (psig)
Pipe Size
(inches)		 Pipe Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
40 3048 2629 2362 2171 2019 1924 1867 1824 1810
1 1/2" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
40 2257 1947 1750 1608 1496 1425 1383 1354 1340
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
40 1902 1640 1474 1355 1260 1201 1165 1141 1129
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
40 1806 1558 1400 1287 1196 1140 1106 1084 1072
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
40 1531 1321 1187 1091 1014 967 938 919 909
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
40 1342 1158 1040 956 889 847 822 805 797
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
40 1219 1052 945 869 808 770 747 732 724
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
40 1073 926 832 765 711 678 657 644 637
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868
80 1609 1388 1247 1147 1066 1016 986 966 956
40 974 840 755 694 645 615 596 584 578

Ask Free Sample of Monel 400 Elbow, Tee, Reducer, Stub End Please Call +91 9664408767

Widest Range of Monel 400 Butt weld Fittings in Mumbai, India.

  • UNS N04400 Buttweld Pipe Fittings
  • Alloy 400 Buttweld Fittings Suppliers in Mumbai
  • Monel Alloy 400 Pipe Fittings Supplier in India
  • Monel 400 Pipe Fittings Dimensions
  • Monel 400 Schedule 40 180° LR Return Bend
  • Monel® Alloy 400 Elbow
  • Monel® Alloy 400 Seamless Pipe Elbow
  • Alloy 400 Pipe Fittings Manufacturers
  • Monel 400 Buttweld Fittings Weight Chart
  • Monel Alloy 400 Stub End
  • Monel 400 Buttweld Fittings Price List
  • 400 Monel 90° Weldable SR Elbow
  • ASTM B366 Monel 400 45 Degree Elbow
  • Alloy 400 Buttweld Fittings Manufacturer in Mumbai
  • Monel 400 Pipe Elbow Price
  • Nickel Alloy 400 Pipe Fittings Manufacturers in India
  • 2.4360 Seamless Fittings
  • UNS N04400 Welded Fittings
  • Monel 400 Pipe Fittings Supplier in India
  • Monel® Alloy 400 Reducer
  • Monel 400 Buttweld Fittings Price in India
  • Monel 400 Buttweld Fittings Supplier in Mumbai
  • Monel 400 Pipe Fittings Manufacturers in Mumbai
  • Price Of Alloy 400 Pipe Fittings
  • Monel 400 Schedule 10 Two Joint Pipe Fittings
  • Monel 400 Pipe Fittings Pressure Ratings
  • Monel 400 Seamless Pipe Bend
  • Monel 400 Elbow Price in India
  • Monel 400 Pipe End Cap
  • Cost Of Monel 400 Pipe Elbow
  • ASME SB366 Monel 400 Buttweld Cap
  • Monel 400 Pipe Fitting Stockist
  • 2 Inch Monel 400 Pipe Fittings
  • Monel 400 180 Degree Elbow
  • ASME B16.9 Monel 400 1D Elbow
  • Alloy 400 Schedule 40 Pipe Reducer
  • Monel 400 Equal Tee Price List
  • Monel 400 Buttweld Fittings Supplier in India
  • Monel 400 Reducing Tee Price
  • Monel 400 Pipe Fittings Price List in India
  • 2.4360 SR Elbow Exporter
  • Monel 400 Pipe Fittings Price
  • ASTM B366 Alloy 400 45° Long Radius Elbow
  • Monel 400 U Bend
  • Monel Alloy 400 SR Elbow
  • 2.4360 Equal Cross Stockists
  • Monel 400 Reducing Tee
  • Alloy 400 Sch 10 Lateral Tee
  • Monel 400 End Pipe Cap
  • Monel 400 Weldable 3D Elbow
  • MSS-SP-75 Alloy 400 Buttweld Pipe Fittings
  • Monel 400 Lap Joint Stub End

Tests of ASTM B366 Monel 400 Pipe Fittings

Before being prepared for shipment to the customer, ASTM B366 Monel 400 Pipe Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Hardness Test

Hardness Test

Impact Tests

Impact Tests

Ultrasonic Testing

Ultrasonic Testing

Monel 400 Pipe Fittings - Comparing International Standards

EU
EN 		USA
-		 Germany
DIN,WNr		 Japan
JIS 		France
AFNOR		 England
BS		 Italy
UNI		 China
GB		 Sweden
SS		 Poland
PN		 Czechia
CSN		 Finland
SFS		 Austria
ONORM		 Russia
GOST
DIN 17750
2.4360		 400
UNS N04400		 2.4360 NW 4400 NU-30M NA 13
BS 3072NA1
BS 3076NA13		 - - - - - - - МНЖМц 28-2,5-1,5
best offer & competitive quotation
call us on +91 9664408767

Monel 400 Buttweld Pipe Fittings Supply in Below Countries

Products We Supplied Description Country
Monel Alloy 400 Lap Joint Stub Ends UNS N04400 8 inch, SCH160 Concentric Reducer Supply UAE, Norway, Romania, Europe
400 Monel Alloy 5D Buttweld Elbow SCH 100, BW, 10 Inch, Monel 400 5D Elbow Indonesia, Vietnam, Saudi Arabia, Thailand
Monel Alloy 400 Buttweld Concentric Reducer Schedule 40 ASTM B366 Monel 400 Piggable Bend Ellington -United States, Canada, Nigeria, Australia
Monel Alloy 400 Piggable Bend 4 Inch, SCH 100S UNS N04400 Lap Joint Stub End Philippines, Kuwait, Taiwan, South Africa
ASTM B366 Monel 400 Barrel Nipple 2.4360 Barrel Nipple Egypt, Malaysia, France, Mexico
Monel 400 Long Radius 90 Degree Elbow 6 Inch AISI Alloy 400 Pipe Bend Netherlands, Belgium, Jordan, Venezuela, UK
Monel 400 Seamless Elbow 8 Inch UNS N04400 Seamless Pipe Elbow Egypt, Morocco, Canada, Turkey, Germany
Schedule 80 Monel 400 Grade Long Stub End 2-1/2 INCH, SCH 40S Monel 400 Pipe Tunisia, Ukraine, Colombia, Mongolia
Monel GOST МНЖМц 28-2,5-1,5 Long Radius Bend 1/2 inch ASME SB366 Monel 400 Long Stub End Singapore, Uruguay, Maldives, Costa Rica, Finland

Common Application for Monel Alloy 400 Buttweld Pipe Fittings

Oil & Gas

Oil & Gas

Chemical Processing

Chemical

Power Generation

Power Generation

Aerospace

Aerospace

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Shipbuilding

Shipbuilding

Construction

Construction
