Duplex Steel & Alloys is a Mumbai-based certified and top manufacturer of Hastelloy C22 Forged Fittings. We have a sophisticated and high-tech manufacturing unit, combined with a skilled team that works to ensure the high quality of all our products. We are also known for providing customized products to our clients. We conduct several tests on our products to ensure that our clients are provided with the best quality services.

A nickel-based alloy with a high strength-to-weight ratio is called Hastelloy. The nickel content is what gives the material great corrosion resistance. Because of its outstanding corrosion resistance, Hastelloy is categorized as a superalloy. The alloy is composed of nickel, molybdenum, iron, tungsten, and chromium. Due to the combination of these elements, it is resistant to corrosion at high temperatures as well as in the presence of potent oxidizing or reducing agents. Hastelloy also has good mechanical strength, strong durability even in a strongly reducing environment, surface stability, and other characteristics. It also has outstanding thermal creep resistance.

Hastelloy C22 Socket weld Fittings, Hastelloy C22 Threaded Pipe Fitting, Nickel Alloy C22 Forged Fittings, Alloy C22 Forged Fittings, Hastelloy C22 Forged Fittings Suppliers in Mumbai, India.

JIS NW 6022 Forged Fittings, Hastelloy C22 Threaded 90 Deg Elbow, Hastelloy C22 BSP Threaded Elbow, Hastelloy C22 NPT Threaded Elbow, Hastelloy C22 Forged Fittings Manufacturers in India.

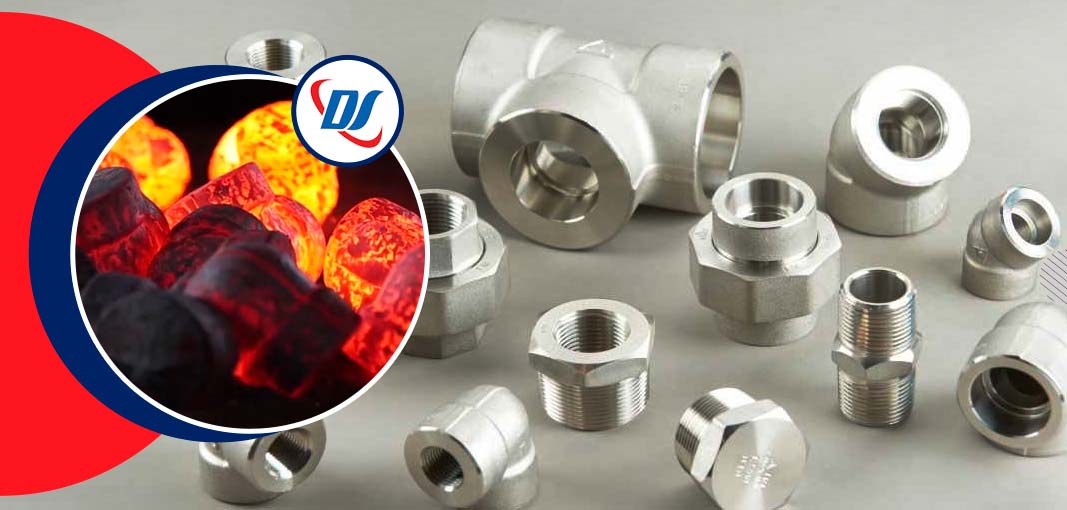

Hastelloy C22 Forged Fittings

. Chromium is a component in Hastelloy Forged Fittings, which makes them oxidation-resistant. Hastelloy C22 can be worked with high-speed steel tools. Tools made of carbide are used for both milling and turning. Machining processes can make use of conventional coolants. The nickel-chromium-molybdenum-tungsten alloy used to make Hastelloy C22 Forged Fittings withstands both uniform and localized corrosion as well as a variety of mixed industrial solvents.

In terms of corrosion resistance, HC-22 beats other Nickel-Chromium and Molybdenum alloys like C-276, C-4, and 625. The C-22 alloy has outstanding weldability. All forms of welding, except for submerged arc welding, can be used to join Hastelloy C22 Forged Fittings. Hastelloy C22 Forged Fittings can be processed using tools made of high-speed steel. Tools made of carbide are used for both milling and turning. Machining processes can make use of conventional coolants.


Hastelloy C22 High Pressure Fittings Specifications

Specifications ASTM B564 / ASME SB564
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Types Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating Threaded End-2000lb/ 3000lb/ 6000lbs
Socket-weld End-3000/ 6000/ 9000lbs
Thread NPT, BSPT, BSPP
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Hastelloy C22 Forged Pipe Fittings

Forged 90 Degree Elbow

Hastelloy C22 90 Degree Socket Weld Elbow

Forged 45 Degree Elbow

Hastelloy C22 Socket weld 45 Degree Elbow

Forged Tee

Alloy C22 Forged NPT Threaded Tee

Forged Cross

Alloy C22 Forged Cross

Half Coupling

Hastelloy C22 Half Coupling

Full Coupling

Nickel Alloy C22 Full Coupling

Forged Cap

Hastelloy C22 Forged Cap

Forged Union

ASTM B564 Hastelloy C22 Forged Union

Forged Bushing

ANSI B16.11 Hastelloy C22 Forged Bushing

Forged Plug

ASME SB564 Alloy C22 Forged Plug

Forged Nipple

Hastelloy Alloy C22 Forged Nipple

Swage Nipple

UNS N06022 Swage Nipple

Street Elbow

Hastelloy C22 Street Elbow

Short Stub End

Hastelloy C22 Socket Weld Reducer Insert

Welding Boss

ASME B16.11 Alloy C22 Welding Boss

Hastelloy C22 Forged Fittings Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS EN
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W

Hastelloy C22 Forged Fittings Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
Hastelloy C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max

Hastelloy C22 Forged Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %

Hastelloy® Alloy C22 Forged Elbow, Hastelloy C22 Threaded Fittings Manufacturer, ASTM B564 Hastelloy C22 Socket weld Fittings, Alloy C22 Coupling, Hastelloy® Alloy C22 Forged Fittings, Hastelloy C22 Screwed Fittings Suppliers in Mumbai.

If you are looking for best prices for Hastelloy C22 Forged Fittings, Alloy C22 BSP Elbow, Hastelloy C22 Union email us on info@duplexsteelalloys.com or call us on +91 9664408767

Hastelloy C22 Forged Fittings Price List

Product Price
Custom Size 2000 LB, 1 1/2 Inch Hastelloy C22 Socket Weld Elbow Price US $ 0.5-1.0 / Piece
ASME B16.11 Hastelloy C22 Forged Socket weld Fittings Price US $ 1.00-4000.0 / Piece
Alloy C22 Threaded Hex Nipple Price List US $ 3.0-50.0 / Piece
NPS 1/2 to 2 Hastelloy C22 Union Male x Female Price US $ 2.5-60.0 / Piece
ANSI B16.11 Hastelloy C22 6 inch Forged Cap Price US $ 1-2000 / Piece
C22 Hastelloy BSP Fittings US $ 1.2 / Piece
ASTM B564 Alloy Grade C22 Forged Pipe Fittings Price US $ 00.1-40 / Piece
ASME SB 564 Hastelloy C22 Screwed Pipe Fittings 150lb Price List US $ 3.0-50.0 / Piece
Alloy C22 End Cap Price List US $ 3.87 / Piece

Alloy C22 Forged Pipe Fittings Dimensions

DN NPS Center to End
NPT Elbow, NPT Tee, NPT Cross
A
Center to End
45 Deg Elbow
C
O.D.
of Band
H
Min. Wall
Thick. G
Length of
Thread.
Minimum (1)
Class 2000 Class 3000 Class 6000 Class 2000 Class 3000 Class 6000 Class 2000 Class 3000 Class 6000 Class 2000 Class 3000 Class 6000 B L2
6 1/8 21 21 25 17 17 19 22 22 25 3.18 3.18 6.35 6.4 6.7
8 1/4 21 25 28 17 19 22 22 25 33 3.18 3.30 6.60 8.1 10.2
10 3/8 25 28 33 19 22 25 25 33 38 3.18 3.51 6.98 9.1 10.4
15 1/2 28 33 38 22 25 28 33 38 46 3.18 4.09 8.15 10.9 13.6
20 3/4 33 38 44 25 28 33 38 46 56 3.18 4.32 8.53 12.7 13.9
25 1 38 44 51 28 33 35 46 56 62 3.68 4.98 9.93 14.7 17.3
32 1-1/4 44 51 60 33 35 43 56 62 75 3.89 5.28 10.59 17.0 18.0
40 1-1/2 51 60 64 35 43 44 62 75 84 4.01 5.56 11.07 17.8 18.4
50 2 60 64 83 43 44 52 75 86 102 4.27 7.14 12.09 19.0 19.2
65 2-1/2 76 83 95 52 52 64 92 102 121 5.61 7.65 15.29 23.6 28.9
85 3 86 95 106 64 64 79 109 121 146 5.99 8.84 16.64 25.9 30.5
100 4 106 114 114 79 79 79 146 152 152 6.55 11.18 18.67 27.7 33.0
DN NPS End to End
Couplings
W
End to End
Caps
P
O.D. D End Wall
Thick.
G Minimum
Length of
Thread.
Minimum (1)
Class 3000&Class 6000 Class 3000 Class 6000 Class 3000 Class 6000 Class 3000 Class 6000 B L2
6 1/8 32 19 16 22 4.8 6.4 6.7
8 1/4 35 25 27 19 25 4.8 6.4 8.1 10.2
10 3/8 38 25 27 22 32 4.8 6.4 9.1 10.4
15 1/2 48 32 33 28 38 6.4 7.9 10.9 13.6
20 3/4 51 37 38 35 44 6.4 7.9 12.7 13.9
25 1 60 41 43 44 57 9.7 11.2 14.7 17.3
32 1-1/4 67 44 46 57 64 9.7 11.2 17.0 18.0
40 1-1/2 79 44 48 64 76 11.2 12.7 17.8 18.4
50 2 86 48 51 76 92 12.7 15.7 19.0 19.2
65 2-1/2 92 60 64 92 108 15.7 19.0 23.6 28.9
80 3 108 65 68 108 127 19.0 22.4 25.9 30.5
100 4 121 68 75 140 159 22.4 28.4 27.7 33.0

Hastelloy C22 Forged Fitting Pressure Rating

ASME B16.11 Pressure-Temperature
Temperature Class
150 300
1/4 - 1 inch. 1 1/4 - 2 inch. 2 1/2 - 3 inch.
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 - 935 750 560
450 232 - 725 600 475
500 260 - 510 450 385
550 288 - 300 300 300

Hastelloy C22 Forged Fitting Tolerance Chart

ANSI B16.11 American Standard Dimensional Tolerances
"A" - Threaded Center To Bottom For Size
1/8" And 1/4"
± 0.03"
3/8", 1/2" And 3/4" ± 0.06"
1", 1-1/4", 1-1/2" And 2" ± 0.08"
2-1/2", 3", And 4" ± 0.10"
"B" - Threaded Bore Diameter For Size
1-1/2" And Smaller
+ 0.020"
- 0.000"
2", 2-1/2", 3" And 4" + 0.025"
- 0.000"
"C" - Threaded Wall Thick. Min. = 1.09 T (But Not Less Than 5/32")
T = Wall Thickness Of Nominal Pipe Sizes
"D" - Bore Diameter Of Pipe Fitting For Size
2" And Smaller
± 0.030"
2-1/2", 3" And 4" ± 0.060"
"E" - Threadeds- Bottom To Bottom - Full Couplings For Size
1/8" And 1/4"
± 0.06"
3/8", 1/2" And 3/4" ± 0.12"
1", 1-1/4", 1-1/2" And 2" ± 0.16"
2-1/2", 3", And 4" ± 0.20"
"F" - Bottom Of Threaded To Opposite Face - ANSI B16.11 Half Couplings For Size
1/8" And 1/4"
± 0.03"
3/8", 1/2" And 3/4" ± 0.06"
1", 1-1/4", 1-1/2" And 2" ± 0.08"
2-1/2", 3", And 4" ± 0.10"
"G" - Gap Of Welding Approx. 0.06"
Before Welding Recommended Gap
"H" - Min. Flat Min. Flat = 0.75 X Min.
Threaded Wall Thick.

Ask Free Sample of Hastelloy C22 Forged Elbow, Tee, Coupling, Union Please Call +91 9664408767

Widest Range of Hastelloy C22 Forged Fittings in Mumbai, India.

  • Alloy C22 Forged Fittings Supplier in India
  • Hastelloy C22 Forged Elbow Price
  • C22 Hastelloy 3000 LB Socket Weld Cap
  • UNS N06022 Socket Weld Union
  • Alloy C22 Screwed Fittings Manufacturers
  • C22 Hastelloy Threaded Full Coupling
  • Hastelloy® Alloy C22 90 Degree Threaded Elbow
  • Nickel Alloy C22 Socket weld Elbow
  • Hastelloy C22 Threaded Half Coupling
  • Hastelloy C22 Forged Fittings Weight Chart
  • Hastelloy C22 Forged Fittings Supplier in Mumbai
  • 2.4602 Threaded Fittings
  • Hastelloy C22 Forged Fittings Supplier in India
  • Cost Of C22 Hastelloy Forged Hex Nipple
  • Hastelloy Forged Fittings C22 Price in India
  • Hastelloy C22 Reducing Coupling
  • Alloy C22 Forged Fittings Suppliers in Mumbai
  • Hastelloy C22 Forged Fittings Manufacturers in Mumbai
  • ASTM B564 Hastelloy C22 BS NA 13 Threaded Union
  • Hastelloy C22 Forged Fittings Manufacturers in India
  • Alloy C22 Socket Weld Reducing Tee
  • Hastelloy C22 Threaded 45 Deg Elbow
  • Alloy C22 Forged Fittings Manufacturer in Mumbai
  • Hastelloy Alloy C22 Threaded Fittings Dimensions
  • Price Of Hastelloy C22 Threaded Fittings
  • Hastelloy Alloy C22 Forged Fittings Price List
  • 2.4602 Forged Equal Cross Stockists
  • Alloy C22 Forged Eccentric Swage Nipple
  • ASME B16.11 Hastelloy C22 Threaded Plug
  • Alloy C22 Socket weld Reducing Cross
  • Hastelloy C22 Forged Fittings Price List in India
  • Alloy C22 Class 6000 Socket Weld Fittings
  • Hastelloy C22 Threaded Square Plug
  • Hastelloy C22 Forged Fittings Supplier in India
  • UNS N06022 Forged Pipe Fittings
  • Hastelloy C22 Class 6000 Forged Fittings
  • C22 Hastelloy Coupling Price List
  • Hastelloy C22 Reducer Inserts
  • Hastelloy C22 Forged Fitting Stockist
  • Nickel Alloy C22 Forged Fittings Price
  • 2.4602 NPT Threaded Pipe Fittings Exporter
  • Hastelloy C22 BSPT Elbow Price
  • Class 3000, SW, 2 Inch Alloy C22 Forged Steel Fittings
  • ASTM B564 Hastelloy C22 High Pressure Forged Fittings
  • Hastelloy Alloy C22 Threaded Adapter
  • Alloy C22 BSP Threaded Forged Fittings
  • Hastelloy Alloy C22 NPT Threaded Street Elbow
  • ASME SB564 Hastelloy C22 Forged Cap
  • Hastelloy C22 45 Degree NPT Elbow
  • Hastelloy C22 Industrial Forged Fittings
  • Hastelloy® Alloy C22 Socket weld Boss
  • C22 Hastelloy Hex Head Bushing Price in India

Tests of ASTM B564 Hastelloy C22 Forged Pipe Fittings

Before being prepared for shipment to the customer, ASTM B564 Hastelloy C22 Threaded Forged Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Hardness Test

Hardness Test

PMI Testing

PMI Testing

Ultrasonic Testing

Ultrasonic Testing

Hastelloy C22 Forged Fittings - Comparing International Standards

EU
EN
USA
-
Germany
DIN,WNr
Japan
JIS
France
AFNOR
England
BS
Italy
UNI
China
GB
Sweden
SS
Poland
PN
Czechia
CSN
Finland
SFS
Austria
ONORM
Russia
GOST
NiCr21Mo14W C22 2.4602 NW 6022 NU-30M - - - - - - - - -
best offer & competitive quotation
call us on +91 9664408767

Hastelloy C22 Forged Pipe Fittings Supply in Below Countries

Products We Supplied Description Country
Hastelloy C22 Forged 90° Elbow UNS N06022 2000 LB, 1 1/2 Inch 90 Deg Elbow Supply Europe, Romania, UAE, Norway
Hastelloy C22 Forged Unequal Tee 1/2 Inch, ASME B16.11 Hastelloy C22 Socket Weld Tee Indonesia, Saudi Arabia, Thailand, Vietnam
Hastelloy Alloy C22 Threaded Equal Tee 4 Inch 2.4602 NPT Threaded Tee Australia, Ellington -United States, Canada, Nigeria
Nickel Alloy C22 Forged Socket Weld Elbow 3 Inch ASME B16.11 C22 Hastelloy SW Elbow Philippines, Taiwan, Kuwait, South Africa
ASTM B564 Hastelloy C22 Socket weld Reducing Tee 2.4602 CL3000, DN25, B16.11, Socket Reducing Tee Malaysia, Egypt, Mexico, France
Hastelloy Alloy C22 Forged Pipe Coupling 3000#, 4 Inch, Threaded Hastelloy C22 Pipe Coupling Jordan, Belgium, UK, Venezuela, Netherlands
C22 Hastelloy NPT Threaded Pipe Fittings 8 Inch JIS NW 6022 Forged Threaded Fittings Ukraine, Tunisia, Colombia, Mongolia
Hastelloy C22 Socket weld Half Coupling 2-1/2 INCH 3000 LB 1/2 SW Half Coupling Egypt, Canada, Germany, Turkey, Morocco
Alloy C22 Screwed Bushing 1/2 inch ASME SB564 Hastelloy C22 Threaded Bushing Maldives, Costa Rica, Uruguay, Finland, Singapore

Common Application for Hastelloy C22 Forged Pipe Fittings

Oil & Gas

Oil & Gas

Chemical Processing

Chemical

Power Generation

Power Generation

Aerospace

Aerospace

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Shipbuilding

Shipbuilding

Construction

Construction
