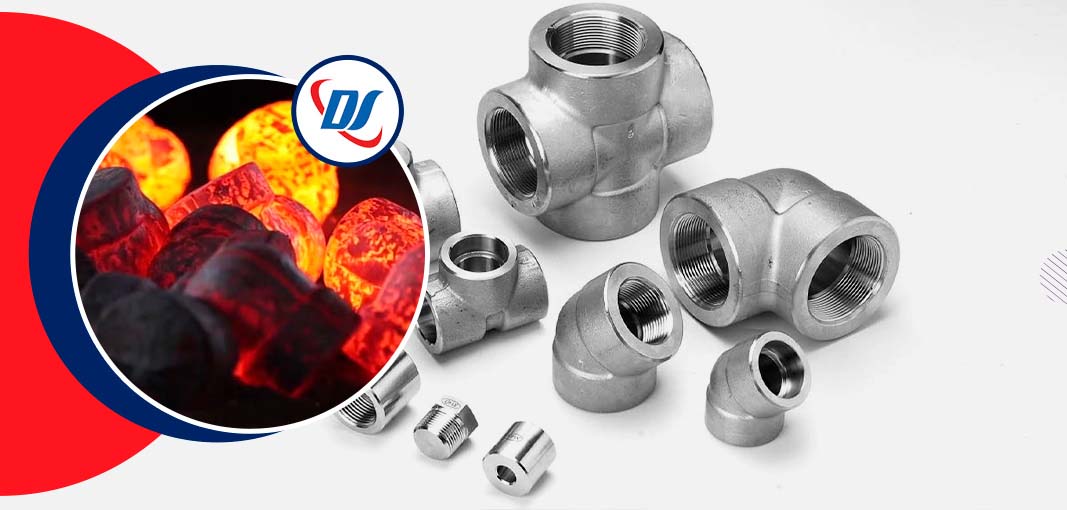

| Specifications | ASTM B564 / ASME SB564 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Types | Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Thread | NPT, BSPT, BSPP |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Hastelloy C276 | 0.10 max | 0.50 max | 0.50 max | 0.015max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
If you are looking for best prices for Hastelloy C276 Forged Fittings, Alloy C276 BSP Elbow, Hastelloy C276 Union email us on info@duplexsteelalloys.com or call us on +91 9664408767
| Product | Price |
| Custom Size 2000 LB, 1 1/2 Inch Hastelloy C276 Socket Weld Elbow Price | US $ 0.5-1.0 / Piece |
| ASME B16.11 Hastelloy C276 Forged Socket weld Fittings Price | US $ 1.00-4000.0 / Piece |
| Alloy C276 Threaded Hex Nipple Price List | US $ 3.0-50.0 / Piece |
| NPS 1/2 to 2 Hastelloy C276 Union Male x Female Price | US $ 2.5-60.0 / Piece |
| ANSI B16.11 Hastelloy C276 6 inch Forged Cap Price | US $ 1-2000 / Piece |
| C276 Hastelloy BSP Fittings | US $ 1.2 / Piece |
| ASTM B564 Alloy Grade C276 Forged Pipe Fittings Price | US $ 00.1-40 / Piece |
| ASME SB 564 Hastelloy C276 Screwed Pipe Fittings 150lb Price List | US $ 3.0-50.0 / Piece |
| Alloy C276 End Cap Price List | US $ 3.87 / Piece |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A |
Center to End 45 Deg Elbow C |
O.D. of Band H |
Min. Wall Thick. G |
Length of Thread. Minimum (1) |
|||||||||
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| DN | NPS | End to End Couplings W |
End to End Caps P |
O.D. D | End Wall Thick. G Minimum |
Length of Thread. Minimum (1) |
||||
| Class 3000&Class 6000 | Class 3000 | Class 6000 | Class 3000 | Class 6000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 32 | 19 | … | 16 | 22 | 4.8 | … | 6.4 | 6.7 |
| 8 | 1/4 | 35 | 25 | 27 | 19 | 25 | 4.8 | 6.4 | 8.1 | 10.2 |
| 10 | 3/8 | 38 | 25 | 27 | 22 | 32 | 4.8 | 6.4 | 9.1 | 10.4 |
| 15 | 1/2 | 48 | 32 | 33 | 28 | 38 | 6.4 | 7.9 | 10.9 | 13.6 |
| 20 | 3/4 | 51 | 37 | 38 | 35 | 44 | 6.4 | 7.9 | 12.7 | 13.9 |
| 25 | 1 | 60 | 41 | 43 | 44 | 57 | 9.7 | 11.2 | 14.7 | 17.3 |
| 32 | 1-1/4 | 67 | 44 | 46 | 57 | 64 | 9.7 | 11.2 | 17.0 | 18.0 |
| 40 | 1-1/2 | 79 | 44 | 48 | 64 | 76 | 11.2 | 12.7 | 17.8 | 18.4 |
| 50 | 2 | 86 | 48 | 51 | 76 | 92 | 12.7 | 15.7 | 19.0 | 19.2 |
| 65 | 2-1/2 | 92 | 60 | 64 | 92 | 108 | 15.7 | 19.0 | 23.6 | 28.9 |
| 80 | 3 | 108 | 65 | 68 | 108 | 127 | 19.0 | 22.4 | 25.9 | 30.5 |
| 100 | 4 | 121 | 68 | 75 | 140 | 159 | 22.4 | 28.4 | 27.7 | 33.0 |
| ASME B16.11 Pressure-Temperature | |||||
| Temperature | Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
| ANSI B16.11 American Standard Dimensional Tolerances | ||
| "A" - Threaded Center To Bottom | For Size 1/8" And 1/4" |
± 0.03" |
| 3/8", 1/2" And 3/4" | ± 0.06" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.08" | |
| 2-1/2", 3", And 4" | ± 0.10" | |
| "B" - Threaded Bore Diameter | For Size 1-1/2" And Smaller |
+ 0.020" - 0.000" |
| 2", 2-1/2", 3" And 4" | + 0.025" - 0.000" |
|
| "C" - Threaded Wall Thick. | Min. = 1.09 T (But Not Less Than 5/32") T = Wall Thickness Of Nominal Pipe Sizes |
|
| "D" - Bore Diameter Of Pipe Fitting | For Size 2" And Smaller |
± 0.030" |
| 2-1/2", 3" And 4" | ± 0.060" | |
| "E" - Threadeds- Bottom To Bottom - Full Couplings | For Size 1/8" And 1/4" |
± 0.06" |
| 3/8", 1/2" And 3/4" | ± 0.12" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.16" | |
| 2-1/2", 3", And 4" | ± 0.20" | |
| "F" - Bottom Of Threaded To Opposite Face - ANSI B16.11 Half Couplings | For Size 1/8" And 1/4" |
± 0.03" |
| 3/8", 1/2" And 3/4" | ± 0.06" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.08" | |
| 2-1/2", 3", And 4" | ± 0.10" | |
| "G" - Gap Of Welding | Approx. 0.06" Before Welding Recommended Gap |
|
| "H" - Min. Flat | Min. Flat = 0.75 X Min. Threaded Wall Thick. |
|
Ask Free Sample of Hastelloy C276 Forged Elbow, Tee, Coupling, Union Please Call +91 9664408767
Before being prepared for shipment to the customer, ASTM B564 Hastelloy C276 Threaded Forged Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.
Hardness Test
PMI Testing
Ultrasonic Testing
| EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Italy UNI |
China GB |
Sweden SS |
Poland PN |
Czechia CSN |
Finland SFS |
Austria ONORM |
Russia GOST |
| NiMo16Cr15W | C276 | 2.4819 | NW 0276 | - | - | - | - | - | - | - | - | - | ХН65МВУ |
| Products We Supplied | Description | Country |
| Hastelloy C276 Forged 90° Elbow | UNS N10276 2000 LB, 1 1/2 Inch 90 Deg Elbow Supply | Norway, Romania, Europe, UAE |
| Hastelloy C276 Forged Unequal Tee | 1/2 Inch, ASME B16.11 Hastelloy C276 Socket Weld Tee | Vietnam, Indonesia, Thailand, Saudi Arabia |
| Hastelloy Alloy C276 Threaded Equal Tee | 4 Inch 2.4819 NPT Threaded Tee | Ellington -United States, Nigeria, Australia, Canada |
| Nickel Alloy C276 Forged Socket Weld Elbow | 3 Inch ASME B16.11 C276 Hastelloy SW Elbow | Philippines, South Africa, Taiwan, Kuwait |
| ASTM B564 Hastelloy C276 Socket weld Reducing Tee | 2.4819 CL3000, DN25, B16.11, Socket Reducing Tee | Egypt, Malaysia, Mexico, France |
| Hastelloy Alloy C276 Forged Pipe Coupling | 3000#, 4 Inch, Threaded Hastelloy C276 Pipe Coupling | UK, Belgium, Jordan, Netherlands, Venezuela |
| C276 Hastelloy NPT Threaded Pipe Fittings | 8 Inch JIS NW 0276 Forged Threaded Fittings | Ukraine, Tunisia, Mongolia, Colombia |
| Hastelloy C276 Socket weld Half Coupling | 2-1/2 INCH 3000 LB 1/2 SW Half Coupling | Egypt, Germany, Morocco, Turkey, Canada |
| Alloy C276 Screwed Bushing | 1/2 inch ASME SB564 Hastelloy C276 Threaded Bushing | Uruguay, Maldives, Costa Rica, Finland, Singapore |
