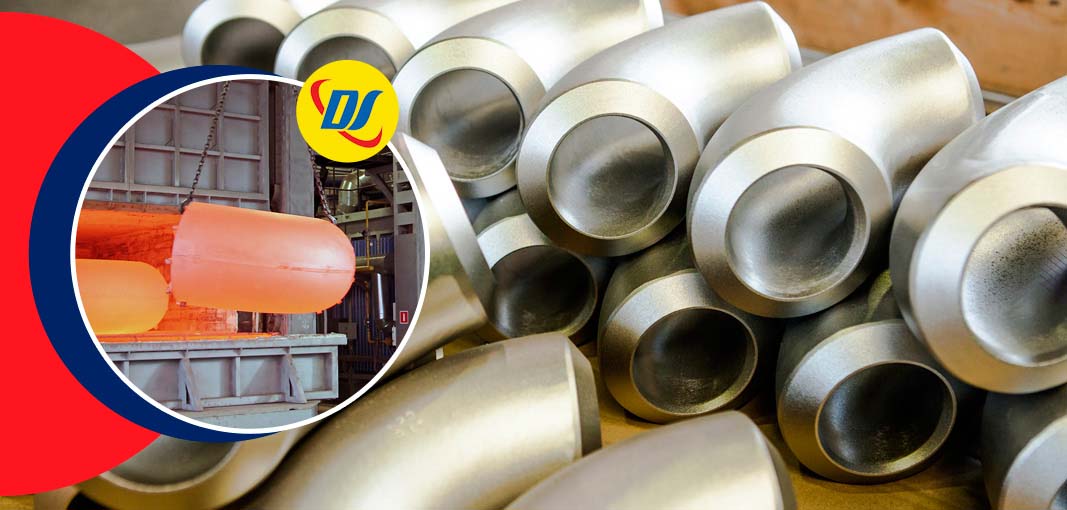

Hastelloy
C276 Buttweld Fittings have applications in several
corrosive environments, and those produced by Duplex Steel & Alloys are
of the best quality. Our buttweld fittings are created using new tech and
machines along with a qualified production team, who supervise the entire
process, which leads to quality assurance of the products. We have fully
equipped warehouse facilities, to keep stock of buttweld fittings.
Hastelloy C276 Buttweld Fittings have applications in
several corrosive environments, and those produced by Duplex Steel &
Alloys are of the best quality. Our buttweld fittings are created using new
tech and machines along with a qualified production team, who supervise the
entire process, which leads to quality assurance of the products. We have
fully equipped warehouse facilities, to keep stock of buttweld fittings.
Hastelloy C276 Elbow, Nickel Alloy C276 Buttweld Fittings, Hastelloy C276
Pipe Fittings, Hastelloy C276 Elbow Price, Alloy C276 Pipe Fittings,
Hastelloy C276 Pipe Fittings Suppliers in Mumbai, India.
Alloy C276 Elbow, Hastelloy Alloy C276 Weld Fittings, Hastelloy C276 Pipe Fittings,
Hastelloy® Alloy C276 Pipe Fittings, Hastelloy Alloy C276 Fittings, Hastelloy C276
Buttweld Fittings Manufacturers in India.
Talking about the
corrosion resistance of Hastelloy C276 Pipe Fittings, it is one of the
alloys having corrosion resistance to a wide variety of environments, such as oxidizing
and reducing conditions. Sulfuric acid, formic acid, chlorides, liquid chloride gas, HCl
acid, and chlorine solutions are some of the chemicals Hastelloy C276 has resistance
against. These can have detrimental effects on other alloys. Along with this, the alloy
also has good resistance against pitting corrosion, seawater corrosion, and SCC.
Hastelloy C276 Buttweld Fittings can either be hot worked or cold
worked, but the alloy can harden fast. The temperature range should be between 870°C and
1230°C when hot working. After this process it is advisable to anneal the alloy, between
the temperature of 1121°C - 1177°C proceeded by rapid quenching. Some of the common
applications of Hastelloy C276 Seamless Fittings are in flue
gas desulfurization systems, sour gas wells, paper and pulp industry, waste treatment,
and chemical processing equipment.
Hastelloy C276 Pipe Fittings Specifications
| Specifications |
ASTM B366/ ASME SB366 |
| Size |
Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48" |
| Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH
140, SCH 160, XXS available with NACE MR 01-75 |
| Type |
DN15-DN1200 |
| Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
|
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 |
| Size Range |
½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Elbows |
Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D,
2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605
JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection |
Welding |
| Manufacturing process |
Forge, Cast, Push, Press, etc. |
| Key markets and industries |
- Bitumen upgraders.
- Heavy oil refineries.
- Petrochemicals and acids.
- Nuclear power (mostly seamless).
|
| Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc |
| Specialized manufacturer of |
90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End,
Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204
3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE
MR0175 |
Types of Hastelloy C276 Pipe Fittings
Hastelloy C276 90 Degree Elbow
Alloy C276 45 Degree Elbow
Hastelloy C276 180 Deg Elbow
Nickel Alloy C276 Concentric Reducer
Alloy C276 Eccentric Reducer
Hastelloy C276 Long Radius Elbow
Hastelloy C276 Short Radius Elbow
ASTM B366 Hastelloy C276 Pipe Bend
ANSI B16.9 Hastelloy C276 Piggable Bend
ASME SB366 Alloy C276 Pipe Nipple
Hastelloy C276 Equal Tee
Hastelloy C276 Equal Cross
Hastelloy C276 Long Stub End
Hastelloy C276 Short Stub End
Hastelloy C276 Pipe Cap
Hastelloy C276 Pipe Fittings Equivalent
Material
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
GOST |
EN |
OR |
| Hastelloy C276 |
2.4819 |
N10276 |
NW 0276 |
ХН65МВУ |
NiMo16Cr15W |
ЭП760 |
Hastelloy C276 Pipe Fittings Chemical Composition
| Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
Cr |
| Hastelloy C276 |
0.10 max |
0.50 max |
0.50 max |
0.015max |
- |
5.0 max |
58.0 min |
20.0 - 23.0 |
Hastelloy C276 Buttweld Fittings Mechanical Properties
| Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| Hastelloy C276 |
8.4 g/cm3 |
1350 °C (2460 °F) |
Psi – 1,35,000 , MPa – 930 |
Psi – 75,000 , MPa – 517 |
42.5 % |
Nickel Alloy C276 Reducer, ASTM B366 Hastelloy C276 Pipe Fittings, Hastelloy C276 Pipe
Elbow, Alloy C276 Pipe Fittings Manufacturer, Alloy C276 Pipe Fittings Suppliers in
Mumbai.
If you are looking for best prices for Hastelloy C276 Pipe Fittings, Alloy C276
Elbow, Nickel Alloy Reducer email us on info@duplexsteelalloys.com
or call us on +91 9664408767
Hastelloy C276 Pipe Fittings Price List
| Product |
Price |
| Custom Size 4 Inch Hastelloy C276 3D Elbow Price |
US $ 0.5-1.0 / Piece |
| Hastelloy C276 Two Halve Butt weld Fittings Price |
US $ 1.00-4000.0 / Piece |
| Alloy C276 Reducing Elbow Price List |
US $ 2.5-60.0 / Piece |
| Schedule 10 Hastelloy C276 Pipe Fittings Price |
US $ 00.1-40 / Piece |
| ANSI B16.9 Hastelloy C276 Welded Pipe Elbow Price |
US $ 1-4000 / Piece |
| Hastelloy C276 Seamless Long Radius 90 Degree Elbow |
US $ 400 / Ton |
| ASTM B366 Alloy C276 Buttweld Pipe Fittings Price |
US $ 0.5-1 / Piece |
| ASME SB366 Hastelloy C276 SMLS Fittings Price List |
US $ 3.0-50.0 / Piece |
| Hastelloy® Alloy C276 End Cap Price List |
US $ 00.9 / Piece |
Hastelloy C276 Buttweld Pipe Fittings
Dimensions
| Normal Pipe Size For (NPS) For ANSI/ASME
B16.9 |
10S Schedule |
40S Schedule |
80S Schedule |
| Buttweld 90 Degree Elbow |
Buttweld 45 Degree Elbow |
B16.9 Buttweld Equal Tee |
Buttweld 90 Deg Elbows |
Buttweld 45 Deg Elbows |
B16.9 Buttweld Equal Tee |
Buttweld 90 Degree Elbow |
Buttweld 45 Degree Elbow |
ASME B16.9 Buttweld Equal Tee |
| 8 |
0.02 |
0.01 |
0.03 |
0.03 |
0.02 |
0.06 |
0.04 |
0.03 |
0.07 |
| 10 |
0.03 |
0.02 |
0.05 |
0.03 |
0.02 |
0.03 |
0.06 |
0.04 |
0.09 |
| 15 |
0.06 |
0.03 |
0.09 |
0.08 |
0.04 |
0.10 |
0.10 |
0.05 |
0.14 |
| 20 |
0.07 |
0.03 |
0.13 |
0.08 |
0.04 |
0.17 |
0.11 |
0.05 |
0.20 |
| 25 |
0.14 |
0.08 |
0.28 |
0.15 |
0.11 |
0.29 |
0.22 |
0.14 |
0.38 |
| 32 |
0.23 |
0.11 |
0.49 |
0.26 |
0.17 |
0.59 |
0.40 |
0.23 |
0.68 |
| 40 |
0.30 |
0.17 |
0.68 |
0.40 |
0.23 |
0.86 |
0.51 |
0.29 |
1.02 |
| 50 |
0.50 |
0.25 |
0.85 |
0.70 |
0.4 |
1.28 |
0.91 |
0.59 |
1.59 |
| 65 |
0.85 |
0.48 |
1.41 |
1.40 |
0.77 |
2.19 |
1.81 |
0.99 |
3.13 |
| 80 |
1.25 |
0.63 |
1.77 |
2.20 |
1.08 |
3.31 |
2.97 |
1.50 |
4.45 |
| 90 |
1.70 |
0.75 |
2.67 |
2.83 |
1.42 |
4.08 |
4.00 |
2.00 |
5.44 |
| 100 |
2.10 |
1.08 |
3.46 |
4.47 |
2.09 |
5.27 |
6.18 |
2.81 |
7.71 |
| 150 |
5.45 |
2.72 |
8.07 |
10.89 |
5.44 |
10.99 |
16.32 |
8.16 |
13.61 |
| 200 |
10.20 |
5.33 |
15.65 |
21.54 |
10.77 |
20.91 |
33.11 |
16.56 |
28.12 |
| 250 |
18.15 |
9.75 |
26.46 |
38.56 |
19.27 |
35.38 |
51.71 |
25.86 |
49.90 |
| 300 |
25.80 |
13.62 |
39.46 |
59.42 |
29.71 |
62.14 |
79.38 |
39.69 |
83.91 |
| Normal Pipe Size For (NPS) For ANSI/ ASME
B16.9 |
10S Schedule |
40S Schedule |
80S Schedule |
| Buttweld Con Pipe Reducer |
Buttweld Ecc Pipe Reducer |
Buttweld Unequal And Reducing Tee |
Buttweld Con Pipe Reducer |
Buttweld Ecc Pipe Reducer |
Buttweld Unequal And Reducing Tee |
Buttweld Con Pipe Reducer |
Buttweld Ecc Pipe Reducer |
Buttweld Unequal And Reducing Tee |
| 40x.25 |
0.19 |
0.19 |
0.60 |
0.26 |
0.26 |
0.76 |
0.34 |
0.34 |
0.90 |
| 50x25 |
0.28 |
0.28 |
0.73 |
0.40 |
0.40 |
1.10 |
0.54 |
0.54 |
1.37 |
| 50x40 |
0.31 |
0.31 |
0.76 |
0.45 |
0.45 |
1.15 |
0.59 |
0.59 |
1.43 |
| 80x.50 |
0.55 |
0.55 |
1.56 |
1.00 |
1.00 |
2.91 |
1.79 |
1.79 |
3.91 |
| 100x50 |
0.78 |
0.78 |
2.94 |
1.50 |
1.50 |
4.48 |
1.95 |
1.95 |
6.55 |
| 100x80 |
0.87 |
0.87 |
3.04 |
1.74 |
1.74 |
4.64 |
2.33 |
2.33 |
6.79 |
| 150x80 |
1.82 |
1.82 |
6.86 |
3.95 |
3.95 |
9.68 |
5.51 |
5.51 |
11.57 |
| 150x100 |
1.96 |
1.96 |
7.10 |
4.07 |
4.07 |
11.94 |
5.96 |
5.96 |
11.97 |
| 200x100 |
3.01 |
3.01 |
13.46 |
6.55 |
6.55 |
17.98 |
9.23 |
9.23 |
24.18 |
| 200x150 |
3.19 |
3.19 |
14.08 |
6.74 |
6.74 |
18.82 |
10.12 |
10.12 |
25.31 |
Hastelloy C276 Pipe Fitting Tolerance
| Pressure Rating (psig) |
Pipe Size
(inches) |
Pipe Schedule |
Temperature (oF) |
| 100 |
200 |
300 |
400 |
500 |
600 |
650 |
700 |
750 |
| 1" |
160 |
6140 |
5296 |
4759 |
4375 |
4068 |
3876 |
3761 |
3684 |
3646 |
| 80 |
4213 |
3634 |
3265 |
3002 |
2791 |
2659 |
2580 |
2528 |
2501 |
| 40 |
3048 |
2629 |
2362 |
2171 |
2019 |
1924 |
1867 |
1824 |
1810 |
| 1 1/2" |
160 |
4619 |
3984 |
3580 |
3291 |
3060 |
2916 |
2829 |
2772 |
2743 |
| 80 |
3182 |
2744 |
2466 |
2267 |
2108 |
2009 |
1949 |
1909 |
1889 |
| 40 |
2257 |
1947 |
1750 |
1608 |
1496 |
1425 |
1383 |
1354 |
1340 |
| 2" |
160 |
4499 |
3880 |
3486 |
3205 |
2980 |
2840 |
2755 |
2699 |
2671 |
| 80 |
2747 |
2369 |
2129 |
1957 |
1820 |
1734 |
1682 |
1648 |
1631 |
| 40 |
1902 |
1640 |
1474 |
1355 |
1260 |
1201 |
1165 |
1141 |
1129 |
| 3" |
160 |
3840 |
3312 |
2976 |
2736 |
2544 |
2424 |
2352 |
2304 |
2280 |
| 80 |
2553 |
2202 |
1979 |
1819 |
1691 |
1612 |
1564 |
1532 |
1516 |
| 40 |
1806 |
1558 |
1400 |
1287 |
1196 |
1140 |
1106 |
1084 |
1072 |
| 4" |
160 |
3601 |
3106 |
2791 |
2566 |
2386 |
2273 |
2206 |
2161 |
2138 |
| 80 |
2213 |
1909 |
1715 |
1577 |
1466 |
1397 |
1355 |
1328 |
1314 |
| 40 |
1531 |
1321 |
1187 |
1091 |
1014 |
967 |
938 |
919 |
909 |
| 5" |
160 |
3414 |
2945 |
2646 |
2433 |
2262 |
2155 |
2091 |
2049 |
2027 |
| 80 |
1981 |
1709 |
1535 |
1411 |
1312 |
1250 |
1213 |
1189 |
1176 |
| 40 |
1342 |
1158 |
1040 |
956 |
889 |
847 |
822 |
805 |
797 |
| 6" |
160 |
3289 |
2836 |
2549 |
2343 |
2179 |
2076 |
2014 |
1973 |
1953 |
| 80 |
1913 |
1650 |
1483 |
1363 |
1267 |
1208 |
1172 |
1148 |
1136 |
| 40 |
1219 |
1052 |
945 |
869 |
808 |
770 |
747 |
732 |
724 |
| 8" |
160 |
3175 |
2738 |
2460 |
2262 |
2103 |
2004 |
1944 |
1905 |
1885 |
| 80 |
1692 |
1459 |
1311 |
1205 |
1121 |
1068 |
1036 |
1015 |
1005 |
| 40 |
1073 |
926 |
832 |
765 |
711 |
678 |
657 |
644 |
637 |
| 10" |
160 |
3147 |
2714 |
2439 |
2242 |
2085 |
1986 |
1927 |
1880 |
1868 |
| 80 |
1609 |
1388 |
1247 |
1147 |
1066 |
1016 |
986 |
966 |
956 |
| 40 |
974 |
840 |
755 |
694 |
645 |
615 |
596 |
584 |
578 |
Ask Free Sample of Hastelloy C276 Elbow, Tee, Reducer, Stub End Please Call +91 9664408767
Widest Range of Hastelloy C276 Butt weld Fittings in
Mumbai, India.
- Hastelloy® Alloy C276 Reducer
- UNS N10276 Welded Fittings
- Alloy C276 Pipe Fittings Manufacturers
- UNS N10276 Buttweld Pipe Fittings
- Alloy C276 Buttweld Fittings Suppliers in Mumbai
- Hastelloy Alloy C276 Pipe Fittings Supplier in India
- Hastelloy C276 Buttweld Fittings Price List
- Hastelloy C276 Schedule 10 Two Joint Pipe Fittings
- C276 Hastelloy 90° Weldable SR Elbow
- Hastelloy C276 Pipe Fittings Pressure Ratings
- Hastelloy C276 Pipe Fittings Manufacturers in Mumbai
- Hastelloy C276 Buttweld Fittings Weight Chart
- Nickel Alloy C276 Pipe Fittings Manufacturers in India
- Hastelloy C276 Pipe Fittings Dimensions
- Hastelloy C276 Buttweld Fittings Price in India
- Hastelloy C276 Schedule 40 180° LR Return Bend
- Hastelloy Alloy C276 Stub End
- ASTM B366 Hastelloy C276 45 Degree Elbow
- Hastelloy C276 Pipe Elbow Price
- 2.4819 Seamless Fittings
- Price Of Alloy C276 Pipe Fittings
- Hastelloy® Alloy C276 Seamless Pipe Elbow
- Hastelloy C276 Buttweld Fittings Supplier in Mumbai
- Alloy C276 Buttweld Fittings Manufacturer in Mumbai
- Hastelloy® Alloy C276 Elbow
- Hastelloy C276 Pipe Fittings Supplier in India
- Hastelloy C276 Reducing Tee Price
- Hastelloy C276 Pipe End Cap
- ASME SB366 Hastelloy C276 Buttweld Cap
- Cost Of Hastelloy C276 Pipe Elbow
- Hastelloy C276 Seamless Pipe Bend
- Hastelloy C276 Pipe Fittings Price
- Hastelloy C276 Lap Joint Stub End
- MSS-SP-75 Alloy C276 Buttweld Pipe Fittings
- Hastelloy Alloy C276 SR Elbow
- Hastelloy C276 Elbow Price in India
- 2 Inch Hastelloy C276 Pipe Fittings
- 2.4819 SR Elbow Exporter
- Hastelloy C276 Buttweld Fittings Supplier in India
- Hastelloy C276 180 Degree Elbow
- 2.4819 Equal Cross Stockists
- Hastelloy C276 Equal Tee Price List
- Alloy C276 Schedule 40 Pipe Reducer
- Hastelloy C276 Reducing Tee
- Hastelloy C276 Pipe Fitting Stockist
- Hastelloy C276 Weldable 3D Elbow
- Hastelloy C276 Pipe Fittings Price List in India
- Alloy C276 Sch 10 Lateral Tee
- ASTM B366 Alloy C276 45° Long Radius Elbow
- ASME B16.9 Hastelloy C276 1D Elbow
- Hastelloy C276 U Bend
- Hastelloy C276 End Pipe Cap
Tests of ASTM B366 Hastelloy C276 Pipe Fittings
Before being prepared for shipment to the customer, ASTM B366
Hastelloy C276 Pipe Fittings Testing should be constructed in accordance with applicable
standards and thoroughly tested for potential flaws.
Hastelloy C276 Pipe Fittings - Comparing International Standards
EU
EN |
USA
- |
Germany
DIN,WNr |
Japan
JIS |
France
AFNOR |
England
BS |
Italy
UNI |
China
GB |
Sweden
SS |
Poland
PN |
Czechia
CSN |
Finland
SFS |
Austria
ONORM |
Russia
GOST |
| NiMo16Cr15W |
C276 |
2.4819 |
NW 0276 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
ХН65МВУ |
best offer & competitive quotation
Hastelloy C276 Buttweld Pipe Fittings Supply in
Below Countries
| Products We Supplied |
Description |
Country |
| Hastelloy Alloy C276 Lap Joint Stub Ends |
UNS N10276 8 inch, SCH160 Concentric Reducer Supply |
UAE, Norway, Romania, Europe |
| C276 Hastelloy Alloy 5D Buttweld Elbow |
SCH 100, BW, 10 Inch, Hastelloy C276 5D Elbow |
Indonesia, Vietnam, Saudi Arabia, Thailand |
| Hastelloy Alloy C276 Buttweld Concentric Reducer |
Schedule 40 ASTM B366 Hastelloy C276 Piggable Bend |
Ellington -United States, Canada, Nigeria, Australia |
| Hastelloy Alloy C276 Piggable Bend |
4 Inch, SCH 100S UNS N10276 Lap Joint Stub End |
Philippines, Kuwait, Taiwan, South Africa |
| ASTM B366 Hastelloy C276 Barrel Nipple |
2.4819 Barrel Nipple |
Egypt, Malaysia, France, Mexico |
| Hastelloy C276 Long Radius 90 Degree Elbow |
6 Inch AISI Alloy C276 Pipe Bend |
Netherlands, Belgium, Jordan, Venezuela, UK |
| Hastelloy C276 Seamless Elbow |
8 Inch UNS N10276 Seamless Pipe Elbow |
Egypt, Morocco, Canada, Turkey, Germany |
| Schedule 80 Hastelloy C276 Grade Long Stub End |
2-1/2 INCH, SCH 40S Hastelloy C276 Pipe |
Tunisia, Ukraine, Colombia, Mongolia |
| Hastelloy GOST МНЖМц 28-2,5-1,5 Long Radius Bend |
1/2 inch ASME SB366 Hastelloy C276 Long Stub End |
Singapore, Uruguay, Maldives, Costa Rica, Finland |
Common Application for Hastelloy Alloy C276
Buttweld Pipe Fittings
Oil & Gas
Chemical
Power Generation
Aerospace
Heavy Equipment
Automotive
Shipbuilding
Construction
