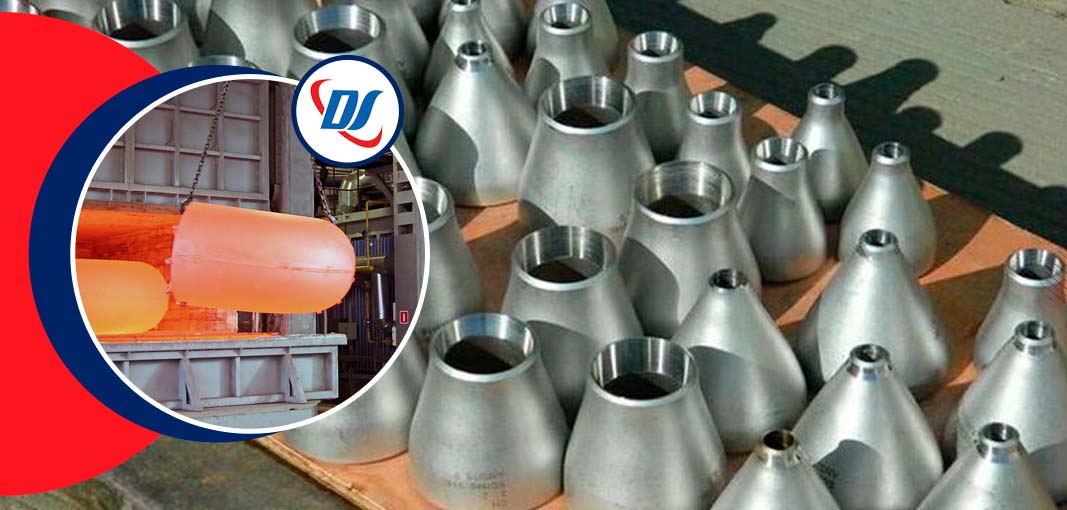

Incoloy 800/800H/800HT Buttweld Pipe Fittings Supplier

Incoloy 800 Buttweld Fittings are among the best options for high-temperature applications, and Duplex Steel & Alloys produces and supplies high-quality products of those alloy grades. The main reason for it is the company's commitment to providing the best quality products to our clients and a knowledgeable workforce who keeps in touch with the trends in the market. We have a team of professionals who source and utilize high-quality raw materials in the manufacturing process.

Incoloy 800H Buttweld Fittings are made up of nickel, iron, chromium, copper, and other micro constituents that help the alloy to have high oxidation and carburization resistance at elevated temperatures. All three of the alloys are similar to each other but have slight differences in their chemical characteristics. Alloy 800H has more carbon content than 800, while Alloy 800HT has more carbon and the addition of aluminum and titanium. Incoloy 800H has better stress rupture resistance than 800, while 800HT has better properties at high temperatures. Both of the modified nickel alloys are dual-certified, making them a different alloy than Incoloy 800. The main advantage of Incoloy 800H and 800HT is that these can be used in high temperatures, because which these are intended for high heat applications.

Alloy 800 Pipe Fittings, Incoloy 800H Elbow Price, Nickel Alloy 800 Buttweld Fittings, Incoloy 800 Pipe Fittings, Incoloy 800HT Elbow, Incoloy 800 Pipe Fittings Suppliers in Mumbai, India.

Table of Content

What is Incoloy 800 Pipe Fittings
Incoloy 800 Pipe Fittings Specifications
Types of Incoloy 800 Pipe Fittings
Incoloy 800 Pipe Fittings Equivalent Material
Incoloy 800H Pipe Fittings Properties
Incoloy 800 Pipe Fittings Price List
Incoloy 800 Buttweld Pipe Fittings Dimensions
Incoloy 800 Pipe Fitting Tolerance
Widest Range of Incoloy 800 Butt weld Fittings in Mumbai, India.
Tests of ASTM B366 Incoloy 800 Pipe Fittings
Incoloy 800HT Buttweld Pipe Fittings Supply in Below Countries
Common Application for Incoloy Alloy 800 Buttweld Pipe Fittings

Incoloy Alloy 800 Weld Fittings, Alloy 800 Elbow, Incoloy 800H Pipe Fittings, Incoloy® Alloy 800 Pipe Fittings, Incoloy Alloy 800 Fittings, Incoloy 800HT Buttweld Fittings Manufacturers in India.

Incoloy 800HT Buttweld Fittings has a carbon content of 0.05 – 0.10% and 800HT along with carbon has an additional 1% of aluminum and titanium, hence these have greater creep and rupture strength when compared to Alloy 800. At temperatures exceeding 1100°F (600°C), alloy 800H offers strong creep-rupture characteristics and retains its ductility even at a temperature of 1290°F. After annealing Incoloy 800H, it should be used in service temperatures lower than 1100°F.

Some of the common applications of Incoloy 800 / 800H / 800HT Buttweld Fittings are:
• Chemical processing
• Petrochemical industry
• Petroleum refining
• Power generation
• Thermal Processing units

Incoloy 800 Pipe Fittings Specifications

Specifications	ASTM B366/ ASME SB366
Size	Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Type	DN15-DN1200
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Elbows	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Connection	Welding
Manufacturing process	Forge, Cast, Push, Press, etc.
Key markets and industries	Bitumen upgraders. Heavy oil refineries. Petrochemicals and acids. Nuclear power (mostly seamless).
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Incoloy 800 Pipe Fittings

Incoloy 800 90 Degree Elbow

Alloy 800 45 Degree Elbow

Incoloy 800 180 Deg Elbow

Nickel Alloy 800 Concentric Reducer

Alloy 800 Eccentric Reducer

Incoloy 800 Long Radius Elbow

Incoloy 800 Short Radius Elbow

ASTM B366 Incoloy 800H Pipe Bend

ANSI B16.9 Incoloy 800 Piggable Bend

ASME SB366 Alloy 800 Pipe Nipple

Incoloy 800HT Equal Tee

Incoloy 800 Equal Cross

Incoloy 800H Long Stub End

Incoloy 800 Short Stub End

Incoloy 800 Pipe Cap

Incoloy 800 Pipe Fittings Equivalent Material

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

Incoloy 800H Pipe Fittings Properties

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ

Incoloy 800 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Alloy 800 Pipe Fittings Manufacturer, Nickel Alloy 800HT Reducer, Incoloy 800 Pipe Elbow, ASTM B366 Incoloy 800H Pipe Fittings, Alloy 800 Pipe Fittings Suppliers in Mumbai.

If you are looking for best prices for Incoloy 800 Pipe Fittings, Alloy 800 Elbow, Nickel Alloy Reducer email us on info@duplexsteelalloys.com or call us on +91 9664408767

Incoloy 800 Pipe Fittings Price List

Product	Price
Custom Size 4 Inch Incoloy 800 3D Elbow Price	US $ 0.5-1.0 / Piece
Incoloy 800 Two Halve Butt weld Fittings Price	US $ 1.00-4000.0 / Piece
Alloy 800H Reducing Elbow Price List	US $ 2.5-60.0 / Piece
Schedule 10 Incoloy 800 Pipe Fittings Price	US $ 00.1-40 / Piece
ANSI B16.9 Incoloy 800 Welded Pipe Elbow Price	US $ 1-4000 / Piece
Incoloy 800 Seamless Long Radius 90 Degree Elbow	US $ 400 / Ton
ASTM B366 Alloy 800HT Buttweld Pipe Fittings Price	US $ 0.5-1 / Piece
ASME SB366 Incoloy 800 SMLS Fittings Price List	US $ 3.0-50.0 / Piece
Incoloy® Alloy 800 End Cap Price List	US $ 00.9 / Piece

Incoloy 800 Buttweld Pipe Fittings Dimensions

Normal Pipe Size For (NPS) For ANSI/ASME B16.9	10S Schedule			40S Schedule			80S Schedule
Normal Pipe Size For (NPS) For ANSI/ASME B16.9	Buttweld 90 Degree Elbow	Buttweld 45 Degree Elbow	B16.9 Buttweld Equal Tee	Buttweld 90 Deg Elbows	Buttweld 45 Deg Elbows	B16.9 Buttweld Equal Tee	Buttweld 90 Degree Elbow	Buttweld 45 Degree Elbow	ASME B16.9 Buttweld Equal Tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Normal Pipe Size For (NPS) For ANSI/ ASME B16.9	10S Schedule			40S Schedule			80S Schedule
Normal Pipe Size For (NPS) For ANSI/ ASME B16.9	Buttweld Con Pipe Reducer	Buttweld Ecc Pipe Reducer	Buttweld Unequal And Reducing Tee	Buttweld Con Pipe Reducer	Buttweld Ecc Pipe Reducer	Buttweld Unequal And Reducing Tee	Buttweld Con Pipe Reducer	Buttweld Ecc Pipe Reducer	Buttweld Unequal And Reducing Tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

Incoloy 800 Pipe Fitting Tolerance

Pressure Rating (psig)
Pipe Size (inches)	Pipe Schedule	Temperature (oF)
Pipe Size (inches)	Pipe Schedule	100	200	300	400	500	600	650	700	750
1"	160	6140	5296	4759	4375	4068	3876	3761	3684	3646
	80	4213	3634	3265	3002	2791	2659	2580	2528	2501
	40	3048	2629	2362	2171	2019	1924	1867	1824	1810
1 1/2"	160	4619	3984	3580	3291	3060	2916	2829	2772	2743
	80	3182	2744	2466	2267	2108	2009	1949	1909	1889
	40	2257	1947	1750	1608	1496	1425	1383	1354	1340
2"	160	4499	3880	3486	3205	2980	2840	2755	2699	2671
	80	2747	2369	2129	1957	1820	1734	1682	1648	1631
	40	1902	1640	1474	1355	1260	1201	1165	1141	1129
3"	160	3840	3312	2976	2736	2544	2424	2352	2304	2280
	80	2553	2202	1979	1819	1691	1612	1564	1532	1516
	40	1806	1558	1400	1287	1196	1140	1106	1084	1072
4"	160	3601	3106	2791	2566	2386	2273	2206	2161	2138
	80	2213	1909	1715	1577	1466	1397	1355	1328	1314
	40	1531	1321	1187	1091	1014	967	938	919	909
5"	160	3414	2945	2646	2433	2262	2155	2091	2049	2027
	80	1981	1709	1535	1411	1312	1250	1213	1189	1176
	40	1342	1158	1040	956	889	847	822	805	797
6"	160	3289	2836	2549	2343	2179	2076	2014	1973	1953
	80	1913	1650	1483	1363	1267	1208	1172	1148	1136
	40	1219	1052	945	869	808	770	747	732	724
8"	160	3175	2738	2460	2262	2103	2004	1944	1905	1885
	80	1692	1459	1311	1205	1121	1068	1036	1015	1005
	40	1073	926	832	765	711	678	657	644	637
10"	160	3147	2714	2439	2242	2085	1986	1927	1880	1868
	80	1609	1388	1247	1147	1066	1016	986	966	956
	40	974	840	755	694	645	615	596	584	578

Ask Free Sample of Incoloy 800 Elbow, Tee, Reducer, Stub End Please Call +91 9664408767

Widest Range of Incoloy 800 Butt weld Fittings in Mumbai, India.

Incoloy 800 Pipe Fittings Manufacturers in Mumbai
Incoloy 800 Pipe Fittings Dimensions
800 Incoloy 90° Weldable SR Elbow
Incoloy 800 Pipe Fittings Supplier in India
Incoloy® Alloy 800 Seamless Pipe Elbow
Incoloy 800 Buttweld Fittings Price in India
Incoloy 800 Pipe Fittings Pressure Ratings
Incoloy 800 Buttweld Fittings Weight Chart
Incoloy Alloy 800 Pipe Fittings Supplier in India
Price Of Alloy 800H Pipe Fittings
Nickel Alloy 800 Pipe Fittings Manufacturers in India
Incoloy 800 Pipe Elbow Price
Incoloy 800H Buttweld Fittings Supplier in Mumbai
UNS N08810 Buttweld Pipe Fittings
Alloy 800 Pipe Fittings Manufacturers
Incoloy 800 Schedule 40 180° LR Return Bend
ASTM B366 Incoloy 800 45 Degree Elbow
Incoloy® Alloy 800 Reducer
Incoloy 800 Schedule 10 Two Joint Pipe Fittings
UNS N08800 Welded Fittings
Alloy 800 Buttweld Fittings Manufacturer in Mumbai
Alloy 800 Buttweld Fittings Suppliers in Mumbai
Incoloy 800 Buttweld Fittings Price List
1.4876 Seamless Fittings
Incoloy Alloy 800 Stub End
Incoloy® Alloy 800HT Elbow

MSS-SP-75 Alloy 800 Buttweld Pipe Fittings
ASTM B366 Alloy 800H 45° Long Radius Elbow
ASME B16.9 Incoloy 800 1D Elbow
Incoloy 800 Pipe End Cap
Incoloy 800 Reducing Tee Price
1.4859 SR Elbow Exporter
Alloy 800 Schedule 40 Pipe Reducer
2 Inch Incoloy 800 Pipe Fittings
1.4876 Equal Cross Stockists
Incoloy 800 Elbow Price in India
Incoloy Alloy 800 SR Elbow
Incoloy 800 Lap Joint Stub End
Incoloy 800 180 Degree Elbow
Incoloy 800 Weldable 3D Elbow
Incoloy 800 Pipe Fitting Stockist
Incoloy 800H Pipe Fittings Price List in India
Alloy 800 Sch 10 Lateral Tee
Cost Of Incoloy 800 Pipe Elbow
Incoloy 800 U Bend
Incoloy 800 Equal Tee Price List
ASME SB366 Incoloy 800 Buttweld Cap
Incoloy 800 Reducing Tee
Incoloy 800HT Buttweld Fittings Supplier in India
Incoloy 800 Pipe Fittings Price
Incoloy 800 End Pipe Cap
Incoloy 800 Seamless Pipe Bend

Tests of ASTM B366 Incoloy 800 Pipe Fittings

Before being prepared for shipment to the customer, ASTM B366 Inconel 800 Pipe Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Hardness Test

Impact Tests

Ultrasonic Testing

Incoloy 800 Pipe Fittings - Comparing International Standards

EU EN	USA -	Germany DIN,WNr	Japan JIS	France AFNOR	England BS	Italy UNI	China GB	Sweden SS	Poland PN	Czechia CSN	Finland SFS	Inter ISO	Russia GOST
EN 10095 (1.4876)	800 800H 800HT	1.4876 1.4958 1.4959	NCF 800 NCF 800H NCF 800HT	Z8NC32-21 Z8NC33-21	NA 15 NA 15(H) NA 15(HT)	-	-	-	-	-	-	X8NiCrAlTi32-21	ЭИ670

best offer & competitive quotation

call us on +91 9664408767

Incoloy 800HT Buttweld Pipe Fittings Supply in Below Countries

Products We Supplied	Description	Country
Incoloy Alloy 800 Lap Joint Stub Ends	UNS N08800 8 inch, SCH160 Concentric Reducer Supply	Norway, UAE, Europe, Romania
800 Incoloy Alloy 5D Buttweld Elbow	SCH 100, BW, 10 Inch, Incoloy 800 5D Elbow	Saudi Arabia, Vietnam, Indonesia, Thailand
Incoloy Alloy 800H Buttweld Concentric Reducer	Schedule 40 ASTM B366 Incoloy 800 Piggable Bend	Australia, Ellington -United States, Canada, Nigeria
Incoloy Alloy 800 Piggable Bend	4 Inch, SCH 100S UNS N08810 Lap Joint Stub End	South Africa, Philippines, Taiwan, Kuwait
ASTM B366 Incoloy 800 Barrel Nipple	2.4858 Barrel Nipple	Malaysia, Egypt, Mexico, France
Incoloy 800HT Long Radius 90 Degree Elbow	6 Inch AISI Alloy 800 Pipe Bend	UK, Jordan, Belgium, Venezuela, Netherlands
Incoloy 800 Seamless Elbow	8 Inch UNS N08811 Seamless Pipe Elbow	Turkey, Morocco, Germany, Canada, Egypt
Schedule 80 Incoloy 800HT Grade Long Stub End	2-1/2 INCH, SCH 40S Incoloy 800 Pipe	Tunisia, Colombia, Ukraine, Mongolia
Incoloy GOST ЭИ670 Long Radius Bend	1/2 inch ASME SB366 Incoloy 800 Long Stub End	Uruguay, Maldives, Costa Rica, Finland, Singapore

Common Application for Incoloy Alloy 800 Buttweld Pipe Fittings

Oil & Gas

Chemical

Power Generation

Aerospace

Heavy Equipment

Automotive

Shipbuilding

Construction
