Incoloy 825 Buttweld Fittings & Elbow Manufacturer in India

Duplex Steel & Alloys is committed to producing and providing the best quality Incoloy 825 Buttweld Fittings to their clients and maximizing their satisfaction. This can be done because of the usage of new technology and machine, which ensures the dimensional accuracy of the buttweld fittings required by the clients. We provide these buttweld pipe fittings at competitive rates and safely package these items by using high-quality packaging materials. Our company customizes these fittings of Incoloy 825 alloy in various sizes and thicknesses.

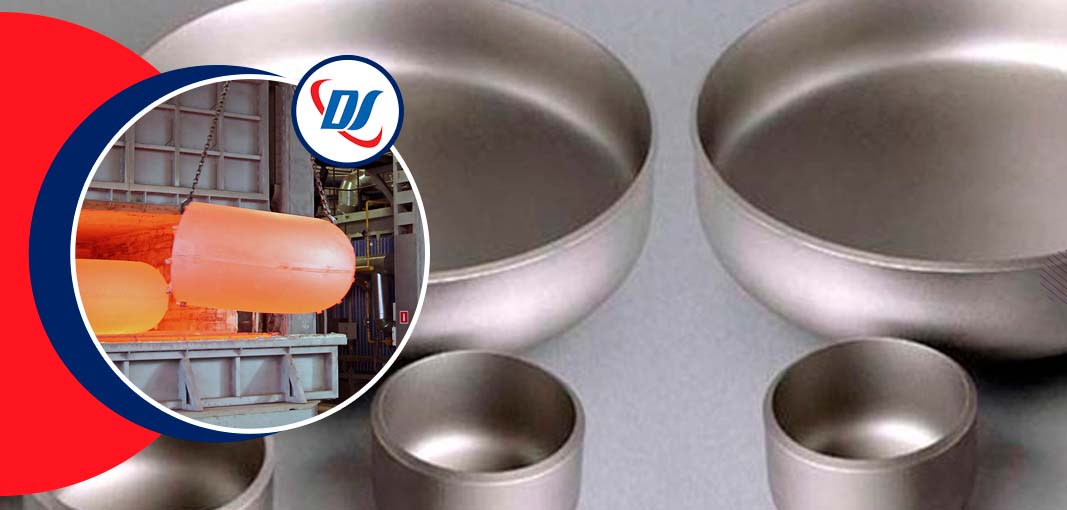

Incoloy 825 Buttweld Fittings are mainly made up of nickel (around 42%), chromium (around 21.5%), iron (minimum 22%), and other elements in smaller percentages. Like other Incoloy alloys, these also have exceptional resistance to oxidizing and reducing solutions. Their resistance to stress corrosion cracking is also good, along with resistance against localized attacks (pitting and crevice corrosion). Incoloy 825 is unaffected by sulphuric and phosphoric acids, which are harmful to many alloy grades.

Incoloy 825 Pipe Fittings, Nickel Alloy 825 Buttweld Fittings, Incoloy 825 Elbow Price, Alloy 825 Pipe Fittings, Incoloy 825 Elbow, Incoloy 825 Pipe Fittings Suppliers in Mumbai, India.

Table of Content

What is Incoloy 825 Pipe Fittings
Incoloy 825 Pipe Fittings Specifications
Types of Incoloy 825 Pipe Fittings
Incoloy 825 Pipe Fittings Equivalent Material
Incoloy 825 Pipe Fittings Properties
Incoloy 825 Pipe Fittings Price List
Incoloy 825 Buttweld Pipe Fittings Dimensions
Incoloy 825 Pipe Fitting Tolerance
Widest Range of Incoloy 825 Butt weld Fittings in Mumbai, India.
Tests of ASTM B366 Incoloy 825 Pipe Fittings
Incoloy 825 Buttweld Pipe Fittings Supply in Below Countries
Common Application for Incoloy Alloy 825 Buttweld Pipe Fittings

Incoloy Alloy 825 Weld Fittings, Incoloy Alloy 825 Fittings, Alloy 825 Elbow, Incoloy® Alloy 825 Pipe Fittings, Incoloy 825 Pipe Fittings, Incoloy 825 Buttweld Fittings Manufacturers in India.

Incoloy 825 Buttweld Fittings have great mechanical strength even at high temperatures, which includes tensile strength, hardness, yield strength, and elongation. The alloy's tensile strength is 85 Ksi and yield strength is 30 KSi (min), and can maintain its mechanical strength when used in cryogenic temperatures to 1000° F. But if the alloy is used in an environment of temperature more than 1000° F, it can change its microstructure and ultimately affect the alloy's ductility and strength. The alloy can't be hardened using heat treatment techniques and can be hot or cold worked.

Due to the Incoloy 825 Buttweld Fittings list of properties and characteristics, it is utilized in various applications, which include sulphuric acid piping systems, tank heaters and equipment, chemical processing applications, ammonium sulfate vessels, nuclear fuel reprocessing, and many more. All of these applications required resistance to various kinds of corrosions (such as general, pitting, crevice, intergranular, and SCC) in oxidizing and reducing environments.

Incoloy 825 Pipe Fittings Specifications

Specifications	ASTM B366/ ASME SB366
Size	Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Type	DN15-DN1200
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Elbows	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Connection	Welding
Manufacturing process	Forge, Cast, Push, Press, etc.
Key markets and industries	Bitumen upgraders. Heavy oil refineries. Petrochemicals and acids. Nuclear power (mostly seamless).
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Incoloy 825 Pipe Fittings

Incoloy 825 90 Degree Elbow

Alloy 825 45 Degree Elbow

Incoloy 825 180 Deg Elbow

Nickel Alloy 825 Concentric Reducer

Alloy 825 Eccentric Reducer

Incoloy 825 Long Radius Elbow

Incoloy 825 Short Radius Elbow

ASTM B366 Incoloy 825 Pipe Bend

ANSI B16.9 Incoloy 825 Piggable Bend

ASME SB366 Alloy 825 Pipe Nipple

Incoloy 825 Equal Tee

Incoloy 825 Equal Cross

Incoloy 825 Long Stub End

Incoloy 825 Short Stub End

Incoloy 825 Pipe Cap

Incoloy 825 Pipe Fittings Equivalent Material

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

Incoloy 825 Pipe Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Incoloy 825 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Incoloy 825 Pipe Elbow, Alloy 825 Pipe Fittings Manufacturer, ASTM B366 Incoloy 825 Pipe Fittings, Nickel Alloy 825 Reducer, Alloy 825 Pipe Fittings Suppliers in Mumbai.

If you are looking for best prices for Incoloy 825 Pipe Fittings, Alloy 825 Elbow, Nickel Alloy Reducer email us on info@duplexsteelalloys.com or call us on +91 9664408767

Incoloy 825 Pipe Fittings Price List

Product	Price
Custom Size 4 Inch Incoloy 825 3D Elbow Price	US $ 0.5-1.0 / Piece
Incoloy 825 Two Halve Butt weld Fittings Price	US $ 1.00-4000.0 / Piece
Alloy 825 Reducing Elbow Price List	US $ 2.5-60.0 / Piece
Schedule 10 Incoloy 825 Pipe Fittings Price	US $ 00.1-40 / Piece
ANSI B16.9 Incoloy 825 Welded Pipe Elbow Price	US $ 1-4000 / Piece
Incoloy 825 Seamless Long Radius 90 Degree Elbow	US $ 400 / Ton
ASTM B366 Alloy 825 Buttweld Pipe Fittings Price	US $ 0.5-1 / Piece
ASME SB366 Incoloy 825 SMLS Fittings Price List	US $ 3.0-50.0 / Piece
Incoloy® Alloy 825 End Cap Price List	US $ 00.9 / Piece

Incoloy 825 Buttweld Pipe Fittings Dimensions

Normal Pipe Size For (NPS) For ANSI/ASME B16.9	10S Schedule			40S Schedule			80S Schedule
Normal Pipe Size For (NPS) For ANSI/ASME B16.9	Buttweld 90 Degree Elbow	Buttweld 45 Degree Elbow	B16.9 Buttweld Equal Tee	Buttweld 90 Deg Elbows	Buttweld 45 Deg Elbows	B16.9 Buttweld Equal Tee	Buttweld 90 Degree Elbow	Buttweld 45 Degree Elbow	ASME B16.9 Buttweld Equal Tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Normal Pipe Size For (NPS) For ANSI/ ASME B16.9	10S Schedule			40S Schedule			80S Schedule
Normal Pipe Size For (NPS) For ANSI/ ASME B16.9	Buttweld Con Pipe Reducer	Buttweld Ecc Pipe Reducer	Buttweld Unequal And Reducing Tee	Buttweld Con Pipe Reducer	Buttweld Ecc Pipe Reducer	Buttweld Unequal And Reducing Tee	Buttweld Con Pipe Reducer	Buttweld Ecc Pipe Reducer	Buttweld Unequal And Reducing Tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

Incoloy 825 Pipe Fitting Tolerance

Pressure Rating (psig)
Pipe Size (inches)	Pipe Schedule	Temperature (oF)
Pipe Size (inches)	Pipe Schedule	100	200	300	400	500	600	650	700	750
1"	160	6140	5296	4759	4375	4068	3876	3761	3684	3646
	80	4213	3634	3265	3002	2791	2659	2580	2528	2501
	40	3048	2629	2362	2171	2019	1924	1867	1824	1810
1 1/2"	160	4619	3984	3580	3291	3060	2916	2829	2772	2743
	80	3182	2744	2466	2267	2108	2009	1949	1909	1889
	40	2257	1947	1750	1608	1496	1425	1383	1354	1340
2"	160	4499	3880	3486	3205	2980	2840	2755	2699	2671
	80	2747	2369	2129	1957	1820	1734	1682	1648	1631
	40	1902	1640	1474	1355	1260	1201	1165	1141	1129
3"	160	3840	3312	2976	2736	2544	2424	2352	2304	2280
	80	2553	2202	1979	1819	1691	1612	1564	1532	1516
	40	1806	1558	1400	1287	1196	1140	1106	1084	1072
4"	160	3601	3106	2791	2566	2386	2273	2206	2161	2138
	80	2213	1909	1715	1577	1466	1397	1355	1328	1314
	40	1531	1321	1187	1091	1014	967	938	919	909
5"	160	3414	2945	2646	2433	2262	2155	2091	2049	2027
	80	1981	1709	1535	1411	1312	1250	1213	1189	1176
	40	1342	1158	1040	956	889	847	822	805	797
6"	160	3289	2836	2549	2343	2179	2076	2014	1973	1953
	80	1913	1650	1483	1363	1267	1208	1172	1148	1136
	40	1219	1052	945	869	808	770	747	732	724
8"	160	3175	2738	2460	2262	2103	2004	1944	1905	1885
	80	1692	1459	1311	1205	1121	1068	1036	1015	1005
	40	1073	926	832	765	711	678	657	644	637
10"	160	3147	2714	2439	2242	2085	1986	1927	1880	1868
	80	1609	1388	1247	1147	1066	1016	986	966	956
	40	974	840	755	694	645	615	596	584	578

Ask Free Sample of Incoloy 825 Elbow, Tee, Reducer, Stub End Please Call +91 9664408767

Widest Range of Incoloy 825 Butt weld Fittings in Mumbai, India.

Incoloy 825 Buttweld Fittings Weight Chart
Incoloy 825 Buttweld Fittings Supplier in Mumbai
Incoloy 825 Pipe Fittings Dimensions
Incoloy® Alloy 825 Seamless Pipe Elbow
Incoloy® Alloy 825 Elbow
Incoloy 825 Schedule 10 Two Joint Pipe Fittings
Incoloy 825 Pipe Fittings Manufacturers in Mumbai
UNS N08825 Welded Fittings
Incoloy® Alloy 825 Reducer
Incoloy 825 Buttweld Fittings Price in India
825 Incoloy 90° Weldable SR Elbow
Alloy 825 Buttweld Fittings Manufacturer in Mumbai
Incoloy Alloy 825 Stub End
Incoloy 825 Buttweld Fittings Price List
ASTM B366 Incoloy 825 45 Degree Elbow
Incoloy 825 Pipe Fittings Supplier in India
Incoloy 825 Pipe Fittings Pressure Ratings
Nickel Alloy 825 Pipe Fittings Manufacturers in India
2.4858 Seamless Fittings
Incoloy 825 Schedule 40 180° LR Return Bend
Incoloy 825 Pipe Elbow Price
Alloy 825 Buttweld Fittings Suppliers in Mumbai
UNS N08825 Buttweld Pipe Fittings
Incoloy Alloy 825 Pipe Fittings Supplier in India
Alloy 825 Pipe Fittings Manufacturers
Price Of Alloy 825 Pipe Fittings

Incoloy 825 Equal Tee Price List
ASTM B366 Alloy 825 45° Long Radius Elbow
Incoloy 825 Lap Joint Stub End
Incoloy 825 Pipe Fitting Stockist
2.4858 SR Elbow Exporter
Incoloy 825 End Pipe Cap
Incoloy 825 Pipe End Cap
2 Inch Incoloy 825 Pipe Fittings
Incoloy 825 Reducing Tee
MSS-SP-75 Alloy 825 Buttweld Pipe Fittings
ASME B16.9 Incoloy 825 1D Elbow
Alloy 825 Schedule 40 Pipe Reducer
Incoloy 825 Reducing Tee Price
2.4858 Equal Cross Stockists
Alloy 825 Sch 10 Lateral Tee
Incoloy 825 Pipe Fittings Price List in India
ASME SB366 Incoloy 825 Buttweld Cap
Incoloy 825 Elbow Price in India
Incoloy 825 Buttweld Fittings Supplier in India
Incoloy 825 Weldable 3D Elbow
Incoloy 825 180 Degree Elbow
Incoloy 825 U Bend
Incoloy 825 Pipe Fittings Price
Incoloy 825 Seamless Pipe Bend
Cost Of Incoloy 825 Pipe Elbow
Incoloy Alloy 825 SR Elbow

Tests of ASTM B366 Incoloy 825 Pipe Fittings

Before being prepared for shipment to the customer, ASTM B366 Inconel 825 Pipe Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Hardness Test

Impact Tests

Ultrasonic Testing

Incoloy 825 Pipe Fittings - Comparing International Standards

EU EN	USA -	Germany DIN,WNr	Japan JIS	France AFNOR	England BS	Italy UNI	China GB	Sweden SS	Poland PN	Czechia CSN	Finland SFS	Inter ISO	Russia GOST
EN 10095 (2.4858)	825 825 825	2.4858 1.4958 1.4959	NCF 825 NCF 825 NCF 825	Z8NC32-21 Z8NC33-21	NA 15 NA 15(H) NA 15(HT)	-	-	-	-	-	-	X8NiCrAlTi32-21	ЭИ670

best offer & competitive quotation

call us on +91 9664408767

Incoloy 825 Buttweld Pipe Fittings Supply in Below Countries

Products We Supplied	Description	Country
Incoloy Alloy 825 Lap Joint Stub Ends	UNS N08825 8 inch, SCH160 Concentric Reducer Supply	Europe, Norway, UAE, Romania
825 Incoloy Alloy 5D Buttweld Elbow	SCH 100, BW, 10 Inch, Incoloy 825 5D Elbow	Indonesia, Saudi Arabia, Thailand, Vietnam
Incoloy Alloy 825 Buttweld Concentric Reducer	Schedule 40 ASTM B366 Incoloy 825 Piggable Bend	Nigeria, Ellington -United States, Canada, Australia
Incoloy Alloy 825 Piggable Bend	4 Inch, SCH 100S UNS N08825 Lap Joint Stub End	Kuwait, Taiwan, South Africa, Philippines
ASTM B366 Incoloy 825 Barrel Nipple	2.4858 Barrel Nipple	Malaysia, Mexico, Egypt, France
Incoloy 825 Long Radius 90 Degree Elbow	6 Inch AISI Alloy 825 Pipe Bend	Belgium, UK, Jordan, Netherlands, Venezuela
Incoloy 825 Seamless Elbow	8 Inch UNS N08825 Seamless Pipe Elbow	Germany, Egypt, Canada, Morocco, Turkey
Schedule 80 Incoloy 825 Grade Long Stub End	2-1/2 INCH, SCH 40S Incoloy 825 Pipe	Ukraine, Tunisia, Colombia, Mongolia
Incoloy GOST ЭП703 Long Radius Bend	1/2 inch ASME SB366 Incoloy 825 Long Stub End	Uruguay, Costa Rica, Finland, Singapore, Maldives

Common Application for Incoloy Alloy 825 Buttweld Pipe Fittings

Oil & Gas

Chemical

Power Generation

Aerospace

Heavy Equipment

Automotive

Shipbuilding

Construction
