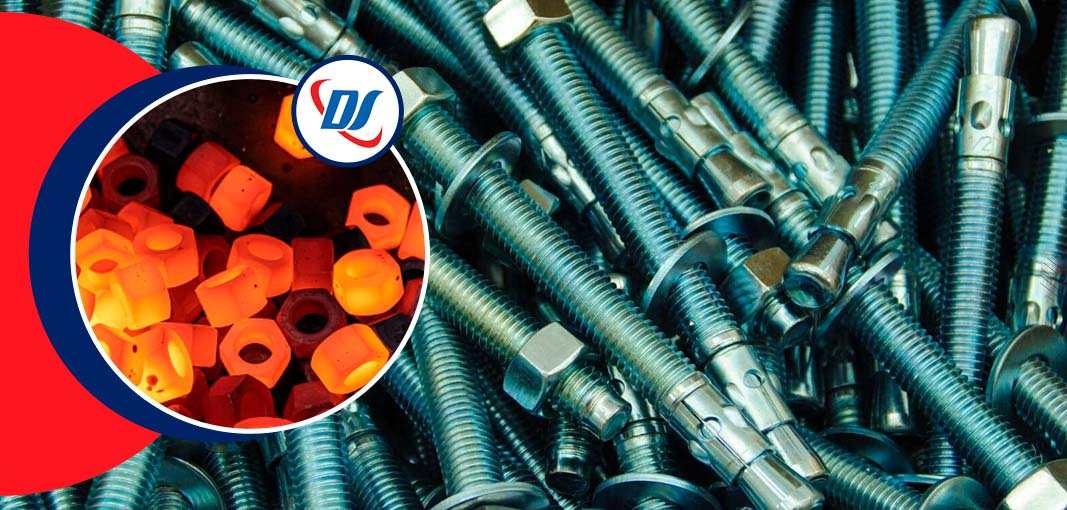

Duplex Steel & Alloys offers a wide variety of Monel
400 fasteners. As one of the best-authorized manufacturers, stockists, and
suppliers of Monel 400 Fasteners.
Monel 400
Fasteners contain a high percentage of metals, copper,
and nickel. It also contains a small amount of iron, aluminum, magnesium,
and silicon. ASTM B164 UNS NO4400 also includes caustic and salt solutions.
Monel 400 fasteners are high-strength, have good weldability, and are
excellent corrosion-resistant, and this alloy may be utilized for oil
extraction which is of considerable advantage for enhanced toughness.
Caustic solutions including potassium or sodium hydroxide solution do not
affect alloys in mild to very high temperatures. It can resist steam and
seawater even at high alkaline temperatures. Monel 400 fasteners are more
robust than pure Nickel commercially. They can withstand several types of
corrosion making them flexible it is available at a competitive price due to
their superior ability to be machined.
Monel 400 Nut Bolt, Alloy 400 Fasteners, Monel 400 Fasteners, Monel 400
Bolts, Monel® Alloy 400 Fasteners, Monel 400 Fastener Suppliers in Mumbai,
India.
Monel Alloy 400 Hex Bolt, Alloy 400 Screw, Alloy 400 Bolts, Monel 400 Washers, Monel 400
Stud Price, Monel 400 Nuts, Monel 400 Fasteners Manufacturers in India.
UNS NO4400 fasteners are available in different types such as
eye bolts, U bolts, T bolts, Square bolts, Hex head bolts, Threaded bolts, etc.
Monel 400 fasteners are used in marine engineering, chemical and
hydrocarbon processing, heat exchangers, valves, and pumps. Alloy 400 fasteners have
good ductility and thermal conductivity. In comparison with Hastelloy, it is high
tensile strength and gravity of 8.80.
Also, we have provided different forms of Monel 400 fasteners such as round,
square, and threading as per gauge, etc. These Monel 400 Fasteners are furnished with an
industrial finishing process and coatings.
Being an ISO-certified firm we have hired well experienced and skilled force that
manufactures top-notch quality products. We are testing each of our products to make it
accurate to meet the demands of the customer and its application.
Monel 400 Bolts and Nuts Specification
| Standard |
ASTM F467 / ASME SF467 |
| Bolt / Screw Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size |
M1.6 – M12 |
| Self Tapping Screw Size |
No.2 – No. 14 |
| Length |
3 mm to 200 mm |
| Threads |
UNF, BSW, BSF, METRIC, UNC, or as required |
| Fasteners |
- DIN : DIN 934, DIN 931, DIN 970, DIN 933
- UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
- ISO : JIS standards, ISO 4033, ISO 4032,
- ANSI – American National Standards Institute
- ASME B18.5
- ANSI B 28.2.4 1M
- as per defined in ASME B16.5 standard length
- ANSI B 18.2.4 2M
- as per defined in ASME B18.2.2
|
| Form |
Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source |
JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric
Coarse Threads |
| Certification |
Dual Certified As per ASTM & ASME Codes |
| Dimensions |
DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads |
Unless otherwise specified, the threads shall be rolled or cut and
tapped horizontally or vertically |
| Test Certificate |
as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications |
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production Process |
M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting
element machining and CNC |
Types Of Monel 400 Fasteners
Monel 400 Bolts
Alloy 400 Nuts
Monel 400 Screw
Nickel Alloy 400 Washer
Alloy 400 Stud Bolts
Monel 400 Anchor Bolt
Monel 400 Threaded Rod
ASTM F467 Monel 400 Hexagonal Bolt
Monel 400 Hex Nut
Monel 400 Fastener Equivalent Material
| STANDARD |
UNS |
WNR. |
AFNOR |
EN |
JIS |
BS |
GOST |
| Monel 400 |
N04400 |
2.4360 |
NU-30M |
NiCu30Fe |
NW 4400 |
NA 13 |
МНЖМц 28-2,5-1,5 |
Monel 400 Fastener Properties
| Grade |
Ni |
C |
Al |
Mn |
Si |
Fe |
Cu |
S |
| Monel 400 |
63.0 min |
0.3 max |
0.50 max |
2.0 max |
0.5 max |
1.0 - 2.5 |
28.0 - 34.0 |
0.02 max |
Mechanical Properties of Monel 400 Fasteners
| Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
| 8.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 35,000 , MPa – 240 |
Psi – 80,000 , MPa – 550 |
40 % |
Nickel Alloy 400 Fastener, Monel 400 Hex Bolt Price List, Alloy 400 Nut Bolt
Manufacturer, ASTM F467 Monel 400 Fasteners, Monel 400 Anchor Fasteners, Monel 400
Fasteners Suppliers in Mumbai.
If you are looking for best prices for Monel 400 Fasteners, Alloy 400 Stud Bolt,
Alloy 400 Fasteners email us on info@duplexsteelalloys.com
or call us on +91 9664408767
Monel 400 Fasteners Price List
| Product |
Price |
| Monel 400 Nut Bolt Price Per Kg |
US $1.99-200 / Kg |
| ASTM F467 Monel 400 Hexagon Head Screw |
US $1290-4900 / Ton |
| Cost Per Kg of Alloy 400 Heavy Hex Nuts |
US $99-1100 / Kg |
| Monel 400 Washer Price |
S $1.00-900.0 / Kg |
| Monel 400 Self Locking Nuts Price Per Kg |
US $190-1990 / Ton |
| Alloy 400 Heavy Hex Bolt price |
US $1000-4500 / Ton |
| Monel 400 Anchor Fasteners Price List |
US $1500-2400 / Ton |
| Monel 400 Bolt Price List |
US $2200-4000 / Ton |
| Monel 400 Socket Head Screw Price |
US $1.2-3.7 / Kilogram |
| Monel 400 Allen Cap Screw Price |
US $1,100.00-2,100.00 / Ton |
Monel 400 Bolt Thread Sizes
| Size |
Nominal (Major)
Diameter [in] |
Coarse Thread (UNC) |
Fine Thread (UNF) |
Threads
Per Inch |
Tensile Stress
Area [in2] |
Minor
Area [in2] |
Threads
Per Inch |
Tensile Stress
Area [in2] |
Minor
Area [in2] |
| #0 |
0.0600 |
--- |
--- |
--- |
80 |
0.00180 |
0.00151 |
| #2 |
0.0860 |
56 |
0.00370 |
0.00310 |
64 |
0.00394 |
0.00339 |
| #4 |
0.1120 |
40 |
0.00604 |
0.00496 |
48 |
0.00661 |
0.00566 |
| #5 |
0.1250 |
40 |
0.00796 |
0.00672 |
44 |
0.00830 |
0.00716 |
| #6 |
0.1380 |
32 |
0.00909 |
0.00745 |
40 |
0.01015 |
0.00874 |
| #8 |
0.1640 |
32 |
0.0140 |
0.01196 |
36 |
0.01474 |
0.01285 |
| #10 |
0.1900 |
24 |
0.0175 |
0.01450 |
32 |
0.0200 |
0.0175 |
| 1/4" |
0.2500 |
20 |
0.0318 |
0.0269 |
28 |
0.0364 |
0.0326 |
| 5/16" |
0.3125 |
18 |
0.0524 |
0.0454 |
24 |
0.0580 |
0.0524 |
| 3/8" |
0.3750 |
16 |
0.0775 |
0.0678 |
24 |
0.0878 |
0.0809 |
| 7/16" |
0.4375 |
14 |
0.1063 |
0.0933 |
20 |
0.1187 |
0.1090 |
| 1/2" |
0.5000 |
13 |
0.1419 |
0.1257 |
20 |
0.1599 |
0.1486 |
| 9/16" |
0.5625 |
12 |
0.182 |
0.162 |
18 |
0.203 |
0.189 |
| 5/8" |
0.6250 |
11 |
0.226 |
0.202 |
18 |
0.256 |
0.240 |
| 3/4" |
0.7500 |
10 |
0.334 |
0.302 |
16 |
0.373 |
0.351 |
| 7/8" |
0.8750 |
9 |
0.462 |
0.419 |
14 |
0.509 |
0.480 |
| 1" |
1.0000 |
8 |
0.606 |
0.551 |
12 |
0.663 |
0.625 |
| 1-1/8" |
1.1250 |
7 |
0.763 |
0.693 |
12 |
0.856 |
0.812 |
| 1-1/4" |
1.2500 |
7 |
0.969 |
0.890 |
12 |
1.073 |
1.024 |
| 1-3/8" |
1.3750 |
6 |
1.155 |
1.054 |
12 |
1.315 |
1.260 |
| 1-1/2" |
1.5000 |
6 |
1.405 |
1.294 |
12 |
1.581 |
1.521 |
| 1-3/4" |
1.7500 |
5 |
1.90 |
1.74 |
--- |
--- |
--- |
| 2" |
2.0000 |
4.5 |
2.50 |
2.30 |
--- |
--- |
--- |
The following table of clearance holes was adapted from ASME B18.2.8. The minimum hole
diameters are given.
| Bolt Size |
Bolt Dia. [in] |
Normal Fit [in] |
Close Fit [in] |
Loose Fit [in] |
| #0 |
0.0600 |
0.076 |
0.067 |
0.094 |
| #2 |
0.0860 |
0.102 |
0.094 |
0.116 |
| #4 |
0.1120 |
0.128 |
0.120 |
0.144 |
| #5 |
0.1250 |
0.156 |
0.141 |
0.172 |
| #6 |
0.1380 |
0.170 |
0.154 |
0.185 |
| #8 |
0.1640 |
0.196 |
0.180 |
0.213 |
| #10 |
0.1900 |
0.221 |
0.206 |
0.238 |
| 1/4" |
0.2500 |
0.281 |
0.266 |
0.297 |
| 5/16" |
0.3125 |
0.344 |
0.328 |
0.359 |
| 3/8" |
0.3750 |
0.406 |
0.391 |
0.422 |
| 7/16" |
0.4375 |
0.469 |
0.453 |
0.484 |
| 1/2" |
0.5000 |
0.562 |
0.531 |
0.609 |
| 5/8" |
0.6250 |
0.688 |
0.656 |
0.734 |
| 3/4" |
0.7500 |
0.812 |
0.781 |
0.906 |
| 7/8" |
0.8750 |
0.938 |
0.906 |
1.031 |
| 1" |
1.0000 |
1.094 |
1.031 |
1.156 |
| 1-1/8" |
1.1250 |
1.219 |
1.156 |
1.312 |
| 1-1/4" |
1.2500 |
1.344 |
1.281 |
1.438 |
| 1-3/8" |
1.3750 |
1.500 |
1.438 |
1.609 |
| 1-1/2" |
1.5000 |
1.625 |
1.562 |
1.734 |
Monel 400 Hex Nut Dimensions
The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 1-1,
"Dimensions of Square and Hex Machine Screw Nuts." This table is used for smaller size
hardware.
| Size |
Nominal (Major)
Diameter [in] |
Width Across Flats |
Thickness |
| Nominal [in] |
Minimum [in] |
Minimum [in] |
Maximum [in] |
| #0 |
0.060 |
5/32"(0.156) |
0.150 |
0.043 |
0.050 |
| #2 |
0.086 |
3/16"(0.188) |
0.180 |
0.057 |
0.066 |
| #4 |
0.112 |
1/4"(0.250) |
0.241 |
0.087 |
0.098 |
| #6 |
0.138 |
5/16"(0.312) |
0.302 |
0.102 |
0.114 |
| #8 |
0.164 |
11/32"(0.344) |
0.332 |
0.117 |
0.130 |
| #10 |
0.190 |
3/8"(0.375) |
0.362 |
0.117 |
0.130 |
| 1/4" |
0.250 |
7/16"(0.438) |
0.423 |
0.178 |
0.193 |
| 5/16" |
0.312 |
9/16"(0.562) |
0.545 |
0.208 |
0.225 |
| 3/8" |
0.375 |
5/8"(0.625) |
0.607 |
0.239 |
0.257 |
The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 4,
"Dimensions of Hex Nuts and Hex Jam Nuts."
| Size |
Nominal (Major)
Diameter [in] |
Width Across Flats |
Thickness |
| Minimum [in] |
Maximum [in] |
Minimum [in] |
Maximum [in] |
| 1/4" |
0.2500 |
0.428 |
0.438 |
0.212 |
0.226 |
| 5/16" |
0.3125 |
0.489 |
0.500 |
0.258 |
0.273 |
| 3/8" |
0.3750 |
0.551 |
0.563 |
0.320 |
0.337 |
| 7/16" |
0.4375 |
0.675 |
0.688 |
0.365 |
0.385 |
| 1/2" |
0.5000 |
0.736 |
0.750 |
0.427 |
0.448 |
| 9/16" |
0.5625 |
0.861 |
0.875 |
0.473 |
0.496 |
| 5/8" |
0.6250 |
0.922 |
0.938 |
0.535 |
0.559 |
| 3/4" |
0.7500 |
1.088 |
1.125 |
0.617 |
0.665 |
| 7/8" |
0.8750 |
1.269 |
1.312 |
0.724 |
0.776 |
| 1" |
1.0000 |
1.450 |
1.500 |
0.831 |
0.887 |
| 1-1/8" |
1.1250 |
1.631 |
1.688 |
0.939 |
0.999 |
| 1-1/4" |
1.2500 |
1.812 |
1.875 |
1.030 |
1.094 |
| 1-3/8" |
1.3750 |
1.994 |
2.062 |
1.138 |
1.206 |
| 1-1/2" |
1.5000 |
2.175 |
2.250 |
1.245 |
1.317 |
| 1-5/8" |
1.6250 |
2.350 |
2.430 |
1.364 |
1.416 |
| 1-3/4" |
1.7500 |
2.538 |
2.625 |
1.460 |
1.540 |
| 1-7/8" |
1.8750 |
2.722 |
2.813 |
1.567 |
1.651 |
| 2" |
2.0000 |
2.900 |
3.000 |
1.675 |
1.763 |
Monel 400 Flat Washer Dimensions
The following table of flat washer dimensions was adapted from ASME B18.21.1, Table 11
for Type A Plain Washers. Type A washers come in 2 series: Narrow and Wide.
| Size |
Basic Dia. [in] |
Series |
Inner Dia,
Basic [in] |
Outer Dia,
Basic [in] |
Thickness,
Basic [in] |
| #0 |
0.0600 |
--- |
0.078 |
0.188 |
0.020 |
| #2 |
0.0860 |
--- |
0.094 |
0.250 |
0.020 |
| #4 |
0.1120 |
--- |
0.125 |
0.312 |
0.032 |
| #6 |
0.1380 |
--- |
0.156 |
0.375 |
0.049 |
| #8 |
0.1640 |
--- |
0.188 |
0.438 |
0.049 |
| #10 |
0.1900 |
--- |
0.219 |
0.500 |
0.049 |
| 1/4" |
0.2500 |
Narrow |
0.281 |
0.625 |
0.065 |
| 1/4" |
0.2500 |
Wide |
0.312 |
0.734 |
0.065 |
| 5/16" |
0.3125 |
Narrow |
0.344 |
0.688 |
0.065 |
| 5/16" |
0.3125 |
Wide |
0.375 |
0.875 |
0.083 |
| 3/8" |
0.3750 |
Narrow |
0.406 |
0.812 |
0.065 |
| 3/8" |
0.3750 |
Wide |
0.438 |
1.000 |
0.083 |
| 7/16" |
0.4375 |
Narrow |
0.469 |
0.922 |
0.065 |
| 7/16" |
0.4375 |
Wide |
0.500 |
1.250 |
0.083 |
| 1/2" |
0.5000 |
Narrow |
0.531 |
1.062 |
0.095 |
| 1/2" |
0.5000 |
Wide |
0.562 |
1.375 |
0.109 |
| 9/16" |
0.5625 |
Narrow |
0.594 |
1.156 |
0.095 |
| 9/16" |
0.5625 |
Wide |
0.625 |
1.469 |
0.109 |
| 5/8" |
0.6250 |
Narrow |
0.656 |
1.312 |
0.095 |
| 5/8" |
0.6250 |
Wide |
0.688 |
1.750 |
0.134 |
| 3/4" |
0.7500 |
Narrow |
0.812 |
1.469 |
0.134 |
| 3/4" |
0.7500 |
Wide |
0.812 |
2.000 |
0.148 |
| 7/8" |
0.8750 |
Narrow |
0.938 |
1.750 |
0.134 |
| 7/8" |
0.8750 |
Wide |
0.938 |
2.250 |
0.165 |
| 1" |
1.0000 |
Narrow |
1.062 |
2.000 |
0.134 |
| 1" |
1.0000 |
Wide |
1.062 |
2.500 |
0.165 |
| 1-1/8" |
1.1250 |
Narrow |
1.250 |
2.250 |
0.134 |
| 1-1/8" |
1.1250 |
Wide |
1.250 |
2.750 |
0.165 |
| 1-1/4" |
1.2500 |
Narrow |
1.375 |
2.500 |
0.165 |
| 1-1/4" |
1.2500 |
Wide |
1.375 |
3.000 |
0.165 |
| 1-3/8" |
1.3750 |
Narrow |
1.500 |
2.750 |
0.165 |
| 1-3/8" |
1.3750 |
Wide |
1.500 |
3.250 |
0.180 |
| 1-1/2" |
1.5000 |
Narrow |
1.625 |
3.000 |
0.165 |
| 1-1/2" |
1.5000 |
Wide |
1.625 |
3.500 |
0.180 |
| 1-5/8" |
1.6250 |
--- |
1.750 |
3.750 |
0.180 |
| 1-3/4" |
1.7500 |
--- |
1.875 |
4.000 |
0.180 |
| 1-7/8" |
1.8750 |
--- |
2.000 |
4.250 |
0.180 |
| 2" |
2.0000 |
--- |
2.125 |
4.500 |
0.180 |
Ask Free Sample of Monel 400 Fastener, Bolts, Nuts, Washer. Please Call +91 9664408767
Widest Range of Monel 400 Fastener in Mumbai, India.
- Monel® Alloy 400 12mm Anchor Fastener Price
- Monel Alloy 400 Fastener Manufacturers
- Price of Monel 400 Belleville Washer
- Monel 400 Machine Bolts
- Alloy 400 10mm Anchor Fastener Price
- 2.4360 Fender Washer
- Monel 400 Self Tapping Screws
- Monel Alloy 400 Set Screw
- Alloy 400 Fastener Supplier
- Monel Alloy 400 Lock Washers
- Monel Alloy 400 Bolts and Nuts
- Monel 400 Price in India
- Monel 400 Screw Suppliers
- Monel 400 Fasteners Manufacturer in Mumbai
- Alloy 400 Fastener Supplier in India
- Nickel Alloy 400 Fastener Suppliers in Mumbai
- UNS N04400 Fasteners
- Monel 400 Fasteners Weight Calculator
- Monel 400 Anchor Bolt Weight Calculator In MM
- Monel 400 Flat Washers Exporter
- Alloy 400 Washer Manufacturers In India
- Monel 400 Fastener Bolt
- Nickel Alloy 400 Concrete Screws
- UNS N04400 Fasteners
- Monel 400 Fastener Supplier in India
- Monel 400 Fastener Suppliers in Mumbai
- Monel Alloy 400 Ogee Washers
- Monel 400 Flange Bolts
- Monel® Alloy 400 Bolt Specification
- Cost Of Monel 400 Fastener
- Monel® Alloy 400 Lock Nut
- Monel 400 Fastener Price Per Kg in Mumbai
- Monel 400 Spring Washers
- Monel 400 Square Nut
- Monel 400 Heavy Hex Bolts
- ASTM F467 Monel 400 Fastener
- Monel 400 Fastener Price in India
- Alloy 400 Stud Bolt Price List
- Monel 400 Fastener Supplier in India
- ASME SF467 Monel 400 Fastener
- Monel Alloy 400 Socket Screws
- Alloy 400 Dome Nut
- Monel 400 Coupling Nuts
- Monel Alloy 400 Hex Head Bolts
- Alloy 400 Wing Nuts Sizes
- Alloy 400 Split Washers Sizes
- Monel 2.4360 Fastener Exporter
- Alloy 400 Socket Cap Screw Stock
- Monel 400 Hex Nut Dimensions
- 2.4360 Square Bolts Stockists
- Monel 400 Panel Nuts
- Nickel Alloy 400 Stud Price
Tests of ASTM F467 Monel 400 Fastener
Before being prepared for shipment to the customer, ASTM F467
Monel 400 Fasteners Testing should be constructed in accordance with applicable
standards and thoroughly tested for potential flaws.
Finishes Of Monel 400 Fastener
| Powder coating |
Zinc and yellow plated |
| Zinc and de-embrittled |
Stayblack finish |
| Sherardised |
Nickel |
| Green chromate |
Geomet |
| Galvanised |
Electro brass plated |
| Chrome |
Chemical black |
Monel 400 Fasteners - Comparing International Standards
EU
EN |
USA
- |
Germany
DIN,WNr |
Japan
JIS |
France
AFNOR |
England
BS |
Italy
UNI |
China
GB |
Sweden
SS |
Poland
PN |
Czechia
CSN |
Finland
SFS |
Austria
ONORM |
Russia
GOST |
DIN 17750
2.4360 |
400
UNS N04400 |
2.4360 |
NW 4400 |
NU-30M |
NA 13
BS 3072NA1
BS 3076NA13 |
- |
- |
- |
- |
- |
- |
- |
МНЖМц 28-2,5-1,5 |
best offer & competitive quotation
Monel 400 Fasteners Supply in Below Countries
| Products We Supplied |
Description |
Country |
| Monel 400 Fasteners |
UNS N04400 U Bolts Supply |
Serbia, Venezuela, Germany, Malaysia |
| ASTM F467 Monel 400 Fasteners |
2.4360 Nut Bolt Weight Chart In Kg |
Azerbaijan, Gambia, Oman, Belarus, South Africa |
| Monel 400 Bolts and Nuts Price List |
N04400 Alloy Eye Bolts |
Romania, Mongolia, Slovakia, Yemen, Puerto Rico |
| Monel Alloy 400 Fasteners Manufacturers |
2.4360 Monel Double Ended Studs In India |
Switzerland, Australia, Singapore, Hong Kong |
| ASME SF467 Monel 400 Fasteners In India |
N04400 Acorn Nuts Manufacturers In India |
Taiwan, New Zealand, Portugal, Belgium |
| Monel GOST МНЖМц 28-2,5-1,5 Fastener |
Monel 400 Nyloc Nuts Manufacturers In India |
Czech Republic, Ecuador, Chile, Nigeria, Jordan |
| Monel 400 Bolt Torque Chart |
UNS N04400 Carriage Bolts Near Me |
Nepal, Bulgaria, Bhutan, Kuwait |
| Monel® Alloy 400 Spring Washer |
Monel 400 Flat Washers |
Hungary, Estonia, Vietnam, Denmark |
Common Application for Alloy 400 Fasteners
Heavy Equipment
Automotive
Chemical
Power Generation
Shipbuilding
Construction
Aerospace
Oil & Gas
