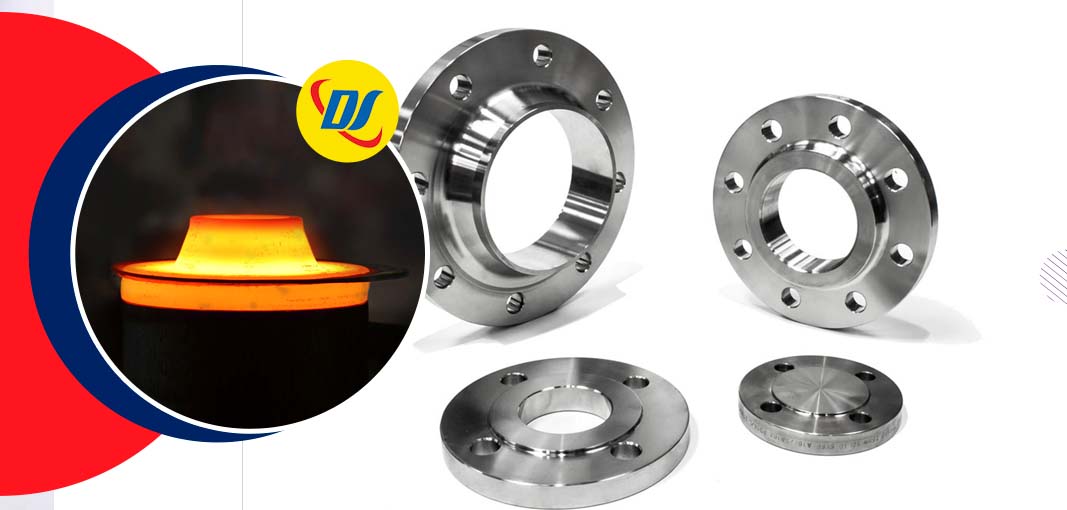

Stainless
Steel 317/317L Flanges help to connect pieces of
equipment such as pipes and Duplex Steel & Alloys produces the best
quality of flanges of the alloy grade. Our core mission is to provide
high-quality products that would maximize customer satisfaction and hence
have an experienced production staff to overlook the production process. The
organization places a strong emphasis and standards on creating high-quality
flanges of various types.
Stainless
steel 317 Flanges are a popular substitute for SS 316.
It is stronger than the latter because it contains more chromium, nickel,
molybdenum, and a higher proportion of iron. It has a greater resistance to
corrosion than stainless steel 316 grade and is more durable than stainless
steel 304 grade and these two are the most popular grades of the austenitic
stainless steel family.
Stainless Steel 317L Flange, SS 317L Flange Price List, Stainless Steel 317L
Flanges, 317 Stainless Steel Flange, SS 317 Flange, Stainless Steel 317
Flange Suppliers in Mumbai, India.
SS 317 Spectacle Blind Flange, 317 SS Flange, SS 317 Flange Dimensions, 317L Stainless
Steel Pipe Flange, SS 317 Flange HSN Code, SS 317L Blind Flange, SS 317L Slip On Flange,
Flange SS 317, ASTM A182 F317 Stainless Steel Flanges, Stainless Steel 317L Flange
Manufacturers in India.
Most of the conventional
welding processes are effective on the alloy and can be hot or cold worked to increase
its tensile strength. Because of its strength and corrosion resistance, stainless steel
317 Flanges are widely utilized in the textile industry, chemical processing, and paper
and pulp machinery.
Stainless steel
317L Flanges have less carbon element than SS 317 grade. It has
similar corrosion resistance properties as SS 317 but is stronger during the welding
process which makes it tougher. Hardness does not increase as a result of heat
treatment. Stainless steel 317L could be hot worked at temperatures ranging from 2100 to
2300°F and is unresponsive at temperatures below 1700°F.
This is the primary reason why SS 317L is suited for
high-temperature purposes in hazardous situations involving caustic corrosion, creep,
and rupture stress. As a result, it is commonly used in chemical settings, where it has
proved to be useful in situations involving acids such as acidic chloride, such as
chemical, petrochemical, and food processing equipment.
SS 317 Flanges Specification
| Standard |
ASTM A182 / ASME SA182 |
| Dimensions |
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10,
EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN
Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44,
ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Flange Size Chart |
1/2" (15 NB) to 48" (1200NB), DN10~DN5000 |
| Pressure Rating |
Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN |
6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS |
16 K, 5K, 10 K, 20 K, 30 K, 40 K, 63 K |
| Flange Connection / Flange Face Type |
Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large
Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small
Tongue, Large Tongue & Groove, Groove, Flange Pipe. |
| Origin |
West Europe / Japan / Indian / USA / Korean |
| Types of Flanges |
Threaded / Screwed / Forged / Plate |
| Coating |
Yellow Transparent, Zinc Plated, Anti-rust Paint, Oil Black Paint, Cold
and Hot Dip Galvanized |
| Test Of Flange |
Direct-reading Spectrograph, Ultrasonic flaw detector, Magnetic particle
detector, X-ray detector, Hydrostatic testing machine. |
| Production technique Used |
Heat treated, Forged and Machined |
| Equipment |
Press machine, Bending machine, Pushing Machine, Sand-blasting machine,
electric bevelling machine etc. |
| Test Certificates |
EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report,
Third Party Inspection Report, etc |
Types of Stainless Steel 317 Flanges
317 SS Slip On Flange
SS 317 Plate Flanges
317 SS Welding Neck Flange
317 SS Blind Flange
317 SS Spectacle Blind Flange
317L Stainless Steel Socket Weld Flange
ASTM A182 317L SS Threaded Flange
317L Stainless Steel Lap Joint Flange
UNS S31700 Stainless Steel RTJ Flange
317 SS Long Weld Neck Flange
SS 317 Tongue and Groove Flange
317L Stainless Steel Orifice Flange
317L Stainless Steel Flange Equivalent Material
| GRADE |
WERKSTOFF NR. |
JIS |
UNS |
BS |
GOST |
AFNOR |
EN |
| SS 317 |
1.4449 |
SUS 317 |
S31700 |
- |
- |
- |
- |
| SS 317L |
1.4438 |
SUS 317L |
S31703 |
- |
- |
- |
X2CrNiMo18-15-4 |
SS 317 Flanges Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| 317 SS Pipe |
min. |
– |
– |
– |
– |
– |
18.0 |
3.0-4.0 |
11.0 |
– |
| max. |
0.08 |
2.0 |
1.0 |
0.040 |
0.030 |
20.0 |
14.0 |
– |
| 317L SS Pipe |
min. |
– |
– |
– |
– |
– |
18.0 |
3.0-4.0 |
11.0 |
– |
| max. |
0.08 |
2.0 |
1.0 |
0.040 |
0.030 |
20.0 |
15.0 |
– |
SS 317 Flange Mechanical Properties
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1454 °C (2650 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
SS 317 Flange Supplier, 317L Stainless Steel Flange, 317 Stainless Steel SORF Flange,
Stainless Steel 317L Flange, Stainless Steel 317 Flange Supplier, ASME B16.5 Stainless
Steel 317 Flanges, SS 317L Flange, SS 317 Flanges Suppliers in Mumbai.
If you are looking for best prices for 317 Stainless Steel Flanges, 317 Stainless
Steel Flange, 317 Grade Stainless Steel Flange email us on info@duplexsteelalloys.com
or call us on +91 9664408767
SS 317 Flange Price List
| Product |
Price |
| 317L Stainless Steel Flange Price List |
US $8.72-21.57 / Piece |
| 317 Stainless Steel Slip on Flange Price |
US $13.58-30.23 / Piece |
| Stainless Steel 317 Weld Neck Flange Price List |
US $8.72-13.58 / Piece |
| 317 Stainless Steel Square Flange Price List |
S $13.56-28.23 / Piece |
| 317L Stainless Steel Orifice Flange Price |
US $6.82-21.57 / Piece |
| SS 317 2 Inch SS Flange Price |
US $15.58-28.45 / Piece |
| SS 317L Lapped Flange Price |
US $15.86-31.33 / Piece |
| 317 SS Threaded Flange Prices |
US $5.52-19.47 / Piece |
| 317L Stainless Steel Blind Flange Price |
US $1.2-2.9 / Kilogram |
| SS 317 Spectacle Blind Flange Price |
US $2,100.00-3,500.00 / Ton |
317 Stainless Steel Flanges Pressure
and Temperature Ratings
| Temperature °F |
Class 150 |
Class 600 |
Class 1500 |
Class 400 |
Class 900 |
Class 300 |
Class 2500 |
| -20 to 100 |
275 |
1440 |
3600 |
960 |
2160 |
720 |
6000 |
| 300 |
205 |
1080 |
2700 |
720 |
1620 |
540 |
4500 |
| 200 |
230 |
1200 |
3000 |
800 |
1800 |
600 |
5000 |
| 400 |
190 |
995 |
2485 |
660 |
1490 |
495 |
4140 |
| 600 |
140 |
875 |
2185 |
580 |
1310 |
435 |
3640 |
| 650 |
125 |
860 |
2150 |
575 |
1290 |
430 |
3580 |
| 500 |
170 |
930 |
2330 |
620 |
1395 |
465 |
3880 |
| 700 |
110 |
850 |
2125 |
565 |
1275 |
425 |
3540 |
| 750 |
95 |
830 |
2075 |
555 |
1245 |
415 |
3460 |
| 850 |
65 |
790 |
1980 |
530 |
1190 |
395 |
3300 |
| 800 |
80 |
805 |
2015 |
540 |
1210 |
405 |
3360 |
| 900 |
50 |
780 |
1945 |
520 |
1165 |
390 |
3240 |
| 950 |
35 |
765 |
1910 |
510 |
1145 |
380 |
3180 |
| 1000 |
20 |
640 |
1605 |
430 |
965 |
320 |
2675 |
| 1100 |
20 |
515 |
1285 |
345 |
770 |
255 |
2145 |
| 1150 |
20 |
400 |
995 |
265 |
595 |
200 |
1655 |
| 1050 |
20 |
615 |
1545 |
410 |
925 |
310 |
2570 |
| 1200 |
20 |
310 |
770 |
205 |
465 |
155 |
1285 |
| 1250 |
20 |
225 |
565 |
150 |
340 |
115 |
945 |
| 1300 |
20 |
170 |
430 |
115 |
255 |
85 |
715 |
| 1400 |
20 |
95 |
240 |
65 |
145 |
50 |
400 |
| 1350 |
20 |
125 |
310 |
80 |
185 |
60 |
515 |
| 1450 |
15 |
70 |
170 |
45 |
105 |
35 |
285 |
| 1500 |
10 |
55 |
135 |
35 |
80 |
25 |
230 |
SS 317 Flange Weight Chart
| NPS (Nominal Pipe Size) |
Loose (Lap Joint) |
NPT (Threaded) |
SORF (Slip On) |
BLRF (Blind) |
SWRF (Socket Weld) |
WRNR (Weld Neck) |
| ½ |
1 |
1 |
1 |
2 |
2 |
2 |
| 1 |
2 |
2 |
2 |
2 |
2 |
3 |
| 1¼ |
3 |
3 |
3 |
3 |
3 |
3 |
| ¾ |
2 |
2 |
2 |
2 |
2 |
2 |
| 1½ |
3 |
3 |
3 |
4 |
3 |
4 |
| 2½ |
8 |
8 |
8 |
7 |
8 |
10 |
| 2 |
5 |
5 |
5 |
5 |
5 |
6 |
| 3 |
9 |
9 |
9 |
9 |
9 |
11.5 |
| 4 |
13 |
13 |
13 |
17 |
13 |
16.5 |
| 3½ |
11 |
12 |
11 |
13 |
11 |
12 |
| 5 |
15 |
15 |
15 |
20 |
15 |
21 |
| 8 |
30 |
30 |
30 |
47 |
30 |
42 |
| 6 |
19 |
19 |
19 |
27 |
19 |
26 |
| 10 |
43 |
43 |
43 |
70 |
43 |
54 |
| 24 |
275 |
220 |
220 |
430 |
220 |
268 |
| 14 |
105 |
90 |
90 |
140 |
90 |
114 |
| 12 |
64 |
64 |
64 |
123 |
64 |
88 |
| 16 |
140 |
98 |
106 |
180 |
98 |
140 |
| 20 |
195 |
165 |
165 |
285 |
165 |
197 |
| 18 |
160 |
130 |
130 |
220 |
130 |
165 |
| 22 |
245 |
185 |
185 |
355 |
185 |
225 |
SS 317 Flange Dimensions
| Normal Pipe Size (NPS) Of Flanges |
(I.D.) Inside Diameter |
Thickness Of Raised Face (RF)
(T) |
Outside Daimeter (O.D.) |
Raised Face
(R) |
RF
(Raised Face) |
Holes Of Bolts
(B) |
H |
T1 |
Thickness Of Flat Face (FF)
(T2) |
BC (Circle Of Bolt) |
Bolts Holes
Numbers |
| 1/2 |
0.88 |
0.88 |
3.75 |
1.38 |
.063 |
0.62 |
1.50 |
0.50 |
0.82 |
2.62 |
4 |
| 1 |
1.36 |
1.06 |
4.88 |
2.00 |
.063 |
0.75 |
2.12 |
0.63 |
1.00 |
3.50 |
4 |
| 3/4 |
1.09 |
1.00 |
4.62 |
1.69 |
.063 |
0.75 |
1.88 |
.056 |
0.94 |
3.25 |
4 |
| 1-1/4 |
1.70 |
1.06 |
5.25 |
2.50 |
.063 |
0.75 |
2.50 |
0.69 |
1.00 |
3.88 |
4 |
| 2 |
2.44 |
1.31 |
6.50 |
3.62 |
.063 |
0.75 |
3.31 |
0.82 |
1.25 |
5.00 |
8 |
| 1-1/2 |
1.95 |
1.19 |
6.12 |
2.88 |
.063 |
0.88 |
2.75 |
0.75 |
1.13 |
4.50 |
4 |
| 2-1/2 |
2.94 |
1.50 |
7.50 |
4.12 |
.063 |
0.88 |
3.94 |
0.94 |
1.44 |
5.88 |
8 |
| 3 |
3.57 |
1.69 |
8.25 |
5.00 |
.063 |
0.88 |
4.62 |
1.06 |
1.63 |
6.62 |
8 |
| 3-1/2 |
4.07 |
1.75 |
9.00 |
5.50 |
.063 |
0.88 |
5.25 |
1.13 |
1.69 |
7.25 |
8 |
| 4 |
4.57 |
1.88 |
10.00 |
6.19 |
.063 |
0.88 |
5.75 |
1.19 |
1.82 |
7.88 |
8 |
| 5 |
5.66 |
2.00 |
11.00 |
7.31 |
.063 |
0.88 |
7.00 |
1.32 |
1.94 |
9.25 |
8 |
| 18 |
18.18 |
3.50 |
28.00 |
21.00 |
.063 |
1.38 |
21.00 |
2.32 |
3.44 |
24.75 |
24 |
| 6 |
6.72 |
2.06 |
12.50 |
8.50 |
.063 |
0.88 |
8.12 |
1.38 |
2.00 |
10.62 |
12 |
| 8 |
8.72 |
2.44 |
15.00 |
10.62 |
.063 |
1.00 |
10.25 |
1.56 |
2.38 |
13.00 |
12 |
| 10 |
10.88 |
2.62 |
17.50 |
12.75 |
.063 |
1.12 |
12.62 |
1.82 |
2.56 |
15.25 |
16 |
| 12 |
12.88 |
2.88 |
20.50 |
15.00 |
.063 |
1.25 |
14.75 |
1.94 |
2.82 |
17.75 |
16 |
| 14 |
14.14 |
3.00 |
23.00 |
16.25 |
.063 |
1.25 |
16.75 |
2.06 |
2.94 |
20.25 |
20 |
| 20 |
20.20 |
3.75 |
30.50 |
23.00 |
.063 |
1.38 |
23.12 |
2.44 |
3.69 |
27.00 |
24 |
| 16 |
16.16 |
3.25 |
25.50 |
18.50 |
.063 |
1.38 |
19.00 |
2.19 |
3.19 |
22.50 |
20 |
| 22 |
22.22 |
4.00 |
33.00 |
25.25 |
.063 |
1.63 |
25.25 |
2.57 |
3.94 |
29.25 |
24 |
| 24 |
24.25 |
4.19 |
36.00 |
27.25 |
.063 |
1.62 |
27.62 |
2.69 |
4.13 |
32.00 |
24 |
Dimensions Tolerances Of Stainless Steel 317 Plate Flange
| Flange |
Tolerance Table |
| D |
Inside Diameter (I.D.) |
- 10" and smaller: ±1/32" (0.8 mm)
- 12" thru 18": +1/8" (3.2 mm)
- 20" and larger: -1/16" (1.6 mm)
|
| K |
Length of hub |
- 10" and smaller: ±1/16" (1.6 mm)
- 12" and larger: ±1/8" (3.2 mm)
|
| B |
Diameter of contact face |
- 1/16" raised face: ±1/32" (0.8 mm)
- 1/4" RF (Raised Face), T/G (Tongue & Groove), (male &
female), (m/f): ±1/64" (0.4 millimeter)
|
| A |
O.D. (Outside Diameter) |
- When O.D. (Outside Diameter) is 24" or less: ±1/16" (1.6
millimeter)
- When O.D. (Outside Diameter) is over 24": ±1/8" (3.2 millimeter)
|
| J |
Diameter of hub at base |
- When hub base is 24" or smaller: ±1/16" (1.6 millimeter)
- When hub base is over 24": ±1/8" (3.2 millimeter)
|
| P |
Drilling |
- Circle Bolts: ±1/16" (1.6 mm)
- Bolts hole spacing: ±1/32" (0.8 mm)
|
|
Eccentricity of bolt circle with respect to facing |
- 2 1/2" and smaller ±1/32" (0.8 mm) maximum
- 3" and larger ±1/16" (1.6 mm) maximum
|
| H |
Diameter of hub at point of welding |
- 5" and smaller: +3/32" (2.4 mm), -1/32" (0.8 mm)
- 6" and larger: +5/32" (4.0 mm), -1/32 (0.8 mm)
|
| C |
Thickness |
- 18" and smaller: ±1/8" (3.2 mm), -0"
- 20" and larger: ±3/16" (4.8 mm), -0"
|
Ask Free Sample of SS 317 Flange, SORF Flanges, WNRF Flange, SWRF Flange, BLRF
Flange, RTJ Flange Please Call +91 9664408767
Widest Range of Stainless Steel 317 Flange in
Mumbai, India.
- SS 317 Flange Price Per Kg in Bangalore
- Price of SS 317 Flange
- UNS S31703 Blind Flange Price
- Stainless Steel 317 Flange Price in India
- 317 Stainless Steel Flange Stock Near Me
- Stainless Steel 317 Flange Exporter
- SS 317 Flange Supplier in India
- SS 317 Flange Suppliers in Mumbai
- UNS S31700 Flanges
- SS 317 EN 1092-1 Flange
- SS 317 Blind Flange
- Stainless Steel 317 Flange Manufacturers in Mumbai
- 317 Stainless Steel Flange Manufacturers in India
- 317 Stainless Steel JIS SUS 317L Flange
- 1.4438 Puddle Flange Price
- 317L Stainless Steel Flange Manufacturers
- 317L Stainless Steel Flange Supplier
- Stainless Steel 317L Flange Suppliers in Mumbai
- 317 Stainless Steel Slip On Flange Price
- SS 317L Pipe Flange
- SS F317 Flange Manufacturer in Mumbai
- Stainless Steel 317L Flange Supplier in India
- SS 317L Flange Price List in India
- Stainless Steel 317 Blind Flange Types
- SS 317 Blind Flange Dimensions
- 317L SS BS 4504 Flanges
- Stainless Steel 317 Flange in India
- 1.4438 SOFF Flange Stockists
- Stainless Steel 317 Socket Weld Flange
- 317 SS Weld Neck Flange Dimensions in MM
- SS 317 SW Flange Price Per Kg in Mumbai
- F317 SS Weld Neck Flange Application
- ASTM A182 317 Stainless Steel Plate Flange
- ASME SA 182 317 Stainless Steel Nipo Flange
- 317 SS Flange Standard Sizes
- 317L Stainless Steel SWRTJ Flange Price in India
- 317L Stainless Steel Flange Price Per Kg
- 1.4449 Long Welding Neck Flange Exporter
- Stainless Steel 317 Screwed Flange Supplier in India
- Cost Of 317L Stainless Steel RTJ Flange
- 317L Stainless Steel PN 10 Flange Stock
- SUS 317 Steel LJFF Flange Sizes
- Stainless Steel 317L Male & Female Flange
- ASTM A182 Grade 317 BLRF Flange
- 317 PN 16 Stainless Steel Flanges
- 317L SS GOST 12820 80 Flanges
- 317 Stainless Steel DIN 2527 Flanges
- Stainless Steel 317 WNRF Flange
- F317L SS Expander Flange
- 317L Stainless Steel LTJ Flange
- 317 SS Welding Neck Flange Dimensions
- SS 317L SWFF Flange Supplier
Inspection & Testing of 317 Stainless Steel Pipe
Flange
Before being prepared for shipment to the customer, ASTM A182
304 Stainless Steel Flanges Testing should be constructed in accordance with applicable
standards and thoroughly tested for potential flaws.
Direct-Reading Spectrograph
UI Trasonic Flaw Detector
Hydrostatic Testing Machine
Magnetic Particle Detector
Hydrostatic test pressure of Stainless Steel 317L Flanges
ASTM
Specification |
Class |
| 150 |
300 |
400 |
600 |
900 |
1500 |
2500 |
A182-F317
A182-F317L
A182-F317L
|
425 |
1100 |
1450 |
2175 |
3250 |
5400 |
9000 |
Stainless Steel 317L Flange - Comparing International Standards
| USA |
France |
Germany |
Germany |
Italy |
Japan |
Russia |
Spain |
Sweden |
UK |
European Union |
| AISI |
AFNOR |
DIN 17006 |
W.N. 17007 |
UNI |
JIS |
GOST |
UNE |
SIS |
BSI |
EURONORM |
| 317 |
|
|
|
X 5 CrNiMo 1815 |
SUS 317 |
|
|
23 66 |
317S16 |
|
| 317L |
Z 2 CND 19-15 |
X 2 CrNiMo 18 16 4 |
1.4438 |
X 2 CrNiMo 1815 |
SUS 317L |
|
|
23 67 |
317S12 |
X 3 CrNiMo 18 16 4 |
best offer & competitive quotation
317 Stainless Steel Flanges Supply in Below
Countries
| Products We Supplied |
Description |
Country |
| ASME SA182 SS 317L Long Weld Neck Flange Weight |
1.4438 2500 LBS LWN Flange Dimensions |
Portugal, New Zealand, Belgium, Taiwan |
| SS GOST 08Х18Н10 Plate Flanges |
317 SS Loose Flanges |
Czech Republic, Chile, Jordan, Nigeria, Ecuador |
| 317L Stainless Steel Forged Flanges |
UNS S31703 Forged Flanges |
Bulgaria, Nepal, Bhutan, Kuwait |
| ASTM A182 F317 Slip On Flange Welding |
600 LBS SA182 Gr F317 SORF Flanges |
Belarus, Azerbaijan, South Africa, Gambia, Oman |
| Stainless Steel 317 Raised Face Weld Neck Flange |
1.4449 Welding Neck Flange |
Yemen, Slovakia, Puerto Rico, Romania, Mongolia |
| 317L SS Socket Weld Flange |
ANSI B16.47 SS 1.4438 Socket Weld Flange Dimensions |
Hong Kong, Switzerland, Singapore, Australia |
| 317L Stainless Steel End Blind Flange |
BS 10 Table F SS 317 Blind Flange Connection |
Estonia, Denmark, Vietnam, Hungary |
| Stainless Steel 317L Raised Face Slip On Flange |
UNS S31700 Flat Face Slip On Flange |
Serbia, Malaysia, Germany, Venezuela |
Common Application for 317L Stainless Steel
Flanges
Heavy Equipment
Automotive
Power Generation
Construction
Chemical
Oil & Gas
Shipbuilding
Aerospace
