Duplex Steel & Alloys customizes items to your
specifications, places a premium on customer satisfaction, and optimizes
packaging by employing high-quality packing materials. We have specific
tools for product quality testing because we are a customer-oriented
organization. Our organization adheres to established industry specified
norms since it believes in customer-driven quality standards. The entire
production process is overseen by a team of highly qualified and resourceful
professionals who make sure that jobs are completed in the proper order.
SS
304 is the most widely used of all stainless steels,
and it is most commonly used in industrial and culinary applications. It's a
heat-resistant and corrosion-resistant alloy. SS 304 may be welded using any
standard process due to its high formability. It works well in dairy
equipment such containers, homogenizers, milking machines, storage and
transporting tanks, as well as pipelines, valves, milk trucks, and railroad
wagons.
SS 304 Bar, Stainless Steel 304 Round Bar, 304 Stainless Steel Bar,
Stainless Steel 304 Rod, 304 Stainless Steel Rod, SS 304 Rod, Stainless
Steel 304L Bar Suppliers in Mumbai, India.
SS 304 Round Bar, 304 Stainless Steel Round Bar, SS 304L Rod, 304 SS Rod, 304 Stainless
Steel Flat Bar, SS 304 Hex Bar, SS Rod 304 Price, 304 Stainless Steel Square Bar,
Stainless Steel 304H Bar Manufacturers in India.
The two main grades of
stainless steel 304 are 304L
stainless steel (low carbon) and 304H
stainless steel (high carbon). 304L has a maximum carbon content of
0.3 percent, while 304H contains between 0.04 and 0.1 percent carbon, giving it greater
strength at higher temperatures. Sulfuric acid is type 316L resistant only at low
concentrations, although sulfuric acid is type 304L resistant even at large
concentrations.
Alloy 304L Stainless Steel, which is used in a wide range of
residential and commercial applications, is used in food processing equipment,
especially in beer brewing, milk processing, and wine making. 316 stainless steel is a
common stainless steel grade. SS 316 is made up of 16–18 percent chromium, 10–14 percent
nickel, 2–3 percent molybdenum, and 0.08 percent carbon. This grade resists corrosion
better than the others thanks to the presence of molybdenum.
SS 304 Round Bar Specifications
| Specifications |
ASTM A276, ASTM A479, AMS 5513, AMS 5511, AMS 5647 |
| Dimension Standard |
EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Bar Diameter |
3 ~ 800mm |
| Hex Bar size |
2-100mm A/F |
| Flat bar size |
Thickness: 2 -100mm.
Width: 10 to 500mm. |
| Square bar size |
4 to 100mm |
| Rectangular Bars |
Size: 33 x 30mm to 295 x 1066mm.
Thickness: 3.0 to 12.0mm. |
| Hollow Bars |
32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size |
1/2 to 495mm Diameter |
| Finish |
Cold (bright) drawn, centreless ground, hot rolled, smooth turned,
peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright,
Polish, Grinding, Centreless Ground & Black |
| Tolerance |
H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients
requirements |
| Bar Surface |
Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished,
Polished, Hairline |
| Rolled Bars Condition |
Hardened & tempered, annealed |
| Cold Rolled Bar Technique |
Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Form |
Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square,
Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F),
Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc.
|

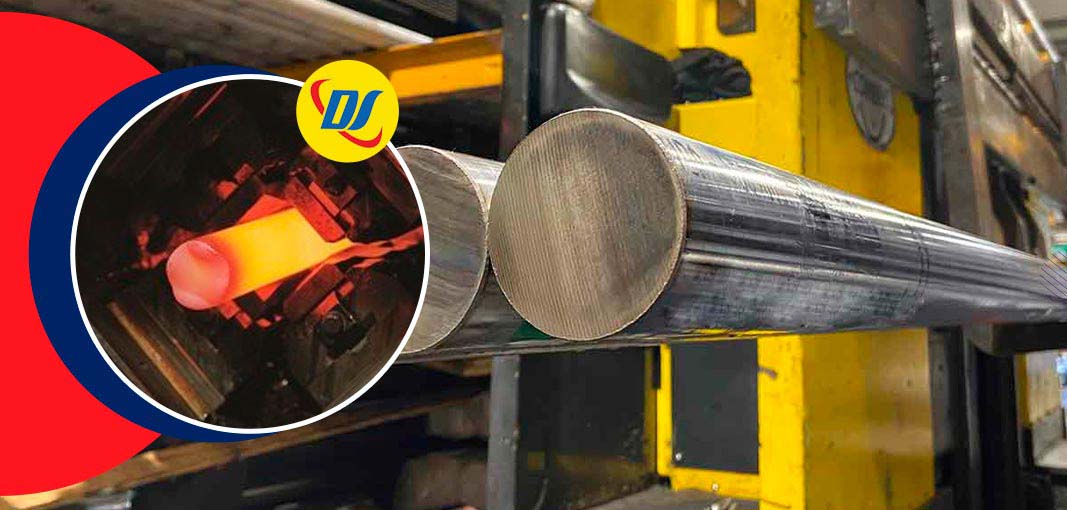

Types of Stainless Steel 304 Bars
SS 304 Hot Rolled Bar
SS 304 Cold Rolled Bar
Stainless Steel 304 Round Bar
304L Stainless Steel Square Bar
Stainless Steel 304 Flat Bar
304 Stainless Steel Hexagon Bar
ASTM A276 304H SS Rectangular Bar
304H Stainless Steel Forged Bar
UNS S30400 Stainless Steel Bright Bar
304 Stainless Steel Threaded Rod
304 Stainless Steel Black Bar
304L Stainless Steel Hollow Bar
304L Stainless Steel Round Bar Equivalent
Material
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| SS 304 |
1.4301 |
S30400 |
SUS 304 |
304S31 |
08Х18Н10 |
Z7CN18‐09 |
X5CrNi18-10 |
| SS 304L |
1.4306 / 1.4307 |
S30403 |
SUS 304L |
3304S11 |
03Х18Н11 |
Z3CN18‐10 |
X2CrNi18-9 / X2CrNi19-11 |
| SS 304H |
1.4948 |
S30409 |
SUS 304H |
– |
– |
– |
– |
SS 304 Round Bar Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| SS 304 |
0.08 max |
2 max |
0.75 max |
0.045 max |
0.030 max |
18 – 20 |
– |
8 – 11 |
– |
| SS 304L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
0.03 max |
18 – 20 |
– |
8 – 13 |
– |
| SS 304H |
0.10 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
18 – 20 |
– |
8 – 10.5 |
– |
SS 304 Round Bar Mechanical Properties
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
304L Stainless Steel Bar, ASTM A276 304H Stainless Steel Bar, Stainless Steel 304H Rod,
SS 304 Rod Rate, Stainless Steel 304H Bar, ASTM A479 Stainless Steel 304 Bar, SS 304
Rods Suppliers in Mumbai.
If you are looking for best prices for 304 Stainless Steel Bars, 304 Stainless
Steel Rod, 304 SS Flat Bar email us on info@duplexsteelalloys.com
or call us on +91 9664408767
Stainless Steel Bar 304 Price List
| Product |
Price |
| 304 Stainless Steel Round Bar Price |
US $999-2500 / Ton |
| 304 Stainless Steel Bar Price |
US $1990-3900 / Ton |
| 304 Stainless Steel Square Bar Price |
US $800-2100 / Ton |
| SS 304 Round Bar Price in India |
S $1000.0-3000.0 / Ton |
| SS 304 Hex Bar Price |
US $300-2700 / Ton |
| SS 304 Rod Rate |
US $1000-2500 / Ton |
| SS 304L Triangle Bar Price |
US $1500-2600 / Ton |
| 304H SS Rectangular Bar Prices |
US $2200-4000 / Ton |
| 304H Stainless Steel Bright Bar Price List |
US $1.2-4.7 / Kilogram |
| Stainless Steel Rod 304 Price Per KG in India |
US $1,600.00-2,200.00 / Ton |
SS 304 Rod Standard Sizes
| Type |
Sizes in milimeter |
Sizes in inches |
Tolerance |
| Peeled and Polished |
40.00 - 150.00 |
1.50 - 6.00 |
h11, h11-DIN 1013 |
| Cold Drawn and Polish |
3.00 to 75.00 |
1/8 to3.00 |
h8 to h11 |
| Cold Drawn and Ground |
10.00 to 75.00 |
5/6 to 2.50 |
h8 to h11 |
| Peeled nd Ground |
20.00 - 50.00 |
3/4 - 2.00 |
h9 to h11 |
304L SS Round Bars Standard lengths of 2000 mm up to 6000 mm.
| 5.0 |
45.0 |
| 6.0 |
50.0 |
| 7.0 |
55.0 |
| 8.0 |
60.0 |
| 9.0 |
65.0 |
| 10.0 |
70.0 |
| 12.0 |
75.0 |
| 16.0 |
80.0 |
| 20.0 |
90.0 |
| 25.0 |
100.0 |
| 30.0 |
130.0 |
| 35.0 |
160.0 |
| 40.0 |
200.0 |
SS 304 Round Bar Weight Chart
| Diameter |
Weight Chart |
Dia |
Weight Chart |
| (mm) |
per metre (kg) |
(in) |
per metre (kg) |
| 3mm |
0.06 |
1/8" |
0.06 |
| 4mm |
0.10 |
3/16" |
0.14 |
| 5mm |
0.16 |
1/4" |
0.25 |
| 6mm |
0.22 |
5/16" |
0.39 |
| 7mm |
0.30 |
3/8" |
0.56 |
| 8mm |
0.40 |
7/16" |
0.77 |
| 10mm |
0.62 |
1/2" |
1.00 |
| 12mm |
0.89 |
9/16" |
1.22 |
| 14mm |
1.22 |
5/8" |
1.56 |
| 15mm |
1.40 |
11/16" |
1.89 |
| 16mm |
1.59 |
3/4" |
2.25 |
| 18mm |
2.01 |
7/8" |
3.07 |
| 20mm |
2.48 |
1" |
4.03 |
| 22mm |
3.00 |
|
|
| 24mm |
3.57 |
|
|
| 25mm |
3.88 |
|
304L Stainless Steel Bar Dimensions
Diameter or
Width
(mm) |
Weight per meter |
Sectional Area |
Perimeter |
Square
(kg) |
Round
(kg) |
Square
(cm²) |
Round
(cm²) |
Square
(cm) |
Round
(cm) |
| 5.0 |
0.20 |
0.15 |
0.25 |
0.20 |
2.0 |
1.57 |
| 5.5 |
0.24 |
0.19 |
0.30 |
0.24 |
2.2 |
1.78 |
| 6.0 |
0.28 |
0.22 |
0.36 |
0.28 |
2.4 |
1.88 |
| 7.0 |
0.38 |
0.30 |
0.49 |
0.38 |
2.8 |
2.20 |
| 8.0 |
0.50 |
0.39 |
0.64 |
0.50 |
3.2 |
2.51 |
| 9.0 |
0.64 |
0.50 |
0.81 |
0.64 |
3.6 |
2.83 |
| 10 |
0.73 |
0.63 |
1.00 |
0.79 |
4.0 |
3.14 |
| 11 |
0.95 |
0.75 |
1.21 |
0.95 |
4.4 |
3.46 |
| 12 |
1.13 |
0.89 |
1.44 |
1.13 |
4.8 |
3.77 |
| 14 |
1.54 |
1.21 |
1.96 |
1.54 |
5.6 |
4.40 |
| 16 |
2.01 |
1.58 |
2.56 |
2.01 |
6.4 |
5.03 |
| 18 |
2.54 |
2.00 |
3.24 |
2.54 |
7.2 |
5.65 |
| 20 |
3.14 |
2.47 |
4.00 |
3.14 |
8.0 |
6.28 |
| 22 |
3.80 |
2.98 |
4.84 |
3.80 |
8.8 |
6.91 |
| 25 |
4.91 |
3.85 |
6.25 |
4.91 |
10.0 |
7.85 |
| 28 |
6.15 |
4.83 |
7.84 |
6.16 |
11.2 |
8.80 |
| 32 |
8.04 |
6.31 |
10.24 |
8.04 |
12.8 |
10.05 |
| 36 |
10.17 |
7.99 |
12.96 |
10.18 |
14.4 |
11.31 |
| 40 |
12.56 |
9.86 |
16.00 |
12.57 |
16.0 |
12.57 |
| 45 |
15.90 |
12.49 |
20.25 |
15.90 |
18.0 |
14.14 |
| 50 |
19.62 |
15.41 |
25.00 |
19.64 |
20.0 |
15.71 |
| 56 |
24.62 |
19.34 |
31.36 |
24.63 |
22.4 |
17.59 |
| 63 |
31.16 |
24.47 |
36.69 |
31.17 |
25.2 |
19.79 |
| 71 |
39.57 |
31.08 |
50.41 |
39.59 |
28.4 |
22.31 |
| 80 |
50.24 |
39.46 |
64.00 |
50.27 |
32.0 |
25.13 |
Ask Free Sample of 304 SS Bar, Rods, Round Bar Please Call +91 9664408767
Widest Range of Stainless Steel 304 Bar in Mumbai,
India.
- SS 304 Round Bar Weight Calculator
- 304L 12mm Stainless Steel Rod
- UNS S30400 Bars
- 304L Stainless Steel Bar Price
- 304H Stainless Steel Rod Manufacturers in India
- 304 Stainless Steel Round Bar Tolerances
- SS 304 Round Bar Suppliers
- Stainless Steel 304 Rods Price in India
- SS 304 Bar Manufacturer in Mumbai
- Stainless Steel 304 Bar Manufacturers in Mumbai
- SS 304 Rod Supplier in India
- 1.4306 Round Rods
- 304H Stainless Steel Rod Supplier
- Stainless Steel 304 Bar Exporter
- Stainless Steel 304 Bar Suppliers in Mumbai
- 304H Stainless Steel Bar Manufacturers
- 8mm Square Stainless Steel Bar
- Stainless Steel 304L Bar Supplier in India
- ASTM A276 Type 304 Stainless Steel Round Bar
- Price of SS 304 Rod
- 8mm 304 Stainless Steel Rod
- SS 304 Rod Weight Chart
- SS 304 Rod Price List in India
- Stainless Steel 304L Round Bars
- UNS S30403 Bars
- SS 304 Bar Suppliers in Mumbai
- 304H SS Cold Rolled Rod
- Stainless Steel 304 Hot Rolled Bars
- 304 SS Round Bar Weight
- 1.4301 HR Rod Exporter
- Stainless Steel Bar 304L
- 304 SS Rod Standard Sizes
- 304L SS Rod Size Chart
- 304L Flat Stainless Steel Bar
- Stainless Steel 304 Bar Price India
- ASTM A276 304 Stainless Steel Bar
- 1.4948 HR Bar Stockists
- 304L Stainless Steel Bar Stock
- Stainless Steel 304 Rod Supplier in India
- Stainless Steel 304H Flat Bar
- 304L Stainless Steel Bar Price Per Kg
- ASME SA479 304L Stainless Steel Rod
- Stainless Steel 304 Rod Price Per Kg in India
- SS 304 Round Bar HSN Code
- SS 304 Rod Price Per Kg in Mumbai
- 304 Stainless Steel Bar Stock
- ASTM A276 Grade 304 Hex Bar
- Cost Of 304L Stainless Steel Rod
- SUS 304L SS Round Bar Sizes
- 304H Stainless Steel Bar Price in India
- 304 Stainless Steel Flat Bar Stock
- Standard SS 304L Round Bar Sizes in mm
Tests of ASTM A276 304L Stainless Steel Bar
Before being prepared for shipment to the customer, ASTM A276
304 Stainless Steel Bars Testing should be constructed in accordance with applicable
standards and thoroughly tested for potential flaws.
Brinell/Rockwell Hardness Test
Finishes Of 304 Stainless Steel Bar
| CD |
Cold drawn |
P |
Polished |
| CG |
Centreless ground |
HF |
Hot finished |
| BD |
Bright drawn |
SRE |
Slit rolled edge |
| P&T |
Peeled and turned |
RT |
Rough turned/peeled |
| CF |
Cold finished |
HRAP |
Hot rolled annealed and pickled |
| ST |
Smooth turned |
PR |
Peeled and reeled |
Stainless Steel 304L Bar - Comparing International Standards
| USA |
France |
Germany |
Germany |
Italy |
Japan |
Russia |
Spain |
Sweden |
UK |
European Union |
| AISI |
AFNOR |
DIN 17006 |
W.N. 17007 |
UNI |
JIS |
GOST |
UNE |
SIS |
BSI |
EURONORM |
| 304 |
Z 6 CN 18-09 |
X 5 CrNi 18 10 X 5 CrNi 18 12 |
1.4301 |
X 5 CrNi 1810 |
SUS 304 |
08KH18N10 06KH18N11 |
X 6 CrNi 19-10 |
23 32 |
304S15 304S16 |
X 6 CrNi 18 10 |
| 304L |
Z 2 CN 18-10 |
X 2 CrNi 18 11 |
1.4306 |
X 2 CrNi 1911 |
SUS 304L |
03KH18N11 |
X 2 CrNi 19-10 |
23 52 |
304S11 |
X 3 CrNi 18 10 |
| 304H |
- |
- |
1.4948 |
X 8 CrNi 1910 |
SUS F 304H |
- |
X 6 CrNi 19-10 |
- |
- |
- |
best offer & competitive quotation
304 Stainless Steel Rods Supply in Below
Countries
| Products We Supplied |
Description |
Country |
| Stainless Steel 304L Round Bars |
UNS S30400 Hot Rolled Rods Supply |
Germany, Venezuela, Serbia, Malaysia |
| ASTM A276 304 Rods |
SS 304 3mm to 50mm Rods |
Azerbaijan, Oman, South Africa, Gambia, Belarus |
| Stainless Steel 304 Hex Bar Sizes in MM |
JIS SUS 304 Hexagonal Bar |
Romania, Mongolia, Yemen, Slovakia, Puerto Rico |
| 304H Stainless Steel Rectangular Bar |
304H SS Cold Drawn Rectangular Bar |
Singapore, Australia, Hong Kong, Switzerland |
| ASME SA276 304H Stainless Steel Bars |
1.4948 Cold Rolled Bars |
Belgium, Taiwan, Portugal, New Zealand |
| Stainless Steel 304H Rectangular Bars |
3.0 to 12.0mm Rhickness SS 304H 304H Rectangular Bar |
Nigeria, Chile, Jordan, Czech Republic, Ecuador |
| 304L Stainless Steel Polished Bars |
Polished UNS S30403 Bars |
Nepal, Kuwait, Bulgaria, Bhutan |
| 304L Stainless Steel Square Bar Weight |
8mm Stainless Steel 304L Square Sar |
Denmark, Estonia, Hungary, Vietnam |
Common Application for 304L Stainless Steel
Rods
Power Generation
Construction
Shipbuilding
Aerospace
Heavy Equipment
Automotive
Chemical
Oil & Gas
