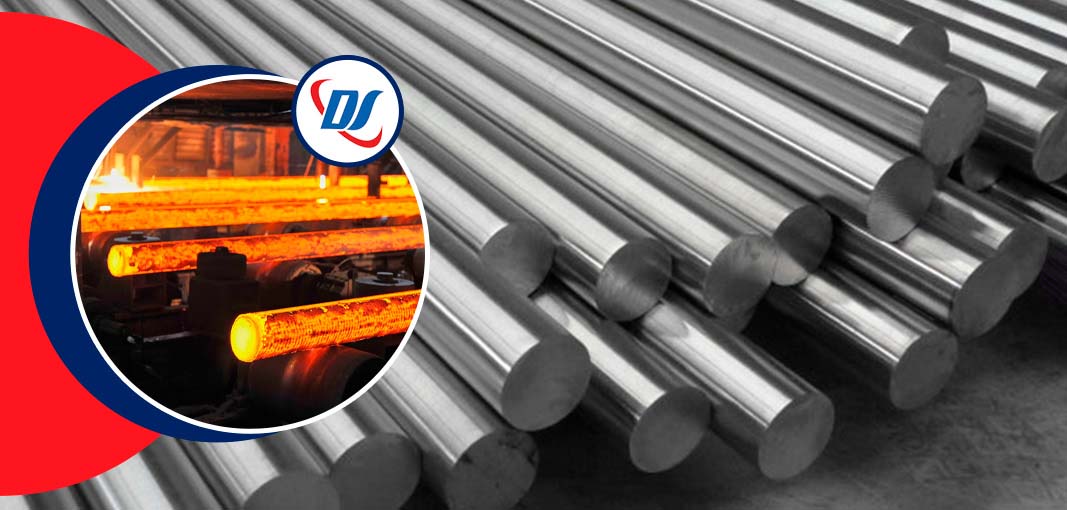

Duplex Steel & Alloys are one of the well-known
authorized dealers and leading manufacturers of high-quality stainless steel
317 / 317 L bars, which are produced in large quantities and excellent
quality raw material.
Stainless
steel 317 bars contain Ferrum 57%, nickel 15%, chromium
20%, and molybdenum. It has a non-magnetic property. Stainless Steel
317/317L bars are also known as UNS S31700 / S31703. Both the alloys are
planned to serve service conditions such as fuel gas desulfurization.
Stainless Steel 317/317L bars are used by industries such as power
generation, food processing, chemical industries, pharmaceutical piping, and
pulp and paper industry. It has carbon and nickel content to provide
excellent corrosion resistance to alkaline compounds. SS 317/317H bars is a
modified version of stainless steel 316. The standard dimension of
SS317/317H is A479 and ASTM A276.
317 Stainless Steel Bar, Stainless Steel 317 Round Bar, SS 317 Rod, SS 317
Bar, 317 Stainless Steel Rod, Stainless Steel 317 Rod, Stainless Steel 317L
Bar Suppliers in Mumbai, India.
SS Rod 317 Price, 317 SS Rod, 317 Stainless Steel Round Bar, SS 317L Rod, 317 Stainless
Steel Flat Bar, 317 Stainless Steel Square Bar, SS 317 Round Bar, SS 317 Hex Bar,
Stainless Steel 317L Bar Manufacturers in India.
Stainless steel 317L
bars have many advantages such as high creep features, corrosion
resistance, thermal conductivity, higher tensile strength, and strength at high
temperatures and it has good formability and weldability. It can perform well at tough
temperatures between 2100 F to 2300 F. UNS S31700 bars are tougher than 304 round bars
and are used for shafts and pumps.
We also offer the same in customized sizes and shapes as per the
requirement given by our clients and that too affordable and market leading prices with
the highest quality zero dimension errors. The crew involved in manufacturing is well
trained to deploy only the latest techniques and machinery.
We acquired a wide bunch of happy customers who appreciate our
service extremely. We work hard to make our name shine more in the industry of steel. We
believe in being flexible and customer satisfaction is our priority.
SS 317 Round Bar Specifications
| Specifications |
ASTM A276, ASTM A479, AMS 5513, AMS 5511, AMS 5647 |
| Dimension Standard |
EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Bar Diameter |
3 ~ 800mm |
| Hex Bar size |
2-100mm A/F |
| Flat bar size |
Thickness: 2 -100mm.
Width: 10 to 500mm. |
| Square bar size |
4 to 100mm |
| Rectangular Bars |
Size: 33 x 30mm to 295 x 1066mm.
Thickness: 3.0 to 12.0mm. |
| Hollow Bars |
32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size |
1/2 to 495mm Diameter |
| Finish |
Cold (bright) drawn, centreless ground, hot rolled, smooth turned,
peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright,
Polish, Grinding, Centreless Ground & Black |
| Tolerance |
H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients
requirements |
| Bar Surface |
Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished,
Polished, Hairline |
| Rolled Bars Condition |
Hardened & tempered, annealed |
| Cold Rolled Bar Technique |
Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Form |
Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square,
Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F),
Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc.
|
Types of Stainless Steel 317 Bars
SS 317 Hot Rolled Bar
SS 317 Cold Rolled Bar
Stainless Steel 317 Round Bar
317L Stainless Steel Square Bar
Stainless Steel 317 Flat Bar
317 Stainless Steel Hexagon Bar
ASTM A276 317L SS Rectangular Bar
317L Stainless Steel Forged Bar
UNS S31700 Stainless Steel Bright Bar
317 Stainless Steel Threaded Rod
317 Stainless Steel Black Bar
317L Stainless Steel Hollow Bar
317L Stainless Steel Round Bar Equivalent
Material
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
EN |
| SS 317 |
1.4449 |
S31700 |
SUS 317 |
– |
| SS 317L |
1.4438 |
S31703 |
SUS 317L |
X2CrNiMo18-15-4 |
SS 317 Round Bar Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
| SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
| SS 317L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.89 min |
SS 317 Round Bar Mechanical Properties
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
SS 317 Rod Rate, 317L Stainless Steel Bar, ASTM A276 317L Stainless Steel Bar, Stainless
Steel 317 Bar, ASTM A479 Stainless Steel 317 Bar, Stainless Steel 317L Rod, SS 317 Rods
Suppliers in Mumbai.
If you are looking for best prices for 317 Stainless Steel Bars, 317 Stainless
Steel Rod, 317 SS Flat Bar email us on info@duplexsteelalloys.com
or call us on +91 9664408767
Stainless Steel Bar 317 Price List
| Product |
Price |
| 317 Stainless Steel Round Bar Price |
US $999-2500 / Ton |
| 317 Stainless Steel Bar Price |
US $1990-3900 / Ton |
| 317 Stainless Steel Square Bar Price |
US $800-2100 / Ton |
| SS 317 Round Bar Price in India |
S $1000.0-3000.0 / Ton |
| SS 317 Hex Bar Price |
US $300-2700 / Ton |
| SS 317 Rod Rate |
US $1000-2500 / Ton |
| SS 317L Triangle Bar Price |
US $1500-2600 / Ton |
| 317L SS Rectangular Bar Prices |
US $2200-4000 / Ton |
| 317L Stainless Steel Bright Bar Price List |
US $1.2-4.7 / Kilogram |
| Stainless Steel Rod 317 Price Per KG in India |
US $1,600.00-2,200.00 / Ton |
SS 317 Rod Standard Sizes
| Type |
Sizes in milimeter |
Sizes in inches |
Tolerance |
| Peeled and Polished |
40.00 - 150.00 |
1.50 - 6.00 |
h11, h11-DIN 1013 |
| Cold Drawn and Polish |
3.00 to 75.00 |
1/8 to3.00 |
h8 to h11 |
| Cold Drawn and Ground |
10.00 to 75.00 |
5/6 to 2.50 |
h8 to h11 |
| Peeled nd Ground |
20.00 - 50.00 |
3/4 - 2.00 |
h9 to h11 |
317L SS Round Bars Standard lengths of 2000 mm up to 6000 mm.
| 5.0 |
45.0 |
| 6.0 |
50.0 |
| 7.0 |
55.0 |
| 8.0 |
60.0 |
| 9.0 |
65.0 |
| 10.0 |
70.0 |
| 12.0 |
75.0 |
| 16.0 |
80.0 |
| 20.0 |
90.0 |
| 25.0 |
100.0 |
| 30.0 |
130.0 |
| 35.0 |
160.0 |
| 40.0 |
200.0 |
SS 317 Round Bar Weight Chart
| Diameter |
Weight Chart |
Dia |
Weight Chart |
| (mm) |
per metre (kg) |
(in) |
per metre (kg) |
| 3mm |
0.06 |
1/8" |
0.06 |
| 4mm |
0.10 |
3/16" |
0.14 |
| 5mm |
0.16 |
1/4" |
0.25 |
| 6mm |
0.22 |
5/16" |
0.39 |
| 7mm |
0.30 |
3/8" |
0.56 |
| 8mm |
0.40 |
7/16" |
0.77 |
| 10mm |
0.62 |
1/2" |
1.00 |
| 12mm |
0.89 |
9/16" |
1.22 |
| 14mm |
1.22 |
5/8" |
1.56 |
| 15mm |
1.40 |
11/16" |
1.89 |
| 16mm |
1.59 |
3/4" |
2.25 |
| 18mm |
2.01 |
7/8" |
3.07 |
| 20mm |
2.48 |
1" |
4.03 |
| 22mm |
3.00 |
|
|
| 24mm |
3.57 |
|
|
| 25mm |
3.88 |
|
317L Stainless Steel Bar Dimensions
Diameter or
Width
(mm) |
Weight per meter |
Sectional Area |
Perimeter |
Square
(kg) |
Round
(kg) |
Square
(cm²) |
Round
(cm²) |
Square
(cm) |
Round
(cm) |
| 5.0 |
0.20 |
0.15 |
0.25 |
0.20 |
2.0 |
1.57 |
| 5.5 |
0.24 |
0.19 |
0.30 |
0.24 |
2.2 |
1.78 |
| 6.0 |
0.28 |
0.22 |
0.36 |
0.28 |
2.4 |
1.88 |
| 7.0 |
0.38 |
0.30 |
0.49 |
0.38 |
2.8 |
2.20 |
| 8.0 |
0.50 |
0.39 |
0.64 |
0.50 |
3.2 |
2.51 |
| 9.0 |
0.64 |
0.50 |
0.81 |
0.64 |
3.6 |
2.83 |
| 10 |
0.73 |
0.63 |
1.00 |
0.79 |
4.0 |
3.14 |
| 11 |
0.95 |
0.75 |
1.21 |
0.95 |
4.4 |
3.46 |
| 12 |
1.13 |
0.89 |
1.44 |
1.13 |
4.8 |
3.77 |
| 14 |
1.54 |
1.21 |
1.96 |
1.54 |
5.6 |
4.40 |
| 16 |
2.01 |
1.58 |
2.56 |
2.01 |
6.4 |
5.03 |
| 18 |
2.54 |
2.00 |
3.24 |
2.54 |
7.2 |
5.65 |
| 20 |
3.14 |
2.47 |
4.00 |
3.14 |
8.0 |
6.28 |
| 22 |
3.80 |
2.98 |
4.84 |
3.80 |
8.8 |
6.91 |
| 25 |
4.91 |
3.85 |
6.25 |
4.91 |
10.0 |
7.85 |
| 28 |
6.15 |
4.83 |
7.84 |
6.16 |
11.2 |
8.80 |
| 32 |
8.04 |
6.31 |
10.24 |
8.04 |
12.8 |
10.05 |
| 36 |
10.17 |
7.99 |
12.96 |
10.18 |
14.4 |
11.31 |
| 40 |
12.56 |
9.86 |
16.00 |
12.57 |
16.0 |
12.57 |
| 45 |
15.90 |
12.49 |
20.25 |
15.90 |
18.0 |
14.14 |
| 50 |
19.62 |
15.41 |
25.00 |
19.64 |
20.0 |
15.71 |
| 56 |
24.62 |
19.34 |
31.36 |
24.63 |
22.4 |
17.59 |
| 63 |
31.16 |
24.47 |
36.69 |
31.17 |
25.2 |
19.79 |
| 71 |
39.57 |
31.08 |
50.41 |
39.59 |
28.4 |
22.31 |
| 80 |
50.24 |
39.46 |
64.00 |
50.27 |
32.0 |
25.13 |
Ask Free Sample of 317 SS Bar, Rods, Round Bar Please Call +91 9664408767
Widest Range of Stainless Steel 317 Bar in Mumbai,
India.
- Stainless Steel 317 Bar Manufacturers in Mumbai
- 317L 12mm Stainless Steel Rod
- ASTM A276 Type 317 Stainless Steel Round Bar
- SS 317 Bar Manufacturer in Mumbai
- Stainless Steel 317L Bar Supplier in India
- 317L Stainless Steel Rod Manufacturers in India
- UNS S31700 Bars
- 317L Stainless Steel Rod Supplier
- 8mm Square Stainless Steel Bar
- Price of SS 317 Rod
- Stainless Steel 317 Bar Suppliers in Mumbai
- Stainless Steel 317L Round Bars
- SS 317 Round Bar Suppliers
- 1.4438 Round Rods
- Stainless Steel 317 Bar Exporter
- 8mm 317 Stainless Steel Rod
- 317L Stainless Steel Bar Manufacturers
- UNS S31703 Bars
- SS 317 Rod Price List in India
- 317 Stainless Steel Round Bar Tolerances
- SS 317 Rod Supplier in India
- SS 317 Bar Suppliers in Mumbai
- SS 317 Round Bar Weight Calculator
- Stainless Steel 317 Rods Price in India
- SS 317 Rod Weight Chart
- 317L Stainless Steel Bar Price
- Stainless Steel 317L Flat Bar
- Stainless Steel 317 Hot Rolled Bars
- Stainless Steel Bar 317L
- 317L SS Cold Rolled Rod
- ASTM A276 317 Stainless Steel Bar
- 317L Stainless Steel Bar Price in India
- SS 317 Round Bar HSN Code
- SS 317 Rod Price Per Kg in Mumbai
- 1.4438 HR Bar Stockists
- ASME SA479 317L Stainless Steel Rod
- 317 Stainless Steel Flat Bar Stock
- SUS 317L SS Round Bar Sizes
- 317L Stainless Steel Bar Stock
- Stainless Steel 317 Rod Supplier in India
- 317 Stainless Steel Bar Stock
- Stainless Steel 317 Bar Price India
- Cost Of 317L Stainless Steel Rod
- 317L Flat Stainless Steel Bar
- 1.4449 HR Rod Exporter
- Stainless Steel 317 Rod Price Per Kg in India
- 317 SS Round Bar Weight
- Standard SS 317L Round Bar Sizes in mm
- 317L SS Rod Size Chart
- 317 SS Rod Standard Sizes
- 317L Stainless Steel Bar Price Per Kg
- ASTM A276 Grade 317 Hex Bar
Tests of ASTM A276 317L Stainless Steel Bar
Before being prepared for shipment to the customer, ASTM A276
317 Stainless Steel Bars Testing should be constructed in accordance with applicable
standards and thoroughly tested for potential flaws.
Brinell/Rockwell Hardness Test
Finishes Of 317 Stainless Steel Bar
| CD |
Cold drawn |
P |
Polished |
| CG |
Centreless ground |
HF |
Hot finished |
| BD |
Bright drawn |
SRE |
Slit rolled edge |
| P&T |
Peeled and turned |
RT |
Rough turned/peeled |
| CF |
Cold finished |
HRAP |
Hot rolled annealed and pickled |
| ST |
Smooth turned |
PR |
Peeled and reeled |
Stainless Steel 317L Bar - Comparing International Standards
| USA |
France |
Germany |
Germany |
Italy |
Japan |
Russia |
Spain |
Sweden |
UK |
European Union |
| AISI |
AFNOR |
DIN 17006 |
W.N. 17007 |
UNI |
JIS |
GOST |
UNE |
SIS |
BSI |
EURONORM |
| 317 |
Z3CND19-15-04
Z6CND17-12-04 |
X 5 CrNiMo 17 12 2 X 5 CrNiMo 17 13 3 |
1.4449 |
X2CrNiMo1816 |
SUS 317 |
|
X 6 CrNiMo 17-12-03 |
23 47 23 43 |
317S12 |
X 6 CrNiMo 17 12 2 X 6 CrNiMo 17 13 3 |
| 317L |
Z3CND19-15-04 |
X2CrNiMoN18-15-4 |
1.4438 |
X 2 CrNiMo 1712 / X 2 CrNiMoN 1712 |
SUS 317L |
03KH16N15M3 |
X2CrNiMo1816 |
23 48 |
317S12 |
X 3 CrNiMo 17 12 2 |
best offer & competitive quotation
317 Stainless Steel Rods Supply in Below
Countries
| Products We Supplied |
Description |
Country |
| Stainless Steel 317 Hex Bar Sizes in MM |
JIS SUS 317 Hexagonal Bar |
Yemen, Slovakia, Puerto Rico, Mongolia, Romania |
| ASTM A276 317 Rods |
SS 317 3mm to 50mm Rods |
Belarus, Azerbaijan, Gambia, South Africa, Oman |
| 317 Stainless Steel Rectangular Bar |
317 SS Cold Drawn Rectangular Bar |
Australia, Switzerland, Hong Kong, Singapore |
| Stainless Steel 317L Rectangular Bars |
3.0 to 12.0mm Rhickness SS 317L Rectangular Bar |
Ecuador, Czech Republic, Chile, Nigeria, Jordan |
Stainless Steel 317L Round Bars |
UNS S31700 Hot Rolled Rods Supply |
Serbia, Venezuela, Germany, Malaysia |
| 317L Stainless Steel Polished Bars |
Polished UNS S31703 Bars |
Kuwait, Bulgaria, Nepal, Bhutan |
| 317L Stainless Steel Square Bar Weight |
8mm Stainless Steel 317L Square Sar |
Estonia, Denmark, Vietnam, Hungary |
| ASME SA276 317 Stainless Steel Bars |
1.4449 Cold Rolled Bars |
Belgium, Portugal, New Zealand, Taiwan |
Common Application for 317L Stainless Steel
Rods
Power Generation
Construction
Shipbuilding
Aerospace
Heavy Equipment
Automotive
Chemical
Oil & Gas
