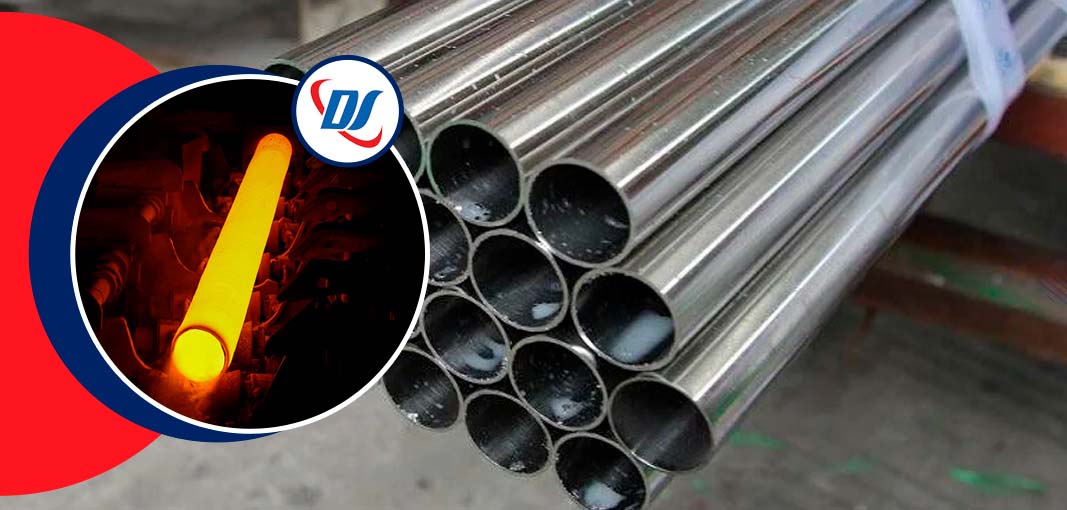

Stainless Steel 316 / 316H / 316L Pipe

Duplex Steel & Alloys is a leading provider of SS 316 pipes. These pipes and s are manufactured in accordance with international and national product quality standards. This assures purchasers that it will endure a long time and have high durability. Furthermore, this grade pipe and have stronger corrosion resistance, pitting resistance, and crevice corrosion capabilities. It also has excellent resistance to IGC after welding and stress relief. It also has strong tensile strength, stress rupture, and creep strength at increased temperatures. Pipes are available in a variety of diameters and thicknesses to meet the needs of customers.

Marine grade stainless alloys, such as 316 Pipes, generally include molybdenum to resist the corrosive effects of NaCl or salt in saltwater. SS 316 / 316L / 316H Pipe is the typical molybdenum-bearing grade and the second most important austenitic stainless steel after Grade 304.

Stainless Steel 316 Pipe, Stainless Steel Pipe 316, SS 316 Pipe Price, 316 Stainless Steel Pipe, Stainless Steel 316L Pipe, SS 316 Seamless Pipe Suppliers in Mumbai, India.

Table of Content

316 Stainless Steel Pipe Price List, Stainless Steel 316H Pipe, Stainless Steel 316L Welded Pipe, SS 316 Pipe Price Per Kg, SS 316 Pipe, Stainless Steel 316 Pipe Manufacturers in India.

Stainless Steel 316 Pipe

316 stainless steel is an austenitic chromium-nickel stainless steel that contains molybdenum. 304 is the second most important stainless steel. Because of the molybdenum, 316 has stronger overall corrosion resistance than Grade 304, with higher resistance to pitting and crevice corrosion in chloride conditions.

Stainless Steel Grade 316L is a low carbon Austenitic chromium-nickel stainless steel that has the same corrosion resistance as Type 316 but is resistant to intergranular corrosion after welding.

Stainless Steel Grade 316H is a higher carbon version of 316 that is better appropriate for use in applications requiring high temperatures. The increased carbon content increases tensile and yield strength. The material's Austenitic structure also provides high toughness, even at low temperatures.

To ensure the desired quality of pipe manufacture, different tests are required. Intergranular corrosion testing, positive material identification testing, hardness testing, flaring/flattening testing, impact/bend testing, micro/macro testing, mechanical/chemical testing, and pitting resistance testing were all performed.


316 Stainless Steel Pipe Specifications

Specifications ASTM A312, A358 / ASME SA312, SA358
Dimensions ASTM, ASME, and API
Seamless Pipe Size 1/2″ NB – 16″ NB
Welded Pipe Size 1/8″NB TO 30″NB IN
EFW Pipe Size 6″ NB – 24″ NB
Thickness 0.35 mm – 50 mm
Specialized in Large Diameter Pipe Size
Schedule SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, SCH 80S, SCH60, SCH80, SCH120, SCH140, SCH160, SCH XXS, SCH XS
Type Seamless Pipes, ERW Pipes, Welded Pipe, Fabricated Pipes, Electropolished Pipe, Polished Pipe, Hollow Pipes
Form Round, Square, Hydraulic, U Shape, Rectangular, Pan Cake Coils, Coiled, Hex, Honed, Etc
Length Single Random, Double Random & Required Length.
End Plain End, Beveled End, Treaded End

Types of Stainless Steel 316 Pipes

Seamless Pipe

SS 316 Seamless Pipe

Welded Pipe

Stainless Steel 316 Welded Pipe

ERW Pipe

SS 316 ERW Pipe

ERW Pipe

SS 316 EFW Pipe

Square Pipe

316L Stainless Steel Square Pipe

Rectangular Pipe

SS 316 Rectangular Pipe

Round Pipe

SS 316 Round Pipe

Hollow Pipe

316H Stainless Steel Hollow Pipe

Polished Pipe

ASTM A312 TP316 Polished Pipe

Electropolished Pipe

ASME SA 312 Grade 316 Electropolished Pipe

Oval Pipe

UNS S31603 Stainless Steel Oval Pipes

Thin Wall Pipe

ASTM A312 Grade TP316 Thin Wall Pipe

SS 316 Pipe Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 – Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H 1.4401 S31609 – – – – –

SS 316 Pipe Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 11.00 – 14.00 67.845 min
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 10.00 – 14.00 68.89 min
SS 316H 0.10 max 2.0 max 0.75 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 10.00 – 14.00 68.89 min

316L Stainless Steel Pipe Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

SS 316 Pipe Suppliers, ASTM A312 TP316 Stainless Steel Pipe, SS 316 Schedule 10 Pipe Pressure Rating, SS 316 16 Gauge Pipe Weight, Schedule 80 Stainless Steel 316L Pipe in Mumbai.

If you are looking for best prices for Stainless Steel 316 Pipes, SS 316 Welded Pipe, SS Pipe 316 email us on info@duplexsteelalloys.com or call us on +91 9664408767

Looking to Buy Stainless Steel 316 Pipe ?

Jindal SS 316 Pipes Price List SS 316 Pipe Price Per Meter SS 316 Pipe Weight Calculator

Stainless Steel 316 Pipe Price List

Product Price
2 1/2 inch x 10 ft 316 Stainless Steel Welded Pipe Price $1082.00 - $2,039.00/ Ton
Custom Size 4 Inch SS 316 Welded Pipes Price $1,100.00 - $1,178.00/ Ton
Jindal SS 316 Square Pipe Price List $2.00 - $3.15/ Piece
20mm diameter 316H Polished Stainless Steel Pipes Price $788.00 - $1,980.00/ Ton
316L Schedule 10 Stainless Steel Pipes Price $1,482.00 - $2,989.00/ Ton
Jindal SS 316 Pipe Price List $400 - 800/ Ton
Jindal Steel Pipe 316 Price Per KG $1282.00 - $2,1200.00/ Ton
SS Pipe 316 Price $582.00 - $2,000.00/ Ton
ASTM A312 TP 316L Welded SCH 5S DN500 Plain End Steel Pipe Price List $700.00 - $1,500.00/ Ton

SS 316 Pipe Size Chart in MM

SS 316 Pipe Size Chart in MM
Designation of Diameter O/D Nominal Wall Thickness
DIA SCH.5S SCH.5 SCH 10S SCH.10 SCH.20S SCH.30 SCH.40S SCH.40 SCH 60
(A) (B) Meter MM Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr
6 1/8 10.3 1 0.23 1.2 0.27 1.5 0.33 1.73 0.37
8 1/4 13.7 1.2 0.37 1.65 0.49 2 0.58 2.24 0.64
10 3/8 17.2 1.2 0.47 1.65 0.63 2 0.74 2.31 0.87
15 1/2 21.3 1.65 0.01 1.65 0.81 2.11 1.02 2.11 1.02 2.5 1.15 2.77 1.29
20 3/4 26.7 1.65 1.03 1.65 1.03 2.11 1.3 2.11 1.3 2.5 1.49 2.87 1.71
25 1 33.4 1.65 1.31 1.65 1.31 2.77 2.13 2.77 2.13 3 2.24 3.38 2.54
32 11/4 24.2 1.65 1.67 1.65 1.67 2.77 2.73 2.77 2.73 3 2.9 3.56 3.44
40 11/2 48.3 1.65 1.93 1.65 1.93 2.77 3.16 2.77 3.16 3 3.35 3.68 4.11
50 2 60.3 1.65 1.93 1.65 2.42 2.77 3.99 2.77 3.99 3.5 4.9 3.91 5.52
65 21/2 73 2.11 3.75 2.11 3.75 3.05 5.34 3.05 5.34 3.5 6 5.16 8.77
80 3 88.9 2.11 4.59 2.11 4.59 3.05 6.56 3.05 6.56 4 8.37 5.49 11.47
90 31/2 101.6 2.11 5.25 2.11 5.25 3.05 7.53 3.05 7.53 4 9.62 5.74 13.78
100 4 114.3 2.11 5.93 2.11 5.93 3.05 8.5 3.05 8.5 4.5 12.18 6.02 6.32
125 5 141.3 2.77 9.61 2.77 9.61 3.4 11.74 3.43 11.74 5 16.8 6.55 2210
150 6 168.3 2.77 11.47 2.77 11.47 3.4 14.04 3.43 14.04 5.5 22.08 7.11 28.69
200 8 219.1 2.77 15 2.77 15 3.76 20.77 3.76 20.27 6.35 33.82 7.04 37.38 8.18 43.2 10.81 53.9
250 10 273.1 3.4 22.95 3.4 22.95 4.19 28.2 4.19 28.2 6.35 42.41 7.8 51.81 9.27 61.22 12.2 82.8
300 12 323.9 3.96 31.72 4.19 33.6 4.57 36.54 4.57 36.54 6.35 50.48 8.38 66.2 9.53 75.01 10.31 80.94 14.27 110.62
350 14 355.6 3.96 34.86 4.78 41.99 6.35 55.53 7.92 68.95 9.53 82.58 9.53 82.58 11.13 96 15.06 128.42
400 16 406.4 4.19 42.2 4.78 48.07 6.35 63.61 7.92 79.03 9.53 94.7 9.53 94.7 12.7 125.2 16.66 162.59
450 18 457.2 4.19 47.46 4.78 54.15 6.35 71.69 7.92 89.1 11.13 124.32 9.53 106.83 14.27 158.27 19.05 209
500 2C 508 4.78 60.23 5.54 69.7 6.35 79.76 9.53 118.93 12.7 157.51 9.53 118.9 15.06 185.89 2062 251.65
550 22 558.8 4.78 65.95 5.54 76.75 6.35 87.84 9.53 131.07 12.7 173.66 9.53 131.07 15.88 216.04 22.23 298.55
600 24 609.6 5.54 83.8 6.35 95.92 6.35 95.92 9.53 143.2 14.27 212.72 9.53 143.2 17.45 258.74 24.59 360.21
650 26 660.4 7.92 129.4 12.7 205.97 9.53 155.32
700 28 711.2 7.92 139.47 12.7 222.13 15.88 276.48 9.53 167.44
750 3C 762 6.35 120.15 7.92 149.55 7.92 149.55 12.7 238.28 15.88 296.68 9.53 179.56
800 32 812.8 7.92 159.62 12.7 254.44 15.88 316.88 9.53 191.69 17.48 348.11
850 34 863.6 7.92 169.64 12.7 270.5 15.88 336.96 9.53 203.74 17.48 370.22
900 36 914.4 7.92 179.77 12.7 286.75 15.88 357.28 9.53 215.93 19.05 427.09

316 Stainless Steel Pipe Pressure Rating Chart

Pressure Rating (psig)
Pipe Size
(inches)		 Pipe Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
40 3048 2629 2362 2171 2019 1924 1867 1824 1810
1 1/2" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
40 2257 1947 1750 1608 1496 1425 1383 1354 1340
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
40 1902 1640 1474 1355 1260 1201 1165 1141 1129
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
40 1806 1558 1400 1287 1196 1140 1106 1084 1072
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
40 1531 1321 1187 1091 1014 967 938 919 909
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
40 1342 1158 1040 956 889 847 822 805 797
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
40 1219 1052 945 869 808 770 747 732 724
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
40 1073 926 832 765 711 678 657 644 637
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868
80 1609 1388 1247 1147 1066 1016 986 966 956
40 974 840 755 694 645 615 596 584 578

Ask Free Sample of SS 316 Seamless, Welded, ERW or EFW Pipe Please Call +91 9664408767

Widest Range of Stainless Steel 316 Pipes in Mumbai, India.

  • 316H Stainless Steel Pipe Chart
  • 316L Stainless Steel Pipe Manufacturers
  • SS 316 Schedule 10 Pipe Thickness
  • SS 316 Schedule 40 Pipe Thickness
  • Stainless Steel 316H Pipe
  • Stainless Steel 316 Pipe Supplier in Mumbai
  • Stainless Steel 316H Pipe Catalogue
  • 316 Stainless Steel Pipe Pressure Rating Chart
  • SS 316 Pipe Manufacturer in Mumbai
  • Stainless Steel 316 Pipe Weight Chart
  • 1.4404 Seamless Pipes
  • UNS S31603 Pipe
  • SS 316L Pipe Suppliers in Mumbai
  • Stainless Steel 316 Pipe Manufacturers in Mumbai
  • SS 316 Seamless Pipes
  • Stainless Steel 316L Pipe Supplier in India
  • Stainless Steel 316 Pipe Price
  • Price Of 316 Stainless Steel Pipe
  • ASTM A358 TP316 Stainless Steel EFW Pipe
  • Jindal Stainless Steel 316 Pipe Price List
  • SS 316 Pipe Supplier in India
  • Stainless Steel 316H Pipe Sizes
  • Stainless Steel Pipe 316 Price in India
  • UNS S31600 Pipes
  • 316H Stainless Steel Pipe Manufacturers in India
  • Stainless Steel 316L Pipe Dimensions
  • Stainless Steel 316L Rectangular Pipe
  • Stainless Steel 316L Pipe Weight Calculator
  • Large Diameter Stainless Steel 316 Pipe
  • 316 Stainless Steel Square Pipe Price List
  • Austenitic Stainless Steel 316 Pipe
  • Jindal 316 Stainless Steel Pipe
  • 16 Gauge 316 Stainless Steel Pipe
  • SS 316 Sch 10 Pipe Weight Per Meter
  • Cost Of 316L Stainless Steel Pipe
  • 2 Inch 316 Stainless Steel Pipe
  • 1.4401 Seamless Pipe Exporter
  • ASME SA312 TP316L Stainless Steel Pipes
  • Stainless Steel 316 Pipe Price List in India
  • 316 Stainless Steel Square Pipe Price
  • Pressure Rating For 316H Stainless Steel Pipe
  • SUS 316 Stainless Steel Pipe Price
  • 316L Grade Stainless Steel Pipe Price in India
  • Stainless Steel Pipe 316 Price Per Kg in India
  • 316 Stainless Steel Pipe Weight Per Foot
  • Stainless Steel 316 Pipe Supplier in India
  • 1.4401 Welded Pipes Stockists
  • Stainless Steel 316 Pipe Price Per Kg in India
  • Stainless Steel 316 Seamless Pipe
  • Stainless Steel 316L ERW Pipes
  • 316 Stainless Steel Pipe Price Per Square Foot
  • SS 316 Schedule 40 Pipe Pressure Rating

Tests of ASTM A312 TP316L Stainless Steel Pipes

Before being prepared for shipment to the customer, ASTM A312 TP304 Stainless Steel Seamless Pipes Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Outside Diameter Control

Outside Diameter Control

X-Ray Testing

X-Ray Testing

Hydrostatic Testing

Hydrostatic Testing

ASTM A312 TP316L Stainless Steel Pipes Supply Range

Product Description Wall Thickness, WT (In MM) Outside Diamter, OD (In MM)
Rectangular Pipe 0.05 to 30 10*20 To 100*200
Square Pipe 0.05 to 30 12.07* 12.07 To 300* 300
Round Pipe 0.05 to 30 6 – 630
Electropolished Pipe 0.05 to 30 12.07 To 250
Inner/Outside Polished Pipes 1.00 – 5 12.05 To 203.02

Stainless Steel 316 Pipe - Comparing International Standards

USA France Germany Germany Italy Japan Russia Spain Sweden UK European Union
AISI AFNOR DIN 17006 W.N. 17007 UNI JIS GOST UNE SIS BSI EURONORM
316 Z 6 CND 17-11
Z 6 CND 17-12		 X 5 CrNiMo 17 12 2 X 5 CrNiMo 17 13 3 1.4401/1.4436 X 5 CrNiMo 1712 X 5 CrNiMo 1713 SUS 316 X 6 CrNiMo 17-12-03 23 47 23 43 316S31 X 6 CrNiMo 17 12 2 X 6 CrNiMo 17 13 3
316L Z 2 CND 17-12 Z 2 CND 17-12-Az X 2 CrNiMo 17 13 2 / X 2 CrNiMoN 17 12 2 1.4404 / 1.4406 X 2 CrNiMo 1712 / X 2 CrNiMoN 1712 SUS 316L / SUS 316LN 03KH16N15M3 X 2 CrNiMo 17-12-03 23 48 316S11 X 3 CrNiMo 17 12 2
316 H - - - X 8 CrNiMo 1712 SUS F 316H - X 5 CrNiMo 17-12 - - -
best offer & competitive quotation
call us on +91 9664408767

316L Stainless Steel Seamless Pipes Supply in Below Countries

Products We Supplied Description Country
Stainless Steel 316H Welded Pipe UNS S31609 Welded Square Pipe Supply UAE, Europe, Norway, Romania
20mm diameter 0.1mm SS 316H Pipe Thin Wall ASME SA312 316H Welded Pipe Finland, Singapore, Maldives, Uruguay, Costa Rica
Stainless Steel 316 Large Diameter Pipe 20MM Diameter UNS S31600 Pipes Nigeria, Australia, Canada, Ellington -United States
ASTM A312 TP316 Rectangular Pipes 10*20mm to 100*200mm SUS 316 Thin-Wall Pipe Thailand, Vietnam, Indonesia, Saudi Arabia
Stainless Steel 316L EFW Pipes Schedule 40 ASTM A312 SUS 316L Pipe Philippines, Taiwan, Kuwait, South Africa
SS GOST 08Х18Н10 ERW Pipe Thickness 9.0mm AISI 316 Pipe Netherlands, Venezuela, Belgium, UK, Jordan
316L Stainless Steel Polished Pipe 16 Gauge UNS S31603 Pipe Mongolia, Ukraine, Colombia, Tunisia
ASTM A312 316H Stainless Steel Round Pipe 1.4401 Custom Pipe Egypt, France, Mexico, Malaysia
316L Stainless Steel Electropolished Pipe Thick Wall ASTM A312 TP 316L Pipe Egypt, Morocco, Canada, Turkey, Germany

Common Application for 316L Stainless Steel Pipe

Oil & Gas

Oil & Gas

Construction

Construction

Power Generation

Power Generation

Chemical Processing

Chemical

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Aerospace

Aerospace

Shipbuilding

Shipbuilding

Products
Downloads
Duplex Steel & Alloys

Contact us to get a quick quote for your requirement.

+91 9664408767
