| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Types | Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Thread | NPT, BSPT, BSPP |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

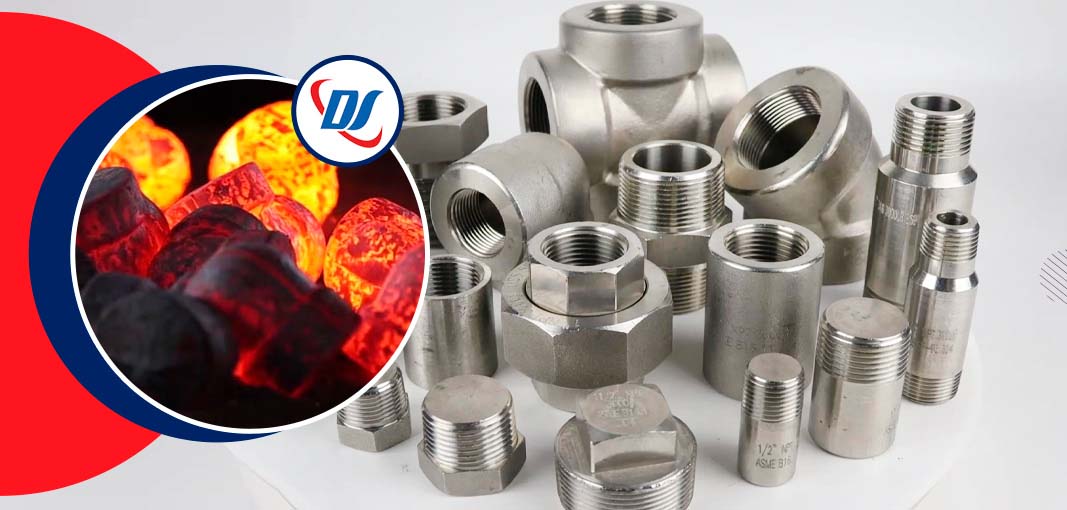

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex Steel S32750 | 1.4410 | S32750 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
If you are looking for best prices for Super Duplex Steel S32750 Forged Fittings, UNS S32750 BSP Elbow, 2507 Super Duplex Union email us on info@duplexsteelalloys.com or call us on +91 9664408767
| Product | Price |
| Custom Size 2000 LB, 1 1/2 Inch SDSS S32750 Socket Weld Elbow Price | US $ 0.5-1.0 / Piece |
| ASME B16.11 Super Duplex 2507 Forged Socket weld Fittings Price | US $ 1.00-4000.0 / Piece |
| S32750 Super Duplex Steel Threaded Hex Nipple Price List | US $ 3.0-50.0 / Piece |
| NPS 1/2 to 2 Super Duplex Steel S32750 Union Male x Female Price | US $ 2.5-60.0 / Piece |
| ANSI B16.11 2507 Super Duplex Steel 6 inch Forged Cap Price | US $ 1-2000 / Piece |
| Super Duplex Stainless Steel S32750 BSP Fittings | US $ 1.2 / Piece |
| ASTM A182 Super Duplex S32750 Forged Pipe Fittings Price | US $ 00.1-40 / Piece |
| ASME SA 182 S32750 Super Duplex Steel Screwed Pipe Fittings 150lb Price List | US $ 3.0-50.0 / Piece |
| 2507 Super Duplex Steel End Cap Price List | US $ 3.87 / Piece |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A |
Center to End 45 Deg Elbow C |
O.D. of Band H |
Min. Wall Thick. G |
Length of Thread. Minimum (1) |
|||||||||
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| DN | NPS | End to End Couplings W |
End to End Caps P |
O.D. D | End Wall Thick. G Minimum |
Length of Thread. Minimum (1) |
||||
| Class 3000&Class 6000 | Class 3000 | Class 6000 | Class 3000 | Class 6000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 32 | 19 | … | 16 | 22 | 4.8 | … | 6.4 | 6.7 |
| 8 | 1/4 | 35 | 25 | 27 | 19 | 25 | 4.8 | 6.4 | 8.1 | 10.2 |
| 10 | 3/8 | 38 | 25 | 27 | 22 | 32 | 4.8 | 6.4 | 9.1 | 10.4 |
| 15 | 1/2 | 48 | 32 | 33 | 28 | 38 | 6.4 | 7.9 | 10.9 | 13.6 |
| 20 | 3/4 | 51 | 37 | 38 | 35 | 44 | 6.4 | 7.9 | 12.7 | 13.9 |
| 25 | 1 | 60 | 41 | 43 | 44 | 57 | 9.7 | 11.2 | 14.7 | 17.3 |
| 32 | 1-1/4 | 67 | 44 | 46 | 57 | 64 | 9.7 | 11.2 | 17.0 | 18.0 |
| 40 | 1-1/2 | 79 | 44 | 48 | 64 | 76 | 11.2 | 12.7 | 17.8 | 18.4 |
| 50 | 2 | 86 | 48 | 51 | 76 | 92 | 12.7 | 15.7 | 19.0 | 19.2 |
| 65 | 2-1/2 | 92 | 60 | 64 | 92 | 108 | 15.7 | 19.0 | 23.6 | 28.9 |
| 80 | 3 | 108 | 65 | 68 | 108 | 127 | 19.0 | 22.4 | 25.9 | 30.5 |
| 100 | 4 | 121 | 68 | 75 | 140 | 159 | 22.4 | 28.4 | 27.7 | 33.0 |
| ASME B16.11 Pressure-Temperature | |||||
| Temperature | Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
| ANSI B16.11 American Standard Dimensional Tolerances | ||
| "A" - Threaded Center To Bottom | For Size 1/8" And 1/4" |
± 0.03" |
| 3/8", 1/2" And 3/4" | ± 0.06" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.08" | |
| 2-1/2", 3", And 4" | ± 0.10" | |
| "B" - Threaded Bore Diameter | For Size 1-1/2" And Smaller |
+ 0.020" - 0.000" |
| 2", 2-1/2", 3" And 4" | + 0.025" - 0.000" |
|
| "C" - Threaded Wall Thick. | Min. = 1.09 T (But Not Less Than 5/32") T = Wall Thickness Of Nominal Pipe Sizes |
|
| "D" - Bore Diameter Of Pipe Fitting | For Size 2" And Smaller |
± 0.030" |
| 2-1/2", 3" And 4" | ± 0.060" | |
| "E" - Threadeds- Bottom To Bottom - Full Couplings | For Size 1/8" And 1/4" |
± 0.06" |
| 3/8", 1/2" And 3/4" | ± 0.12" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.16" | |
| 2-1/2", 3", And 4" | ± 0.20" | |
| "F" - Bottom Of Threaded To Opposite Face - ANSI B16.11 Half Couplings | For Size 1/8" And 1/4" |
± 0.03" |
| 3/8", 1/2" And 3/4" | ± 0.06" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.08" | |
| 2-1/2", 3", And 4" | ± 0.10" | |
| "G" - Gap Of Welding | Approx. 0.06" Before Welding Recommended Gap |
|
| "H" - Min. Flat | Min. Flat = 0.75 X Min. Threaded Wall Thick. |
|
Ask Free Sample of Super Duplex Steel S32750 Forged Elbow, Tee, Coupling, Union Please Call +91 9664408767
Before being prepared for shipment to the customer, ASTM A182 Super Duplex Stainless Steel S32750 Threaded Forged Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.
Hardness Test
PMI Testing
Ultrasonic Testing
| USA | France | Germany | Germany | Italy | Japan | Russia | Spain | Sweden | UK | European Union |
| AISI | AFNOR | DIN 17006 | W.N. 17007 | UNI | JIS | GOST | UNE | SIS | BSI | EURONORM |
| UNS32750 | X 2 CrNiMoN 22 5 | 1.4410 |
| Products We Supplied | Description | Country |
| Super Duplex Steel 2507 Forged 90° Elbow | UNS S32750 2000 LB, 1 1/2 Inch 90 Deg Elbow Supply | UAE, Europe, Norway, Romania |
| Super Duplex S32750 Forged Unequal Tee | 1/2 Inch, ASME B16.11 SDSS 2507 Socket Weld Tee | Saudi Arabia, Vietnam, Thailand, Indonesia |
| Super Duplex Stainless Steel S32750 Threaded Equal Tee | 4 Inch UNS S32750 NPT Threaded Tee | Canada, Australia, Ellington -United States, Nigeria |
| Super Duplex Steel 2507 Forged Socket Weld Elbow | 3 Inch ASME B16.11 SDSS S32750 SW Elbow | Philippines, South Africa, Kuwait, Taiwan |
| ASTM A182 Super Duplex Steel 2507 Socket weld Reducing Tee | 1.4410 CL3000, DN25, B16.11, Socket Reducing Tee | Egypt, rance, Mexico, Malaysia |
| SDSS S32750 Forged Pipe Coupling | 3000#, 4 Inch, Threaded SAF 2507 Pipe Coupling | Jordan, Belgium, Venezuela, Netherlands, UK |
| Super Duplex Steel 2507 NPT Threaded Pipe Fittings | 8 Inch UNS S32750 Forged Threaded Fittings | Ukraine, Colombia, Tunisia, Mongolia |
| Super Duplex Stainless Steel S32750 Socket weld Half Coupling | 2-1/2 INCH 3000 LB 1/2 SDSS 2507 SW Half Coupling | Morocco, Egypt, Germany, Turkey, Canada |
| Super Duplex Stainless Steel 2507 Screwed Bushing | 1/2 inch ASME SA182 Super Duplex S32750 Threaded Bushing | Finland, Singapore, Maldives, Uruguay, Costa Rica |
