PROVIDING DUPLEX AND SUPER DUPLEX STEEL PRODUCTS SINCE 1975

Duplex Steel & Alloys is a notable, Manufacturer, Supplier, and Stockist of Super Duplex Steel S32760 Forged Fittings, which are supplied in a variety of sizes, shapes, and dimensions, or they can also be customized as per the needs and specifications of the customer.

The characteristics of Super Duplex Steel S32760 Forged Fittings are as follows.

• These Forged Fittings are resistant to corrosion, low maintenance, staining, and familiar luster that make it an ideal material for many applications, depending on the type and concentration of the acid, the surrounding temperature, and the type of steel used.
• The UNS S32760 Forged Fittings is very active steel, accelerating corrosion by increasing the ability to form iron oxide. Having an active surface reduces corrosion by forming iron oxide more easily.
• It is important to note that when these Forged Fittings are in contact with other metals, particularly in damp environments, they will suffer from galvanic corrosion through the fitting itself will not be affected.
• The UNS S32760 series of Super Duplex Steel Forged Fittings will not corrode, rust, or stain easily in water as ordinary steel does. The UNS S327610 series of Super Duplex Steel Forged Fittings are not fully stain-proof in environments with low oxygen, and high salt content.
• The corrosion resistance of these Forged Fittings makes them popular choices for a variety of applications, from cutlery to food processing. Having an active surface, these fittings are slightly different from carbon steel in terms of the amount of chromium added to the metal.

Super Duplex Stainless Steel S32760 Forged Fittings, Super Duplex S32760 Socket weld Fittings, Super Duplex Steel S32760 Threaded Pipe Fitting, UNS S32760 Forged Fittings, Super Duplex Steel S32760 Forged Fittings Suppliers in Mumbai, India.

Super Duplex Steel S32760 NPT Threaded Elbow, Super Duplex S32760 Threaded 90 Deg Elbow, S32760 Super Duplex BSP Threaded Elbow, Super Duplex Steel S32760 Forged Fittings Manufacturers in India.

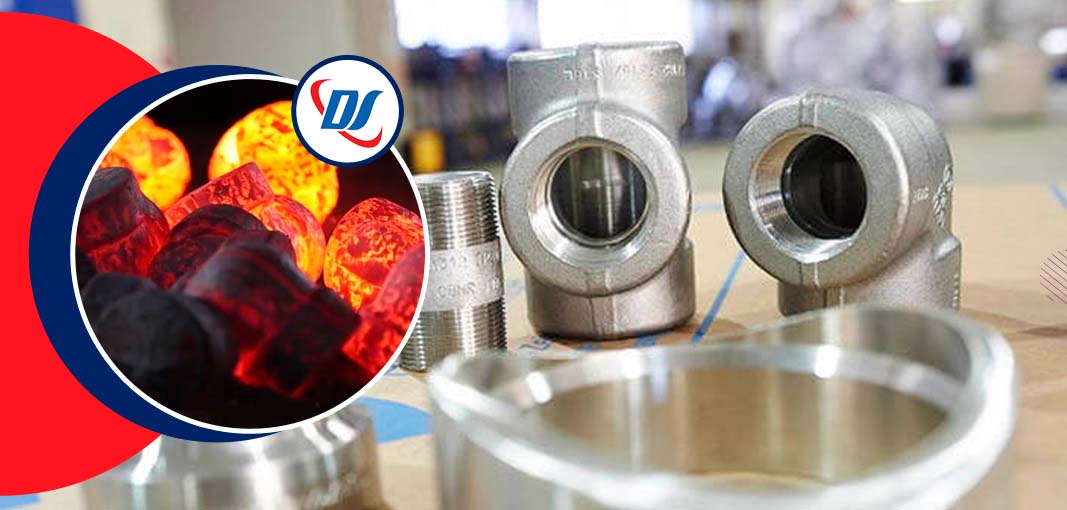

Super Duplex Steel S32760 Forged Fittings

The Forged Super Duplex Steel UNS S32760 Fittings are used in a variety of applications, including cutlery, cookery, hardware, surgical instruments, and other items used in industrial equipment. Only premium quality raw materials used in their manufacturing is purchased from the most reliable vendors and are well tested before fabrication.


Super Duplex Steel S32760 High Pressure Fittings Specifications

Specifications ASTM A182 / ASME SA182
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Types Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating Threaded End-2000lb/ 3000lb/ 6000lbs
Socket-weld End-3000/ 6000/ 9000lbs
Thread NPT, BSPT, BSPP
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Super Duplex Steel S32760 Forged Pipe Fittings

Forged 90 Degree Elbow

Super Duplex Steel S32760 90 Degree Socket Weld Elbow

Forged 45 Degree Elbow

S32760 Super Duplex Socket weld 45 Degree Elbow

Forged Tee

UNS S32760 Forged NPT Threaded Tee

Forged Cross

S32760 Super Duplex Stainless Steel Forged Cross

Half Coupling

Super Duplex Stainless Steel S32760 Half Coupling

Full Coupling

Super Duplex Steel S32760 Full Coupling

Forged Cap

Super Duplex Steel S32760 Forged Cap

Forged Union

ASTM A182 Super Duplex Steel S32760 Forged Union

Forged Bushing

ANSI B16.11 S32760 Super Duplex Steel Forged Bushing

Forged Plug

ASME SA182 SDSS S32760 Forged Plug

Forged Nipple

Super Duplex Stainless Steel S32760 Forged Nipple

Swage Nipple

Super Duplex Steel S32760 Swage Nipple

Street Elbow

S32760 Super Duplex Stainless Steel Street Elbow

Short Stub End

Super Duplex Steel S32760 Socket Weld Reducer Insert

Welding Boss

ASME B16.11 Super Duplex Steel S32760 Welding Boss

Super Duplex Steel S32760 Forged Fittings Equivalent Material

STANDARD WERKSTOFF NR. UNS
Super Duplex S32760 1.4501 S32760

Super Duplex Steel S32760 Forged Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
S32760 0.05 max 1.00 max 1.00 max 0.030 max 0.010 max 24.00 – 26.00 3.00 – 4.00 6.00 – 8.00 0.20 – 0.30 57.61 min

S32760 Super Duplex Forged Fittings Mechanical Properties

Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S32760 7.8 0.281 1350 2460

Super Duplex S32760 Forged Elbow, Super Duplex Steel S32760 Coupling, ASTM A182 Super Duplex Steel S32760 Socket weld Fittings, UNS S32760 Threaded Fittings Manufacturer, Super Duplex S32760 Screwed Fittings Suppliers in Mumbai.

If you are looking for best prices for Super Duplex Steel S32760 Forged Fittings, UNS S32760 BSP Elbow, S32760 Super Duplex Union email us on info@duplexsteelalloys.com or call us on +91 9664408767

Super Duplex Steel S32760 Forged Fittings Price List

Product Price
Custom Size 2000 LB, 1 1/2 Inch SDSS S32760 Socket Weld Elbow Price US $ 0.5-1.0 / Piece
ASME B16.11 Super Duplex S32760 Forged Socket weld Fittings Price US $ 1.00-4000.0 / Piece
S32760 Super Duplex Steel Threaded Hex Nipple Price List US $ 3.0-50.0 / Piece
NPS 1/2 to 2 Super Duplex Steel S32760 Union Male x Female Price US $ 2.5-60.0 / Piece
ANSI B16.11 S32760 Super Duplex Steel 6 inch Forged Cap Price US $ 1-2000 / Piece
Super Duplex Stainless Steel S32760 BSP Fittings US $ 1.2 / Piece
ASTM A182 Super Duplex S32760 Forged Pipe Fittings Price US $ 00.1-40 / Piece
ASME SA 182 S32760 Super Duplex Steel Screwed Pipe Fittings 150lb Price List US $ 3.0-50.0 / Piece
S32760 Super Duplex Steel End Cap Price List US $ 3.87 / Piece

Super Duplex Steel S32760 Forged Pipe Fittings Dimensions

DN NPS Center to End
NPT Elbow, NPT Tee, NPT Cross
A
Center to End
45 Deg Elbow
C
O.D.
of Band
H
Min. Wall
Thick. G
Length of
Thread.
Minimum (1)
Class 2000 Class 3000 Class 6000 Class 2000 Class 3000 Class 6000 Class 2000 Class 3000 Class 6000 Class 2000 Class 3000 Class 6000 B L2
6 1/8 21 21 25 17 17 19 22 22 25 3.18 3.18 6.35 6.4 6.7
8 1/4 21 25 28 17 19 22 22 25 33 3.18 3.30 6.60 8.1 10.2
10 3/8 25 28 33 19 22 25 25 33 38 3.18 3.51 6.98 9.1 10.4
15 1/2 28 33 38 22 25 28 33 38 46 3.18 4.09 8.15 10.9 13.6
20 3/4 33 38 44 25 28 33 38 46 56 3.18 4.32 8.53 12.7 13.9
25 1 38 44 51 28 33 35 46 56 62 3.68 4.98 9.93 14.7 17.3
32 1-1/4 44 51 60 33 35 43 56 62 75 3.89 5.28 10.59 17.0 18.0
40 1-1/2 51 60 64 35 43 44 62 75 84 4.01 5.56 11.07 17.8 18.4
50 2 60 64 83 43 44 52 75 86 102 4.27 7.14 12.09 19.0 19.2
65 2-1/2 76 83 95 52 52 64 92 102 121 5.61 7.65 15.29 23.6 28.9
85 3 86 95 106 64 64 79 109 121 146 5.99 8.84 16.64 25.9 30.5
100 4 106 114 114 79 79 79 146 152 152 6.55 11.18 18.67 27.7 33.0
DN NPS End to End
Couplings
W
End to End
Caps
P
O.D. D End Wall
Thick.
G Minimum
Length of
Thread.
Minimum (1)
Class 3000&Class 6000 Class 3000 Class 6000 Class 3000 Class 6000 Class 3000 Class 6000 B L2
6 1/8 32 19 16 22 4.8 6.4 6.7
8 1/4 35 25 27 19 25 4.8 6.4 8.1 10.2
10 3/8 38 25 27 22 32 4.8 6.4 9.1 10.4
15 1/2 48 32 33 28 38 6.4 7.9 10.9 13.6
20 3/4 51 37 38 35 44 6.4 7.9 12.7 13.9
25 1 60 41 43 44 57 9.7 11.2 14.7 17.3
32 1-1/4 67 44 46 57 64 9.7 11.2 17.0 18.0
40 1-1/2 79 44 48 64 76 11.2 12.7 17.8 18.4
50 2 86 48 51 76 92 12.7 15.7 19.0 19.2
65 2-1/2 92 60 64 92 108 15.7 19.0 23.6 28.9
80 3 108 65 68 108 127 19.0 22.4 25.9 30.5
100 4 121 68 75 140 159 22.4 28.4 27.7 33.0

Super Duplex Steel S32760 Forged Fitting Pressure Rating

ASME B16.11 Pressure-Temperature
Temperature Class
150 300
1/4 - 1 inch. 1 1/4 - 2 inch. 2 1/2 - 3 inch.
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 - 935 750 560
450 232 - 725 600 475
500 260 - 510 450 385
550 288 - 300 300 300

Super Duplex Steel S32760 Forged Fitting Tolerance Chart

ANSI B16.11 American Standard Dimensional Tolerances
"A" - Threaded Center To Bottom For Size
1/8" And 1/4"
± 0.03"
3/8", 1/2" And 3/4" ± 0.06"
1", 1-1/4", 1-1/2" And 2" ± 0.08"
2-1/2", 3", And 4" ± 0.10"
"B" - Threaded Bore Diameter For Size
1-1/2" And Smaller
+ 0.020"
- 0.000"
2", 2-1/2", 3" And 4" + 0.025"
- 0.000"
"C" - Threaded Wall Thick. Min. = 1.09 T (But Not Less Than 5/32")
T = Wall Thickness Of Nominal Pipe Sizes
"D" - Bore Diameter Of Pipe Fitting For Size
2" And Smaller
± 0.030"
2-1/2", 3" And 4" ± 0.060"
"E" - Threadeds- Bottom To Bottom - Full Couplings For Size
1/8" And 1/4"
± 0.06"
3/8", 1/2" And 3/4" ± 0.12"
1", 1-1/4", 1-1/2" And 2" ± 0.16"
2-1/2", 3", And 4" ± 0.20"
"F" - Bottom Of Threaded To Opposite Face - ANSI B16.11 Half Couplings For Size
1/8" And 1/4"
± 0.03"
3/8", 1/2" And 3/4" ± 0.06"
1", 1-1/4", 1-1/2" And 2" ± 0.08"
2-1/2", 3", And 4" ± 0.10"
"G" - Gap Of Welding Approx. 0.06"
Before Welding Recommended Gap
"H" - Min. Flat Min. Flat = 0.75 X Min.
Threaded Wall Thick.

Ask Free Sample of Super Duplex Steel S32760 Forged Elbow, Tee, Coupling, Union Please Call +91 9664408767

Widest Range of Super Duplex Steel S32760 Forged Fittings in Mumbai, India.

  • Super Duplex Steel S32760 Forged Fittings Suppliers in Mumbai
  • UNS S32760 Forged Fittings Supplier in Mumbai
  • S32760 Super Duplex Steel 3000 LB Socket Weld Cap
  • Super Duplex S32760 90 Degree Threaded Elbow
  • Super Duplex Steel S32760 Forged Fittings Price in India
  • 1.4462 Threaded Fittings
  • Super Duplex Steel S32760 Forged Elbow Price
  • Super Duplex Steel S32760 Forged Fittings Supplier in India
  • UNS S32760 Forged Fittings Supplier in India
  • Super Duplex Steel S32760 Forged Fittings Price List
  • S32760 Super Duplex Stainless Steel Socket weld Elbow
  • Super Duplex Steel S32760 Threaded Half Coupling
  • Super Duplex Steel S32760 Forged Fittings Manufacturers in India
  • UNS S32760 Forged Fittings Manufacturers in Mumbai
  • Super Duplex Steel S32760 Threaded Fittings Dimensions
  • S32760 Super Duplex Steel Screwed Fittings Manufacturers
  • ASTM A182 Super Duplex Steel S32760 Threaded Union
  • UNS S32760 Socket Weld Union
  • Super Duplex Steel S32760 Coupling Price List
  • Super Duplex Stainless Steel S32760 Reducing Coupling
  • UNS S32760 Socket Weld Reducing Tee
  • S32760 Super Duplex Steel Threaded Full Coupling
  • Price Of S32760 Super Duplex Steel Threaded Fittings
  • Super Duplex Steel S32760 Threaded 45 Deg Elbow
  • Super Duplex Steel S32760 Forged Fittings Weight Chart
  • Super Duplex S32760 BSP Threaded Forged Fittings
  • Super Duplex Steel S32760 NPT Threaded Street Elbow
  • S32760 Super Duplex Steel 45 Degree NPT Elbow
  • Super Duplex Steel S32760 Forged Fittings Price List in India
  • Super Duplex Steel S32760 Threaded Square Plug
  • Super Duplex S32760 Class 6000 Socket Weld Fittings
  • ASME B16.11 Super Duplex Steel S32760 Threaded Plug
  • Class 3000, SW, 2 Inch SDSS S32760 Forged Steel Fittings
  • 1.4462 Forged Equal Cross Stockists
  • Super Duplex Stainless Steel S32760 Forged Fittings Price
  • 1.4462 NPT Threaded Pipe Fittings Exporter
  • Super Duplex Steel S32760 BSPT Elbow Price
  • UNS S32760 Forged Pipe Fittings
  • UNS S32760 Socket weld Reducing Cross
  • Super Duplex Steel S32760 Forged Fitting Stockist
  • ASME SA182 Super Duplex Steel S32760 Forged Cap
  • UNS S32760 Forged Fittings Manufacturer in Mumbai
  • Super Duplex Steel S32760 Class 6000 Forged Fittings
  • SDSS S32760 Forged Eccentric Swage Nipple
  • Super Duplex Stainless Steel S32760 Reducer Inserts
  • Super Duplex Steel S32760 Hex Head Bushing Price in India
  • Super Duplex S32760 Industrial Forged Fittings
  • S32760 Super Duplex Steel Socket weld Boss
  • ASTM A182 Super Duplex S32760 High Pressure Forged Fittings
  • Cost Of Super Duplex Steel S32760 Forged Hex Nipple
  • Super Duplex Steel S32760 Threaded Adapter

Tests of ASTM A182 Super Duplex Steel S32760 Forged Pipe Fittings

Before being prepared for shipment to the customer, ASTM A182 Super Duplex Stainless Steel S32760 Threaded Forged Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Hardness Test

Hardness Test

PMI Testing

PMI Testing

Ultrasonic Testing

Ultrasonic Testing

Super Duplex Steel S32760 Forged Fittings - Comparing International Standards

USA France Germany Germany Italy Japan Russia Spain Sweden UK European Union
AISI AFNOR DIN 17006 W.N. 17007 UNI JIS GOST UNE SIS BSI EURONORM
UNS S32760 X 2 CrNiMoN 22 5 1.4410
best offer & competitive quotation
call us on +91 9664408767

Super Duplex Steel S32760 Forged Pipe Fittings Supply in Below Countries

Products We Supplied Description Country
Super Duplex Steel S32760 Forged 90° Elbow UNS S32760 2000 LB, 1 1/2 Inch 90 Deg Elbow Supply Romania, UAE, Europe, Norway
Super Duplex S32760 Forged Unequal Tee 1/2 Inch, ASME B16.11 SDSS S32760 Socket Weld Tee Indonesia, Vietnam, Thailand, Saudi Arabia
Super Duplex Stainless Steel S32760 Threaded Equal Tee 4 Inch UNS S32760 NPT Threaded Tee Ellington -United States, Nigeria, Australia, Canada
Super Duplex Steel S32760 Forged Socket Weld Elbow 3 Inch ASME B16.11 SDSS S32760 SW Elbow South Africa, Kuwait, Taiwan, Philippines
ASTM A182 Super Duplex Steel S32760 Socket weld Reducing Tee 1.4462 CL3000, DN25, B16.11, Socket Reducing Tee France, Malaysia, Mexico, Egypt
SDSS S32760 Forged Pipe Coupling 3000#, 4 Inch, Threaded Super Duplex S32760 Pipe Coupling Jordan, Venezuela, Belgium, Netherlands, UK
Super Duplex Steel S32760 NPT Threaded Pipe Fittings 8 Inch UNS S32760 Forged Threaded Fittings Mongolia, Ukraine, Tunisia, Colombia
Super Duplex Stainless Steel S32760 Socket weld Half Coupling 2-1/2 INCH 3000 LB 1/2 SDSS S32760 SW Half Coupling Turkey, Canada, Germany, Egypt, Morocco
Super Duplex Stainless Steel S32760 Screwed Bushing 1/2 inch ASME SA182 Super Duplex S32760 Threaded Bushing Costa Rica, Uruguay, Finland, Maldives, Singapore

Common Application for Super Duplex S32760 Forged Pipe Fittings

Oil & Gas

Oil & Gas

Chemical Processing

Chemical

Power Generation

Power Generation

Aerospace

Aerospace

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Shipbuilding

Shipbuilding

Construction

Construction
