Stainless Steel 304/304l/304H Buttweld Fittings

Duplex Steel & Engg. Co. is an admired manufacturer and supplier of Stainless Steel 304 Buttweld Fittings. We manage everything from manufacture through testing and packing to final product delivery while maintaining distinctive quality. This kind of fitting is used in the commercial pipe system to electronically link equipment to the system, change course, and split off.

SS 304/304l/304H Tees, eccentric reducers, concentric reducers, long radius elbows, and other buttweld fittings are examples of buttweld fittings. Buttweld Fittings gives a smooth flow within the pipeline that corresponds to the specified schedule. The system is strengthened by the uninterrupted metal structure generated between both the pipe and fitting. It lessens pressure and instability in the pipe with that it gives long life.

Stainless Steel 304L Pipe Fittings, SS 304L Pipe Fittings, SS 304 Elbow Price, 304 Stainless Steel Elbow, Stainless Steel 304 Buttweld Fittings, SS 304 Pipe Fittings Suppliers in Mumbai, India.

Table of Content

304 Stainless Steel Pipe Fittings, SS 304 Elbow, 304 Stainless Steel Fittings, SS 304 Pipe Fittings, 304 Stainless Steel Weld Fittings, Stainless Steel 304L Buttweld Fittings Manufacturers in India.

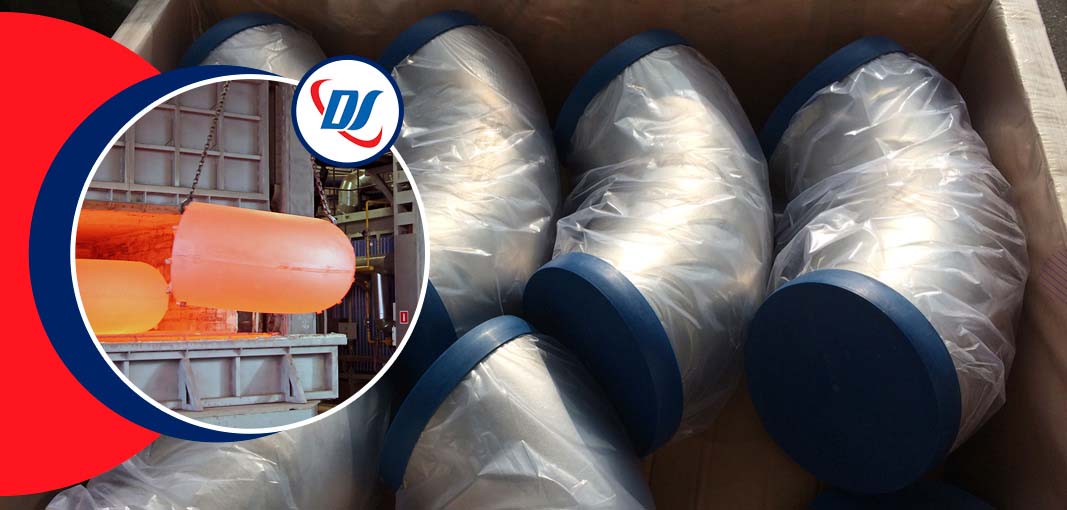

Stainless Steel 304 Buttweld Fittings

Benefits of SS 304 Buttweld Fittings:
• The structure in these fittings saves room.
• Welding a valve to a pipeline provides an enduring leak-proof sealing.
• Slow yet consistent positioning changes.
• A smooth inner surface that prevents corrosion and erosion.
• The system is strengthened by the continuous metal production between both the fitting and the stream.

Properties of SS 304L Buttweld Fittings:
1) Perfect weldability with and without fillers
2) Offers higher strength at elevated temperatures
3) Good machining properties
4) Good resistance to carbide precipitation
5) Exceptional resistance to oxidation in discontinuous operation to 870°C and continuous service to 920°C.
6) Outstanding resistance to corrosion in all types of environments.

Applications of SS 304 Buttweld Fittings:
SS 304L Buttweld Fittings are used in the medicine manufacture of gear, architectural railings, chemical industrial machinery, and so on. It may also be found in industrial fabrications, heat exchangers, and the petrochemical sector. Moreover, SS 304H Pipe Fittings are essential in the oil and gas business, power production facilities, the energy industry, and the pulp and paper industries. Stainless steel buttweld fittings are required in the food processing and aircraft industries.


304 Stainless Steel Pipe Fittings Specifications

Specifications ASTM A403 / ASME SA403
Size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Type DN15-DN1200
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting
Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Connection Welding
Manufacturing process Forge, Cast, Push, Press, etc.
Key markets and industries
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Petrochemicals and acids.
  • Nuclear power (mostly seamless).
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Stainless Steel 304 Pipe Fittings

Buttweld 90 Degree Elbow

304 Stainless Steel 90 Degree Elbow

Buttweld 45 Degree Elbow

304L SS 45 Degree Elbow

Buttweld 180 Degree Elbow

SS 304H 180 Deg Elbow

Concentric Reducer

304 Stainless Steel Concentric Reducer

Eccentric Reducer

304L Stainless Steel Eccentric Reducer

Long Radius Elbow

304 Stainless Steel Long Radius Elbow

Short Radius Elbow

304 Stainless Steel Short Radius Elbow

Pipe Bend

ASTM A403 WP304L Stainless Steel Pipe Bend

Piggable Bend

ANSI B16.9 304L Stainless Steel Piggable Bend

Pipe Nipple

ASME SA403 SS 304H Pipe Nipple

Equal Tee

304H Stainless Steel Equal Tee

Equal Cross

Stainless Steel 304 Equal Cross

Long Stub End

Stainless Steel 304 Long Stub End

Short Stub End

Stainless Steel 304 Short Stub End

Pipe Cap

Stainless Steel 304 Pipe Cap

SS 304 Pipe Fittings Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 304H 1.4948 S30409 SUS 304H – – – –

304 Stainless Steel Pipe Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 – 8 – 11 –
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 – 20 – 8 – 13 –
SS 304H 0.10 max 2.0 max 0.75 max 0.045 max 0.03 max 18 – 20 – 8 – 10.5 –

304 Stainless Steel Buttweld Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

ASTM A403 WP304 Stainless Steel Pipe Fittings, SS 304L Pipe Fittings Manufacturer, Stainless Steel 304 Pipe Elbow, 304 Stainless Steel Reducer, SS 304 Pipe Fittings Suppliers in Mumbai.

If you are looking for best prices for 304L Stainless Steel 304 Pipe Fittings, SS 304 Elbow, 304L Stainless Steel Reducer email us on info@duplexsteelalloys.com or call us on +91 9664408767

Looking to Buy Stainless Steel 304 Pipe Fittings ?

SS 304 Elbow Price List SS 304 Pipe Fittings Price List SS 304 Pipe Fittings Weight Calculator

Stainless Steel 304 Pipe Fittings Price List

Product Price
Custom Size 4 Inch SS 304 3D Elbow Price US $ 0.5-1.0 / Piece
Two Halve SS 304 Butt weld Fittings Price US $ 1.00-4000.0 / Piece
304H Stainless Steel Reducing Elbow Price List US $ 2.5-60.0 / Piece
304L Schedule 10 Stainless Steel Pipe Fittings Price US $ 00.1-40 / Piece
ANSI B16.9 304 Stainless Steel Welded Pipe Elbow Price US $ 1-4000 / Piece
304H Stainless Steel Seamless Long Radius 90 Degree Elbow US $ 400 / Ton
ASTM A403 Grade WP304 Buttweld Pipe Fittings Price US $ 0.5-1 / Piece
ASME SA 403 WP304 Stainless Steel SMLS Fittings Price List US $ 3.0-50.0 / Piece
304 Stainless Steel End Cap Price List US $ 00.9 / Piece

SS 304 Buttweld Pipe Fittings Dimensions

Normal Pipe Size For (NPS) For ANSI/ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow B16.9 Buttweld Equal Tee Buttweld 90 Deg Elbows Buttweld 45 Deg Elbows B16.9 Buttweld Equal Tee Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow ASME B16.9 Buttweld Equal Tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Normal Pipe Size For (NPS) For ANSI/ ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

304 Stainless Steel Pipe Fitting Tolerance

Pressure Rating (psig)
Pipe Size
(inches)		 Pipe Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
40 3048 2629 2362 2171 2019 1924 1867 1824 1810
1 1/2" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
40 2257 1947 1750 1608 1496 1425 1383 1354 1340
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
40 1902 1640 1474 1355 1260 1201 1165 1141 1129
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
40 1806 1558 1400 1287 1196 1140 1106 1084 1072
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
40 1531 1321 1187 1091 1014 967 938 919 909
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
40 1342 1158 1040 956 889 847 822 805 797
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
40 1219 1052 945 869 808 770 747 732 724
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
40 1073 926 832 765 711 678 657 644 637
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868
80 1609 1388 1247 1147 1066 1016 986 966 956
40 974 840 755 694 645 615 596 584 578

Ask Free Sample of SS 304 Elbow, Tee, Reducer, Stub End Please Call +91 9664408767

Widest Range of Stainless Steel 304 Butt weld Fittings in Mumbai, India.

  • Stainless Steel 304L Pipe Fittings Supplier in India
  • SS 304 Seamless Pipe Elbow
  • Stainless Steel 304L Pipe Fittings Dimensions
  • Stainless Steel 304H Stub End
  • 304L Stainless Steel Pipe Fittings Manufacturers
  • Stainless Steel 304 Buttweld Fittings Weight Chart
  • SS 304 Schedule 10 Two Joint Pipe Fittings
  • Stainless Steel 304 Pipe Elbow Price
  • 304H Stainless Steel 90° Weldable SR Elbow
  • UNS S30403 Welded Fittings
  • SS 304 Schedule 40 180° LR Return Bend
  • Stainless Steel 304H Elbow
  • 304 Stainless Steel Reducer
  • SS 304L Buttweld Fittings Suppliers in Mumbai
  • 304H Stainless Steel Pipe Fittings Manufacturers in India
  • SS 304 Pipe Fittings Manufacturers in Mumbai
  • UNS S30400 Buttweld Pipe Fittings
  • Stainless Steel Buttweld Fittings 304 Price in India
  • SS 304 Buttweld Fittings Manufacturer in Mumbai
  • SS 304 Pipe Fittings Supplier in India
  • Price Of 304 Stainless Steel Pipe Fittings
  • Stainless Steel 304 Buttweld Fittings Supplier in Mumbai
  • ASTM A403 WP304 Stainless Steel 45 Degree Elbow
  • Stainless Steel 304L Pipe Fittings Pressure Ratings
  • Stainless Steel 304 Buttweld Fittings Price List
  • 1.4306 Seamless Fittings
  • 304L Stainless Steel End Pipe Cap
  • 1.4948 Equal Cross Stockists
  • 304 Stainless Steel Reducing Tee Price
  • Stainless Steel 304L Pipe Fitting Stockist
  • 304H Stainless Steel Weldable 3D Elbow
  • Cost Of 304L Stainless Steel Pipe Elbow
  • SS 304 Schedule 40 Pipe Reducer
  • 304L Grade Stainless Steel Elbow Price in India
  • Stainless Steel 304 SR Elbow
  • 304 Stainless Steel Equal Tee Price List
  • Stainless Steel 304 U Bend
  • 304 Stainless Steel 180 Degree Elbow
  • ASTM A403 WP304 45° Long Radius Elbow
  • ASME B16.9 Stainless Steel 304L 1D Elbow
  • Stainless Steel 304 Buttweld Fittings Supplier in India
  • ASME SA403 WP304L Stainless Steel Buttweld Cap
  • Stainless Steel 304 Pipe Fittings Price List in India
  • SS 304 Sch 10 Lateral Tee
  • 304 Stainless Steel Lap Joint Stub End
  • Stainless Steel 304L Pipe End Cap
  • Stainless Steel 304 Reducing Tee
  • MSS-SP-75 SS 304H Buttweld Pipe Fittings
  • 1.4301 SR Elbow Exporter
  • SUS 304 Stainless Steel Pipe Fittings Price
  • Stainless Steel 304 Seamless Pipe Bend
  • 2 Inch 304 Stainless Steel Pipe Fittings

Tests of ASTM A403 WP304L Stainless Steel Pipe Fittings

Before being prepared for shipment to the customer, ASTM A403 WP304L Stainless Steel Pipe Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Hardness Test

Hardness Test

Impact Tests

Impact Tests

Ultrasonic Testing

Ultrasonic Testing

Stainless Steel 304 Pipe Fittings - Comparing International Standards

USA France Germany Germany Italy Japan Russia Spain Sweden UK European Union
AISI AFNOR DIN 17006 W.N. 17007 UNI JIS GOST UNE SIS BSI EURONORM
304 Z 6 CN 18-09 X 5 CrNi 18 10 X 5 CrNi 18 12 1.4301 X 5 CrNi 1810 SUS 304 08KH18N10 06KH18N11 X 6 CrNi 19-10 23 32 304S15 304S16 X 6 CrNi 18 10
304L Z 2 CN 18-10 X 2 CrNi 18 11 1.4306 X 2 CrNi 1911 SUS 304L 03KH18N11 X 2 CrNi 19-10 23 52 304S11 X 3 CrNi 18 10
304H  - - 1.4948 X 8 CrNi 1910 SUS F 304H - X 6 CrNi 19-10 - - -
best offer & competitive quotation
call us on +91 9664408767

304L Stainless Steel Buttweld Pipe Fittings Supply in Below Countries

Products We Supplied Description Country
Stainless Steel 304H Buttweld Concentric Reducer UNS S30409 8 inch, SCH160 Concentric Reducer Supply UAE, Norway, Romania, Europe
Stainless 304L 5D Buttweld Elbow SCH 100, BW, 10 Inch, SUS 304 5D Elbow Indonesia, Vietnam, Saudi Arabia, Thailand
Stainless Steel 304 Lap Joint Stub Ends 4 Inch, SCH 100S UNS S30400 Lap Joint Stub End Ellington -United States, Canada, Nigeria, Australia
Stainless Steel 304L Piggable Bend Schedule 40 ASTM A403 SUS 304L Piggable Bend Philippines, Kuwait, Taiwan, South Africa
ASTM A403 304H Stainless Steel Barrel Nipple 1.4948 Barrel Nipple Egypt, Malaysia, France, Mexico
SS GOST 08Х18Н10 Long Radius Bend 6 Inch AISI 304 Pipe Bend Netherlands, Belgium, Jordan, Venezuela, UK
304L Stainless Steel Seamless Elbow 8 Inch UNS S30403 Seamless Pipe Elbow Tunisia, Ukraine, Colombia, Mongolia
304L Stainless Steel Long Radius 90 Degree Elbow 2-1/2 INCH, SCH 40S SS 304L Pipe Egypt, Morocco, Canada, Turkey, Germany
Schedule 80 SS 304H Grade Long Stub End 1/2 inch ASME SA403 304H Long Stub End Singapore, Uruguay, Maldives, Costa Rica, Finland

Common Application for 304L Stainless Steel Pipe Fittings

Oil & Gas

Oil & Gas

Chemical Processing

Chemical

Power Generation

Power Generation

Aerospace

Aerospace

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Shipbuilding

Shipbuilding

Construction

Construction

Products
Downloads
Duplex Steel & Alloys

Contact us to get a quick quote for your requirement.

+91 9664408767
