Stainless Steel 321 / 321H Buttweld Fittings

Duplex steel and engg co are one of the top-tier manufacturers, distributors, and suppliers of SS grade 321 & 321H buttweld fittings. 321-grade buttweld fittings produced under the guidance of experts in our company can withstand extreme temperatures and pressure and it also provides extraordinary durability. Grade 321 is a titanium stabilized austenitic stainless steel with good general corrosion resistance. These grade SS 321 Buttweld Fitting is very resistant to oxidation and inter-granular corrosion up to 850 º C in dry air service conditions.

Alloy grade 321 buttweld Fittings are the same as SS 304; however, this fitting comprises a Titanium adding of at least 5 times the carbon content. This accumulation is made to decrease or remove chromium carbide precipitation, ensuing from exposure or welding to high temp.

Stainless Steel 321H Buttweld Fittings, Stainless Steel 321H Pipe Fittings, 321 Stainless Steel Elbow, SS 321H Elbow Price, SS 321 Pipe Fittings, SS 321 Pipe Fittings Suppliers in Mumbai, India.

Table of Content

SS 321 Elbow, 321 Stainless Steel Fittings, 321 Stainless Steel Weld Fittings, SS 321 Pipe Fittings, 321 Stainless Steel Pipe Fittings, Stainless Steel 321H Buttweld Fittings Manufacturers in India.

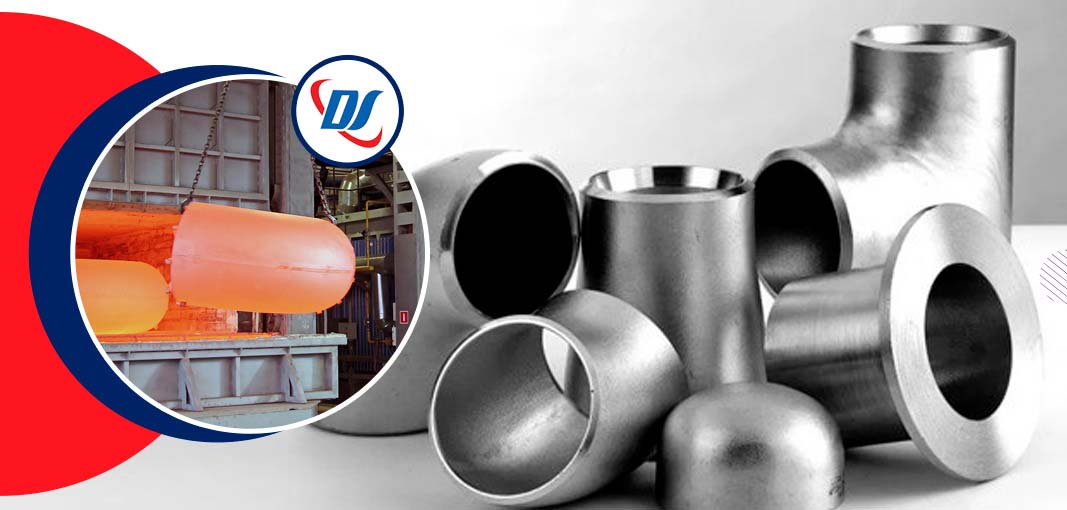

Stainless Steel 321 Buttweld Fittings

Some of the top features of these grade buttweld fittings are great mechanical properties, strength, and metallurgical properties. It has excellent resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 427 - 816°C. SS grade 321 is the most useful & highly demanded grade of the Stainless Steel series due to its excellent properties and general usage in a supremely corrosive environment. In addition to this, the buttweld fitting 321H grade product is very sustainable and strong compared to similar range SS equipment. It is also used to reduce the chromium of the carbide precipitation. 321H is the higher carbon version of the SS alloy, containing around 0.04–0.10 percent of the carbon in their overall chemical composition.

It was developed for enhanced creep resistance and higher strength. The Stainless Steel 321H Pipe Fittings are used in several industries such as the hardware, Petrochemical Industry, Oil and Gas Industry, Nuclear Industry, Pulp & Paper Industry, Research & Development, Mega Projects & Defense & Development Industries. Titanium acts as a stabilizing element in 321 S buttweld Fittings, and its properties make it helpful in making wear resilient fitting equipment. Duplex steel and engg co-produces pure quality 321 buttweld fittings with exceptional commercial features and delivers products at competitive market prices to all the consumers.


321 Stainless Steel Pipe Fittings Specifications

Specifications ASTM A403 / ASME SA403
Size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Type DN15-DN1200
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting
Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Connection Welding
Manufacturing process Forge, Cast, Push, Press, etc.
Key markets and industries
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Petrochemicals and acids.
  • Nuclear power (mostly seamless).
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Stainless Steel 321 Pipe Fittings

Buttweld 90 Degree Elbow

321 Stainless Steel 90 Degree Elbow

Buttweld 45 Degree Elbow

321H SS 45 Degree Elbow

Buttweld 180 Degree Elbow

SS 321 180 Deg Elbow

Concentric Reducer

321H Stainless Steel Concentric Reducer

Eccentric Reducer

321 Stainless Steel Eccentric Reducer

Long Radius Elbow

321H Stainless Steel Long Radius Elbow

Short Radius Elbow

321H Stainless Steel Short Radius Elbow

Pipe Bend

ASTM A403 WP321H Stainless Steel Pipe Bend

Piggable Bend

ANSI B16.9 321H Stainless Steel Piggable Bend

Pipe Nipple

ASME SA403 SS 321H Pipe Nipple

Equal Tee

321 Stainless Steel Equal Tee

Equal Cross

Stainless Steel 321 Equal Cross

Long Stub End

Stainless Steel 321H Long Stub End

Short Stub End

Stainless Steel 321 Short Stub End

Pipe Cap

Stainless Steel 321H Pipe Cap

SS 321 Pipe Fittings Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS EN
SS 321 1.4541 S32100 SUS 321 X6CrNiTi18-10
SS 321H 1.4878 S32109 SUS 321H X12CrNiTi18-9

321 Stainless Steel Pipe Fittings Chemical Composition

Grade C Mn Si P S Cr N Ni Ti
SS 321 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 – 19.00 0.10 max 9.00 – 12.00 5(C+N) – 0.70 max
SS 321H 0.04 – 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 – 19.00 0.10 max 9.00 – 12.00 4(C+N) – 0.70 max

321 Stainless Steel Buttweld Fittings Mechanical Properties

Density Melting Point Tensilee Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1457 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Stainless Steel 321 Pipe Elbow, 321 Stainless Steel Reducer, ASTM A403 WP321 Stainless Steel Pipe Fittings, SS 321H Pipe Fittings Manufacturer, SS 321 Pipe Fittings Suppliers in Mumbai.

If you are looking for best prices for 321H Stainless Steel 321 Pipe Fittings, SS 321 Elbow, 321H Stainless Steel Reducer email us on info@duplexsteelalloys.com or call us on +91 9664408767

Looking to Buy Stainless Steel 321 Pipe Fittings ?

SS 321 Elbow Price List SS 321 Pipe Fittings Price List SS 321 Pipe Fittings Weight Calculator

Stainless Steel 321 Pipe Fittings Price List

Product Price
Custom Size 4 Inch SS 321 3D Elbow Price US $ 0.5-1.0 / Piece
Two Halve SS 321 Butt weld Fittings Price US $ 1.00-4000.0 / Piece
321H Stainless Steel Reducing Elbow Price List US $ 2.5-60.0 / Piece
321 Schedule 10 Stainless Steel Pipe Fittings Price US $ 00.1-40 / Piece
ANSI B16.9 321 Stainless Steel Welded Pipe Elbow Price US $ 1-4000 / Piece
321H Stainless Steel Seamless Long Radius 90 Degree Elbow US $ 400 / Ton
ASTM A403 Grade WP321 Buttweld Pipe Fittings Price US $ 0.5-1 / Piece
ASME SA 403 WP321 Stainless Steel SMLS Fittings Price List US $ 3.0-50.0 / Piece
321 Stainless Steel End Cap Price List US $ 00.9 / Piece

SS 321 Buttweld Pipe Fittings Dimensions

Normal Pipe Size For (NPS) For ANSI/ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow B16.9 Buttweld Equal Tee Buttweld 90 Deg Elbows Buttweld 45 Deg Elbows B16.9 Buttweld Equal Tee Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow ASME B16.9 Buttweld Equal Tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Normal Pipe Size For (NPS) For ANSI/ ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

321 Stainless Steel Pipe Fitting Tolerance

Pressure Rating (psig)
Pipe Size
(inches)		 Pipe Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
40 3048 2629 2362 2171 2019 1924 1867 1824 1810
1 1/2" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
40 2257 1947 1750 1608 1496 1425 1383 1354 1340
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
40 1902 1640 1474 1355 1260 1201 1165 1141 1129
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
40 1806 1558 1400 1287 1196 1140 1106 1084 1072
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
40 1531 1321 1187 1091 1014 967 938 919 909
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
40 1342 1158 1040 956 889 847 822 805 797
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
40 1219 1052 945 869 808 770 747 732 724
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
40 1073 926 832 765 711 678 657 644 637
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868
80 1609 1388 1247 1147 1066 1016 986 966 956
40 974 840 755 694 645 615 596 584 578

Ask Free Sample of SS 321 Elbow, Tee, Reducer, Stub End Please Call +91 9664408767

Widest Range of Stainless Steel 321 Butt weld Fittings in Mumbai, India.

  • UNS S32100 Buttweld Pipe Fittings
  • Price Of 321 Stainless Steel Pipe Fittings
  • SS 321 Pipe Fittings Supplier in India
  • 321H Stainless Steel Pipe Fittings Manufacturers in India
  • Stainless Steel 321 Buttweld Fittings Supplier in Mumbai
  • Stainless Steel 321H Pipe Fittings Dimensions
  • Stainless Steel 321H Pipe Fittings Supplier in India
  • Stainless Steel 321H Stub End
  • SS 321 Seamless Pipe Elbow
  • SS 321 Pipe Fittings Manufacturers in Mumbai
  • UNS S32109 Welded Fittings
  • Stainless Steel 321 Buttweld Fittings Price List
  • Stainless Steel 321 Pipe Elbow Price
  • Stainless Steel Buttweld Fittings 321 Price in India
  • Stainless Steel 321H Pipe Fittings Pressure Ratings
  • SS 321 Buttweld Fittings Manufacturer in Mumbai
  • 321 Stainless Steel Reducer
  • 321H Stainless Steel 90° Weldable SR Elbow
  • 321H Stainless Steel Pipe Fittings Manufacturers
  • SS 321 Schedule 10 Two Joint Pipe Fittings
  • 1.4878 Seamless Fittings
  • SS 321 Schedule 40 180° LR Return Bend
  • ASTM A403 WP321 Stainless Steel 45 Degree Elbow
  • SS 321H Buttweld Fittings Suppliers in Mumbai
  • Stainless Steel 321 Buttweld Fittings Weight Chart
  • Stainless Steel 321H Elbow
  • 321 Stainless Steel Lap Joint Stub End
  • 1.4541 Equal Cross Stockists
  • Stainless Steel 321 Pipe Fittings Price List in India
  • Stainless Steel 321 U Bend
  • Stainless Steel 321H Pipe End Cap
  • 321 Stainless Steel 180 Degree Elbow
  • SS 321 Sch 10 Lateral Tee
  • 321H Stainless Steel End Pipe Cap
  • ASME SA403 WP321H Stainless Steel Buttweld Cap
  • Stainless Steel 321 Reducing Tee
  • 321 Stainless Steel Equal Tee Price List
  • 321H Grade Stainless Steel Elbow Price in India
  • 1.4878 SR Elbow Exporter
  • Stainless Steel 321 Seamless Pipe Bend
  • 321H Stainless Steel Weldable 3D Elbow
  • Stainless Steel 321 Buttweld Fittings Supplier in India
  • SS 321 Schedule 40 Pipe Reducer
  • ASME B16.9 Stainless Steel 321H 1D Elbow
  • 321 Stainless Steel Reducing Tee Price
  • Stainless Steel 321 SR Elbow
  • 2 Inch 321 Stainless Steel Pipe Fittings
  • Stainless Steel 321H Pipe Fitting Stockist
  • ASTM A403 WP321 45° Long Radius Elbow
  • Cost Of 321H Stainless Steel Pipe Elbow
  • MSS-SP-75 SS 321H Buttweld Pipe Fittings
  • SUS 321 Stainless Steel Pipe Fittings Price

Tests of ASTM A403 WP321H Stainless Steel Pipe Fittings

Before being prepared for shipment to the customer, ASTM A403 WP321H Stainless Steel Pipe Fittings Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Hardness Test

Hardness Test

Impact Tests

Impact Tests

Ultrasonic Testing

Ultrasonic Testing

Stainless Steel 321 Pipe Fittings - Comparing International Standards

USA France Germany Germany Italy Japan Russia Spain Sweden UK European Union
AISI AFNOR DIN 17006 W.N. 17007 UNI JIS GOST UNE SIS BSI EURONORM
321 Z 6 CNT 18-10 X 6 CrNiTi 18 10 X 12 CrNiTi 18 9 1.4541 1.4878 X 6 CrNiTi 1811 SUS 321 12KH18N10T X 6 CrNiTi 18-11 23 37 321S31 X 6 CrNiTi 18 10
321H X 8 CrNiTi 1811 SUS 321H X 7 CrNiTi 18-11 321S20
best offer & competitive quotation
call us on +91 9664408767

321H Stainless Steel Buttweld Pipe Fittings Supply in Below Countries

Products We Supplied Description Country
ASTM A312 321H Stainless Steel Round Pipe 1.4878 Custom Pipe Egypt, France, Mexico, Malaysia
321H Stainless Steel Electropolished Pipe Thick Wall ASTM A312 TP 321H Pipe Egypt, Morocco, Canada, Turkey, Germany
Stainless Steel 321H EFW Pipes Schedule 40 ASTM A312 SUS 321H Pipe Philippines, Taiwan, Kuwait, South Africa
ASTM A312 TP321 Rectangular Pipes 10*20mm to 100*200mm SUS 321 Thin-Wall Pipe Thailand, Vietnam, Indonesia, Saudi Arabia
Stainless Steel 321H Welded Pipe UNS S32109 Welded Square Pipe Supply UAE, Europe, Norway, Romania
SS GOST 20Ch25N20S2 ERW Pipe Thickness 9.0mm AISI 321 Pipe Netherlands, Venezuela, Belgium, UK, Jordan
321H Stainless Steel Polished Pipe 16 Gauge UNS S32100 Pipe Mongolia, Ukraine, Colombia, Tunisia
Stainless Steel 321 Large Diameter Pipe 20MM Diameter UNS S32100 Pipes Nigeria, Australia, Canada, Ellington -United States
20mm diameter 0.1mm SS 321H Pipe Thin Wall ASME SA312 321H Welded Pipe Finland, Singapore, Maldives, Uruguay, Costa Rica

Common Application for 321H Stainless Steel Pipe Fittings

Oil & Gas

Oil & Gas

Chemical Processing

Chemical

Power Generation

Power Generation

Aerospace

Aerospace

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Shipbuilding

Shipbuilding

Construction

Construction

Products
Downloads
Duplex Steel & Alloys

Contact us to get a quick quote for your requirement.

+91 9664408767
