Duplex Steel & Alloys is a premium quality manufacturer and
supplier of

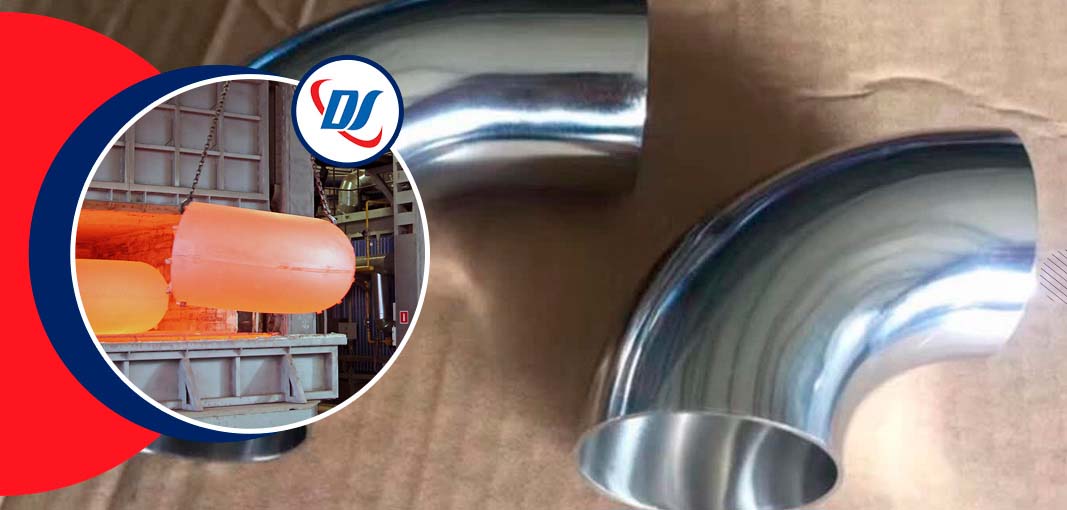

Stainless steel 310 buttweld Fittings. We have immense experience in
working with several different industries and catering to their different industrial
needs. We have a sophisticated manufacturing unit. We also conduct several quality
tests that are designed according to international standards to ensure that all our
products are of the best quality before shipping to our clients.
Stainless steel 310 and 310s buttweld fittings are made of 310 and
310s which is a lower carbon version of 310-grade stainless steel metal. Stainless
steel 310 and 310s have a medium amount of carbon content in the alloy. They provide
immense protection from corrosion and oxidation. The moderate amount of Nickel (20%)
and high amounts of chromium (25%) are known to be used in applications that are used
in sulfuric acid environments.
Stainless Steel 310S Buttweld Fittings, Stainless Steel 310S Pipe Fittings, 310
Stainless Steel Elbow, SS 310S Elbow Price, SS 310 Pipe Fittings, SS 310 Pipe Fittings
Suppliers in Mumbai, India.
SS 310 Elbow, 310 Stainless Steel Fittings, 310 Stainless Steel Weld Fittings, SS 310 Pipe
Fittings, 310 Stainless Steel Pipe Fittings, Stainless Steel 310s Buttweld Fittings
Manufacturers in India.
This prevents corrosion caused
due to sulfuric acid. Stainless steel 310 and 310s are forged in temperatures between 975
degrees Celsius and 1175 degrees Celsius. There is also an option of cold formability in
Stainless steel 310 and 310s buttweld fittings. The forging processes are recommended to be
followed by the annealing process. Annealing helps in relieving the stress that has been caused
by the forging procedures.
Stainless steel 310 and 310s undergo welding with matching filler materials and electrodes.
Stainless steel 310s which is a low carbon version is less exposed to embrittlement or
sensitization. Stainless
steel 310s buttweld fittings are tough and have low-magnetic features hence
they are considered to be suitable for cryogenic equipment. This grade should not be used in
liquids or quenched in liquids since it can cause thermal shock. This austenitic steel buttweld
fittings are used in the applications of bed combustors, radiant tubes, tube hangers, burners,
and combustion chambers. They are also used in the industries of desulfurization of gas,
chemical industries, pharmaceuticals, etc.
310 Stainless Steel Pipe Fittings Specifications
| Specifications |
ASTM A403 / ASME SA403 |
| Size |
Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48" |
| Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH
160, XXS available with NACE MR 01-75 |
| Type |
DN15-DN1200 |
| Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Bending Radius |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting |
| Size Range |
½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless
Steel Buttweld Fitting |
| Elbows |
Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D,
5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312
JISB2313, BS, GB, ISO |
| Connection |
Welding |
| Manufacturing process |
Forge, Cast, Push, Press, etc. |
| Key markets and industries |
- Bitumen upgraders.
- Heavy oil refineries.
- Petrochemicals and acids.
- Nuclear power (mostly seamless).
|
| Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc |
| Specialized manufacturer of |
90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN
10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Types of Stainless Steel 310 Pipe Fittings
310 Stainless Steel 90 Degree Elbow
310S SS 45 Degree Elbow
SS 310 180 Deg Elbow
310S Stainless Steel Concentric Reducer
310 Stainless Steel Eccentric Reducer
310S Stainless Steel Long Radius Elbow
310 Stainless Steel Short Radius Elbow
ASTM A403 WP310S Stainless Steel Pipe Bend
ANSI B16.9 310S Stainless Steel Piggable Bend
ASME SA403 SS 310S Pipe Nipple
310 Stainless Steel Equal Tee
Stainless Steel 310 Equal Cross
Stainless Steel 310S Long Stub End
Stainless Steel 310 Short Stub End
Stainless Steel 310S Pipe Cap
SS 310 Pipe Fittings Equivalent Material
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| SS 310 |
1.4841 |
S31000 |
SUS 310 |
310S24 |
20Ch25N20S2 |
– |
X15CrNi25-20 |
| SS 310S |
1.4845 |
S31008 |
SUS 310S |
310S16 |
20Ch23N18 |
– |
X8CrNi25-21 |
310 Stainless Steel Pipe Fittings Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| SS 310 |
0.015 max |
2.0 max |
0.15 max |
0.020 max |
0.015 max |
24.00 – 26.00 |
0.10 max |
19.00 – 21.00 |
54.7 min |
| SS 310S |
0.08 max |
2.0 max |
1.00 max |
0.045 max |
0.030 max |
24.00 – 26.00 |
0.75 max |
19.00 – 21.00 |
53.095 min |
310 Stainless Steel Buttweld Fittings Mechanical Properties
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 7.9 g/cm3 |
1402 °C (2555 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
40 % |
Stainless Steel 310 Pipe Elbow, 310 Stainless Steel Reducer, ASTM A403 WP310 Stainless Steel
Pipe Fittings, SS 310S Pipe Fittings Manufacturer, SS 310 Pipe Fittings Suppliers in Mumbai.
If you are looking for best prices for 310S Stainless Steel 310 Pipe Fittings, SS 310
Elbow, 310S Stainless Steel Reducer email us on info@duplexsteelalloys.com or
call us on +91 9664408767
Stainless Steel 310 Pipe Fittings Price List
| Product |
Price |
| Custom Size 4 Inch SS 310 3D Elbow Price |
US $ 0.5-1.0 / Piece |
| Two Halve SS 310 Butt weld Fittings Price |
US $ 1.00-4000.0 / Piece |
| 310S Stainless Steel Reducing Elbow Price List |
US $ 2.5-60.0 / Piece |
| 310 Schedule 10 Stainless Steel Pipe Fittings Price |
US $ 00.1-40 / Piece |
| ANSI B16.9 310 Stainless Steel Welded Pipe Elbow Price |
US $ 1-4000 / Piece |
| 310S Stainless Steel Seamless Long Radius 90 Degree Elbow |
US $ 400 / Ton |
| ASTM A403 Grade WP310 Buttweld Pipe Fittings Price |
US $ 0.5-1 / Piece |
| ASME SA 403 WP310 Stainless Steel SMLS Fittings Price List |
US $ 3.0-50.0 / Piece |
| 310 Stainless Steel End Cap Price List |
US $ 00.9 / Piece |
SS 310 Buttweld Pipe Fittings Dimensions
| Normal Pipe Size For (NPS) For ANSI/ASME B16.9 |
10S Schedule |
40S Schedule |
80S Schedule |
| Buttweld 90 Degree Elbow |
Buttweld 45 Degree Elbow |
B16.9 Buttweld Equal Tee |
Buttweld 90 Deg Elbows |
Buttweld 45 Deg Elbows |
B16.9 Buttweld Equal Tee |
Buttweld 90 Degree Elbow |
Buttweld 45 Degree Elbow |
ASME B16.9 Buttweld Equal Tee |
| 8 |
0.02 |
0.01 |
0.03 |
0.03 |
0.02 |
0.06 |
0.04 |
0.03 |
0.07 |
| 10 |
0.03 |
0.02 |
0.05 |
0.03 |
0.02 |
0.03 |
0.06 |
0.04 |
0.09 |
| 15 |
0.06 |
0.03 |
0.09 |
0.08 |
0.04 |
0.10 |
0.10 |
0.05 |
0.14 |
| 20 |
0.07 |
0.03 |
0.13 |
0.08 |
0.04 |
0.17 |
0.11 |
0.05 |
0.20 |
| 25 |
0.14 |
0.08 |
0.28 |
0.15 |
0.11 |
0.29 |
0.22 |
0.14 |
0.38 |
| 32 |
0.23 |
0.11 |
0.49 |
0.26 |
0.17 |
0.59 |
0.40 |
0.23 |
0.68 |
| 40 |
0.30 |
0.17 |
0.68 |
0.40 |
0.23 |
0.86 |
0.51 |
0.29 |
1.02 |
| 50 |
0.50 |
0.25 |
0.85 |
0.70 |
0.4 |
1.28 |
0.91 |
0.59 |
1.59 |
| 65 |
0.85 |
0.48 |
1.41 |
1.40 |
0.77 |
2.19 |
1.81 |
0.99 |
3.13 |
| 80 |
1.25 |
0.63 |
1.77 |
2.20 |
1.08 |
3.31 |
2.97 |
1.50 |
4.45 |
| 90 |
1.70 |
0.75 |
2.67 |
2.83 |
1.42 |
4.08 |
4.00 |
2.00 |
5.44 |
| 100 |
2.10 |
1.08 |
3.46 |
4.47 |
2.09 |
5.27 |
6.18 |
2.81 |
7.71 |
| 150 |
5.45 |
2.72 |
8.07 |
10.89 |
5.44 |
10.99 |
16.32 |
8.16 |
13.61 |
| 200 |
10.20 |
5.33 |
15.65 |
21.54 |
10.77 |
20.91 |
33.11 |
16.56 |
28.12 |
| 250 |
18.15 |
9.75 |
26.46 |
38.56 |
19.27 |
35.38 |
51.71 |
25.86 |
49.90 |
| 300 |
25.80 |
13.62 |
39.46 |
59.42 |
29.71 |
62.14 |
79.38 |
39.69 |
83.91 |
| Normal Pipe Size For (NPS) For ANSI/ ASME B16.9 |
10S Schedule |
40S Schedule |
80S Schedule |
| Buttweld Con Pipe Reducer |
Buttweld Ecc Pipe Reducer |
Buttweld Unequal And Reducing Tee |
Buttweld Con Pipe Reducer |
Buttweld Ecc Pipe Reducer |
Buttweld Unequal And Reducing Tee |
Buttweld Con Pipe Reducer |
Buttweld Ecc Pipe Reducer |
Buttweld Unequal And Reducing Tee |
| 40x.25 |
0.19 |
0.19 |
0.60 |
0.26 |
0.26 |
0.76 |
0.34 |
0.34 |
0.90 |
| 50x25 |
0.28 |
0.28 |
0.73 |
0.40 |
0.40 |
1.10 |
0.54 |
0.54 |
1.37 |
| 50x40 |
0.31 |
0.31 |
0.76 |
0.45 |
0.45 |
1.15 |
0.59 |
0.59 |
1.43 |
| 80x.50 |
0.55 |
0.55 |
1.56 |
1.00 |
1.00 |
2.91 |
1.79 |
1.79 |
3.91 |
| 100x50 |
0.78 |
0.78 |
2.94 |
1.50 |
1.50 |
4.48 |
1.95 |
1.95 |
6.55 |
| 100x80 |
0.87 |
0.87 |
3.04 |
1.74 |
1.74 |
4.64 |
2.33 |
2.33 |
6.79 |
| 150x80 |
1.82 |
1.82 |
6.86 |
3.95 |
3.95 |
9.68 |
5.51 |
5.51 |
11.57 |
| 150x100 |
1.96 |
1.96 |
7.10 |
4.07 |
4.07 |
11.94 |
5.96 |
5.96 |
11.97 |
| 200x100 |
3.01 |
3.01 |
13.46 |
6.55 |
6.55 |
17.98 |
9.23 |
9.23 |
24.18 |
| 200x150 |
3.19 |
3.19 |
14.08 |
6.74 |
6.74 |
18.82 |
10.12 |
10.12 |
25.31 |
310 Stainless Steel Pipe Fitting Tolerance
| Pressure Rating (psig) |
Pipe Size
(inches) |
Pipe Schedule |
Temperature (oF) |
| 100 |
200 |
300 |
400 |
500 |
600 |
650 |
700 |
750 |
| 1" |
160 |
6140 |
5296 |
4759 |
4375 |
4068 |
3876 |
3761 |
3684 |
3646 |
| 80 |
4213 |
3634 |
3265 |
3002 |
2791 |
2659 |
2580 |
2528 |
2501 |
| 40 |
3048 |
2629 |
2362 |
2171 |
2019 |
1924 |
1867 |
1824 |
1810 |
| 1 1/2" |
160 |
4619 |
3984 |
3580 |
3291 |
3060 |
2916 |
2829 |
2772 |
2743 |
| 80 |
3182 |
2744 |
2466 |
2267 |
2108 |
2009 |
1949 |
1909 |
1889 |
| 40 |
2257 |
1947 |
1750 |
1608 |
1496 |
1425 |
1383 |
1354 |
1340 |
| 2" |
160 |
4499 |
3880 |
3486 |
3205 |
2980 |
2840 |
2755 |
2699 |
2671 |
| 80 |
2747 |
2369 |
2129 |
1957 |
1820 |
1734 |
1682 |
1648 |
1631 |
| 40 |
1902 |
1640 |
1474 |
1355 |
1260 |
1201 |
1165 |
1141 |
1129 |
| 3" |
160 |
3840 |
3312 |
2976 |
2736 |
2544 |
2424 |
2352 |
2304 |
2280 |
| 80 |
2553 |
2202 |
1979 |
1819 |
1691 |
1612 |
1564 |
1532 |
1516 |
| 40 |
1806 |
1558 |
1400 |
1287 |
1196 |
1140 |
1106 |
1084 |
1072 |
| 4" |
160 |
3601 |
3106 |
2791 |
2566 |
2386 |
2273 |
2206 |
2161 |
2138 |
| 80 |
2213 |
1909 |
1715 |
1577 |
1466 |
1397 |
1355 |
1328 |
1314 |
| 40 |
1531 |
1321 |
1187 |
1091 |
1014 |
967 |
938 |
919 |
909 |
| 5" |
160 |
3414 |
2945 |
2646 |
2433 |
2262 |
2155 |
2091 |
2049 |
2027 |
| 80 |
1981 |
1709 |
1535 |
1411 |
1312 |
1250 |
1213 |
1189 |
1176 |
| 40 |
1342 |
1158 |
1040 |
956 |
889 |
847 |
822 |
805 |
797 |
| 6" |
160 |
3289 |
2836 |
2549 |
2343 |
2179 |
2076 |
2014 |
1973 |
1953 |
| 80 |
1913 |
1650 |
1483 |
1363 |
1267 |
1208 |
1172 |
1148 |
1136 |
| 40 |
1219 |
1052 |
945 |
869 |
808 |
770 |
747 |
732 |
724 |
| 8" |
160 |
3175 |
2738 |
2460 |
2262 |
2103 |
2004 |
1944 |
1905 |
1885 |
| 80 |
1692 |
1459 |
1311 |
1205 |
1121 |
1068 |
1036 |
1015 |
1005 |
| 40 |
1073 |
926 |
832 |
765 |
711 |
678 |
657 |
644 |
637 |
| 10" |
160 |
3147 |
2714 |
2439 |
2242 |
2085 |
1986 |
1927 |
1880 |
1868 |
| 80 |
1609 |
1388 |
1247 |
1147 |
1066 |
1016 |
986 |
966 |
956 |
| 40 |
974 |
840 |
755 |
694 |
645 |
615 |
596 |
584 |
578 |
Ask Free Sample of SS 310 Elbow, Tee, Reducer, Stub End Please Call +91 9664408767
Widest Range of Stainless Steel 310 Butt weld Fittings in
Mumbai, India.
- UNS S31003 Welded Fittings
- UNS S31000 Buttweld Pipe Fittings
- SS 310 Pipe Fittings Supplier in India
- Stainless Steel 310 Buttweld Fittings Price List
- SS 310 Schedule 40 180° LR Return Bend
- Price Of 310 Stainless Steel Pipe Fittings
- Stainless Steel 310 Buttweld Fittings Weight Chart
- 310S Stainless Steel 90° Weldable SR Elbow
- Stainless Steel 310S Pipe Fittings Pressure Ratings
- 310S Stainless Steel Pipe Fittings Manufacturers
- 310 Stainless Steel Reducer
- Stainless Steel 310S Pipe Fittings Dimensions
- Stainless Steel Buttweld Fittings 310 Price in India
- Stainless Steel 310 Pipe Elbow Price
- SS 310S Buttweld Fittings Suppliers in Mumbai
- SS 310 Pipe Fittings Manufacturers in Mumbai
- Stainless Steel 310S Elbow
- SS 310 Buttweld Fittings Manufacturer in Mumbai
- 310S Stainless Steel Pipe Fittings Manufacturers in India
- 1.4845 Seamless Fittings
- Stainless Steel 310S Stub End
- Stainless Steel 310 Buttweld Fittings Supplier in Mumbai
- SS 310 Seamless Pipe Elbow
- Stainless Steel 310S Pipe Fittings Supplier in India
- ASTM A403 WP310 Stainless Steel 45 Degree Elbow
- SS 310 Schedule 10 Two Joint Pipe Fittings
- 310S Stainless Steel End Pipe Cap
- Stainless Steel 310 SR Elbow
- ASME B16.9 Stainless Steel 310S 1D Elbow
- MSS-SP-75 SS 310S Buttweld Pipe Fittings
- 1.4845 SR Elbow Exporter
- Stainless Steel 310 Pipe Fittings Price List in India
- Stainless Steel 310 Seamless Pipe Bend
- Stainless Steel 310S Pipe Fitting Stockist
- Stainless Steel 310S Pipe End Cap
- Cost Of 310S Stainless Steel Pipe Elbow
- 310 Stainless Steel Lap Joint Stub End
- SUS 310 Stainless Steel Pipe Fittings Price
- 310S Stainless Steel Weldable 3D Elbow
- Stainless Steel 310 U Bend
- 2 Inch 310 Stainless Steel Pipe Fittings
- SS 310 Sch 10 Lateral Tee
- 310 Stainless Steel 180 Degree Elbow
- Stainless Steel 310 Buttweld Fittings Supplier in India
- ASME SA403 WP310S Stainless Steel Buttweld Cap
- 310S Grade Stainless Steel Elbow Price in India
- SS 310 Schedule 40 Pipe Reducer
- 310 Stainless Steel Equal Tee Price List
- Stainless Steel 310 Reducing Tee
- 1.4841 Equal Cross Stockists
- ASTM A403 WP310 45° Long Radius Elbow
- 310 Stainless Steel Reducing Tee Price
Tests of ASTM A403 WP310S Stainless Steel Pipe Fittings
Before being prepared for shipment to the customer, ASTM A403 WP310S
Stainless Steel Pipe Fittings Testing should be constructed in accordance with applicable
standards and thoroughly tested for potential flaws.
Stainless Steel 310 Pipe Fittings - Comparing International Standards
| USA |
France |
Germany |
Germany |
Italy |
Japan |
Russia |
Spain |
Sweden |
UK |
European Union |
| AISI |
AFNOR |
DIN 17006 |
W.N. 17007 |
UNI |
JIS |
GOST |
UNE |
SIS |
BSI |
EURONORM |
| 310 |
|
X 12 CrNi 25 21 |
1.4845 |
X 22 CrNi 2520 |
SUH 310 |
10KH23N18 |
|
|
310S24 |
|
| 310 S |
Z 12 CN 25-20 |
X 12 CrNi 25 20 |
1.4842 |
X5 CrNi 2520 |
SUS 310S |
20KH25N20S2 |
|
23 61 |
|
X 6 CrNi 25 20 |
best offer & competitive quotation
310S Stainless Steel Buttweld Pipe Fittings Supply in
Below Countries
| Products We Supplied |
Description |
Country |
| Schedule 80 SS 310S Grade Long Stub End |
UNS S31009 8 inch, SCH160 Concentric Reducer Supply |
Egypt, Morocco, Canada, Turkey, Germany |
| Stainless 310S 5D Buttweld Elbow |
Schedule 40 ASTM A403 SUS 310S Piggable Bend |
Indonesia, Vietnam, Saudi Arabia, Thailand |
| Stainless Steel 310 Lap Joint Stub Ends |
4 Inch, SCH 100S UNS S31000 Lap Joint Stub End |
Ellington -United States, Canada, Nigeria, Australia |
| SS GOST 20Ch25N20S2 Long Radius Bend |
SCH 100, BW, 10 Inch, SUS 310 5D Elbow |
Philippines, Kuwait, Taiwan, South Africa |
| ASTM A403 310S Stainless Steel Barrel Nipple |
1.4841 Barrel Nipple |
Egypt, Malaysia, France, Mexico |
| Stainless Steel 310S Piggable Bend |
6 Inch AISI 310 Pipe Bend |
Netherlands, Belgium, Jordan, Venezuela, UK |
| 310S Stainless Steel Seamless Elbow |
2-1/2 INCH, SCH 40S SS 310S Pipe |
Tunisia, Ukraine, Colombia, Mongolia |
| 310S Stainless Steel Long Radius 90 Degree Elbow |
8 Inch UNS S31003 Seamless Pipe Elbow |
UAE, Norway, Romania, Europe |
| Stainless Steel 310S Buttweld Concentric Reducer |
1/2 inch ASME SA403 310S Long Stub End |
Singapore, Uruguay, Maldives, Costa Rica, Finland |
Common Application for 310S Stainless Steel Pipe
Fittings
Oil & Gas
Chemical
Power Generation
Aerospace
Heavy Equipment
Automotive
Shipbuilding
Construction
