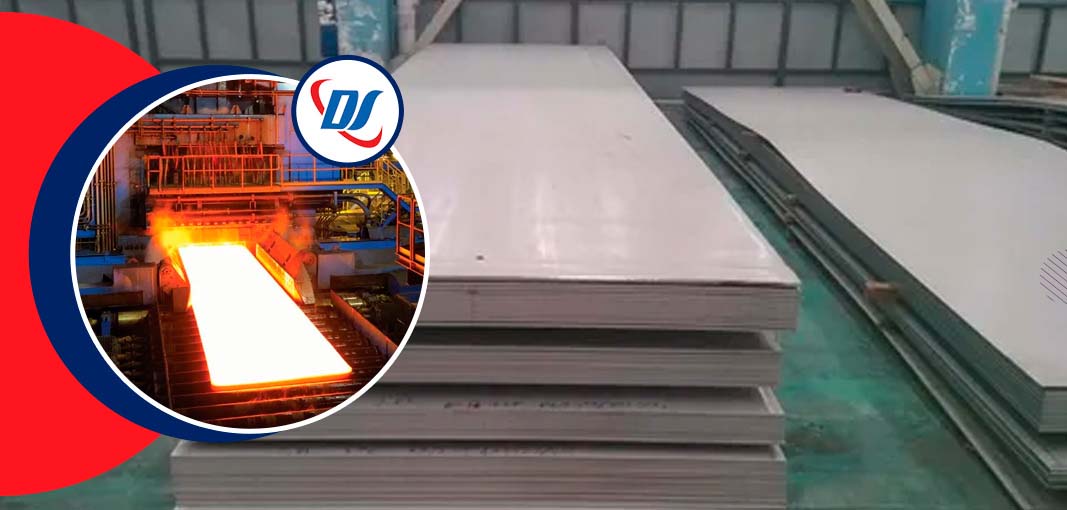

Duplex Steel & Alloys is one of the leading
producers and exporters of Stainless Steel 309
Plates and 309 S Plates. We have appointed various
experts for various departments to lie manufacturing. Marketing, packaging,
and management. Our team of experts ensures that the quality is not degraded
at any given point and proper communication and understanding of the needs
of our clients help us to gain the trust of the customer. Customer
satisfaction is our priority.
309 Stainless Steel Plate, SS 309 Plates, Stainless Steel 309 Sheets, 309S
Stainless Steel Plates, Stainless Steel 309 Plate Suppliers in Mumbai,
India.
Stainless Steel Plate 309S, SS 309 Sheet, SS 309 Sheet Price Today, SS 309 Chequered
Plate, Jindal Stainless Steel Sheet 309 Price List, Stainless Steel 309 Plate
Manufacturers in India.
For applications
requiring high temperatures, alloy 309 Plates/309 S Plates (UNS S309 Plates00/S309
Plates08) austenitic stainless steel is frequently utilized. Compared to the typical
austenitic Alloy 304, its high chromium and nickel composition offer comparable
corrosion resistance, improved resistance to oxidation, and a greater percentage of room
temperature strength retention. Alloy 309 Plates can be used at temperatures up to
1832°F (1000°C) in sulfur-containing atmospheres because of their high chromium and low
nickel content. Due to its modest resistance to carbon absorption, the alloy is not
advised for usage in severely carburizing environments. Alloy 309S
Plates can be used in applications that involve mild oxidation,
nitriding, cementing, and thermal cycling, however, the maximum service temperature must
be lowered. The alloy can precipitate the sigma phase when heated between 650 and 950
degrees Fahrenheit (1202 to 1742 degrees Celsius). An amount of hardness can be restored
by solution annealing the material at 2012–2102°F (1100–1150°C).
The use of Alloy 309 in damp, corrosive conditions is not intended.
The high carbon content, which is there to improve creep qualities, harms the ability to
withstand aqueous corrosion. After being exposed to high temperatures for a long time,
the alloy is vulnerable to intergranular corrosion. However, Alloy 309 Plates is more
corrosion resistant than most heat-resistant alloys due to its high chromium
concentration (23 percent). The alloy's reduced carbon version is 309S (UNS S30908)
PLates. It is used because it is simple to manufacture. A high carbon modification
called 309H (UNS S30909) was created for improved creep resistance. Most of the time,
the plate's carbon content and grain size can satisfy both the 309S and 309H standards.
SS 309 Plate Specification
| Specifications |
ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| Dimension Standard |
MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Size Range |
Cold Rolled : 0.5-6.4 mm
Hot Rolled : 3.0–10.0 mm |
| Width |
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length |
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness |
0.3 mm to 120 mm |
| International Standard |
ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510 |
| Tolerances (width / thickness) |
EN 10258/ DIN 59381)
EN 10151 ASME SA240 309 / 309S SS Strips
EN 10088 SA -240-309 / 309S Strips |
| Hardness |
Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Finish |
2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN
(Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K,
satin, hairline, brush, mirror etc. |
| Form |
Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat
Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank
(Circle), soft annealed, descaled, tread plate, sheared, annealed,
Checker Plate |
| Value Added Service |
Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting,
Bending, Forging, Minor Fabrication Etc. |
| Profiling |
Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting |
Types of 309 Stainless Steel Plates
SS 309 Chequered Plate
309 Stainless Steel Shim
SS 309 Coil
309S Stainless Steel Strip
309 Stainless Steel Foil
SS 309 Perforated Sheet
ASTM A240 TP 309 Stainless Steel Hot Rolled Sheets
309 Stainless Steel Cold Rolled Plate
UNS S30900 Matt PVC Stainless Steel Sheet
309 Stainless Steel Sheet Equivalent Material
| STANDARD |
WERKSTOFF NR. |
UNS |
EN |
AISI |
| SS 309 |
1.4828 |
S30900 |
X12CrNi23-13 |
309 |
| SS 309S |
1.4833 |
S30908 |
X12CrNi23-13 |
309S |
309 Stainless Steel Sheet Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
| SS 309 |
0.20 max |
2 max |
1 max |
0.045 max |
0.030 max |
23 max |
– |
14 max |
0 max |
309S Stainless Steel Plates Mechanical Properties
| Properties |
Metric |
Imperial |
| Tensile strength, ultimate |
620 MPa |
89900 psi |
| Tensile strength, yield (0.2%) |
310 MPa |
45000 psi |
| Izod impact |
120 - 165 J |
88.5 - 122 ft-lb |
| Modulus of elasticity |
200 GPa |
29000 ksi |
| Shear modulus |
77 GPa |
11200 ksi |
| Poissons ratio |
0.3 |
0.3 |
| Elongation at break (in 50 mm) |
45% |
45% |
| Hardness, Brinell (converted from Rockwell B
hardness) |
147 |
147 |
| Hardness, Knoop (converted from Rockwell B
hardness) |
164 |
164 |
| Hardness, Rockwell B |
85 |
85 |
| Hardness, Vickers (converted from Rockwell B
hardness) |
169 |
169 |
309 Stainless Steel Sheet, SS 309S Flat, 309 Stainless Steel Coil, SS 309 Sheet
Thickness Chart, ASTM A240 TP309 Stainless Steel Plate, SS 309 Sheets Suppliers in
Mumbai.
If you are looking for best prices for 309 Stainless Steel Strip, 309 Stainless
Steel Foil, 309 Grade Stainless Steel Sheet email us on info@duplexsteelalloys.com
or call us on +91 9664408767
Stainless Steel 309 Plate Price List
| Product |
Price |
| Stainless Steel 309 Sheet Price |
US $1300-1900 / Ton |
| SS 309 Sheet Price |
US $1000-3000 / Ton |
| SS 309 Plate Price Per KG |
US $1000-2500 / Ton |
| 6mm 309 Stainless Steel Sheet Price |
S $1000.0-1000.0 / Ton |
| 309S Stainless Steel Sheet Price Per KG |
US $2000-2500 / Ton |
| SS 309 Sheet Price Per KG |
US $1300-3700 / Ton |
| SS 309 Chequered Plate Price |
US $1500-2500 / Ton |
| Polished 309S Stainless Steel Plate Price List |
US $1200-5000 / Ton |
| 309S Stainless Steel Shim Sheet Price List |
US $1.3-2.7 / Kilogram |
| 10mm Thick 309S Stainless Steel Plate Price |
US $2,600.00/ Ton |
SS 309 Sheet Size Chart
| Thickness |
Thickness |
Size Range |
Surface Area per Unit weight |
Approx Weight per Sheet |
| inches |
mm |
|
lbs/ft² |
kg/m² |
lbs |
kg |
| 0.015 |
0.381 |
36 x 96 |
0.630 |
3.07566 |
15.12 |
6.84936 |
| 0.015 |
0.381 |
36 x 120 |
0.630 |
3.07566 |
18.90 |
8.5617 |
| 0.0178 |
0.45212 |
36 x 96 |
0.756 |
3.690792 |
18.15 |
8.22195 |
| 0.0178 |
0.45212 |
36 x 120 |
0.756 |
3.690792 |
22.68 |
10.27404 |
| 0.0178 |
0.45212 |
48 x 96 |
0.756 |
3.690792 |
24.19 |
10.95807 |
| 0.0178 |
0.45212 |
48 x 120 |
0.756 |
3.690792 |
30.24 |
13.69872 |
| 0.0235 |
0.5969 |
30 x 96 |
1.008 |
4.921056 |
20.16 |
9.13248 |
| 0.0235 |
0.5969 |
30 x 120 |
1.008 |
4.921056 |
25.20 |
11.4156 |
| 0.0235 |
0.5969 |
36 x 96 |
1.008 |
4.921056 |
24.19 |
10.95807 |
| 0.0235 |
0.5969 |
36 x 120 |
1.008 |
4.921056 |
30.24 |
13.69872 |
| 0.0235 |
0.5969 |
36 x 144 |
1.008 |
4.921056 |
36.29 |
16.43937 |
| 0.0235 |
0.5969 |
48 x 96 |
1.008 |
4.921056 |
32.26 |
14.61378 |
| 0.0235 |
0.5969 |
48 x 120 |
1.008 |
4.921056 |
40.32 |
18.26496 |
| 0.0235 |
0.5969 |
48 x 144 |
1.008 |
4.921056 |
48.39 |
21.92067 |
| 0.0291 |
0.73914 |
30 x 96 |
1.260 |
6.15132 |
25.20 |
11.4156 |
| 0.0291 |
0.73914 |
30 x 120 |
1.260 |
6.15132 |
31.50 |
14.2695 |
| 0.0291 |
0.73914 |
36 x 96 |
1.260 |
6.15132 |
30.24 |
13.69872 |
| 0.0291 |
0.73914 |
36 x 120 |
1.260 |
6.15132 |
37.80 |
17.1234 |
| 0.0291 |
0.73914 |
36 x 144 |
1.260 |
6.15132 |
45.37 |
20.55261 |
| 0.0291 |
0.73914 |
48 x 96 |
1.260 |
6.15132 |
40.32 |
18.26496 |
| 0.0291 |
0.73914 |
48 x 120 |
1.260 |
6.15132 |
50.41 |
22.83573 |
| 0.0291 |
0.73914 |
48 x 144 |
1.260 |
6.15132 |
60.49 |
27.40197 |
| 0.0355 |
0.9017 |
30 x 96 |
1.512 |
7.381584 |
30.24 |
13.69872 |
| 0.0355 |
0.9017 |
30 x 120 |
1.512 |
7.381584 |
37.80 |
17.1234 |
| 0.0355 |
0.9017 |
36 x 96 |
1.512 |
7.381584 |
36.29 |
16.43937 |
Jindal SS 309 Sheet Weight Chart
| Weight per |
Size |
Size |
Weight per |
| Sheets (Kg) |
(mm) |
(mm) |
Sheets (Kg) |
| 12.8 |
2500 x |
1250 x |
0.5 |
2000 x |
1000 x |
1.5 |
24.6 |
| 8.2 |
2000 x |
1000 x |
0.5 |
3000 x |
1500 x |
1.2 |
44.2 |
| 17.9 |
2500 x |
1250 x |
0.7 |
3000 x |
1500 x |
1.5 |
55.3 |
| 13.1 |
2000 x |
1000 x |
0.8 |
2000 x |
1000 x |
2.0 |
32.7 |
| 11.5 |
2000 x |
1000 x |
0.7 |
2500 x |
1250 x |
1.5 |
38.4 |
| 14.7 |
2000 x |
1000 x |
0.9 |
3000 x |
1500 x |
2.0 |
73.7 |
| 20.5 |
2500 x |
1250 x |
0.8 |
2500 x |
1250 x |
2.0 |
51.2 |
| 33.2 |
3000 x |
1500 x |
0.9 |
2500 x |
1250 x |
2.5 |
63.9 |
| 36.8 |
3000 x |
1500 x |
1.0 |
2500 x |
1250 x |
3.0 |
77.5 |
| 23.0 |
2500 x |
1250 x |
0.9 |
2000 x |
1000 x |
2.5 |
40.9 |
| 25.6 |
2500 x |
1250 x |
1.0 |
2000 x |
1000 x |
3.0 |
49.6 |
| 16.4 |
2000 x |
1000 x |
1.0 |
3000 x |
1500 x |
2.5 |
92.1 |
| 19.6 |
2000 x |
1000 x |
1.2 |
3000 x |
1500 x |
3.0 |
112.0 |
| 30.7 |
2500 x |
1250 x |
1.2 |
- |
- |
- |
- |
Ask Free Sample of 309 SS Sheet, Plate, Coil, Strip, Flat Please Call +91 9664408767
Widest Range of Stainless Steel 309 Plate in Mumbai,
India.
- 1 mm Perforated Stainless Steel 309S Sheet
- 309S Stainless Steel Plate Price
- SS 309 Sheet Suppliers in Mumbai
- 1.4828 Shim Sheets
- SS 309 Plate Weight Chart
- Stainless Steel 309 Price in India
- UNS S30908 Plates
- Stainless Steel 309 Plate Manufacturers in Mumbai
- SS 309 Plate Weight Calculator
- 309 Stainless Steel Sheet
- Jindal SS 309 Sheet Price List in India
- 309 Stainless Steel Plate Manufacturers
- 309 Stainless Steel Sheet Manufacturers in India
- UNS S30900 Sheets
- 309S Stainless Steel Sheet
- SS 309 Sheet Price Per KG in Bangalore
- Stainless Steel 309S Plate Supplier in India
- Stainless Steel 309 Plate Suppliers in Mumbai
- SS 309 Plate Manufacturer in Mumbai
- 309S Stainless Steel Sheet Price
- 309S Stainless Steel Coil
- 6mm Stainless Steel 309 Plate
- Price of SS 309 Sheet
- SS 309 Sheet Supplier in India
- Stainless Steel 309 Sheet Thickness
- SS 309 Strips
- ASTM A240 Grade 309 Checker Plate
- 309S Matt Finish Stainless Steel Sheets
- 309 2B Stainless Steel Sheet
- Stainless Steel 309 Coil Price India
- 1.4833 HR Plate Stockists
- ASTM A240 309 2B Stainless Steel Plate
- SS 309 Coil Price
- 24 Gauge 309 Stainless Steel Sheet
- 18 Gauge 309 Stainless Steel Rolling Plate
- Stainless Steel 309 10mm Plate
- SS 309 Sheet Price Per KG in Chennai
- Cost Of 309S Stainless Steel Sheet
- Stainless Steel 309 Sheet Price Per Kg in India
- Stainless Steel Plate 309S
- Stainless Steel 309 Sheet Price List in India
- Stainless Steel 309 Hot Rolled Plate
- SS 309 Sheet Price Per KG in Mumbai
- Stainless Steel 309 Flat Strip
- SUS 309S Stainless Steel Sheet Price
- Stainless Steel 309 Sheet Supplier in India
- 309S Stainless Steel Plate Price in India
- SS 309 Perforated Sheet Price
- 1.4828 HR Sheet Exporter
- 309 SS Cold Rolled Sheet
- 2MM 309S Stainless Steel Sheet
- ASME SA240 TP 309S Stainless Steel Sheet
Tests of ASTM A240 TP309S Stainless Steel Plate
Before being prepared for shipment to the customer, ASTM A240
TP309 Stainless Steel Plates Testing should be constructed in accordance with applicable
standards and thoroughly tested for potential flaws.
Finishes Of 309 Stainless Steel Plate
| Surface finish |
Thickness (mm) |
Width (max mm) |
| 2B – Cold rolled, heat treated, pickled, skin passed Sheet |
0.25–8.0 |
2032 |
| 2D – Cold rolled, heat treated, pickled Sheet |
0.4–6.35 |
1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate |
0.4–8.0 |
2032 |
| 2R – Cold rolled, bright annealed plate |
0.25–3.5 |
1524 |
| 2H – Work hardened plate |
0.4–6.35 |
1524 |
| Polished, brushed plate |
0.5–4.0 |
1524 |
| Surface finish |
Gauge (in) |
Width (max in) |
| 2B – Cold rolled, heat treated, pickled, skin passed Plate |
10–24 |
72* |
| 2D – Cold rolled, heat treated, pickled plate |
12–24 |
60 |
| Polished Sheet (not brushed) |
11–24 |
60 |
Stainless Steel 309 Plate - Comparing International Standards
| USA |
France |
Germany |
Germany |
Italy |
Japan |
Russia |
Spain |
Sweden |
UK |
European Union |
| AISI |
AFNOR |
DIN 17006 |
W.N. 17007 |
UNI |
JIS |
GOST |
UNE |
SIS |
BSI |
EURONORM |
| 309 |
Z 15 CN 24-13 |
X 15 CrNiS 20 12 |
1.4828 |
X 16 CrNi 2314 |
SUH 309 |
|
|
|
309S24 |
X 15 CrNi 23 13 |
| 309 S |
|
|
|
X 6 CrNi 2314 |
SUS 309S |
20KH23N18 |
|
|
|
X 6 CrNi 22 13 |
best offer & competitive quotation
309 Stainless Steel Sheets Supply in Below
Countries
| Products We Supplied |
Description |
Country |
| 3mm SS 309 Stainless Steel Sheet |
UNS S30900 Hot Rolled Sheets Supply |
Serbia, Malaysia, Germany, Venezuela |
| ASTM A240 TP 309 Sheets |
6mm Thick Stainless Steel 1.4833 Sheet |
South Africa, Azerbaijan, Oman, Belarus, Gambia |
| Stainless Steel 309 Perforated Sheets |
0.35mm Cold Rolled UNS S30900 Sheets |
Puerto Rico, Yemen, Romania, Mongolia, Slovakia |
| 309S Mirror Finish Stainless Steel Sheet |
0.8mm Double Color Mirror Finish |
Hong Kong,Switzerland, Singapore, Australia |
| ASME SA240 309S Stainless Steel Coils |
1.4828 Cold Rolled Slitting Coils |
Portugal, New Zealand, Belgium, Taiwan |
| SS GOST 08Х18Н10 HR Plate |
10mm Thick 309 Stainless Steel Plate |
Jordan, Ecuador, Nigeria, Chile, Czech Republic |
| 309 Stainless Steel Polished Plates |
16 Gauge UNS S30900 Plates |
Kuwait, Bhutan, Bulgaria, Nepal |
| 309 Stainless Steel 3/16" Plate |
8k Mirror Finish 309 Stainless Steel Plate |
Hungary, Denmark, Estonia, Vietnam |
Common Application for 309S Stainless Steel
Sheets
Oil & Gas
Chemical
Power Generation
Aerospace
Heavy Equipment
Automotive
Shipbuilding
Construction
