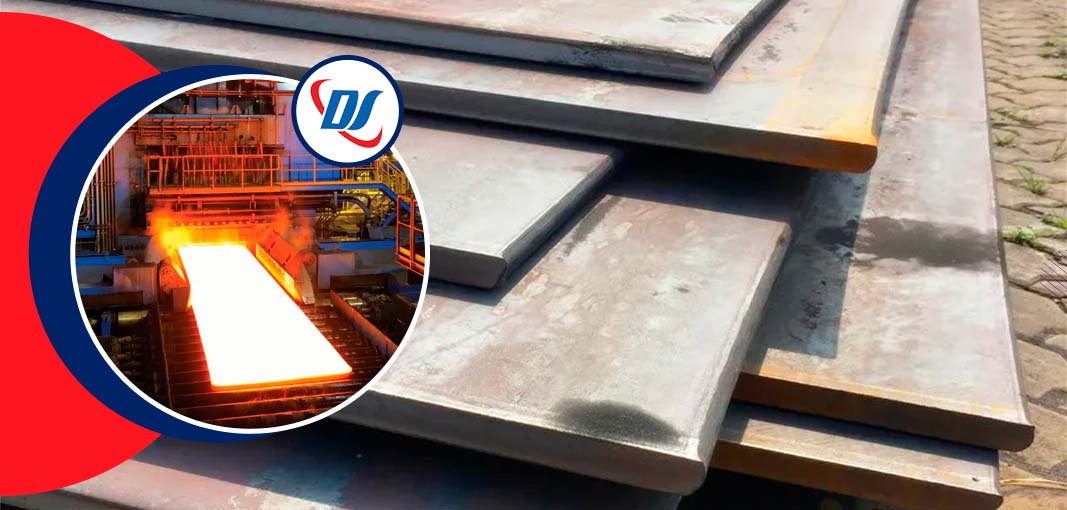

Austenitic stainless steel is used to make the 316
stainless steel Plates, which is most frequently
utilized in a variety of applications. The 316 grade has better corrosion
resistance than the 304 grade because it has a higher nickel content in its
chemical makeup. The ASTM A240 UNS S31600 Plate is a fantastic solution for
a variety of marine applications since it can resist air corrosion with
ease. Additionally, the molybdenum level in the 316 materials is 2–3%. They
are therefore less susceptible to pitting and crevice corrosion. The
composition is also the reason why the SS 316 Plate exhibits better
corrosion resistance when exposed in a hot environment.
SS 316 Plates, 316 Stainless Steel Plate, Stainless Steel 316 Sheets, 316L
Stainless Steel Plates, 316H Stainless Steel Plate, Stainless Steel 316
Plate Suppliers in Mumbai, India.
SS 316 Chequered Plate, Stainless Steel Plate 316L, SS 316 Sheet, Jindal Stainless Steel
Sheet 316 Price List, SS 316 Sheet Price Today, Stainless Steel 316 Plate Manufacturers
in India.
Because of all the
distinctive qualities of AISI 316 Plate, they are used to make exhaust manifolds, jet
engine components, medical equipment, equipment for chemical processing, and many other
things. In tanks and evaporators, the UNS S31600 Plate is also utilized. Additionally,
the 316 material is renowned for providing excellent rust and corrosion resistance. They
are more expensive than the 304 materials because they have better durability and other
upgraded qualities. The corrosion-resistance qualities of the SUS 316 Plate material are
adversely affected by all of the present processes for hardening the material, despite
the fact that the material can be hardened.
High fabrication and welding capabilities are also included with the
DIN 1.4401 Plate. They require little work to maintain and clean. Even at high
temperatures, it is capable of withstanding many acids, including chlorides, bromides,
etc. In addition to being used for creating cooking utensils, the ASME SA240 Stainless
Steel 316l Plate has a variety of marine applications.
Customizable lengths, widths, and finishes are offered by Duplex
Steel & Alloys in the 316 grades. A second coating that improves the Plate's ability
to resist corrosion is included with the 2B Finish 316 grade Stainless Steel Plate.
SS 316 Plate Specification
| Specifications |
ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| Dimension Standard |
MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Size Range |
Cold Rolled : 0.5-6.4 mm
Hot Rolled : 3.0–10.0 mm |
| Width |
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length |
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness |
0.3 mm to 120 mm |
| International Standard |
ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510 |
| Tolerances (width / thickness) |
EN 10258/ DIN 59381)
EN 10151 ASME SA240 316 / 316L SS Strips
EN 10088 SA -240-316 / 316L Strips |
| Hardness |
Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Finish |
2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN
(Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K,
satin, hairline, brush, mirror etc. |
| Form |
Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat
Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank
(Circle), soft annealed, descaled, tread plate, sheared, annealed,
Checker Plate |
| Value Added Service |
Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting,
Bending, Forging, Minor Fabrication Etc. |
| Profiling |
Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting |
Types of 316 Stainless Steel Plates
SS 316 Chequered Plate
316 Stainless Steel Shim
SS 316 Coil
316L Stainless Steel Strip
316 Stainless Steel Foil
SS 316 Perforated Sheet
ASTM A240 TP 316 Stainless Steel Hot Rolled Sheets
316H Stainless Steel Cold Rolled Plate
UNS S31600 Matt PVC Stainless Steel Sheet
316 Stainless Steel Sheet Equivalent Material
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| SS 316 |
1.4401 / 1.4436 |
S31600 |
SUS 316 |
316S31 / 316S33 |
– |
Z7CND17‐11‐02 |
X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L |
1.4404 / 1.4435 |
S31603 |
SUS 316L |
316S11 / 316S13 |
03Ch17N14M3 / 03Ch17N14M2 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS 316H |
1.4401 |
S31609 |
– |
– |
– |
– |
– |
316L Stainless Steel Sheet Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
| SS 316 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
16.00 – 18.00 |
2.00 – 3.00 |
11.00 – 14.00 |
67.845 min |
| SS 316L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
16.00 – 18.00 |
2.00 – 3.00 |
10.00 – 14.00 |
68.89 min |
| SS 316H |
0.10 max |
2.0 max |
0.75 max |
0.045 max |
0.030 max |
16.00 – 18.00 |
2.00 – 3.00 |
10.00 – 14.00 |
68.89 min |
316L Stainless Steel Plates Mechanical Properties
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
316 Stainless Steel Sheet, 316 Stainless Steel Coil, ASTM A240 TP316H Stainless Steel
Plate, SS 316 Sheet Thickness Chart, SS 316L Flat, SS 316 Sheets Suppliers in Mumbai.
If you are looking for best prices for 316 Stainless Steel Strip, 316 Stainless
Steel Foil, 316 Grade Stainless Steel Sheet email us on info@duplexsteelalloys.com
or call us on +91 9664408767
Stainless Steel 316 Plate Price List
| Product |
Price |
| SS 316 Plate Price Per KG |
US $1000-2500 / Ton |
| Stainless Steel 316 Sheet Price |
US $1300-1900 / Ton |
| SS 316 Sheet Price |
US $1000-3000 / Ton |
| 6mm 316 Stainless Steel Sheet Price |
S $1000.0-1000.0 / Ton |
| SS 316 Sheet Price Per KG |
US $1300-3700 / Ton |
| 316H Stainless Steel Sheet Price Per KG |
US $2000-2500 / Ton |
| SS 316 Chequered Plate Price |
US $1500-2500 / Ton |
| Polished 316H Stainless Steel Plate Price List |
US $1200-5000 / Ton |
| 316L Stainless Steel Shim Sheet Price List |
US $1.3-2.7 / Kilogram |
| 10mm Thick 316L Stainless Steel Plate Price |
US $2,600.00/ Ton |
SS 316 Sheet Size Chart
| Thickness |
Thickness |
Size Range |
Surface Area per Unit weight |
Approx Weight per Sheet |
| inches |
mm |
|
lbs/ft² |
kg/m² |
lbs |
kg |
| 0.015 |
0.381 |
36 x 96 |
0.630 |
3.07566 |
15.12 |
6.84936 |
| 0.015 |
0.381 |
36 x 120 |
0.630 |
3.07566 |
18.90 |
8.5617 |
| 0.0178 |
0.45212 |
36 x 96 |
0.756 |
3.690792 |
18.15 |
8.22195 |
| 0.0178 |
0.45212 |
36 x 120 |
0.756 |
3.690792 |
22.68 |
10.27404 |
| 0.0178 |
0.45212 |
48 x 96 |
0.756 |
3.690792 |
24.19 |
10.95807 |
| 0.0178 |
0.45212 |
48 x 120 |
0.756 |
3.690792 |
30.24 |
13.69872 |
| 0.0235 |
0.5969 |
30 x 96 |
1.008 |
4.921056 |
20.16 |
9.13248 |
| 0.0235 |
0.5969 |
30 x 120 |
1.008 |
4.921056 |
25.20 |
11.4156 |
| 0.0235 |
0.5969 |
36 x 96 |
1.008 |
4.921056 |
24.19 |
10.95807 |
| 0.0235 |
0.5969 |
36 x 120 |
1.008 |
4.921056 |
30.24 |
13.69872 |
| 0.0235 |
0.5969 |
36 x 144 |
1.008 |
4.921056 |
36.29 |
16.43937 |
| 0.0235 |
0.5969 |
48 x 96 |
1.008 |
4.921056 |
32.26 |
14.61378 |
| 0.0235 |
0.5969 |
48 x 120 |
1.008 |
4.921056 |
40.32 |
18.26496 |
| 0.0235 |
0.5969 |
48 x 144 |
1.008 |
4.921056 |
48.39 |
21.92067 |
| 0.0291 |
0.73914 |
30 x 96 |
1.260 |
6.15132 |
25.20 |
11.4156 |
| 0.0291 |
0.73914 |
30 x 120 |
1.260 |
6.15132 |
31.50 |
14.2695 |
| 0.0291 |
0.73914 |
36 x 96 |
1.260 |
6.15132 |
30.24 |
13.69872 |
| 0.0291 |
0.73914 |
36 x 120 |
1.260 |
6.15132 |
37.80 |
17.1234 |
| 0.0291 |
0.73914 |
36 x 144 |
1.260 |
6.15132 |
45.37 |
20.55261 |
| 0.0291 |
0.73914 |
48 x 96 |
1.260 |
6.15132 |
40.32 |
18.26496 |
| 0.0291 |
0.73914 |
48 x 120 |
1.260 |
6.15132 |
50.41 |
22.83573 |
| 0.0291 |
0.73914 |
48 x 144 |
1.260 |
6.15132 |
60.49 |
27.40197 |
| 0.0355 |
0.9017 |
30 x 96 |
1.512 |
7.381584 |
30.24 |
13.69872 |
| 0.0355 |
0.9017 |
30 x 120 |
1.512 |
7.381584 |
37.80 |
17.1234 |
| 0.0355 |
0.9017 |
36 x 96 |
1.512 |
7.381584 |
36.29 |
16.43937 |
Jindal SS 316 Sheet Weight Chart
| Weight per |
Size |
Size |
Weight per |
| Sheets (Kg) |
(mm) |
(mm) |
Sheets (Kg) |
| 12.8 |
2500 x |
1250 x |
0.5 |
2000 x |
1000 x |
1.5 |
24.6 |
| 8.2 |
2000 x |
1000 x |
0.5 |
3000 x |
1500 x |
1.2 |
44.2 |
| 17.9 |
2500 x |
1250 x |
0.7 |
3000 x |
1500 x |
1.5 |
55.3 |
| 13.1 |
2000 x |
1000 x |
0.8 |
2000 x |
1000 x |
2.0 |
32.7 |
| 11.5 |
2000 x |
1000 x |
0.7 |
2500 x |
1250 x |
1.5 |
38.4 |
| 14.7 |
2000 x |
1000 x |
0.9 |
3000 x |
1500 x |
2.0 |
73.7 |
| 20.5 |
2500 x |
1250 x |
0.8 |
2500 x |
1250 x |
2.0 |
51.2 |
| 33.2 |
3000 x |
1500 x |
0.9 |
2500 x |
1250 x |
2.5 |
63.9 |
| 36.8 |
3000 x |
1500 x |
1.0 |
2500 x |
1250 x |
3.0 |
77.5 |
| 23.0 |
2500 x |
1250 x |
0.9 |
2000 x |
1000 x |
2.5 |
40.9 |
| 25.6 |
2500 x |
1250 x |
1.0 |
2000 x |
1000 x |
3.0 |
49.6 |
| 16.4 |
2000 x |
1000 x |
1.0 |
3000 x |
1500 x |
2.5 |
92.1 |
| 19.6 |
2000 x |
1000 x |
1.2 |
3000 x |
1500 x |
3.0 |
112.0 |
| 30.7 |
2500 x |
1250 x |
1.2 |
- |
- |
- |
- |
Ask Free Sample of 316 SS Sheet, Plate, Coil, Strip, Flat Please Call +91 9664408767
Widest Range of Stainless Steel 316 Plate in Mumbai,
India.
- 316L Stainless Steel Sheet Price
- UNS S31603 Plates
- SS 316 Sheet Suppliers in Mumbai
- SS 316 Sheet Price Per KG in Bangalore
- Stainless Steel 316 Price in India
- SS 316 Plate Manufacturer in Mumbai
- Stainless Steel 316 Plate Manufacturers in Mumbai
- SS 316 Sheet Supplier in India
- 1.4401 Shim Sheets
- 316H Stainless Steel Sheet
- Stainless Steel 316 Sheet Thickness
- SS 316 Plate Weight Calculator
- 316L Stainless Steel Sheet
- UNS S31600 Sheets
- 316L Stainless Steel Plate Price
- 316H Stainless Steel Sheet Manufacturers in India
- 316L Stainless Steel Coil
- Price of SS 316 Sheet
- SS 316 Strips
- SS 316 Plate Weight Chart
- Jindal SS 316 Sheet Price List in India
- Stainless Steel 316 Plate Suppliers in Mumbai
- 316 Stainless Steel Plate Manufacturers
- 6mm Stainless Steel 316H Plate
- Stainless Steel 316L Plate Supplier in India
- 1 mm Perforated Stainless Steel 316L Sheet
- 2MM 316L Stainless Steel Sheet
- Stainless Steel 316 Coil Price India
- ASTM A240 316 2B Stainless Steel Plate
- 1.4404 HR Plate Stockists
- Stainless Steel 316 10mm Plate
- 18 Gauge 316H Stainless Steel Rolling Plate
- Stainless Steel 316 Sheet Supplier in India
- Stainless Steel 316H Flat Strip
- 316L Matt Finish Stainless Steel Sheets
- ASTM A240 Grade 316 Checker Plate
- 316H SS Cold Rolled Sheet
- Stainless Steel 316 Hot Rolled Plate
- 316 2B Stainless Steel Sheet
- 1.4401 HR Sheet Exporter
- Stainless Steel Plate 316L
- Stainless Steel 316 Sheet Price Per Kg in India
- 24 Gauge 316 Stainless Steel Sheet
- SS 316 Sheet Price Per KG in Mumbai
- SS 316 Perforated Sheet Price
- Stainless Steel 316 Sheet Price List in India
- Cost Of 316L Stainless Steel Sheet
- SUS 316L Stainless Steel Sheet Price
- 316L Stainless Steel Plate Price in India
- SS 316 Sheet Price Per KG in Chennai
- SS 316 Coil Price
- ASME SA240 TP 316L Stainless Steel Sheet
Tests of ASTM A240 TP316L Stainless Steel Plate
Before being prepared for shipment to the customer, ASTM A240
TP316 Stainless Steel Plates Testing should be constructed in accordance with applicable
standards and thoroughly tested for potential flaws.
Finishes Of 316 Stainless Steel Plate
| Surface finish |
Thickness (mm) |
Width (max mm) |
| 2B – Cold rolled, heat treated, pickled, skin passed Sheet |
0.25–8.0 |
2032 |
| 2D – Cold rolled, heat treated, pickled Sheet |
0.4–6.35 |
1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate |
0.4–8.0 |
2032 |
| 2R – Cold rolled, bright annealed plate |
0.25–3.5 |
1524 |
| 2H – Work hardened plate |
0.4–6.35 |
1524 |
| Polished, brushed plate |
0.5–4.0 |
1524 |
| Surface finish |
Gauge (in) |
Width (max in) |
| 2B – Cold rolled, heat treated, pickled, skin passed Plate |
10–24 |
72* |
| 2D – Cold rolled, heat treated, pickled plate |
12–24 |
60 |
| Polished Sheet (not brushed) |
11–24 |
60 |
Stainless Steel 316 Plate - Comparing International Standards
| USA |
France |
Germany |
Germany |
Italy |
Japan |
Russia |
Spain |
Sweden |
UK |
European Union |
| AISI |
AFNOR |
DIN 17006 |
W.N. 17007 |
UNI |
JIS |
GOST |
UNE |
SIS |
BSI |
EURONORM |
| 316 |
Z 6 CND 17-11
Z 6 CND 17-12 |
X 5 CrNiMo 17 12 2 X 5 CrNiMo 17 13 3 |
1.4401/1.4436 |
X 5 CrNiMo 1712 X 5 CrNiMo 1713 |
SUS 316 |
|
X 6 CrNiMo 17-12-03 |
23 47 23 43 |
316S31 |
X 6 CrNiMo 17 12 2 X 6 CrNiMo 17 13 3 |
| 316L |
Z 2 CND 17-12 Z 2 CND 17-12-Az |
X 2 CrNiMo 17 13 2 / X 2 CrNiMoN 17 12 2 |
1.4404 / 1.4406 |
X 2 CrNiMo 1712 / X 2 CrNiMoN 1712 |
SUS 316L / SUS 316LN |
03KH16N15M3 |
X 2 CrNiMo 17-12-03 |
23 48 |
316S11 |
X 3 CrNiMo 17 12 2 |
| 316 H |
- |
- |
- |
X 8 CrNiMo 1712 |
SUS F 316H |
- |
X 5 CrNiMo 17-12 |
- |
- |
- |
best offer & competitive quotation
316 Stainless Steel Sheets Supply in Below
Countries
| Products We Supplied |
Description |
Country |
| 3mm SS 316 Stainless Steel Sheet |
UNS S31600 Hot Rolled Sheets Supply |
Serbia, Malaysia, Germany, Venezuela |
| ASTM A240 TP 316 Sheets |
6mm Thick Stainless Steel 1.4401 Sheet |
South Africa, Azerbaijan, Oman, Belarus, Gambia |
| Stainless Steel 316 Perforated Sheets |
0.35mm Cold Rolled UNS S31600 Sheets |
Puerto Rico, Yemen, Romania, Mongolia, Slovakia |
| 316H Mirror Finish Stainless Steel Sheet |
0.8mm Double Color Mirror Finish |
Hong Kong,Switzerland, Singapore, Australia |
| ASME SA240 316H Stainless Steel Coils |
1.4404 Cold Rolled Slitting Coils |
Portugal, New Zealand, Belgium, Taiwan |
| SS GOST 08Х18Н10 HR Plate |
10mm Thick 316 Stainless Steel Plate |
Jordan, Ecuador, Nigeria, Chile, Czech Republic |
| 316L Stainless Steel Polished Plates |
16 Gauge UNS S31603 Plates |
Kuwait, Bhutan, Bulgaria, Nepal |
| 316L Stainless Steel 3/16" Plate |
8k Mirror Finish 316L Stainless Steel Plate |
Hungary, Denmark, Estonia, Vietnam |
Common Application for 304L Stainless Steel
Sheets
Oil & Gas
Chemical
Power Generation
Aerospace
Heavy Equipment
Automotive
Shipbuilding
Construction
