Duplex Steel & Alloys is a market leader in the production of Stainless Steel 316Ti Fasteners. Our product selection is comprised of long-lasting items. We provide client-focused goods that are entirely customizable and fulfill all customer specifications. We have one of the greatest infrastructural facilities, which is outfitted with cutting-edge machinery and equipment to ensure that our goods are of the highest quality.

Titanium is used to stabilize stainless steel 316Ti grade, which has five times more Titanium than that carbon value. Fasteners help to prevent stress corrosion cracking. At room temperature, it is extremely resistant to chloride-containing drinking water.

The corrosion resistance and pitting resistance of Type 316 and its variations are well recognized. Because of the inclusion of titanium in its structure, alloy 316Ti also resists carbide precipitation. By avoiding carbide precipitation aversiveness to sensitization is also given. The alloy is commonly used in automobiles, chemical processes, control lines, oil and gas, and other applications.

316Ti Stainless Steel Fasteners, Stainless Steel 316Ti Fasteners, SS 316Ti Nut Bolt, SS 316Ti Fasteners, Stainless Steel 316Ti Fastener Suppliers in Mumbai, India.

316Ti Stainless Steel Washers, 316Ti Stainless Steel Nuts, SS 316Ti Stud Price, SS 316TiL Fastener, SS 316Ti Hex Bolt, SS 316Ti Bolts, SS 316Ti Screw, SS 316Ti Fasteners Manufacturers in India.

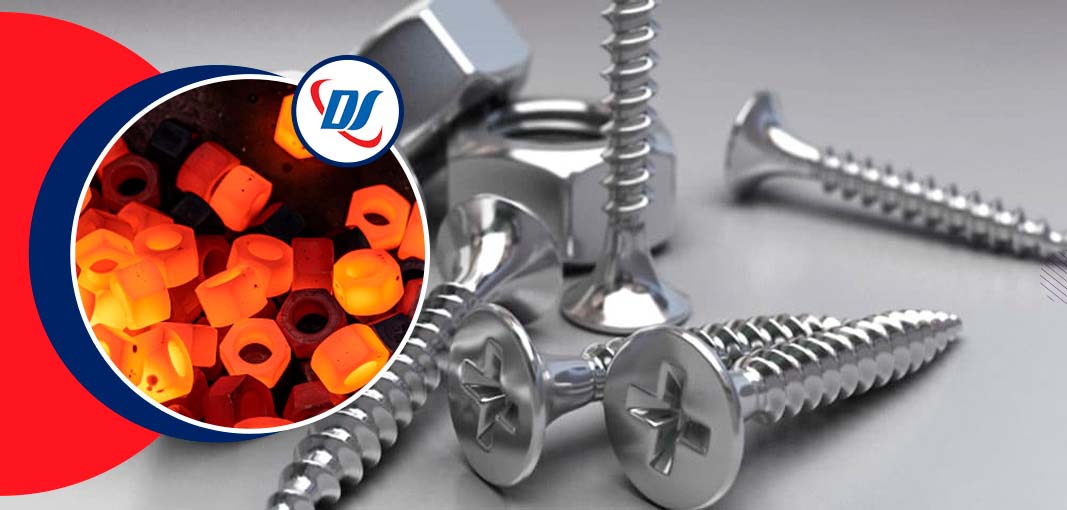

Stainless Steel 304 Fasteners

Stainless steel 316Ti fasteners are used in a variety of applications, including wire mesh, chemical processing, and thread inserts. This molybdenum-based stainless steel fastener is resilient to carbide sensitizations at graining boundaries. Stabilized by titanium, this stainless steel fastener is more aversive to aqueous corrosion. Because of its molybdenum content, this stainless steel fastener may be utilized in a variety of applications.

In temperatures ranging from 1600 to 1650 degrees Celsius, stainless steel 316TI fasteners have high oxidation resistance and a low rate of scaling. The execution of 316Ti fasteners is inferior to that of standard fasteners. The environment and working circumstances have a significant impact on the rate of oxidation resistance of fasteners.

Fasteners made of SS 316Ti are used in a variety of sectors, including sugar mills, refineries, and fertilizer facilities. Stainless Alloy 316Ti Fasteners include Washers, Eye Bolts, Anchor Fasteners, Socket Screws, Bolts, Nuts, Stud Bolts, Stud, Cotter Pin, Fine Fasteners & Spares, Threaded Rod, Foundation Fasteners, and more.


SS 316Ti Bolts and Nuts Specification

Standard ASTM F593, F594, A193, A194 / ASME SF593, F594, SA193, SA194
Bolt / Screw Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Nuts Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Washers Size M3 – M56 | 3/6″ to 2″ | Custom Sizes
Machine Screws Size M1.6 – M12
Self Tapping Screw Size No.2 – No. 14
Length 3 mm to 200 mm
Threads UNF, BSW, BSF, METRIC, UNC, or as required
Fasteners
  • DIN : DIN 934, DIN 931, DIN 970, DIN 933
  • UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
  • ISO : JIS standards, ISO 4033, ISO 4032,
  • ANSI – American National Standards Institute
  • ASME B18.5
  • ANSI B 28.2.4 1M
  • as per defined in ASME B16.5 standard SS 316Ti Stud Bolt length
  • ANSI B 18.2.4 2M
  • as per defined in ASME B18.2.2 SS 316Ti Hex nuts
Form Hex, Threading, Square, Round as per Gauge Etc.
Raw materials Source JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Dimensions DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production Process M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC

Stainless Steel 316Ti Fastener Types

Bolts

Stainless Steel 316TI Bolts

Nuts

316TI Stainless Steel Nuts

Screw

316TI Stainless Steel Screw

Washers

SS 316TI Washer

Stud Bolt

316TIL Stainless Steel Stud Bolts

Anchor Fasteners

SS 316TI Anchor Bolt

Threaded Studs

316TI Stainless Steel Threaded Rod

Hex Bolt

SS 316TI Hexagonal Bolt

Hex Nut

SS 316TI Hex Nut

316TI Stainless Steel Fastener Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17-123 X6CrNiMoTi17-12-2

316Ti Stainless Steel Fasteners Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 316Ti 0.08 max 2.0 max 0.75 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.395 min

Mechanical Properties of Stainless Steel 316Ti Fasteners

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1399 °C (2550 °F) Psi - 75000 , MPa - 515 Psi - 30000 , MPa - 205 35 %

ASTM F593 316Ti Stainless Steel Fastener, 316Ti Stainless Steel Fastener, SS 316Ti Anchor Fasteners, A193 Bolt, SS 316Ti Hex Bolt Price List, SS 316Ti Nut Bolt Manufacturer, Stainless Steel 316Ti Fasteners, Stainless Steel 316Ti Fasteners Suppliers in Mumbai.

If you are looking for best prices for 316TI Stainless Steel Fasteners, SS 316TI Stud Bolt, 316TI Grade Stainless Steel Fasteners email us on info@duplexsteelalloys.com or call us on +91 9664408767

316Ti Stainless Steel Fasteners Price List

Product Price
316Ti SS Nut Bolt Price Per Kg US $1.99-200 / Kg
ASTM F1554 Hexagon Head Screw Stainless Steel 316 US $1290-4900 / Ton
Cost Per Kg of Stainless Steel 316Ti Heavy Hex Nuts US $99-1100 / Kg
316Ti Stainless Steel Washer Price S $1.00-900.0 / Kg
316Ti Stainless Steel Self Locking Nuts Price Per Kg US $190-1990 / Ton
SS 316Ti Heavy Hex Bolt price US $1000-4500 / Ton
SS 316Ti Anchor Fasteners Price List US $1500-2600 / Ton
316Ti Stainless Steel Bolt Price List US $2200-4000 / Ton
316Ti Stainless Steel Socket Head Screw Price US $1.2-3.7 / Kilogram
SS 316Ti Allen Cap Screw Price US $1,100.00-2,100.00 / Ton

SS 316Ti Bolt Thread Sizes

Size Nominal (Major)
Diameter [in]
Coarse Thread (UNC) Fine Thread (UNF)
Threads
Per Inch
Tensile Stress
Area [in2]
Minor
Area [in2]
Threads
Per Inch
Tensile Stress
Area [in2]
Minor
Area [in2]
#0 0.0600 --- --- --- 80 0.00180 0.00151
#2 0.0860 56 0.00370 0.00310 64 0.00394 0.00339
#4 0.1120 40 0.00604 0.00496 48 0.00661 0.00566
#5 0.1250 40 0.00796 0.00672 44 0.00830 0.00716
#6 0.1380 32 0.00909 0.00745 40 0.01015 0.00874
#8 0.1640 32 0.0140 0.01196 36 0.01474 0.01285
#10 0.1900 24 0.0175 0.01450 32 0.0200 0.0175
1/4" 0.2500 20 0.0318 0.0269 28 0.0364 0.0326
5/16" 0.3125 18 0.0524 0.0454 24 0.0580 0.0524
3/8" 0.3750 16 0.0775 0.0678 24 0.0878 0.0809
7/16" 0.4375 14 0.1063 0.0933 20 0.1187 0.1090
1/2" 0.5000 13 0.1419 0.1257 20 0.1599 0.1486
9/16" 0.5625 12 0.182 0.162 18 0.203 0.189
5/8" 0.6250 11 0.226 0.202 18 0.256 0.240
3/4" 0.7500 10 0.334 0.302 16 0.373 0.351
7/8" 0.8750 9 0.462 0.419 14 0.509 0.480
1" 1.0000 8 0.606 0.551 12 0.663 0.625
1-1/8" 1.1250 7 0.763 0.693 12 0.856 0.812
1-1/4" 1.2500 7 0.969 0.890 12 1.073 1.024
1-3/8" 1.3750 6 1.155 1.054 12 1.315 1.260
1-1/2" 1.5000 6 1.405 1.294 12 1.581 1.521
1-3/4" 1.7500 5 1.90 1.74 --- --- ---
2" 2.0000 4.5 2.50 2.30 --- --- ---

The following table of clearance holes was adapted from ASME B18.2.8. The minimum hole diameters are given.

Bolt Size Bolt Dia. [in] Normal Fit [in] Close Fit [in] Loose Fit [in]
#0 0.0600 0.076 0.067 0.094
#2 0.0860 0.102 0.094 0.116
#4 0.1120 0.128 0.120 0.144
#5 0.1250 0.156 0.141 0.172
#6 0.1380 0.170 0.154 0.185
#8 0.1640 0.196 0.180 0.213
#10 0.1900 0.221 0.206 0.238
1/4" 0.2500 0.281 0.266 0.297
5/16" 0.3125 0.344 0.328 0.359
3/8" 0.3750 0.406 0.391 0.422
7/16" 0.4375 0.469 0.453 0.484
1/2" 0.5000 0.562 0.531 0.609
5/8" 0.6250 0.688 0.656 0.734
3/4" 0.7500 0.812 0.781 0.906
7/8" 0.8750 0.938 0.906 1.031
1" 1.0000 1.094 1.031 1.156
1-1/8" 1.1250 1.219 1.156 1.312
1-1/4" 1.2500 1.344 1.281 1.438
1-3/8" 1.3750 1.500 1.438 1.609
1-1/2" 1.5000 1.625 1.562 1.734

316Ti SS Hex Nut Dimensions

The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 1-1, "Dimensions of Square and Hex Machine Screw Nuts." This table is used for smaller size hardware.

Size Nominal (Major)
Diameter [in]
Width Across Flats Thickness
Nominal [in] Minimum [in] Minimum [in] Maximum [in]
#0 0.060 5/32"(0.156) 0.150 0.043 0.050
#2 0.086 3/16"(0.188) 0.180 0.057 0.066
#4 0.112 1/4"(0.250) 0.241 0.087 0.098
#6 0.138 5/16"(0.312) 0.302 0.102 0.114
#8 0.164 11/32"(0.344) 0.332 0.117 0.130
#10 0.190 3/8"(0.375) 0.362 0.117 0.130
1/4" 0.250 7/16"(0.438) 0.423 0.178 0.193
5/16" 0.312 9/16"(0.562) 0.545 0.208 0.225
3/8" 0.375 5/8"(0.625) 0.607 0.239 0.257

The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 4, "Dimensions of Hex Nuts and Hex Jam Nuts."

Size Nominal (Major)
Diameter [in]
Width Across Flats Thickness
Minimum [in] Maximum [in] Minimum [in] Maximum [in]
1/4" 0.2500 0.428 0.438 0.212 0.226
5/16" 0.3125 0.489 0.500 0.258 0.273
3/8" 0.3750 0.551 0.563 0.320 0.337
7/16" 0.4375 0.675 0.688 0.365 0.385
1/2" 0.5000 0.736 0.750 0.427 0.448
9/16" 0.5625 0.861 0.875 0.473 0.496
5/8" 0.6250 0.922 0.938 0.535 0.559
3/4" 0.7500 1.088 1.125 0.617 0.665
7/8" 0.8750 1.269 1.312 0.724 0.776
1" 1.0000 1.450 1.500 0.831 0.887
1-1/8" 1.1250 1.631 1.688 0.939 0.999
1-1/4" 1.2500 1.812 1.875 1.030 1.094
1-3/8" 1.3750 1.994 2.062 1.138 1.206
1-1/2" 1.5000 2.175 2.250 1.245 1.317
1-5/8" 1.6250 2.350 2.430 1.364 1.416
1-3/4" 1.7500 2.538 2.625 1.460 1.540
1-7/8" 1.8750 2.722 2.813 1.567 1.651
2" 2.0000 2.900 3.000 1.675 1.763

316Ti Stainless Steel Flat Washer Dimensions

The following table of flat washer dimensions was adapted from ASME B18.21.1, Table 11 for Type A Plain Washers. Type A washers come in 2 series: Narrow and Wide.

Size Basic Dia. [in] Series Inner Dia,
Basic [in]
Outer Dia,
Basic [in]
Thickness,
Basic [in]
#0 0.0600 --- 0.078 0.188 0.020
#2 0.0860 --- 0.094 0.250 0.020
#4 0.1120 --- 0.125 0.312 0.032
#6 0.1380 --- 0.156 0.375 0.049
#8 0.1640 --- 0.188 0.438 0.049
#10 0.1900 --- 0.219 0.500 0.049
1/4" 0.2500 Narrow 0.281 0.625 0.065
1/4" 0.2500 Wide 0.312 0.734 0.065
5/16" 0.3125 Narrow 0.344 0.688 0.065
5/16" 0.3125 Wide 0.375 0.875 0.083
3/8" 0.3750 Narrow 0.406 0.812 0.065
3/8" 0.3750 Wide 0.438 1.000 0.083
7/16" 0.4375 Narrow 0.469 0.922 0.065
7/16" 0.4375 Wide 0.500 1.250 0.083
1/2" 0.5000 Narrow 0.531 1.062 0.095
1/2" 0.5000 Wide 0.562 1.375 0.109
9/16" 0.5625 Narrow 0.594 1.156 0.095
9/16" 0.5625 Wide 0.625 1.469 0.109
5/8" 0.6250 Narrow 0.656 1.312 0.095
5/8" 0.6250 Wide 0.688 1.750 0.134
3/4" 0.7500 Narrow 0.812 1.469 0.134
3/4" 0.7500 Wide 0.812 2.000 0.148
7/8" 0.8750 Narrow 0.938 1.750 0.134
7/8" 0.8750 Wide 0.938 2.250 0.165
1" 1.0000 Narrow 1.062 2.000 0.134
1" 1.0000 Wide 1.062 2.500 0.165
1-1/8" 1.1250 Narrow 1.250 2.250 0.134
1-1/8" 1.1250 Wide 1.250 2.750 0.165
1-1/4" 1.2500 Narrow 1.375 2.500 0.165
1-1/4" 1.2500 Wide 1.375 3.000 0.165
1-3/8" 1.3750 Narrow 1.500 2.750 0.165
1-3/8" 1.3750 Wide 1.500 3.250 0.180
1-1/2" 1.5000 Narrow 1.625 3.000 0.165
1-1/2" 1.5000 Wide 1.625 3.500 0.180
1-5/8" 1.6250 --- 1.750 3.750 0.180
1-3/4" 1.7500 --- 1.875 4.000 0.180
1-7/8" 1.8750 --- 2.000 4.250 0.180
2" 2.0000 --- 2.125 4.500 0.180

Ask Free Sample of 316Ti SS Fastener, Bolts, Nuts, Washer. Please Call +91 9664408767

Widest Range of Stainless Steel 316Ti Fastener in Mumbai, India.

  • SS 316Ti Machine Bolts
  • Stainless Steel 316Ti Flat Washers Exporter
  • 316Ti Stainless Steel Fastener Supplier
  • Price of SS 316Ti Belleville Washer
  • 316Ti SS 12mm Anchor Fastener Price
  • 316Ti Stainless Steel Washer Manufacturers In India
  • 316Ti Stainless Steel Price in India
  • UNS S31635 Fasteners
  • Stainless Steel 316Ti Fastener Manufacturers in Mumbai
  • SS 316Ti Bolts and Nuts
  • 316Ti Stainless Steel Concrete Screws
  • SS 316Ti Fastener Supplier in India
  • SS 316Ti Fasteners Manufacturer in Mumbai
  • SS 316Ti Fastener Suppliers in Mumbai
  • Stainless Steel 316Ti Fastener Supplier in India
  • 316Ti Stainless Steel Screw Suppliers
  • UNS S31635 Fasteners
  • 316Ti Stainless Steel Fastener Bolt
  • SS 316Ti Fasteners Weight Calculator
  • 316Ti Stainless Steel Lock Washers
  • 316Ti Stainless Steel Self Tapping Screws
  • 1.4571 Stainless Steel Fender Washer
  • 316Ti Stainless Steel Fastener Manufacturers
  • 316Ti SS 10mm Anchor Fastener Price
  • Stainless Steel 316Ti Fastener Suppliers in Mumbai
  • SS 316Ti Anchor Bolt Weight Calculator In MM
  • ASTM F1554 Grade 31Ti SS Fastener
  • Stainless Steel 31Ti Hex Nut Dimensions
  • Cost Of 316Ti Stainless Steel Fastener
  • Stainless Steel 31Ti Spring Washers
  • Stainless Steel 316Ti Heavy Hex Bolts
  • 316Ti SS Lock Nut
  • 31Ti SS Stud Bolt Price List
  • 316Ti SS Split Washers Sizes
  • SS 31Ti Fastener Price Per Kg in Mumbai
  • SS 1.4571 Fastener Exporter
  • ASME SF594 316Ti Stainless Steel Fastener
  • 316Ti SS Dome Nut
  • SS 31Ti Flange Bolts
  • 316Ti Stainless Steel Fastener Price in India
  • SS 31Ti Bolt Specification
  • 316Ti Stainless Steel Socket Cap Screw Stock
  • 316Ti Stainless Steel Square Nut
  • Stainless Steel 316Ti Ogee Washers
  • ASTM F1554 31Ti Stainless Steel Fastener
  • 316Ti Stainless Steel Socket Screws
  • Standard SS 316Ti Hex Head Bolts
  • Stainless Steel 31Ti Stud Price
  • 1.4571 Square Bolts Stockists
  • SUS 316Ti Wing Nuts Sizes
  • 31Ti Stainless Steel Coupling Nuts
  • Stainless Steel 31Ti Fastener Supplier in India

Tests of ASTM F1554 316Ti Stainless Steel Fastener

Before being prepared for shipment to the customer, ASTM F1554 316Ti Stainless Steel Fasteners Testing should be constructed in accordance with applicable standards and thoroughly tested for potential flaws.

Shear Test

Shear Test

Fatigue Test

Fatigue Test

Biaxial Test

Biaxial Test

Creep Test

Creep Test

Drop Weight Test

Drop Weight Test

Flexure Test

Flexure Test

Finishes Of 316Ti Stainless Steel Fastener

Powder coating Zinc and yellow plated
Zinc and de-embrittled Stayblack finish
Sherardised Nickel
Green chromate Geomet
Galvanised Electro brass plated
Chrome Chemical black

Stainless Steel 316Ti Fasteners - Comparing International Standards

USA France Germany Germany Italy Japan Russia Spain Sweden UK European Union
AISI AFNOR DIN 1.4571 W.N. UNI JIS GOST UNE SIS BSI EURONORM
316Ti Z6CNDT17-12 X6CrNiMoTi17-12-2
X10CrNiMoTi18-10
- X6CrNiMoTi1712 SUS 316Ti 10Ch17N13M2T F.3535 SS 2350 BS 320S17 -
best offer & competitive quotation
call us on +91 9664408767

316Ti Stainless Steel Fasteners Supply in Below Countries

Products We Supplied Description Country
Stainless Steel 316Ti Fasteners UNS S31635 U Bolts Supply Serbia, Malaysia, Germany, Venezuela
ASTM F593 SS 316Ti Fasteners SS 1.4571 Nut Bolt Weight Chart In Kg South Africa, Gambia, Belarus, Azerbaijan, Oman
316Ti Stainless Steel Bolts and Nuts Price List S31635 Stainless Steel Eye Bolts Mongolia, Yemen, Slovakia, Romania, Puerto Rico
316Ti Stainless Steel Fasteners Manufacturers 1.4571 Stainless Steel Double Ended Studs In India Australia, Hong Kong, Singapore, Switzerland
ASME SF594 316Ti Stainless Steel Fasteners In India S31635 Stainless Steel Acorn Nuts Manufacturers In India Portugal, New Zealand, Belgium, Taiwan
SS GOST 10Ch17N13M2T Fastener SS 316Ti Nyloc Nuts Manufacturers In India Jordan, Czech Republic, Nigeria, Chile, Ecuador
316Ti Stainless Steel Bolt Torque Chart UNS S31635 Carriage Bolts Near Me Bulgaria, Bhutan, Nepal, Kuwait
316Ti SS Spring Washer 316Ti Stainless Steel Flat Washers Hungary, Vietnam, Denmark, Estonia

Main Applications Of 316Ti Stainless Steel Fasteners

Heavy Equipment

Heavy Equipment

Automotive

Automotive

Chemical Processing

Chemical

Power Generation

Power Generation

Shipbuilding

Shipbuilding

Construction

Construction

Aerospace

Aerospace

Oil & Gas

Oil & Gas
