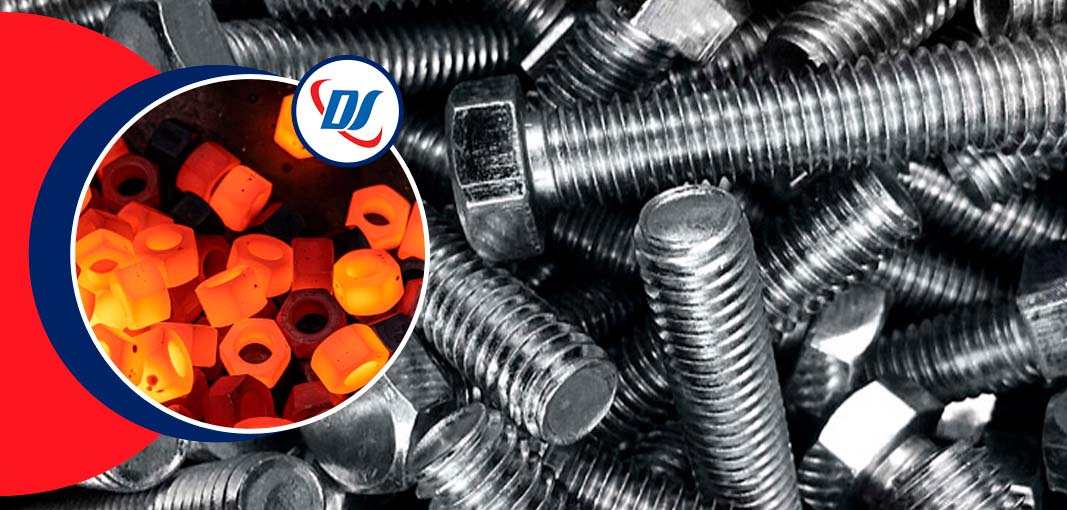

Duplex Steel & Alloys is a very famous producer and supplier of SS 321
Fasteners . It is produced at our company's facilities in accordance
with international standards, using high-quality raw resources and leading technology.
These Fasteners are created in the factory from elevated, balanced stainless steel.
Because they are utilized to securely attach two joints, these SS 321H Fasteners are
widely employed in a variety of building projects. These SS 321 Fasteners are
frequently utilized when attaching two items and are mass-produced utilizing graded
alloy. Duplex Steel & Alloys is popular for providing high-quality SS 321/321H
Fasteners in the industry. We provide an exceptional array of Stainless Steel 321
Fasteners in a variety of sizes to meet the diverse needs of our clients.
Stainless Steel 321 Fasteners, 321 Stainless Steel Fasteners, SS 321 Fasteners, SS 321
Nut Bolt, Bolts, Stainless Steel 321 Fastener Suppliers in Mumbai, India.
SS 321 Screw, 321 Stainless Steel Nuts, SS 321 Bolts, 321 Stainless Steel Washers, SS 321H
Fastener, SS 321 Stud Price, SS 321 Hex Bolt, SS 321 Fasteners Manufacturers in India.
These Stainless Steel UNS S32100 Fasteners are made from high-quality raw resources and are
suitable for a wide range of industrial and commercial applications. These SS 321H
Fasteners are available in a variety of finishes and sizes and are highly
valued for their corrosion resistance and dimensional perfection.
One of the motivations for the creation of the 321 grade of stainless steel was its remarkable
resistance to intergranular corrosion when subjected to temperatures ranging from 427° C to 816°
C during chromium precipitation. The inclusion of titanium in the alloy of 321 Stainless Steel
Fasteners is what keeps it stable against chromium carbide formation.
We provide Stainless Steel 321 & 321H Nuts, Stainless Steel 321 & 321H Bolts, Stainless
Steel 321 & 321H Washers, and Stainless Steel 321 & 321H Stud Bolts.
Applications of SS 321/321H Fasteners:
These Stainless Steel UNS S32109 Fasteners are utilized for a broad range of applications,
including home and industry operations. These Stainless Steel UNS S32100 Fasteners are
constructed from high-quality raw materials and may be used for a variety of commercial and
industrial applications.
SS 321 Bolts and Nuts Specification
Standard |
ASTM F593, F594, A193, A194 / ASME SF593, F594, SA193, SA194 |
Bolt / Screw Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Nuts Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Washers Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Machine Screws Size |
M1.6 – M12 |
Self Tapping Screw Size |
No.2 – No. 14 |
Length |
3 mm to 200 mm |
Threads |
UNF, BSW, BSF, METRIC, UNC, or as required |
Fasteners |
- DIN : DIN 934, DIN 931, DIN 970, DIN 933
- UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
- ISO : JIS standards, ISO 4033, ISO 4032,
- ANSI – American National Standards Institute
- ASME B18.5
- ANSI B 28.2.4 1M
- as per defined in ASME B16.5 standard SS 321 Stud Bolt length
- ANSI B 18.2.4 2M
- as per defined in ASME B18.2.2 SS 321 Hex nuts
|
Form |
Hex, Threading, Square, Round as per Gauge Etc. |
Raw materials Source |
JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
|
Certification |
Dual Certified As per ASTM & ASME Codes |
Dimensions |
DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
Threads |
Unless otherwise specified, the threads shall be rolled or cut and tapped
horizontally or vertically |
Test Certificate |
as per EN 10204 / 3.1 Manufacturer Test Certificate |
Additional Certifications |
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
Production Process |
M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element
machining and CNC |
Stainless Steel 321 Fastener Types
Stainless Steel 321 Bolts
321 Stainless Steel Nuts
321 Stainless Steel Screw
SS 321 Washer
321H Stainless Steel Stud Bolts
SS 321 Anchor Bolt
321 Stainless Steel Threaded Rod
SS 321 Hexagonal Bolt
SS 321 Hex Nut
321H Stainless Steel Fastener Equivalent Material
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
EN |
SS 321 |
1.4541 |
S32100 |
SUS 321 |
X6CrNiTi18-10 |
SS 321H |
1.4878 |
S32109 |
SUS 321H |
X12CrNiTi18-9 |
321 Stainless Steel Fasteners Chemical Composition
Grade |
C |
Mn |
Si |
P |
S |
Cr |
N |
Ni |
Ti |
SS 321 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
17.00 – 19.00 |
0.10 max |
9.00 – 12.00 |
5(C+N) – 0.70 max |
SS 321H |
0.04 – 0.10 |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
17.00 – 19.00 |
0.10 max |
9.00 – 12.00 |
4(C+N) – 0.70 max |
Mechanical Properties of Stainless Steel 321 Fasteners
Density |
Melting Point |
Tensilee Strength |
Yield Strength (0.2%Offset) |
Elongation |
8.0 g/cm3 |
1457 °C (2650 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
321H Stainless Steel Fastener, Stainless Steel 321H Fasteners, SS 321 Hex Bolt Price List, ASTM
F593 321H Stainless Steel Fastener, A193 Bolt, SS 321 Anchor Fasteners, SS 321 Nut Bolt
Manufacturer, Stainless Steel 321 Fasteners Suppliers in Mumbai.
If you are looking for best prices for 321 Stainless Steel Fasteners, SS 321 Stud Bolt,
321 Grade Stainless Steel Fasteners email us on info@duplexsteelalloys.com or
call us on +91 9664408767
321 Stainless Steel Fasteners Price List
Product |
Price |
321H SS Nut Bolt Price Per Kg |
US $1.99-200 / Kg |
ASTM F1554 Hexagon Head Screw Stainless Steel 321 |
US $1290-4900 / Ton |
Cost Per Kg of Stainless Steel 321H Heavy Hex Nuts |
US $99-1100 / Kg |
321 Stainless Steel Washer Price |
S $1.00-900.0 / Kg |
321L Stainless Steel Self Locking Nuts Price Per Kg |
US $190-1990 / Ton |
SS 321 Heavy Hex Bolt price |
US $1000-4500 / Ton |
SS 321H Anchor Fasteners Price List |
US $1500-2600 / Ton |
321H Stainless Steel Bolt Price List |
US $2200-4000 / Ton |
321H Stainless Steel Socket Head Screw Price |
US $1.2-3.7 / Kilogram |
SS 321 Allen Cap Screw Price |
US $1,100.00-2,100.00 / Ton |
SS 321H Bolt Thread Sizes
Size |
Nominal (Major) Diameter [in] |
Coarse Thread (UNC) |
Fine Thread (UNF) |
Threads Per Inch |
Tensile Stress Area [in2] |
Minor Area [in2] |
Threads Per Inch |
Tensile Stress Area [in2] |
Minor Area [in2] |
#0 |
0.0600 |
--- |
--- |
--- |
80 |
0.00180 |
0.00151 |
#2 |
0.0860 |
56 |
0.00370 |
0.00310 |
64 |
0.00394 |
0.00339 |
#4 |
0.1120 |
40 |
0.00604 |
0.00496 |
48 |
0.00661 |
0.00566 |
#5 |
0.1250 |
40 |
0.00796 |
0.00672 |
44 |
0.00830 |
0.00716 |
#6 |
0.1380 |
32 |
0.00909 |
0.00745 |
40 |
0.01015 |
0.00874 |
#8 |
0.1640 |
32 |
0.0140 |
0.01196 |
36 |
0.01474 |
0.01285 |
#10 |
0.1900 |
24 |
0.0175 |
0.01450 |
32 |
0.0200 |
0.0175 |
1/4" |
0.2500 |
20 |
0.0318 |
0.0269 |
28 |
0.0364 |
0.0326 |
5/16" |
0.3125 |
18 |
0.0524 |
0.0454 |
24 |
0.0580 |
0.0524 |
3/8" |
0.3750 |
16 |
0.0775 |
0.0678 |
24 |
0.0878 |
0.0809 |
7/16" |
0.4375 |
14 |
0.1063 |
0.0933 |
20 |
0.1187 |
0.1090 |
1/2" |
0.5000 |
13 |
0.1419 |
0.1257 |
20 |
0.1599 |
0.1486 |
9/16" |
0.5625 |
12 |
0.182 |
0.162 |
18 |
0.203 |
0.189 |
5/8" |
0.6250 |
11 |
0.226 |
0.202 |
18 |
0.256 |
0.240 |
3/4" |
0.7500 |
10 |
0.334 |
0.302 |
16 |
0.373 |
0.351 |
7/8" |
0.8750 |
9 |
0.462 |
0.419 |
14 |
0.509 |
0.480 |
1" |
1.0000 |
8 |
0.606 |
0.551 |
12 |
0.663 |
0.625 |
1-1/8" |
1.1250 |
7 |
0.763 |
0.693 |
12 |
0.856 |
0.812 |
1-1/4" |
1.2500 |
7 |
0.969 |
0.890 |
12 |
1.073 |
1.024 |
1-3/8" |
1.3750 |
6 |
1.155 |
1.054 |
12 |
1.315 |
1.260 |
1-1/2" |
1.5000 |
6 |
1.405 |
1.294 |
12 |
1.581 |
1.521 |
1-3/4" |
1.7500 |
5 |
1.90 |
1.74 |
--- |
--- |
--- |
2" |
2.0000 |
4.5 |
2.50 |
2.30 |
--- |
--- |
--- |
The following table of clearance holes was adapted from ASME B18.2.8. The minimum hole diameters
are given.
Bolt Size |
Bolt Dia. [in] |
Normal Fit [in] |
Close Fit [in] |
Loose Fit [in] |
#0 |
0.0600 |
0.076 |
0.067 |
0.094 |
#2 |
0.0860 |
0.102 |
0.094 |
0.116 |
#4 |
0.1120 |
0.128 |
0.120 |
0.144 |
#5 |
0.1250 |
0.156 |
0.141 |
0.172 |
#6 |
0.1380 |
0.170 |
0.154 |
0.185 |
#8 |
0.1640 |
0.196 |
0.180 |
0.213 |
#10 |
0.1900 |
0.221 |
0.206 |
0.238 |
1/4" |
0.2500 |
0.281 |
0.266 |
0.297 |
5/16" |
0.3125 |
0.344 |
0.328 |
0.359 |
3/8" |
0.3750 |
0.406 |
0.391 |
0.422 |
7/16" |
0.4375 |
0.469 |
0.453 |
0.484 |
1/2" |
0.5000 |
0.562 |
0.531 |
0.609 |
5/8" |
0.6250 |
0.688 |
0.656 |
0.734 |
3/4" |
0.7500 |
0.812 |
0.781 |
0.906 |
7/8" |
0.8750 |
0.938 |
0.906 |
1.031 |
1" |
1.0000 |
1.094 |
1.031 |
1.156 |
1-1/8" |
1.1250 |
1.219 |
1.156 |
1.312 |
1-1/4" |
1.2500 |
1.344 |
1.281 |
1.438 |
1-3/8" |
1.3750 |
1.500 |
1.438 |
1.609 |
1-1/2" |
1.5000 |
1.625 |
1.562 |
1.734 |
321H SS Hex Nut Dimensions
The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 1-1, "Dimensions
of Square and Hex Machine Screw Nuts." This table is used for smaller size hardware.
Size |
Nominal (Major) Diameter [in] |
Width Across Flats |
Thickness |
Nominal [in] |
Minimum [in] |
Minimum [in] |
Maximum [in] |
#0 |
0.060 |
5/32"(0.156) |
0.150 |
0.043 |
0.050 |
#2 |
0.086 |
3/16"(0.188) |
0.180 |
0.057 |
0.066 |
#4 |
0.112 |
1/4"(0.250) |
0.241 |
0.087 |
0.098 |
#6 |
0.138 |
5/16"(0.312) |
0.302 |
0.102 |
0.114 |
#8 |
0.164 |
11/32"(0.344) |
0.332 |
0.117 |
0.130 |
#10 |
0.190 |
3/8"(0.375) |
0.362 |
0.117 |
0.130 |
1/4" |
0.250 |
7/16"(0.438) |
0.423 |
0.178 |
0.193 |
5/16" |
0.312 |
9/16"(0.562) |
0.545 |
0.208 |
0.225 |
3/8" |
0.375 |
5/8"(0.625) |
0.607 |
0.239 |
0.257 |
The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 4, "Dimensions of
Hex Nuts and Hex Jam Nuts."
Size |
Nominal (Major) Diameter [in] |
Width Across Flats |
Thickness |
Minimum [in] |
Maximum [in] |
Minimum [in] |
Maximum [in] |
1/4" |
0.2500 |
0.428 |
0.438 |
0.212 |
0.226 |
5/16" |
0.3125 |
0.489 |
0.500 |
0.258 |
0.273 |
3/8" |
0.3750 |
0.551 |
0.563 |
0.320 |
0.337 |
7/16" |
0.4375 |
0.675 |
0.688 |
0.365 |
0.385 |
1/2" |
0.5000 |
0.736 |
0.750 |
0.427 |
0.448 |
9/16" |
0.5625 |
0.861 |
0.875 |
0.473 |
0.496 |
5/8" |
0.6250 |
0.922 |
0.938 |
0.535 |
0.559 |
3/4" |
0.7500 |
1.088 |
1.125 |
0.617 |
0.665 |
7/8" |
0.8750 |
1.269 |
1.312 |
0.724 |
0.776 |
1" |
1.0000 |
1.450 |
1.500 |
0.831 |
0.887 |
1-1/8" |
1.1250 |
1.631 |
1.688 |
0.939 |
0.999 |
1-1/4" |
1.2500 |
1.812 |
1.875 |
1.030 |
1.094 |
1-3/8" |
1.3750 |
1.994 |
2.062 |
1.138 |
1.206 |
1-1/2" |
1.5000 |
2.175 |
2.250 |
1.245 |
1.317 |
1-5/8" |
1.6250 |
2.350 |
2.430 |
1.364 |
1.416 |
1-3/4" |
1.7500 |
2.538 |
2.625 |
1.460 |
1.540 |
1-7/8" |
1.8750 |
2.722 |
2.813 |
1.567 |
1.651 |
2" |
2.0000 |
2.900 |
3.000 |
1.675 |
1.763 |
321H Stainless Steel Flat Washer Dimensions
The following table of flat washer dimensions was adapted from ASME B18.21.1, Table 11 for Type
A Plain Washers. Type A washers come in 2 series: Narrow and Wide.
Size |
Basic Dia. [in] |
Series |
Inner Dia, Basic [in] |
Outer Dia, Basic [in] |
Thickness, Basic [in] |
#0 |
0.0600 |
--- |
0.078 |
0.188 |
0.020 |
#2 |
0.0860 |
--- |
0.094 |
0.250 |
0.020 |
#4 |
0.1120 |
--- |
0.125 |
0.312 |
0.032 |
#6 |
0.1380 |
--- |
0.156 |
0.375 |
0.049 |
#8 |
0.1640 |
--- |
0.188 |
0.438 |
0.049 |
#10 |
0.1900 |
--- |
0.219 |
0.500 |
0.049 |
1/4" |
0.2500 |
Narrow |
0.281 |
0.625 |
0.065 |
1/4" |
0.2500 |
Wide |
0.312 |
0.734 |
0.065 |
5/16" |
0.3125 |
Narrow |
0.344 |
0.688 |
0.065 |
5/16" |
0.3125 |
Wide |
0.375 |
0.875 |
0.083 |
3/8" |
0.3750 |
Narrow |
0.406 |
0.812 |
0.065 |
3/8" |
0.3750 |
Wide |
0.438 |
1.000 |
0.083 |
7/16" |
0.4375 |
Narrow |
0.469 |
0.922 |
0.065 |
7/16" |
0.4375 |
Wide |
0.500 |
1.250 |
0.083 |
1/2" |
0.5000 |
Narrow |
0.531 |
1.062 |
0.095 |
1/2" |
0.5000 |
Wide |
0.562 |
1.375 |
0.109 |
9/16" |
0.5625 |
Narrow |
0.594 |
1.156 |
0.095 |
9/16" |
0.5625 |
Wide |
0.625 |
1.469 |
0.109 |
5/8" |
0.6250 |
Narrow |
0.656 |
1.312 |
0.095 |
5/8" |
0.6250 |
Wide |
0.688 |
1.750 |
0.134 |
3/4" |
0.7500 |
Narrow |
0.812 |
1.469 |
0.134 |
3/4" |
0.7500 |
Wide |
0.812 |
2.000 |
0.148 |
7/8" |
0.8750 |
Narrow |
0.938 |
1.750 |
0.134 |
7/8" |
0.8750 |
Wide |
0.938 |
2.250 |
0.165 |
1" |
1.0000 |
Narrow |
1.062 |
2.000 |
0.134 |
1" |
1.0000 |
Wide |
1.062 |
2.500 |
0.165 |
1-1/8" |
1.1250 |
Narrow |
1.250 |
2.250 |
0.134 |
1-1/8" |
1.1250 |
Wide |
1.250 |
2.750 |
0.165 |
1-1/4" |
1.2500 |
Narrow |
1.375 |
2.500 |
0.165 |
1-1/4" |
1.2500 |
Wide |
1.375 |
3.000 |
0.165 |
1-3/8" |
1.3750 |
Narrow |
1.500 |
2.750 |
0.165 |
1-3/8" |
1.3750 |
Wide |
1.500 |
3.250 |
0.180 |
1-1/2" |
1.5000 |
Narrow |
1.625 |
3.000 |
0.165 |
1-1/2" |
1.5000 |
Wide |
1.625 |
3.500 |
0.180 |
1-5/8" |
1.6250 |
--- |
1.750 |
3.750 |
0.180 |
1-3/4" |
1.7500 |
--- |
1.875 |
4.000 |
0.180 |
1-7/8" |
1.8750 |
--- |
2.000 |
4.250 |
0.180 |
2" |
2.0000 |
--- |
2.125 |
4.500 |
0.180 |
Ask Free Sample of 321 SS Fastener, Bolts, Nuts, Washer. Please Call +91 9664408767
Widest Range of Stainless Steel 321 Fastener in Mumbai,
India.
- SS 321 Anchor Bolt Weight Calculator In MM
- SS 321 Fasteners Weight Calculator
- UNS S32100 Fasteners
- 321H SS 12mm Anchor Fastener Price
- 321 SS 10mm Anchor Fastener Price
- 321H Stainless Steel Fastener Bolt
- SS 321 Bolts and Nuts
- 321 Stainless Steel Price in India
- SS 321 Fasteners Manufacturer in Mumbai
- Stainless Steel 321 Fastener Manufacturers in Mumbai
- SS 321 Fastener Supplier in India
- 1.4878 Stainless Steel Fender Washer
- 321 Stainless Steel Fastener Supplier
- Stainless Steel 321 Flat Washers Exporter
- Stainless Steel 321 Fastener Suppliers in Mumbai
- 321 Stainless Steel Fastener Manufacturers
- 321H Stainless Steel Screw Suppliers
- Stainless Steel 321H Fastener Supplier in India
- 321H Stainless Steel Lock Washers
- Price of SS 321 Belleville Washer
- 321 Stainless Steel Washer Manufacturers In India
- SS 321 Machine Bolts
- 321 Stainless Steel Self Tapping Screws
- 321 Stainless Steel Concrete Screws
- UNS S32109 Fasteners
- SS 321 Fastener Suppliers in Mumbai
- 321 SS Split Washers Sizes
- Stainless Steel 321 Stud Price
- 321 SS Stud Bolt Price List
- SS 1.4541 Fastener Exporter
- Stainless Steel 321H Heavy Hex Bolts
- SS 321 Bolt Specification
- 321H SS Lock Nut
- 321H Stainless Steel Square Nut
- Stainless Steel 321 Hex Nut Dimensions
- ASTM F1554 321 Stainless Steel Fastener
- 1.4878 Square Bolts Stockists
- 321H Stainless Steel Socket Cap Screw Stock
- Stainless Steel 321 Fastener Supplier in India
- Stainless Steel 321 Ogee Washers
- 321 Stainless Steel Coupling Nuts
- ASME SF594 321H Stainless Steel Fastener
- Stainless Steel 321 Spring Washers
- 321 SS Dome Nut
- SS 321 Fastener Price Per Kg in Mumbai
- 321 Stainless Steel Socket Screws
- ASTM F1554 Grade 321 SS Fastener
- Cost Of 321H Stainless Steel Fastener
- SUS 321H Wing Nuts Sizes
- 321 Stainless Steel Fastener Price in India
- SS 321 Flange Bolts
- Standard SS 321H Hex Head Bolts
Tests of ASTM F1554 321H Stainless Steel Fastener
Before being prepared for shipment to the customer, ASTM F1554 321
Stainless Steel Fasteners Testing should be constructed in accordance with applicable standards
and thoroughly tested for potential flaws.
Finishes Of 321H Stainless Steel Fastener
Powder coating |
Zinc and yellow plated |
Zinc and de-embrittled |
Stayblack finish |
Sherardised |
Nickel |
Green chromate |
Geomet |
Galvanised |
Electro brass plated |
Chrome |
Chemical black |
Stainless Steel 321 Fasteners - Comparing International Standards
USA |
France |
Germany |
Germany |
Italy |
Japan |
Russia |
Spain |
Sweden |
UK |
European Union |
AISI |
AFNOR |
DIN 17006 |
W.N. 17007 |
UNI |
JIS |
GOST |
UNE |
SIS |
BSI |
EURONORM |
321 |
Z 6 CNT 18-10 |
X 6 CrNiTi 18 10 X 12 CrNiTi 18 9 |
1.4541 1.4878 |
X 6 CrNiTi 1811 |
SUS 321 |
12KH18N10T |
X 6 CrNiTi 18-11 |
23 37 |
321S31 |
X 6 CrNiTi 18 10 |
321H |
|
|
|
X 8 CrNiTi 1811 |
SUS 321H |
|
X 7 CrNiTi 18-11 |
|
321S20 |
|
best offer & competitive quotation
321 Stainless Steel Fasteners Supply in Below Countries
Products We Supplied |
Description |
Country |
321 Stainless Steel Bolts and Nuts Price List |
S32100 Stainless Steel Eye Bolts |
Mongolia, Yemen, Slovakia, Romania, Puerto Rico |
321 Stainless Steel Fasteners Manufacturers |
1.4878 Stainless Steel Double Ended Studs In India |
Australia, Hong Kong, Singapore, Switzerland |
Stainless Steel 321H Fasteners |
UNS S32109 U Bolts Supply |
Serbia, Malaysia, Germany, Venezuela |
ASTM F593 SS 321 Fasteners |
SS 1.4541 Nut Bolt Weight Chart In Kg |
South Africa, Gambia, Belarus, Azerbaijan, Oman |
ASME SF594 321 Stainless Steel Fasteners In India |
S32109 Stainless Steel Acorn Nuts Manufacturers In India |
Portugal, New Zealand, Belgium, Taiwan |
SS GOST 10KH23N18 / 20KH25N20S2 Fastener |
SS 321 Nyloc Nuts Manufacturers In India |
Jordan, Czech Republic, Nigeria, Chile, Ecuador |
321 Stainless Steel Bolt Torque Chart |
UNS S32100 Carriage Bolts Near Me |
Bulgaria, Bhutan, Nepal, Kuwait |
321H SS Spring Washer |
321H Stainless Steel Flat Washers |
Hungary, Vietnam, Denmark, Estonia |
Main Applications Of 321 Stainless Steel Fasteners
Heavy Equipment
Automotive
Chemical
Power Generation
Shipbuilding
Construction
Aerospace
Oil & Gas
