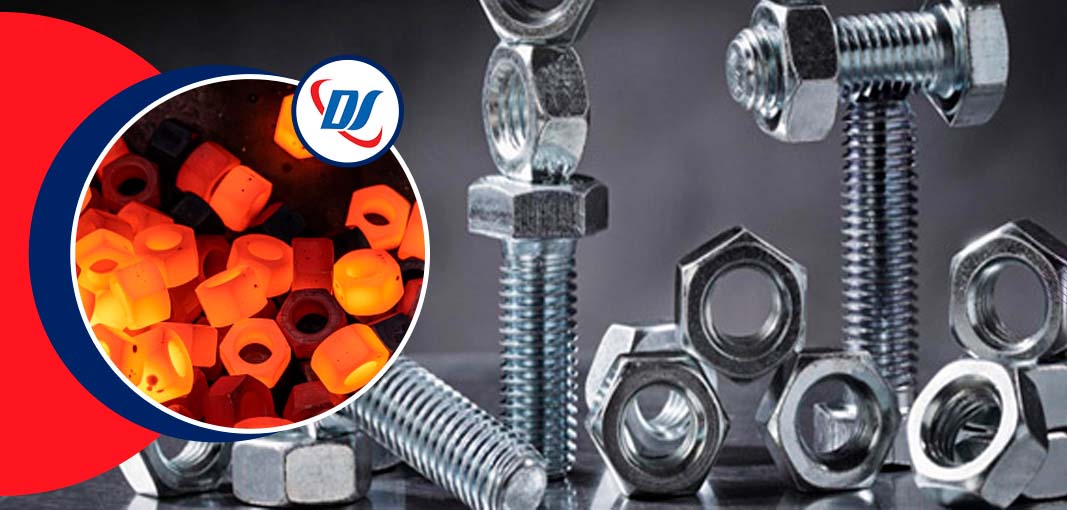

Duplex Steel & Alloys is a well-known exporter and manufacturer of Stainless Steel 904L
Fasteners, which include more chromium and nickel than the 316L grade. Our highly equipped
infrastructure facility produces things that satisfy international quality and reliability
standards. We provide some of the most dependable items in the business, as well as exceptional
service.
What is a Stainless Steel 904L Fastener?
904L stainless steel is an austenitic, non-stabilized grade. The letter L in the fastener's name
indicates that it has lower carbon content in its chemical makeup. 904L stainless steel fasteners
are non-stabilized austenitic stainless steel. In these fasteners, the carbon content is around
0.02 percent, giving resistance against intergranular corrosion.
Stainless Steel 904L Fasteners, 904L Stainless Steel Fasteners, SS 904L Fasteners, SS 904L Nut
Bolt, Bolts, Stainless Steel 904L Fastener Suppliers in Mumbai, India.
SS 904L Hex Bolt, SS 904L Fastener, SS 904L Stud Price, SS 904L Screw, 904L Stainless Steel Washers,
SS 904L Bolts, 904L Stainless Steel Nuts, SS 904L Fasteners Manufacturers in India.
Features of SS 904L Fasteners:
- 1) A little amount of copper is found in these fasteners’ compositions. As a result, it can survive
acidic environments such as sulfuric acid. Because these fasteners include high levels of nickel and
molybdenum, they are very resistant to corrosion-related pitting and cracking.
- 2) These Stainless Steel 904L Fasteners have a maximum carbon content of 0.02 percent. Indeed, the
low carbon concentration of these fasteners renders them immune to welding sensitization, avoiding
intergranular corrosion.
- 3) SS 904L is an Austenitic Steel with a lower carbon concentration. Grade 904L has exceptional
ability to form and weld along with high strength.
- 4) Moreover, under any type of situation, grade 904L remains non-magnetic. SS 904L resists pitting,
crevice corrosion, and stress corrosion cracking in chloride solutions.
- 5) Because of its greater nickel and molybdenum concentration, SS 904L Fasteners are noted for their
superior performance when compared to other alloys.
Applications of SS 904L Fasteners:
These features enable it to be used in a variety of sectors, including seawater cooling equipment,
condenser tubes, heat exchangers, acid chemical processes, and more. UNS N08904 Fasteners are utilized
in a variety of sectors including automotive, marine, seawater, aerospace, oil and gas, pharmaceutical,
food processing, chemical, and general engineering.
SS 904L Bolts and Nuts Specification
Standard |
ASTM F593, F594, A193, A194 / ASME SF593, F594, SA193, SA194 |
Bolt / Screw Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Nuts Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Washers Size |
M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Machine Screws Size |
M1.6 – M12 |
Self Tapping Screw Size |
No.2 – No. 14 |
Length |
3 mm to 200 mm |
Threads |
UNF, BSW, BSF, METRIC, UNC, or as required |
Fasteners |
- DIN : DIN 934, DIN 931, DIN 970, DIN 933
- UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
- ISO : JIS standards, ISO 4033, ISO 4032,
- ANSI – American National Standards Institute
- ASME B18.5
- ANSI B 28.2.4 1M
- as per defined in ASME B16.5 standard SS 904L Stud Bolt length
- ANSI B 18.2.4 2M
- as per defined in ASME B18.2.2 SS 904L Hex nuts
|
Form |
Hex, Threading, Square, Round as per Gauge Etc. |
Raw materials Source |
JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
Certification |
Dual Certified As per ASTM & ASME Codes |
Dimensions |
DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
Threads |
Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or
vertically |
Test Certificate |
as per EN 10204 / 3.1 Manufacturer Test Certificate |
Additional Certifications |
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
Production Process |
M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and
CNC |
Stainless Steel 904L Fastener Types
Stainless Steel 904L Bolts
904L Stainless Steel Nuts
904L Stainless Steel Screw
SS 904L Washer
904L Stainless Steel Stud Bolts
SS 904L Anchor Bolt
904L Stainless Steel Threaded Rod
SS 904L Hexagonal Bolt
SS 904L Hex Nut
904L Stainless Steel Fastener Equivalent Material
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
KS |
BS |
AFNOR |
EN |
SS 904L |
1.4539 |
N08904 |
SUS 904L |
STS 317J5L |
904S13 |
Z2 NCDU 25-20 |
X1NiCrMoCu25-20-5 |
904L Stainless Steel Fasteners Chemical Composition
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Cu |
SS 904L |
0.020 max |
2.00 max |
1.00 max |
0.040 max |
0.030 max |
19.00 – 23.00 |
4.00 – 5.00 max |
23.00 – 28.00 |
1.00 – 2.00 |
Mechanical Properties of Stainless Steel 904L Fasteners
Density |
Melting Point |
Tensilee Strength |
Yield Strength (0.2%Offset) |
Elongation |
7.95 g/cm3 |
1510 °C (2750 °F) |
Psi – 75,000 , MPa – 485 |
Psi – 40,000 , MPa – 275 |
20 % |
Stainless Steel 904L Fasteners, 904L Stainless Steel Fastener, ASTM F593 904L Stainless Steel
Fastener, SS 904L Anchor Fasteners, SS 904L Hex Bolt Price List, A193 Bolt, SS 904L Nut Bolt
Manufacturer, Stainless Steel 904L Fasteners Suppliers in Mumbai.
If you are looking for best prices for 904L Stainless Steel Fasteners, SS 904L Stud Bolt, 904L
Grade Stainless Steel Fasteners email us on info@duplexsteelalloys.com or call us on +91 9664408767
904L Stainless Steel Fasteners Price List
Product |
Price |
904L SS Nut Bolt Price Per Kg |
US $1.99-200 / Kg |
ASTM F1554 Hexagon Head Screw Stainless Steel 904L |
US $1290-4900 / Ton |
Cost Per Kg of Stainless Steel 904L Heavy Hex Nuts |
US $99-1100 / Kg |
904L Stainless Steel Washer Price |
S $1.00-900.0 / Kg |
904L Stainless Steel Self Locking Nuts Price Per Kg |
US $190-1990 / Ton |
SS 904L Heavy Hex Bolt price |
US $1000-4500 / Ton |
SS 904L Anchor Fasteners Price List |
US $1500-2600 / Ton |
904L Stainless Steel Bolt Price List |
US $2200-4000 / Ton |
904L Stainless Steel Socket Head Screw Price |
US $1.2-3.7 / Kilogram |
SS 904L Allen Cap Screw Price |
US $1,100.00-2,100.00 / Ton |
SS 904L Bolt Thread Sizes
Size |
Nominal (Major) Diameter [in] |
Coarse Thread (UNC) |
Fine Thread (UNF) |
Threads Per Inch |
Tensile Stress Area [in2] |
Minor Area [in2] |
Threads Per Inch |
Tensile Stress Area [in2] |
Minor Area [in2] |
#0 |
0.0600 |
--- |
--- |
--- |
80 |
0.00180 |
0.00151 |
#2 |
0.0860 |
56 |
0.00370 |
0.00310 |
64 |
0.00394 |
0.00339 |
#4 |
0.1120 |
40 |
0.00604 |
0.00496 |
48 |
0.00661 |
0.00566 |
#5 |
0.1250 |
40 |
0.00796 |
0.00672 |
44 |
0.00830 |
0.00716 |
#6 |
0.1380 |
32 |
0.00909 |
0.00745 |
40 |
0.01015 |
0.00874 |
#8 |
0.1640 |
32 |
0.0140 |
0.01196 |
36 |
0.01474 |
0.01285 |
#10 |
0.1900 |
24 |
0.0175 |
0.01450 |
32 |
0.0200 |
0.0175 |
1/4" |
0.2500 |
20 |
0.0318 |
0.0269 |
28 |
0.0364 |
0.0326 |
5/16" |
0.3125 |
18 |
0.0524 |
0.0454 |
24 |
0.0580 |
0.0524 |
3/8" |
0.3750 |
16 |
0.0775 |
0.0678 |
24 |
0.0878 |
0.0809 |
7/16" |
0.4375 |
14 |
0.1063 |
0.0933 |
20 |
0.1187 |
0.1090 |
1/2" |
0.5000 |
13 |
0.1419 |
0.1257 |
20 |
0.1599 |
0.1486 |
9/16" |
0.5625 |
12 |
0.182 |
0.162 |
18 |
0.203 |
0.189 |
5/8" |
0.6250 |
11 |
0.226 |
0.202 |
18 |
0.256 |
0.240 |
3/4" |
0.7500 |
10 |
0.334 |
0.302 |
16 |
0.373 |
0.351 |
7/8" |
0.8750 |
9 |
0.462 |
0.419 |
14 |
0.509 |
0.480 |
1" |
1.0000 |
8 |
0.606 |
0.551 |
12 |
0.663 |
0.625 |
1-1/8" |
1.1250 |
7 |
0.763 |
0.693 |
12 |
0.856 |
0.812 |
1-1/4" |
1.2500 |
7 |
0.969 |
0.890 |
12 |
1.073 |
1.024 |
1-3/8" |
1.3750 |
6 |
1.155 |
1.054 |
12 |
1.315 |
1.260 |
1-1/2" |
1.5000 |
6 |
1.405 |
1.294 |
12 |
1.581 |
1.521 |
1-3/4" |
1.7500 |
5 |
1.90 |
1.74 |
--- |
--- |
--- |
2" |
2.0000 |
4.5 |
2.50 |
2.30 |
--- |
--- |
--- |
The following table of clearance holes was adapted from ASME B18.2.8. The minimum hole diameters are
given.
Bolt Size |
Bolt Dia. [in] |
Normal Fit [in] |
Close Fit [in] |
Loose Fit [in] |
#0 |
0.0600 |
0.076 |
0.067 |
0.094 |
#2 |
0.0860 |
0.102 |
0.094 |
0.116 |
#4 |
0.1120 |
0.128 |
0.120 |
0.144 |
#5 |
0.1250 |
0.156 |
0.141 |
0.172 |
#6 |
0.1380 |
0.170 |
0.154 |
0.185 |
#8 |
0.1640 |
0.196 |
0.180 |
0.213 |
#10 |
0.1900 |
0.221 |
0.206 |
0.238 |
1/4" |
0.2500 |
0.281 |
0.266 |
0.297 |
5/16" |
0.3125 |
0.344 |
0.328 |
0.359 |
3/8" |
0.3750 |
0.406 |
0.391 |
0.422 |
7/16" |
0.4375 |
0.469 |
0.453 |
0.484 |
1/2" |
0.5000 |
0.562 |
0.531 |
0.609 |
5/8" |
0.6250 |
0.688 |
0.656 |
0.734 |
3/4" |
0.7500 |
0.812 |
0.781 |
0.906 |
7/8" |
0.8750 |
0.938 |
0.906 |
1.031 |
1" |
1.0000 |
1.094 |
1.031 |
1.156 |
1-1/8" |
1.1250 |
1.219 |
1.156 |
1.312 |
1-1/4" |
1.2500 |
1.344 |
1.281 |
1.438 |
1-3/8" |
1.3750 |
1.500 |
1.438 |
1.609 |
1-1/2" |
1.5000 |
1.625 |
1.562 |
1.734 |
904L SS Hex Nut Dimensions
The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 1-1, "Dimensions of
Square and Hex Machine Screw Nuts." This table is used for smaller size hardware.
Size |
Nominal (Major) Diameter [in] |
Width Across Flats |
Thickness |
Nominal [in] |
Minimum [in] |
Minimum [in] |
Maximum [in] |
#0 |
0.060 |
5/32"(0.156)
|
0.150 |
0.043 |
0.050 |
#2 |
0.086 |
3/16"(0.188)
|
0.180 |
0.057 |
0.066 |
#4 |
0.112 |
1/4"(0.250)
|
0.241 |
0.087 |
0.098 |
#6 |
0.138 |
5/16"(0.312)
|
0.302 |
0.102 |
0.114 |
#8 |
0.164 |
11/32"(0.344)
|
0.332 |
0.117 |
0.130 |
#10 |
0.190 |
3/8"(0.375)
|
0.362 |
0.117 |
0.130 |
1/4" |
0.250 |
7/16"(0.438)
|
0.423 |
0.178 |
0.193 |
5/16" |
0.312 |
9/16"(0.562)
|
0.545 |
0.208 |
0.225 |
3/8" |
0.375 |
5/8"(0.625)
|
0.607 |
0.239 |
0.257 |
The following table of hex nut dimensions was adapted from ASME B18.2.2, Table 4, "Dimensions of Hex
Nuts and Hex Jam Nuts."
Size |
Nominal (Major) Diameter [in] |
Width Across Flats |
Thickness |
Minimum [in] |
Maximum [in] |
Minimum [in] |
Maximum [in] |
1/4" |
0.2500 |
0.428 |
0.438 |
0.212 |
0.226 |
5/16" |
0.3125 |
0.489 |
0.500 |
0.258 |
0.273 |
3/8" |
0.3750 |
0.551 |
0.563 |
0.320 |
0.337 |
7/16" |
0.4375 |
0.675 |
0.688 |
0.365 |
0.385 |
1/2" |
0.5000 |
0.736 |
0.750 |
0.427 |
0.448 |
9/16" |
0.5625 |
0.861 |
0.875 |
0.473 |
0.496 |
5/8" |
0.6250 |
0.922 |
0.938 |
0.535 |
0.559 |
3/4" |
0.7500 |
1.088 |
1.125 |
0.617 |
0.665 |
7/8" |
0.8750 |
1.269 |
1.312 |
0.724 |
0.776 |
1" |
1.0000 |
1.450 |
1.500 |
0.831 |
0.887 |
1-1/8" |
1.1250 |
1.631 |
1.688 |
0.939 |
0.999 |
1-1/4" |
1.2500 |
1.812 |
1.875 |
1.030 |
1.094 |
1-3/8" |
1.3750 |
1.994 |
2.062 |
1.138 |
1.206 |
1-1/2" |
1.5000 |
2.175 |
2.250 |
1.245 |
1.317 |
1-5/8" |
1.6250 |
2.350 |
2.430 |
1.364 |
1.416 |
1-3/4" |
1.7500 |
2.538 |
2.625 |
1.460 |
1.540 |
1-7/8" |
1.8750 |
2.722 |
2.813 |
1.567 |
1.651 |
2" |
2.0000 |
2.900 |
3.000 |
1.675 |
1.763 |
904L Stainless Steel Flat Washer Dimensions
The following table of flat washer dimensions was adapted from ASME B18.21.1, Table 11 for Type A Plain
Washers. Type A washers come in 2 series: Narrow and Wide.
Size |
Basic Dia. [in] |
Series |
Inner Dia, Basic [in] |
Outer Dia, Basic [in] |
Thickness, Basic [in] |
#0 |
0.0600 |
--- |
0.078 |
0.188 |
0.020 |
#2 |
0.0860 |
--- |
0.094 |
0.250 |
0.020 |
#4 |
0.1120 |
--- |
0.125 |
0.312 |
0.032 |
#6 |
0.1380 |
--- |
0.156 |
0.375 |
0.049 |
#8 |
0.1640 |
--- |
0.188 |
0.438 |
0.049 |
#10 |
0.1900 |
--- |
0.219 |
0.500 |
0.049 |
1/4" |
0.2500 |
Narrow |
0.281 |
0.625 |
0.065 |
1/4" |
0.2500 |
Wide |
0.312 |
0.734 |
0.065 |
5/16" |
0.3125 |
Narrow |
0.344 |
0.688 |
0.065 |
5/16" |
0.3125 |
Wide |
0.375 |
0.875 |
0.083 |
3/8" |
0.3750 |
Narrow |
0.406 |
0.812 |
0.065 |
3/8" |
0.3750 |
Wide |
0.438 |
1.000 |
0.083 |
7/16" |
0.4375 |
Narrow |
0.469 |
0.922 |
0.065 |
7/16" |
0.4375 |
Wide |
0.500 |
1.250 |
0.083 |
1/2" |
0.5000 |
Narrow |
0.531 |
1.062 |
0.095 |
1/2" |
0.5000 |
Wide |
0.562 |
1.375 |
0.109 |
9/16" |
0.5625 |
Narrow |
0.594 |
1.156 |
0.095 |
9/16" |
0.5625 |
Wide |
0.625 |
1.469 |
0.109 |
5/8" |
0.6250 |
Narrow |
0.656 |
1.312 |
0.095 |
5/8" |
0.6250 |
Wide |
0.688 |
1.750 |
0.134 |
3/4" |
0.7500 |
Narrow |
0.812 |
1.469 |
0.134 |
3/4" |
0.7500 |
Wide |
0.812 |
2.000 |
0.148 |
7/8" |
0.8750 |
Narrow |
0.938 |
1.750 |
0.134 |
7/8" |
0.8750 |
Wide |
0.938 |
2.250 |
0.165 |
1" |
1.0000 |
Narrow |
1.062 |
2.000 |
0.134 |
1" |
1.0000 |
Wide |
1.062 |
2.500 |
0.165 |
1-1/8" |
1.1250 |
Narrow |
1.250 |
2.250 |
0.134 |
1-1/8" |
1.1250 |
Wide |
1.250 |
2.750 |
0.165 |
1-1/4" |
1.2500 |
Narrow |
1.375 |
2.500 |
0.165 |
1-1/4" |
1.2500 |
Wide |
1.375 |
3.000 |
0.165 |
1-3/8" |
1.3750 |
Narrow |
1.500 |
2.750 |
0.165 |
1-3/8" |
1.3750 |
Wide |
1.500 |
3.250 |
0.180 |
1-1/2" |
1.5000 |
Narrow |
1.625 |
3.000 |
0.165 |
1-1/2" |
1.5000 |
Wide |
1.625 |
3.500 |
0.180 |
1-5/8" |
1.6250 |
--- |
1.750 |
3.750 |
0.180 |
1-3/4" |
1.7500 |
--- |
1.875 |
4.000 |
0.180 |
1-7/8" |
1.8750 |
--- |
2.000 |
4.250 |
0.180 |
2" |
2.0000 |
--- |
2.125 |
4.500 |
0.180 |
Ask Free Sample of 904L SS Fastener, Bolts, Nuts, Washer. Please Call +91 9664408767
Widest Range of Stainless Steel 904L Fastener in Mumbai, India.
- SS 904L Anchor Bolt Weight Calculator In MM
- SS 904L Fasteners Weight Calculator
- UNS N08904 Fasteners
- 904L SS 12mm Anchor Fastener Price
- 904L SS 10mm Anchor Fastener Price
- 904L Stainless Steel Fastener Bolt
- SS 904L Bolts and Nuts
- 904L Stainless Steel Price in India
- SS 904L Fasteners Manufacturer in Mumbai
- Stainless Steel 904L Fastener Manufacturers in Mumbai
- SS 904L Fastener Supplier in India
- 1.4539 Stainless Steel Fender Washer
- 904L Stainless Steel Fastener Supplier
- Stainless Steel 904L Flat Washers Exporter
- Stainless Steel 904L Fastener Suppliers in Mumbai
- 904L Stainless Steel Fastener Manufacturers
- 904L Stainless Steel Screw Suppliers
- Stainless Steel 904L Fastener Supplier in India
- 904L Stainless Steel Lock Washers
- Price of SS 904L Belleville Washer
- 904L Stainless Steel Washer Manufacturers In India
- SS 904L Machine Bolts
- 904L Stainless Steel Self Tapping Screws
- 904L Stainless Steel Concrete Screws
- UNS N08904 Fasteners
- SS 904L Fastener Suppliers in Mumbai
- 904L SS Split Washers Sizes
- Stainless Steel 904L Stud Price
- 904L SS Stud Bolt Price List
- SS 1.4539 Fastener Exporter
- Stainless Steel 904L Heavy Hex Bolts
- SS 904L Bolt Specification
- 904L SS Lock Nut
- 904L Stainless Steel Square Nut
- Stainless Steel 904L Hex Nut Dimensions
- ASTM F1554 904L Stainless Steel Fastener
- 1.4539 Square Bolts Stockists
- 904L Stainless Steel Socket Cap Screw Stock
- Stainless Steel 904L Fastener Supplier in India
- Stainless Steel 904L Ogee Washers
- 904L Stainless Steel Coupling Nuts
- ASME SF594 904L Stainless Steel Fastener
- Stainless Steel 904L Spring Washers
- 904L SS Dome Nut
- SS 904L Fastener Price Per Kg in Mumbai
- 904L Stainless Steel Socket Screws
- ASTM F1554 Grade 904L SS Fastener
- Cost Of 904L Stainless Steel Fastener
- SUS 904L Wing Nuts Sizes
- 904L Stainless Steel Fastener Price in India
- SS 904L Flange Bolts
- Standard SS 904L Hex Head Bolts
Tests of ASTM F1554 904L Stainless Steel Fastener
Before being prepared for shipment to the customer, ASTM F1554 904L
Stainless Steel Fasteners Testing should be constructed in accordance with applicable standards and
thoroughly tested for potential flaws.
Finishes Of 904L Stainless Steel Fastener
Powder coating |
Zinc and yellow plated |
Zinc and de-embrittled |
Stayblack finish |
Sherardised |
Nickel |
Green chromate |
Geomet |
Galvanised |
Electro brass plated |
Chrome |
Chemical black |
Stainless Steel 904L Fasteners - Comparing International Standards
USA |
France |
Germany |
Germany |
Italy |
Japan |
Russia |
Spain |
Sweden |
UK |
European Union |
AISI |
AFNOR |
DIN 17006 |
W.N. 17007 |
UNI |
JIS |
GOST |
UNE |
SIS |
BSI |
EURONORM |
904L |
Z 12 CNDV 12-02 |
|
1.4939 |
|
|
|
|
|
|
|
|
|
X 20 CrNiSi 25 4 |
1.4821 |
|
|
|
|
|
|
|
best offer & competitive quotation
904L Stainless Steel Fasteners Supply in Below Countries
Products We Supplied |
Description |
Country |
904L Stainless Steel Bolts and Nuts Price List |
N08904 Stainless Steel Eye Bolts |
Mongolia, Yemen, Slovakia, Romania, Puerto Rico |
904L Stainless Steel Fasteners Manufacturers |
1.4539 Stainless Steel Double Ended Studs In India |
Australia, Hong Kong, Singapore, Switzerland |
Stainless Steel 904L Fasteners |
UNS N08904 U Bolts Supply |
Serbia, Malaysia, Germany, Venezuela |
ASTM F593 SS 904L Fasteners |
SS 1.4539 Nut Bolt Weight Chart In Kg |
South Africa, Gambia, Belarus, Azerbaijan, Oman |
ASME SF594 904L Stainless Steel Fasteners In India |
N08904 Stainless Steel Acorn Nuts Manufacturers In India |
Portugal, New Zealand, Belgium, Taiwan |
SS GOST Fastener |
SS 904L Nyloc Nuts Manufacturers In India |
Jordan, Czech Republic, Nigeria, Chile, Ecuador |
904L Stainless Steel Bolt Torque Chart |
UNS N08904 Carriage Bolts Near Me |
Bulgaria, Bhutan, Nepal, Kuwait |
904L SS Spring Washer |
904L Stainless Steel Flat Washers |
Hungary, Vietnam, Denmark, Estonia |
Main Applications Of 904L Stainless Steel Fasteners
Heavy Equipment
Automotive
Chemical
Power Generation
Shipbuilding
Construction
Aerospace
Oil & Gas
