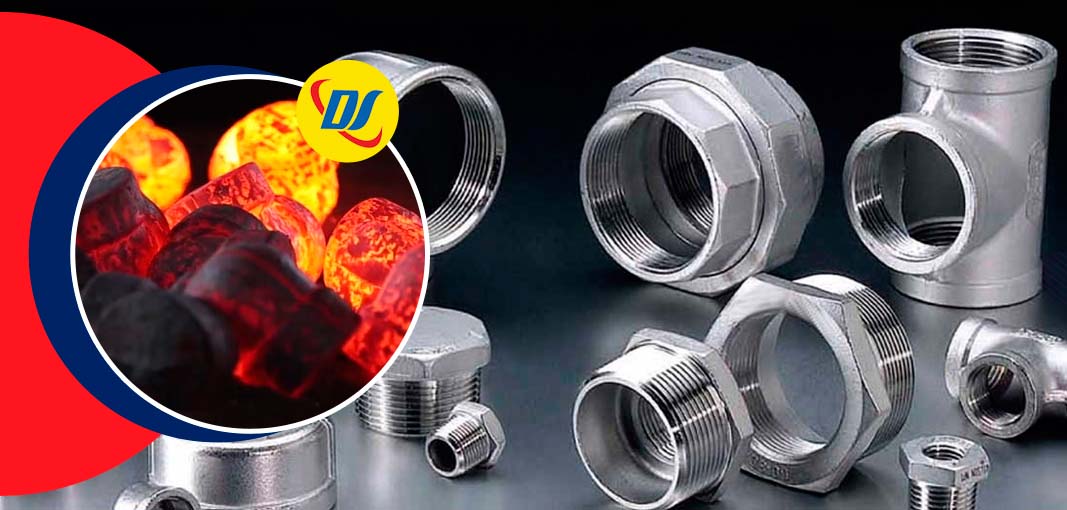

Duplex steel and engg co is an esteemed manufacturer,
exporter, and supplier of grade
347 / 347H stainless steel forged fittings. Stainless
steel grade 347 has excellent forming and welding qualities, and the
addition of columbium and tantalum provides exceptional intergranular
corrosion resistance. SS grade 347 / 347H Forged Fittings are columbium and
Tantalum stabilized, grade 347H is a high Carbon version being impervious to
embrittlement and stress corrosion cracking. Grade 347/347H forged fittings
perform better in high-temperature environments as compared to other alloy
grades.
Some of the vital properties of these grade 347
forged fittings are the thermal conductivity, electrical
resistivity, melting point, density, good flexibility, yield strength,
ultimate tensile strength, elongation, proof stress, and resistivity as
well. The hardenability of these Stainless Steel grade 347H Forged Fittings
can be reduced by the use of continuous slow speed and other factors.
SS 347 / 347H Forged Fittings can be used in functions
necessitating recurrent heating in the array of 427°Celsius to 899°Celsius.
SS 347 Forged Fittings, SS 347H Forged Fittings, 347 Stainless Steel Socket
weld Fittings, 347 Stainless Steel Threaded Pipe Fitting, SS 347 Forged
Fittings Suppliers in Mumbai, India.
SS 347 BSP Threaded Elbow, 347H SS Threaded 90 Deg Elbow, 347 Stainless Steel NPT
Threaded Elbow, SS 347H Forged Fittings, Stainless Steel 347H Forged Fittings
Manufacturers in India.
Stainless steel
347/347H Forged Fittings is made with different unique properties for
reliable performance in unexpected environments without any deformation to the fittings.
SS 347/ 347H Forged Fittings are used in numerous major Industrial applications such as
compression fittings, heat exchangers, condensers, chemical processing industries, food
processing industry, marine industry, pulp, and paper plants, petrochemicals, and
pharmaceutical.
SS 347H Forged Fittings have high tensile
strength, impact strength, and formability used in pressure vessels, boilers, furnaces,
and many other applications. These grade shows resilience to organic acid stabilized by
titanium and also used in cold work. Duplex steel and engg co eminently export supreme
quality 347 & 347H grade SS forged fittings of first-class value along with
commendable properties in cost-efficient value to global as well as local customers.
347 Stainless Steel High Pressure Fittings
Specifications
| Specifications |
ASTM A182 / ASME SA182 |
| Size |
1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Dimensions |
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Types |
Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure Rating |
Threaded End-2000lb/ 3000lb/ 6000lbs
Socket-weld End-3000/ 6000/ 9000lbs |
| Thread |
NPT, BSPT, BSPP |
| Test Certificates |
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc |
| Origin & Mills |
Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of |
90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples,
and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees
& Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1
and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE
MR0175 |
Types of Stainless Steel 347 Forged Pipe Fittings
347 Stainless Steel 90 Degree Socket Weld Elbow
347H SS Socket weld 45 Degree Elbow
SS 347H Forged NPT Threaded Tee
347 Stainless Steel Forged Cross
347H Stainless Steel Half Coupling
Stainless Steel 347 Full Coupling
Stainless Steel 347H Forged Cap
ASTM A182 347H Stainless Steel Forged Union
ANSI B16.11 347 Stainless Steel Forged Bushing
ASME SA182 SS 347H Forged Plug
Stainless Steel 347 Forged Nipple
Stainless Steel 347 Swage Nipple
347H Stainless Steel Street Elbow
Stainless Steel 347 Socket Weld Reducer Insert
ASME B16.11 Stainless Steel 347 Welding Boss
SS 347 Forged Fittings Equivalent Material
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
GOST |
EN |
| SS 347 |
1.4550 |
S34700 |
SUS 347 |
08Ch18N12B |
X6CrNiNb18-10 |
| SS 347H |
1.4961 |
S34709 |
SUS 347H |
– |
X6CrNiNb18-12 |
Stainless Steel 347 Forged Fittings Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Cb |
Ni |
Fe |
| SS 347 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
17.00 – 20.00 |
10xC – 1.10 |
9.00 – 13.00 |
62.74 min |
| SS 347H |
0.04 – 0.10 |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
17.00 – 19.00 |
8xC – 1.10 |
9.0 -13.0 |
63.72 min |
347 Stainless Steel Forged Fittings Mechanical Properties
| Density |
Melting Point |
Tensilee Strength
|
Yield Strength
(0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1454 °C (2650 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
SS 347 Coupling, SS 347H Threaded Fittings Manufacturer, SS 347 Forged Elbow, ASTM A182
F347 Stainless Steel Socket weld Fittings, SS 347 Screwed Fittings Suppliers in Mumbai.
If you are looking for best prices for 347H Stainless Steel Forged Fittings, SS
347 BSP Elbow, 347H Stainless Steel Union email us on info@duplexsteelalloys.com
or call us on +91 9664408767
Stainless Steel 347 Forged Fittings Price List
| Product |
Price |
| Custom Size 2000 LB, 1 1/2 Inch SS 347 Socket Weld Elbow Price |
US $ 0.5-1.0 / Piece |
| ASME B16.11 SS 347 Forged Socket weld Fittings Price |
US $ 1.00-4000.0 / Piece |
| 347H Stainless Steel Threaded Hex Nipple Price List |
US $ 3.0-50.0 / Piece |
| NPS 1/2 to 2 347H Stainless Steel Union Male x Female Price |
US $ 2.5-60.0 / Piece |
| ANSI B16.11 347 Stainless Steel 6 inch Forged Cap Price |
US $ 1-2000 / Piece |
| 347H Stainless Steel BSP Fittings |
US $ 1.2 / Piece |
| ASTM A182 Grade F04 Forged Pipe Fittings Price |
US $ 00.1-40 / Piece |
| ASME SA 182 F347 Stainless Steel Screwed Pipe Fittings 150lb Price List |
US $ 3.0-50.0 / Piece |
| 347 Stainless Steel End Cap Price List |
US $ 3.87 / Piece |
SS 347 Forged Pipe Fittings Dimensions
| DN |
NPS |
Center to End
NPT Elbow, NPT Tee, NPT Cross
A |
Center to End
45 Deg Elbow
C |
O.D.
of Band
H |
Min. Wall
Thick. G |
Length of
Thread.
Minimum (1) |
| Class 2000 |
Class 3000 |
Class 6000 |
Class 2000 |
Class 3000 |
Class 6000 |
Class 2000 |
Class 3000 |
Class 6000 |
Class 2000 |
Class 3000 |
Class 6000 |
B |
L2 |
| 6 |
1/8 |
21 |
21 |
25 |
17 |
17 |
19 |
22 |
22 |
25 |
3.18 |
3.18 |
6.35 |
6.4 |
6.7 |
| 8 |
1/4 |
21 |
25 |
28 |
17 |
19 |
22 |
22 |
25 |
33 |
3.18 |
3.30 |
6.60 |
8.1 |
10.2 |
| 10 |
3/8 |
25 |
28 |
33 |
19 |
22 |
25 |
25 |
33 |
38 |
3.18 |
3.51 |
6.98 |
9.1 |
10.4 |
| 15 |
1/2 |
28 |
33 |
38 |
22 |
25 |
28 |
33 |
38 |
46 |
3.18 |
4.09 |
8.15 |
10.9 |
13.6 |
| 20 |
3/4 |
33 |
38 |
44 |
25 |
28 |
33 |
38 |
46 |
56 |
3.18 |
4.32 |
8.53 |
12.7 |
13.9 |
| 25 |
1 |
38 |
44 |
51 |
28 |
33 |
35 |
46 |
56 |
62 |
3.68 |
4.98 |
9.93 |
14.7 |
17.3 |
| 32 |
1-1/4 |
44 |
51 |
60 |
33 |
35 |
43 |
56 |
62 |
75 |
3.89 |
5.28 |
10.59 |
17.0 |
18.0 |
| 40 |
1-1/2 |
51 |
60 |
64 |
35 |
43 |
44 |
62 |
75 |
84 |
4.01 |
5.56 |
11.07 |
17.8 |
18.4 |
| 50 |
2 |
60 |
64 |
83 |
43 |
44 |
52 |
75 |
86 |
102 |
4.27 |
7.14 |
12.09 |
19.0 |
19.2 |
| 65 |
2-1/2 |
76 |
83 |
95 |
52 |
52 |
64 |
92 |
102 |
121 |
5.61 |
7.65 |
15.29 |
23.6 |
28.9 |
| 85 |
3 |
86 |
95 |
106 |
64 |
64 |
79 |
109 |
121 |
146 |
5.99 |
8.84 |
16.64 |
25.9 |
30.5 |
| 100 |
4 |
106 |
114 |
114 |
79 |
79 |
79 |
146 |
152 |
152 |
6.55 |
11.18 |
18.67 |
27.7 |
33.0 |
| DN |
NPS |
End to End
Couplings
W |
End to End
Caps
P |
O.D. D |
End Wall
Thick.
G Minimum |
Length of
Thread.
Minimum (1) |
| Class 3000&Class 6000 |
Class 3000 |
Class 6000 |
Class 3000 |
Class 6000 |
Class 3000 |
Class 6000 |
B |
L2 |
| 6 |
1/8 |
32 |
19 |
… |
16 |
22 |
4.8 |
… |
6.4 |
6.7 |
| 8 |
1/4 |
35 |
25 |
27 |
19 |
25 |
4.8 |
6.4 |
8.1 |
10.2 |
| 10 |
3/8 |
38 |
25 |
27 |
22 |
32 |
4.8 |
6.4 |
9.1 |
10.4 |
| 15 |
1/2 |
48 |
32 |
33 |
28 |
38 |
6.4 |
7.9 |
10.9 |
13.6 |
| 20 |
3/4 |
51 |
37 |
38 |
35 |
44 |
6.4 |
7.9 |
12.7 |
13.9 |
| 25 |
1 |
60 |
41 |
43 |
44 |
57 |
9.7 |
11.2 |
14.7 |
17.3 |
| 32 |
1-1/4 |
67 |
44 |
46 |
57 |
64 |
9.7 |
11.2 |
17.0 |
18.0 |
| 40 |
1-1/2 |
79 |
44 |
48 |
64 |
76 |
11.2 |
12.7 |
17.8 |
18.4 |
| 50 |
2 |
86 |
48 |
51 |
76 |
92 |
12.7 |
15.7 |
19.0 |
19.2 |
| 65 |
2-1/2 |
92 |
60 |
64 |
92 |
108 |
15.7 |
19.0 |
23.6 |
28.9 |
| 80 |
3 |
108 |
65 |
68 |
108 |
127 |
19.0 |
22.4 |
25.9 |
30.5 |
| 100 |
4 |
121 |
68 |
75 |
140 |
159 |
22.4 |
28.4 |
27.7 |
33.0 |
347 Stainless Steel Forged Fitting
Pressure Rating
| ASME B16.11 Pressure-Temperature |
| Temperature |
Class |
| 150 |
300 |
| 1/4 - 1 inch. |
1 1/4 - 2 inch. |
2 1/2 - 3 inch. |
| (oF) |
(oC) |
| -20 to 150 |
-29 to 66 |
300 |
2000 |
1500 |
1000 |
| 200 |
93 |
265 |
1785 |
1350 |
910 |
| 250 |
121 |
225 |
1575 |
1200 |
825 |
| 300 |
149 |
185 |
1360 |
1050 |
735 |
| 350 |
177 |
150 |
1150 |
900 |
650 |
| 400 |
204 |
- |
935 |
750 |
560 |
| 450 |
232 |
- |
725 |
600 |
475 |
| 500 |
260 |
- |
510 |
450 |
385 |
| 550 |
288 |
- |
300 |
300 |
300 |
347 Stainless Steel Forged Fitting Tolerance
Chart
| ANSI B16.11 American Standard Dimensional Tolerances |
| "A" - Threaded Center To Bottom |
For Size
1/8" And 1/4" |
± 0.03" |
| 3/8", 1/2" And 3/4" |
± 0.06" |
| 1", 1-1/4", 1-1/2" And 2" |
± 0.08" |
| 2-1/2", 3", And 4" |
± 0.10" |
| "B" - Threaded Bore Diameter |
For Size
1-1/2" And Smaller |
+ 0.020"
- 0.000" |
| 2", 2-1/2", 3" And 4" |
+ 0.025"
- 0.000" |
| "C" - Threaded Wall Thick. |
Min. = 1.09 T (But Not Less Than 5/32")
T = Wall Thickness Of Nominal Pipe Sizes |
| "D" - Bore Diameter Of Pipe Fitting |
For Size
2" And Smaller |
± 0.030" |
| 2-1/2", 3" And 4" |
± 0.060" |
| "E" - Threadeds- Bottom To Bottom - Full Couplings |
For Size
1/8" And 1/4" |
± 0.06" |
| 3/8", 1/2" And 3/4" |
± 0.12" |
| 1", 1-1/4", 1-1/2" And 2" |
± 0.16" |
| 2-1/2", 3", And 4" |
± 0.20" |
| "F" - Bottom Of Threaded To Opposite Face - ANSI B16.11 Half
Couplings |
For Size
1/8" And 1/4" |
± 0.03" |
| 3/8", 1/2" And 3/4" |
± 0.06" |
| 1", 1-1/4", 1-1/2" And 2" |
± 0.08" |
| 2-1/2", 3", And 4" |
± 0.10" |
| "G" - Gap Of Welding |
Approx. 0.06"
Before Welding Recommended Gap |
| "H" - Min. Flat |
Min. Flat = 0.75 X Min.
Threaded Wall Thick. |
Ask Free Sample of SS 347 Forged Elbow, Tee, Coupling, Union Please Call +91 9664408767
Widest Range of Stainless Steel 347 Forged Fittings
in Mumbai, India.
- UNS S34709 Socket Weld Union
- SS 347 Forged Fittings Manufacturers in Mumbai
- SS 347 90 Degree Threaded Elbow
- 347H Stainless Steel 3000 LB Socket Weld Cap
- SS 347 Forged Fittings Manufacturer in Mumbai
- Stainless Steel 347H Reducing Coupling
- SS 347 Socket Weld Reducing Tee
- Stainless Steel 347H Threaded Half Coupling
- Stainless Steel 347 Forged Fittings Weight Chart
- Stainless Steel 347 Forged Fittings Price List
- Stainless Steel 347H Threaded Fittings Dimensions
- 347H Stainless Steel Screwed Fittings Manufacturers
- Stainless Steel 347 Forged Fittings Supplier in Mumbai
- Stainless Steel 347H Threaded 45 Deg Elbow
- UNS S34700 Forged Pipe Fittings
- Price Of 347 Stainless Steel Threaded Fittings
- 1.4961 Threaded Fittings
- Stainless Steel 347 Forged Elbow Price
- SS 347 Socket weld Elbow
- Stainless Steel Forged Fittings 347 Price in India
- 347 Stainless Steel Threaded Full Coupling
- SS 347 Forged Fittings Supplier in India
- Stainless Steel 347H Forged Fittings Supplier in India
- SS 347H Forged Fittings Suppliers in Mumbai
- 347H SS Forged Fittings Manufacturers in India
- ASTM A182 347 SS BS 304S31 Threaded Union
- 347 Stainless Steel Industrial Forged Fittings
- Stainless Steel 347H NPT Threaded Street Elbow
- SS 347 Socket weld Reducing Cross
- Stainless Steel 347H Forged Fittings Price List in India
- Stainless Steel 347 Reducer Inserts
- Stainless Steel 347H Forged Fitting Stockist
- 347 Stainless Steel BSPT Elbow Price
- ASME SA182 F347 Stainless Steel Forged Cap
- Cost Of 347H Stainless Steel Forged Hex Nipple
- 347 Stainless Steel Coupling Price List
- Stainless Steel 347 Forged Fittings Supplier in India
- ASTM A182 F347 High Pressure Forged Fittings
- 347H Stainless Steel 45 Degree NPT Elbow
- 347H Stainless Steel Hex Head Bushing Price in India
- 347H Stainless Steel Threaded Square Plug
- ASME B16.11 Stainless Steel 347H Threaded Plug
- SS 347 Forged Eccentric Swage Nipple
- 1.4961 NPT Threaded Pipe Fittings Exporter
- 1.4550 Forged Equal Cross Stockists
- Stainless Steel 347 Class 6000 Forged Fittings
- SUS 347 Stainless Steel Forged Fittings Price
- Stainless Steel 347 Threaded Adapter
- Class 3000, SW, 2 Inch 347 SS Forged Steel Fittings
- 347 Stainless Steel Socket weld Boss
- SS 347 Class 6000 Socket Weld Fittings
- SS 347H BSP Threaded Forged Fittings
Tests of ASTM A182 F347 Stainless Steel Forged Pipe
Fittings
Before being prepared for shipment to the customer, ASTM A182
F347 Stainless Steel Threaded Forged Fittings Testing should be constructed in
accordance with applicable standards and thoroughly tested for potential flaws.
Stainless Steel 347 Forged Fittings - Comparing International Standards
| USA |
France |
Germany |
Germany |
Italy |
Japan |
Russia |
Spain |
Sweden |
UK |
European Union |
| AISI |
AFNOR |
DIN 17006 |
W.N. 17007 |
UNI |
JIS |
GOST |
UNE |
SIS |
BSI |
EURONORM |
| 347 |
Z 6 CNNb 18-10 |
X 6 CrNiNb 18 10 |
1.4550 |
X 6 CrNiNb 1811 |
SUS 347 |
|
X 6 CrNiNb 18-11 |
23 38 |
347S31 |
X 6 CrNiNb 18 10 |
| 347H |
|
|
|
X 8 CrNiNb 1811 |
SUS F 347H |
|
X 7 CrNiNb 18-11 |
|
|
|
best offer & competitive quotation
347H Stainless Steel Forged Pipe Fittings Supply
in Below Countries
| Products We Supplied |
Description |
Country |
| Stainless Steel 347H Forged 90° Elbow |
UNS S34709 2000 LB, 1 1/2 Inch 90 Deg Elbow Supply |
Romania, UAE, Europe, Norway |
| Stainless 347H Forged Unequal Tee |
1/2 Inch, ASME B16.11 SS 347 Socket Weld Tee |
Saudi Arabia, Vietnam, Thailand, Indonesia |
| Stainless Steel 347 Threaded Equal Tee |
4 Inch UNS S34700 NPT Threaded Tee |
Philippines, Taiwan, Kuwait, South Africa |
| Stainless Steel 347H Forged Socket Weld Elbow |
3 Inch ASME B16.11 347H SS SW Elbow |
Canada, Australia, Nigeria, Ellington -United States |
| ASTM A182 347H Stainless Steel Socket weld Reducing Tee |
3000#, 4 Inch, Threaded SS 347 Pipe Coupling |
France, Mexico, Egypt, Malaysia |
| SS 347 Forged Pipe Coupling |
1.4961 CL3000, DN25, B16.11, Socket Reducing Tee |
Turkey, Morocco, Egypt, Canada, Germany |
| 347H Stainless Steel NPT Threaded Pipe Fittings |
8 Inch UNS S34709 Forged Threaded Fittings |
Colombia, Tunisia, Mongolia, Ukraine |
| 347H Stainless Steel Socket weld Half Coupling |
2-1/2 INCH 3000 LB 1/2 SW Half Coupling |
Netherlands, Venezuela, Belgium, Jordan, UK |
| SS 347H Screwed Bushing |
1/2 inch ASME SS182 347H Threaded Bushing |
Finland, Maldives, Singapore, Uruguay, Costa Rica |
Common Application for 347H Stainless Steel
Forged Pipe Fittings
Oil & Gas
Chemical
Power Generation
Aerospace
Heavy Equipment
Automotive
Shipbuilding
Construction
